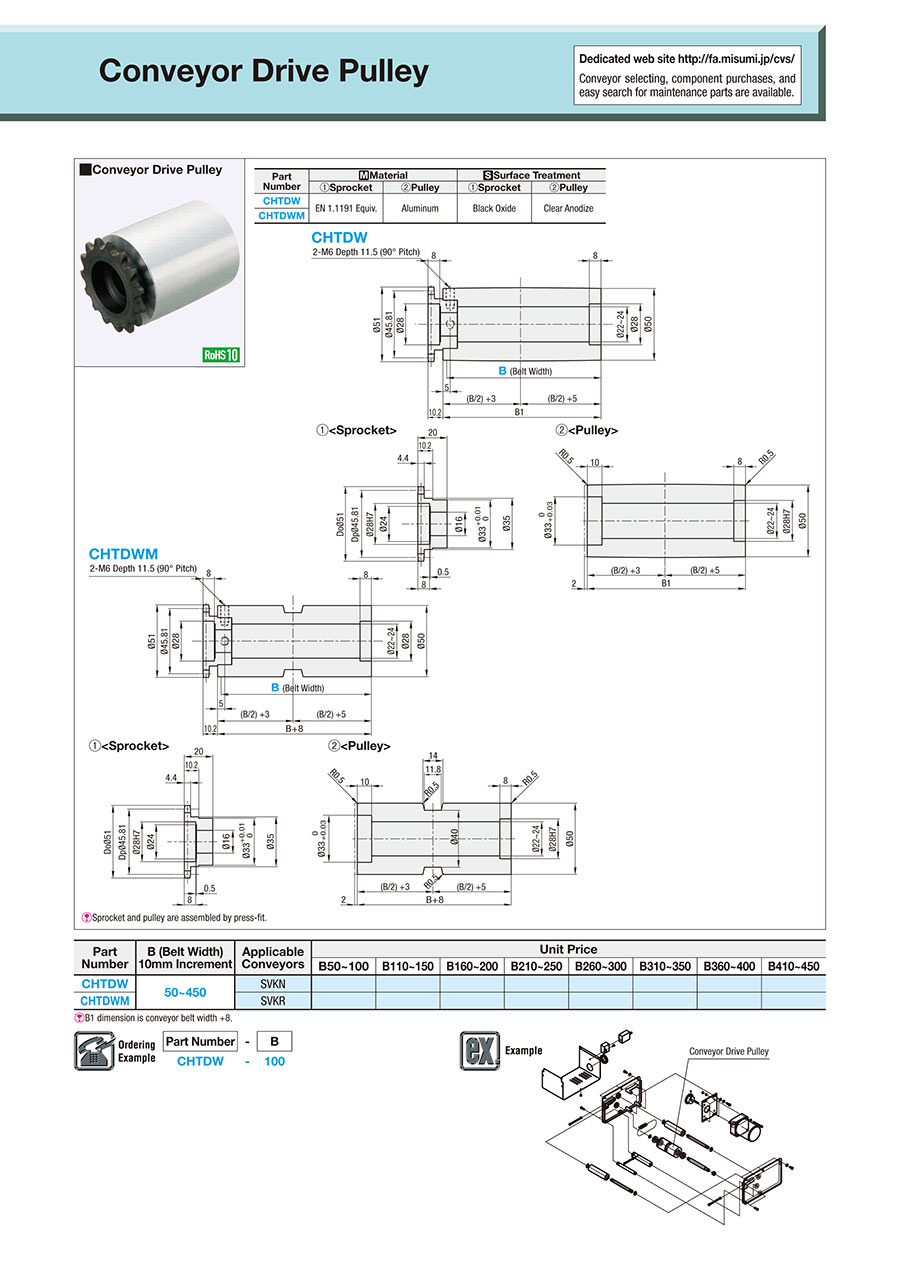

Conveyor Drive Pulley
[Features] This is a drive roller for conveyors. -Compatible conveyors (No.) are CVSMB, SVKN and SVKR.
(i)Remark
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| Part Number | Material | Surface Treatment | ||
| Sprocket | Pulley | Sprocket | Pulley | |
| CHTDW | EN 1.1191 Equiv. | Aluminum | Black Oxide | Clear Anodize |
| CHTDWM | ||||
Specifications
| Part Number | - | B |
| CHTDW | - | 100 |
| Part Number | B (Belt Width) 10mm Increment | Applicable Conveyors | Unit Price | |||||||
| B50~100 | B110~150 | B160~200 | B210~250 | B260~300 | B310~350 | B360~400 | B410~450 | |||
| CHTDW | 50~450 | SVKN | ||||||||
| CHTDWM | SVKR | |||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| CHTDW-[50-450/10] |
| CHTDWM-[50-450/1] |
| CHTDWT-[50-450/10] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Compatible Conveyors (No.) | Belt Width [B] (mm) | |
|---|---|---|---|---|---|---|
| 1 | 12 Days | 10 | SVKN | 50 ～ 450 | ||
| 1 | 12 Days | 10 | SVKR | 50 ～ 450 | ||
| 1 | 12 Days | 10 | CVSMB | 50 ～ 450 |
Loading...
Example of Use
Basic information
| Type | Pulleys and Idlers for Conveyor |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
