90┬░ Air Nozzles / Wide
Mouse over image to enlarge
- Unit price (excl. VAT)
- 28.96 €
- Total (excl. VAT)
- 28.96 €Price including VAT: 34.46 €
- Expected shipping days
- Stock item: 1 working dayExpected shipping date: 05.05.2025
| Quantity | 1 - 108 | 109 - 200 | 201+ |
|---|---|---|---|
| Unit price (excluding VAT) (Unit price including VAT) | 28.96 € (34.46 €) | 28.96 € (34.46 €) | 13.85 € (16.48 €) |
| Shipping days | Same day | Quote | Quote |
- * Information on days to ship, shipping costs and prices

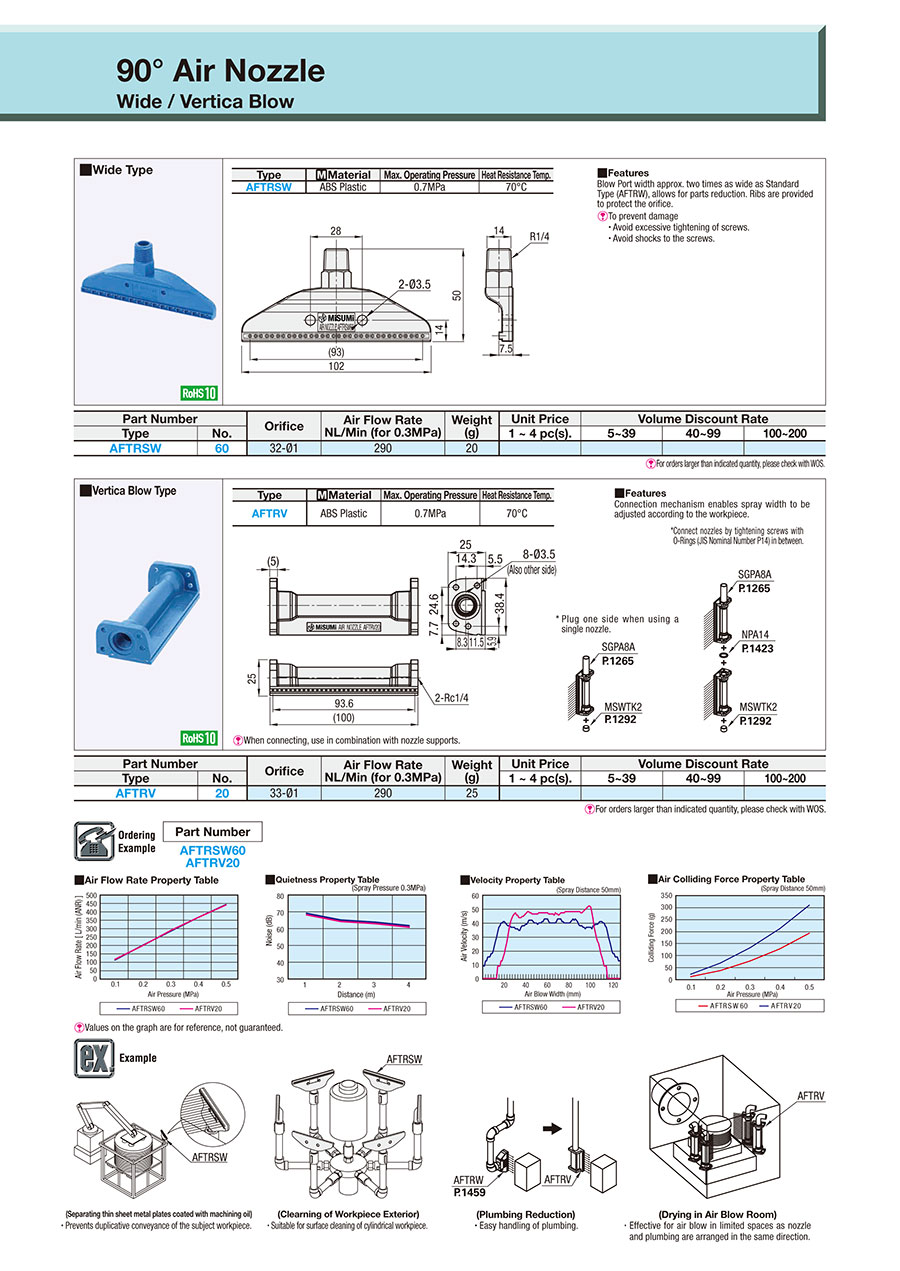

Outline drawing and specifications table
| Type | Material | Max. Operating Pressure | Heat Resistance Temp. |
| AFTRSW | ABS Plastic | 0.7MPa | 70°C |
Specifications
| Part Number |
| AFTRSW60 AFTRV20 |
| Part Number | Orifice | Air Flow Rate NL/Min (for 0.3MPa) | Weight (g) | Unit Price | Volume Discount Rate | |||
| Type | No. | 1 ~ 4 pc(s). | 5~39 | 40~99 | 100~200 | |||
| AFTRSW | 60 | 32-Ø1 | 290 | 20 | ||||
