Angle Adjustment Bracket Single Article
Mouse over image to enlarge
Part number:

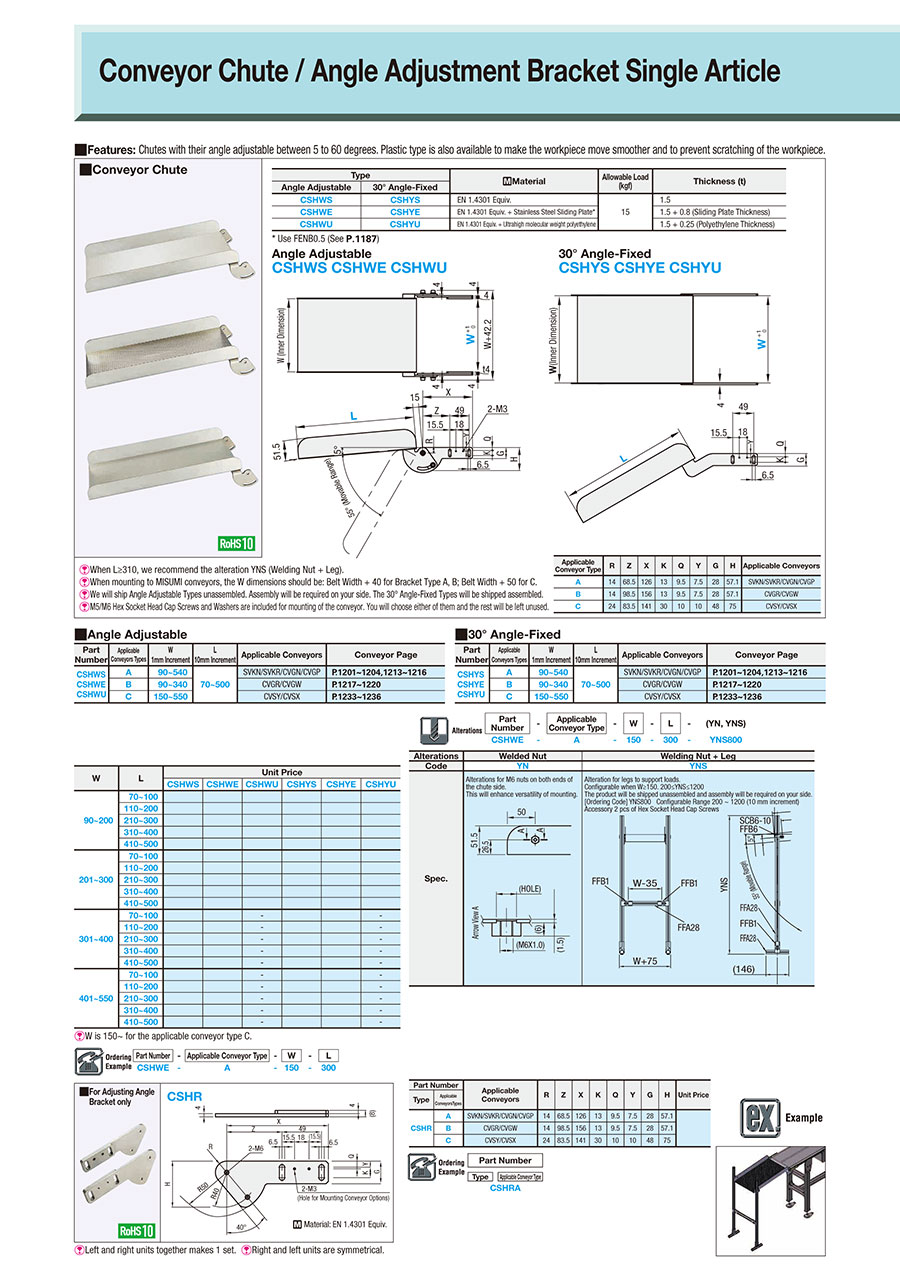

possible part numbers found.Outline drawing and specifications table
CSHR
[ ! ] Left and right units together makes 1 set.
[ ! ] Right and left units are symmetrical.
[ ! ] Left and right units together makes 1 set.
[ ! ] Right and left units are symmetrical.
| [M] Material | EN 1.4301 Equiv. |
Specification Table
| Part Number |
| CSHRA |
| Part Number | Applicable Conveyors | R | Z | X | K | Q | Y | G | H | |
| Type | Applicable Conveyors Type | |||||||||
| CSHR | A | SVKN/SVKR/GVHN/GVFN | 14 | 68.5 | 126 | 13 | 9.5 | 7.5 | 28 | 57.1 |
| B | GVHN/GVFN | 14 | 98.5 | 156 | 13 | 9.5 | 7.5 | 28 | 57.1 | |
| C | GVHN/GVFN/CVSY/CVSX | 24 | 83.5 | 141 | 30 | 10 | 10 | 48 | 75 | |
More Information
Basic information
[Features]This is an angle adjustment bracket for conveyor slides. [Material]EN 1.4301 Equiv. (sintered).
Outline and specifications
App. Example
