Contact Switches with Stoppers / Flanged Cylinder / IP67

Contact Switches with Stoppers / Flanged Cylinder / IP67 MSWF-LD

Mouse over image to enlarge

  • Contact Switches with Stoppers / Flanged Cylinder / IP67
  • Contact Switches with Stoppers / Flanged Cylinder / IP67

Part number:

MSWF-LD
Clear
  • Unit price (excl. VAT)
    52.77 €
  • Total (excl. VAT)
    52.77 €
    Price including VAT: 62.80 €
  • Expected shipping days
    5 working days
    Expected shipping date: 15.05.2025
Quantity:
Quantity available for order?36
Quantity
?
1 - 910 - 3637+
Unit price (excluding VAT)
(Unit price including VAT)
52.77 €
(62.80 €)
50.00 €
(59.50 €)
50.00 €
(59.50 €)
Shipping days5 days5 daysQuote

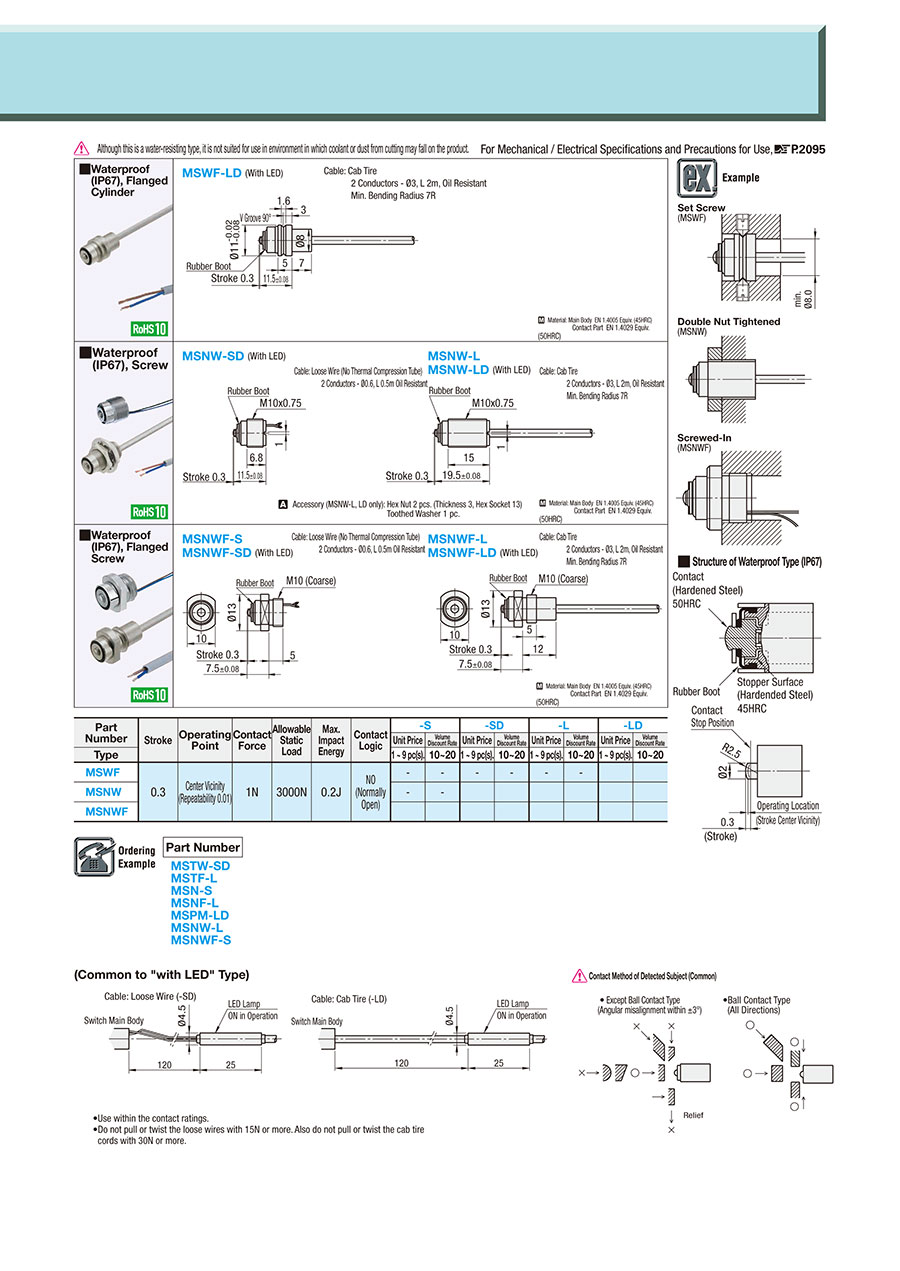

Outline drawing and specifications table

MSWF－LD (With LED)

Cable: Cab Tire
2 Conductors - ø3, L 2 m, Oil Resistant
Min. Bending Radius 7R

Contact Switches With Stoppers - Mini, Water-Proof, Flanged Standard: Related Image
[M]Material Main Body: EN 1.4005 Equiv.(45HRC)
      Contact Part: EN 1.4029 Equiv.(50HRC)

Specification Table

Part Number
MSTW−SD
MSTF−L
MSN−S
MSNF−L
MSPM−LD
MSNW−L
MSNWF−S
Part NumberStrokeOperating PointContact ForceAllowable Static LoadShock Resistance
Energy		Contact Logic
Type
MSWF0.3Stroke
Center Vicinity
(Repeatability 0.01)		1 N3000 N0.2JNO
(Normally Open)
MSNW
MSNWF

Part number list

Number of items
  • 1
    • Part number
    MSWF-LD
    RoHS?Minimum order quantity
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    52.77 €
    ( 62.80 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] This is a pin-stroke type, spring plunger type, with a stopper.

    Outline and specifications

    Specifications/Overview


    (Common to "with LED" Type)
    " ! " Contact Method of Detected Subject (Common)



    Cable: Loose Wire (－SD) Cable: Cab Tire (－LD) ·Ball Contact Type
     Except (Declination within ±3°)     ·Ball Contact Type
     (All Orientations)
    ·Use within the contact ratings.

    ·Do not pull or twist the loose wires with 15 N or more. Also do not pull or twist the cab tire cords with 30N or more.

    [ ! ] Use under 24 V DC/10 mA or less. Contact Switches With Stoppers - Mini, Water-Proof, Flanged Standard: Related Image

    App. Example

    Set Screw
    (MSWF)    Double Nut Tightened
    (MSNW)    Screw-In
    (MSNWF)    ■Structure of Waterproof Type (IP67)
    Contact
    (Hardened Steel)    Contact Switches With Stoppers - Mini, Water-Proof, Flanged Standard: Related Image
