Contact Switches / Ball Plunger / IP40
Mouse over image to enlarge
Part number:
possible part numbers found.Outline drawing and specifications table
| MSPB N－MSPB－D(With LED) | Switch Main Body | |
 |  |
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
| Ball | Main Body | Cable | Accessory | |
| Material | Hardness | Material | ||
| EN 1.4125 Equiv. | 50 to 55HRC | EN 1.4305 Equiv. | Cable 2 m, 2-Conductors ø3, Oil Resistant Min. Bending Radius R7 | Hex Nut 2 pcs. (Coarse Thread JIS Class 3) Toothed Washer 1 pc. |
Specification Table
| Part Number |
| MSPSS6 MSPB6 N−MSPB−D6F |
| Part Number | M (Coarse) | Stroke S | Operating Point | Operating Point Repeatability | Contact Force N | Contact Logic | L | d | B | ||
| Type | No. | min. | max. | ||||||||
| MSPB N−MSPB−D | 6 | 6 | 0.8 | 0.3 | 0.01 | 6 | 13 | NO (Normally Open) | 32 | 3 | 5 |
| 6F | 1 | ||||||||||
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
34.52 € ( 41.08 € ) | Stock item: 1 working dayAvailable for same-day shipping |
27.33 € ( 32.52 € ) | Stock item: 1 working dayAvailable for same-day shipping |
32.36 € ( 38.51 € ) | Stock item: 1 working dayAvailable for same-day shipping |
32.36 € ( 38.51 € ) | Stock item: 1 working dayAvailable for same-day shipping |
More Information
Basic information

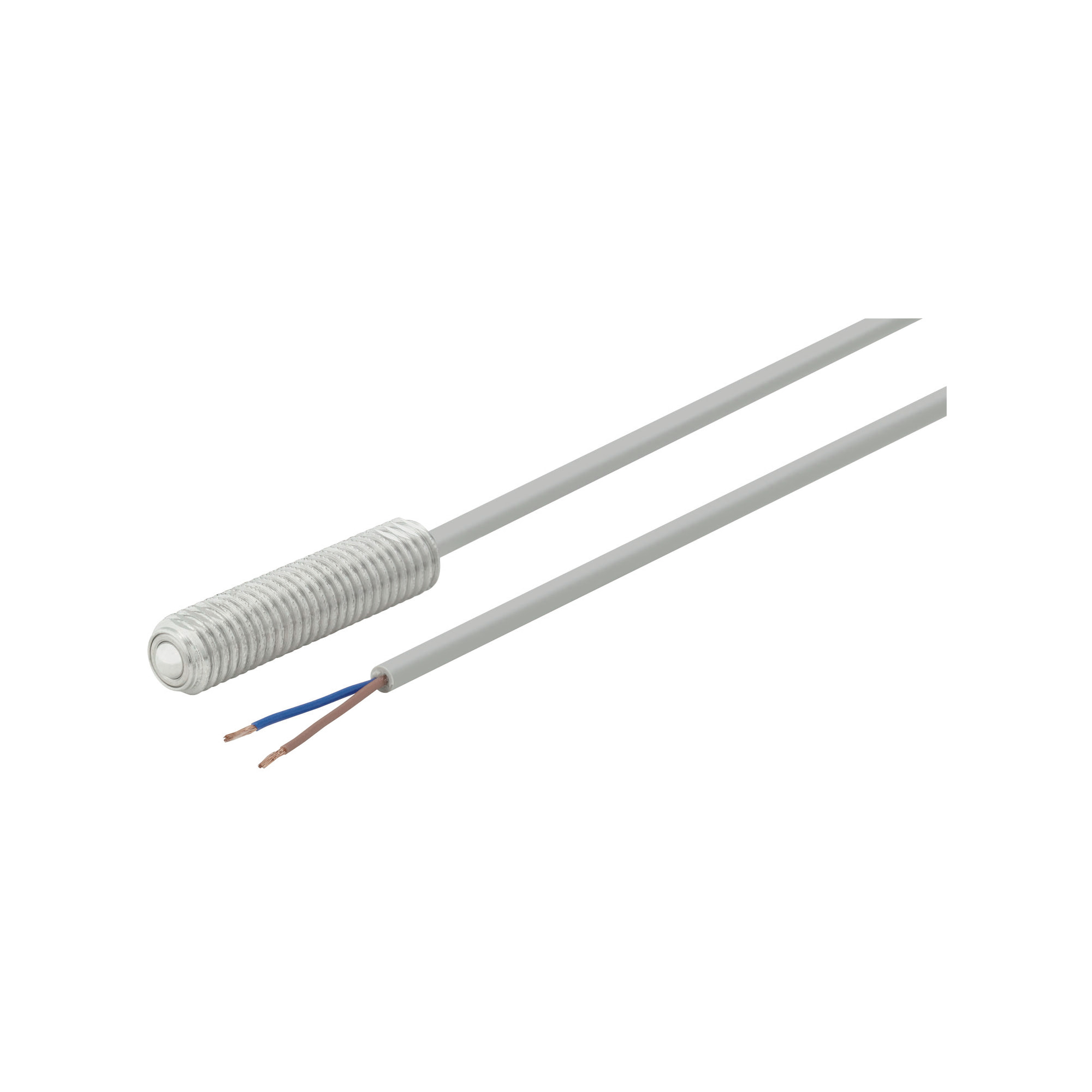

This is a positioning switch, ball plunger type. [Material]EN 1.4305 Equiv..
Outline and specifications
Specifications/Overview
[ ! ] Possible to contact objects in all directions.
[ ! ] Care must be taken for the object not to hit the switch body before hitting the operating point.
