Lubrication-Free Slide Plate (STRL/STRLU/STRLUP/STRLT), Copper Alloy (Upper and Lower Surfaces Polished) Type

Configure

Stock
Show stock items only

Accessories Bolts

Width W(mm)

Overall Length L(mm)

Plate Thickness(mm)

Type

CAD

Est. shipping days

All
Same-day shipping possible
Within 5 working days

MISUMI

Lubrication-Free Slide Plate (STRL/STRLU/STRLUP/STRLT), Copper Alloy (Upper and Lower Surfaces Polished) Type

Click image to view enlarged image

CatalogP.1-660

Part number:

Still undefined. 125 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information

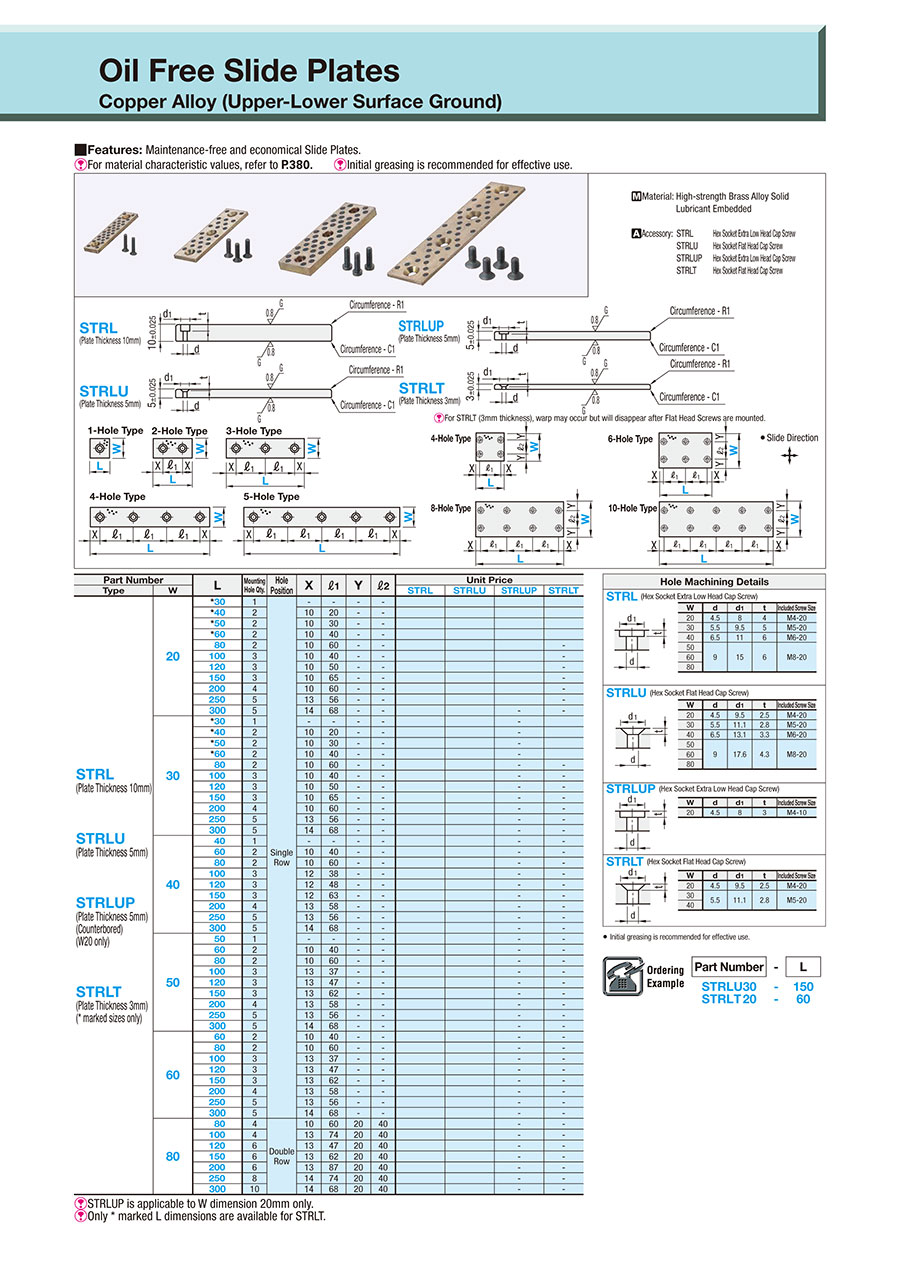

Catalog

Outline drawing and specifications table

Oil Free Slide Plates/Copper Alloy (Upper-Lower Surface Ground):Related Image

Material: High-strength Brass Alloy Solid Lubricant Embedded
Accessory: STRL　 Hex Socket Extra Low Head Cap Screw
STRLU　 Hex Socket Flat Head Cap Screw
STRLUP　 Hex Socket Extra Low Head Cap Screw
STRLT　 Hex Socket Flat Head Cap Screw

Specifications

Part Number	-	L
STRLU30 STRLT20	- -	150 60

Part Number		L	Mounting Hole Qty.	Hole Position	X	ℓ ₁	Y	ℓ ₂	Unit Price
Type	W	L	Mounting Hole Qty.	Hole Position	X	ℓ ₁	Y	ℓ ₂	STRL	STRLU	STRLUP	STRLT
STRL (Plate Thickness 10mm) STRLU (Plate Thickness 5mm) STRLUP (Plate Thickness 5mm) (Counterbored) (W20 only) STRLT (Plate Thickness 3mm) (* marked sizes only)	20	*30	1	Single Row	-	-	-	-
		*40	2		10	20	-	-
		*50	2		10	30	-	-
		*60	2		10	40	-	-
		80	2		10	60	-	-				-
		100	3		10	40	-	-				-
		120	3		10	50	-	-				-
		150	3		10	65	-	-				-
		200	4		10	60	-	-				-
		250	5		13	56	-	-				-
		300	5		14	68	-	-			-	-
	30	*30	1		-	-	-	-			-
		*40	2		10	20	-	-			-
		*50	2		10	30	-	-			-
		*60	2		10	40	-	-			-
		80	2		10	60	-	-			-	-
		100	3		10	40	-	-			-	-
		120	3		10	50	-	-			-	-
		150	3		10	65	-	-			-	-
		200	4		10	60	-	-			-	-
		250	5		13	56	-	-			-	-
		300	5		14	68	-	-			-	-
	40	40	1		-	-	-	-			-	-
		60	2		10	40	-	-			-	-
		80	2		10	60	-	-			-	-
		100	3		12	38	-	-			-	-
		120	3		12	48	-	-			-	-
		150	3		12	63	-	-			-	-
		200	4		13	58	-	-			-	-
		250	5		13	56	-	-			-	-
		300	5		14	68	-	-			-	-
	50	50	1		-	-	-	-			-	-
		60	2		10	40	-	-			-	-
		80	2		10	60	-	-			-	-
		100	3		13	37	-	-			-	-
		120	3		13	47	-	-			-	-
		150	3		13	62	-	-			-	-
		200	4		13	58	-	-			-	-
		250	5		13	56	-	-			-	-
		300	5		14	68	-	-			-	-
	60	60	2		10	40	-	-			-	-
		80	2		10	60	-	-			-	-
		100	3		13	37	-	-			-	-
		120	3		13	47	-	-			-	-
		150	3		13	62	-	-			-	-
		200	4		13	58	-	-			-	-
		250	5		13	56	-	-			-	-
		300	5		14	68	-	-			-	-
	80	80	4	Double Row	10	60	20	40			-	-
		100	4		13	74	20	40			-	-
		120	6		13	47	20	40			-	-
		150	6		13	62	20	40			-	-
		200	6		13	87	20	40			-	-
		250	8		14	74	20	40			-	-
		300	10		14	68	20	40			-	-

STRLUP is applicable to W dimension 20mm only.
Only * marked L dimensions are available for STRLT.

Part number list

Number of items

Part number

Accessories Bolts

Width W

(mm)

Overall Length L

(mm)

Plate Thickness

(mm)

Minimum order quantity

Hex Socket Low Head Cap Screws	20	30	10	1 pieces
Hex Socket Low Head Cap Screws	20	40	10	1 pieces
Hex Socket Low Head Cap Screws	20	50	10	1 pieces
Hex Socket Low Head Cap Screws	20	60	10	1 pieces
Hex Socket Low Head Cap Screws	20	80	10	1 pieces
Hex Socket Low Head Cap Screws	20	100	10	1 pieces
Hex Socket Low Head Cap Screws	20	120	10	1 pieces
Hex Socket Low Head Cap Screws	20	150	10	1 pieces
Hex Socket Low Head Cap Screws	20	200	10	1 pieces
Hex Socket Low Head Cap Screws	20	250	10	1 pieces
Hex Socket Low Head Cap Screws	20	300	10	1 pieces
Hex Socket Low Head Cap Screws	30	30	10	1 pieces
Hex Socket Low Head Cap Screws	30	40	10	1 pieces
Hex Socket Low Head Cap Screws	30	50	10	1 pieces
Hex Socket Low Head Cap Screws	30	60	10	1 pieces
Hex Socket Low Head Cap Screws	30	80	10	1 pieces
Hex Socket Low Head Cap Screws	30	100	10	1 pieces
Hex Socket Low Head Cap Screws	30	120	10	1 pieces
Hex Socket Low Head Cap Screws	30	150	10	1 pieces
Hex Socket Low Head Cap Screws	30	200	10	1 pieces
Hex Socket Low Head Cap Screws	30	250	10	1 pieces
Hex Socket Low Head Cap Screws	30	300	10	1 pieces
Hex Socket Low Head Cap Screws	40	40	10	1 pieces
Hex Socket Low Head Cap Screws	40	60	10	1 pieces
Hex Socket Low Head Cap Screws	40	80	10	1 pieces
Hex Socket Low Head Cap Screws	40	100	10	1 pieces
Hex Socket Low Head Cap Screws	40	120	10	1 pieces
Hex Socket Low Head Cap Screws	40	150	10	1 pieces
Hex Socket Low Head Cap Screws	40	200	10	1 pieces
Hex Socket Low Head Cap Screws	40	250	10	1 pieces
Hex Socket Low Head Cap Screws	40	300	10	1 pieces
Hex Socket Low Head Cap Screws	50	50	10	1 pieces
Hex Socket Low Head Cap Screws	50	60	10	1 pieces
Hex Socket Low Head Cap Screws	50	80	10	1 pieces
Hex Socket Low Head Cap Screws	50	100	10	1 pieces
Hex Socket Low Head Cap Screws	50	120	10	1 pieces
Hex Socket Low Head Cap Screws	50	150	10	1 pieces
Hex Socket Low Head Cap Screws	50	200	10	1 pieces
Hex Socket Low Head Cap Screws	50	250	10	1 pieces
Hex Socket Low Head Cap Screws	50	300	10	1 pieces
Hex Socket Low Head Cap Screws	60	60	10	1 pieces
Hex Socket Low Head Cap Screws	60	80	10	1 pieces
Hex Socket Low Head Cap Screws	60	100	10	1 pieces
Hex Socket Low Head Cap Screws	60	120	10	1 pieces
Hex Socket Low Head Cap Screws	60	150	10	1 pieces
Hex Socket Low Head Cap Screws	60	200	10	1 pieces
Hex Socket Low Head Cap Screws	60	250	10	1 pieces
Hex Socket Low Head Cap Screws	60	300	10	1 pieces
Hex Socket Low Head Cap Screws	80	80	10	1 pieces
Hex Socket Low Head Cap Screws	80	100	10	1 pieces
Hex Socket Low Head Cap Screws	80	120	10	1 pieces
Hex Socket Low Head Cap Screws	80	150	10	1 pieces
Hex Socket Low Head Cap Screws	80	200	10	1 pieces
Hex Socket Low Head Cap Screws	80	250	10	1 pieces
Hex Socket Low Head Cap Screws	80	300	10	1 pieces
Hex Socket Flat Head Cap Screws	20	30	3	1 pieces
Hex Socket Flat Head Cap Screws	20	40	3	1 pieces
Hex Socket Flat Head Cap Screws	20	50	3	1 pieces
Hex Socket Flat Head Cap Screws	20	60	3	1 pieces
Hex Socket Flat Head Cap Screws	30	30	3	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

11.83 € ( 14.08 € )	5 working days
16.12 € ( 19.18 € )	Stock item: 1 working dayAvailable for same-day shipping
18.40 € ( 21.90 € )	5 working days
19.78 € ( 23.54 € )	5 working days
22.30 € ( 26.54 € )	Stock item: 1 working dayAvailable for same-day shipping
24.05 € ( 28.62 € )	5 working days
28.46 € ( 33.87 € )	5 working days
32.87 € ( 39.12 € )	5 working days
44.33 € ( 52.75 € )	5 working days
57.31 € ( 68.20 € )	5 working days
74.30 € ( 88.42 € )	5 working days
12.08 € ( 14.38 € )	5 working days
17.39 € ( 20.69 € )	5 working days
18.77 € ( 22.34 € )	5 working days
21.02 € ( 25.01 € )	5 working days
22.30 € ( 26.54 € )	5 working days
24.18 € ( 28.77 € )	5 working days
29.73 € ( 35.38 € )	5 working days
32.23 € ( 38.35 € )	5 working days
41.18 € ( 49.00 € )	5 working days
53.27 € ( 63.39 € )	5 working days
83.50 € ( 99.36 € )	5 working days
18.51 € ( 22.03 € )	5 working days
22.30 € ( 26.54 € )	5 working days
28.46 € ( 33.87 € )	5 working days
32.13 € ( 38.23 € )	5 working days
34.64 € ( 41.22 € )	5 working days
38.04 € ( 45.27 € )	5 working days
51.63 € ( 61.44 € )	5 working days
64.49 € ( 76.74 € )	5 working days
95.72 € ( 113.91 € )	5 working days
24.56 € ( 29.23 € )	5 working days
28.46 € ( 33.87 € )	5 working days
30.98 € ( 36.87 € )	5 working days
32.74 € ( 38.96 € )	5 working days
35.90 €16.87 € ( 20.08 € )	Stock item: 1 working dayAvailable for same-day shipping
39.04 € ( 46.46 € )	5 working days
52.00 € ( 61.88 € )	5 working days
65.61 € ( 78.08 € )	5 working days
69.14 € ( 82.28 € )	Stock item: 1 working dayAvailable for same-day shipping
34.64 € ( 41.22 € )	5 working days
37.78 € ( 44.96 € )	5 working days
40.30 € ( 47.96 € )	5 working days
43.20 € ( 51.41 € )	Stock item: 1 working dayAvailable for same-day shipping
45.59 € ( 54.25 € )	5 working days
59.70 € ( 71.04 € )	5 working days
81.61 € ( 97.12 € )	5 working days
125.06 € ( 148.82 € )	5 working days
43.06 € ( 51.24 € )	5 working days
47.99 € ( 57.11 € )	5 working days
48.61 € ( 57.85 € )	5 working days
59.70 € ( 71.04 € )	5 working days
87.01 € ( 103.54 € )	5 working days
108.81 € ( 129.48 € )	5 working days
156.41 € ( 186.13 € )	Stock item: 1 working dayAvailable for same-day shipping
28.96 € ( 34.46 € )	Stock item: 1 working dayAvailable for same-day shipping
36.27 € ( 43.16 € )	Stock item: 1 working dayAvailable for same-day shipping
41.68 € ( 49.60 € )	Stock item: 1 working dayAvailable for same-day shipping
46.47 € ( 55.30 € )	Stock item: 1 working dayAvailable for same-day shipping
32.74 € ( 38.96 € )	5 working days

Basic information
Outline and specifications

Basic information

[Features] Maintenance-free and economical sliding plate.

Outline and specifications
