Oil Free Slide Plates / Copper Alloy (Upper-Lower Surface Ground)
Part number:
possible part numbers found.Outline drawing and specifications table
Material: High-strength Brass Alloy Solid Lubricant Embedded
Accessory: Included Flat Head Screw
Specifications
| Part Number | W | - | L | |
| UTW | 75 | - | 100 |
| Part Number | W | L | Mounting Hole Type | ℓ | ℓ 1 | Unit Price |
| UTW | 28 | 50 | 2 Holes | 20 | - | |
| 75 | 45 | |||||
| 100 | 70 | |||||
| 150 | 3 Holes | 60 | ||||
| 38 | 50 | 2 Holes | 20 | - | ||
| 75 | 45 | |||||
| 100 | 70 | |||||
| 150 | 3 Holes | 60 | ||||
| 48 | 75 | 2 Holes | 45 | - | ||
| 100 | 70 | |||||
| 125 | 95 | |||||
| 150 | 3 Holes | 60 | ||||
| 75 | 75 | 4 Holes | 45 | 45 | ||
| 100 | 70 | |||||
| 125 | 95 | |||||
| 150 | 6 Holes | 60 | ||||
| 100 | 100 | 4 Holes | 70 | 70 | ||
| 125 | 95 | |||||
| 150 | 6 Holes | 60 |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
16.00 € ( 19.04 € ) | Quote |
19.03 € ( 22.65 € ) | Quote |
21.75 € ( 25.88 € ) | Quote |
28.33 € ( 33.71 € ) | Quote |
18.62 € ( 22.16 € ) | Quote |
21.48 € ( 25.56 € ) | Quote |
25.32 € ( 30.13 € ) | Quote |
34.91 € ( 41.54 € ) | Quote |
22.98 € ( 27.35 € ) | Quote |
25.85 € ( 30.76 € ) | Quote |
32.43 € ( 38.59 € ) | Quote |
36.53 € ( 43.47 € ) | Quote |
30.10 € ( 35.82 € ) | Quote |
35.15 € ( 41.83 € ) | Quote |
42.55 € ( 50.63 € ) | Quote |
49.96 € ( 59.45 € ) | Quote |
46.52 € ( 55.36 € ) | Quote |
54.18 € ( 64.47 € ) | Quote |
65.12 € ( 77.49 € ) | Quote |
More Information

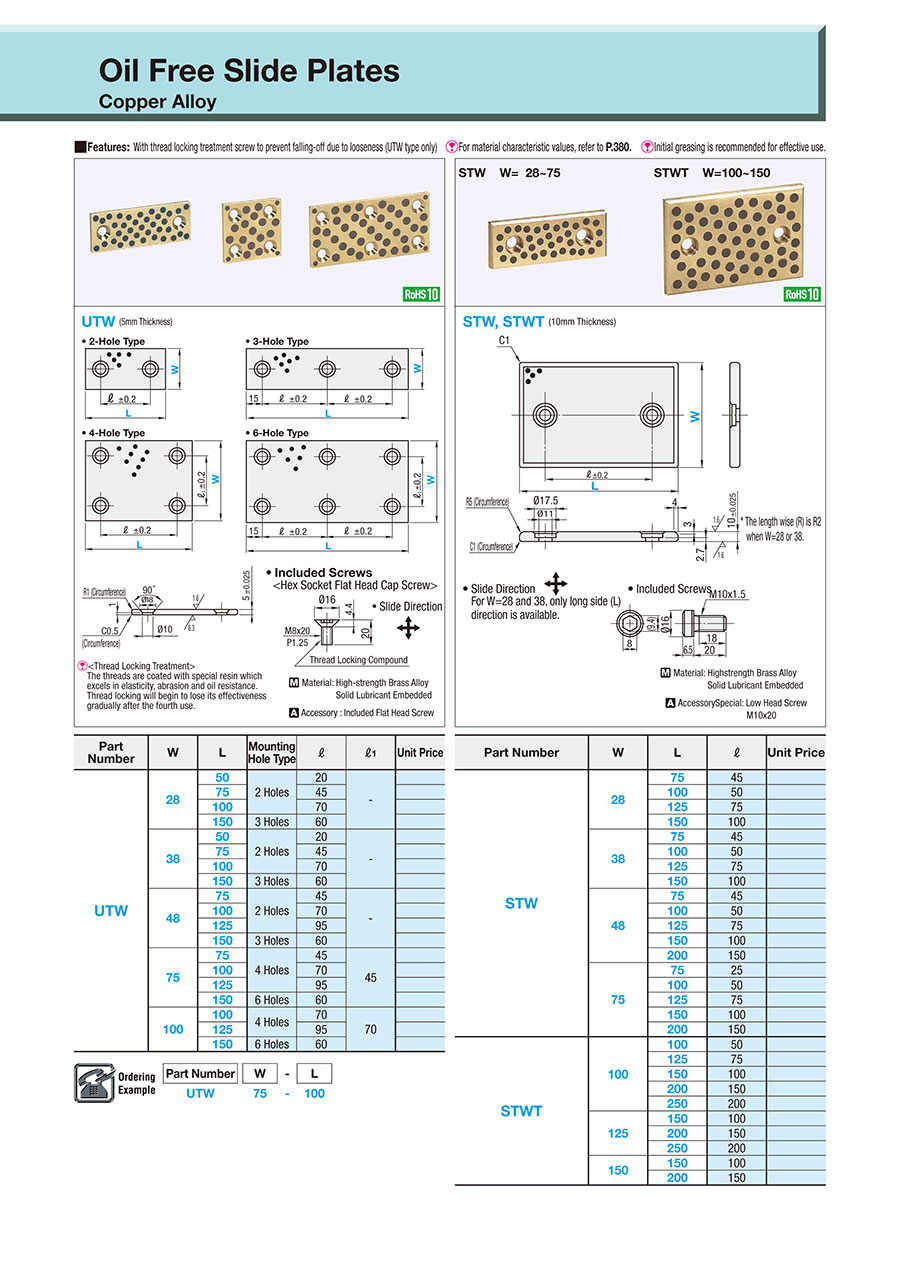

Catalog
