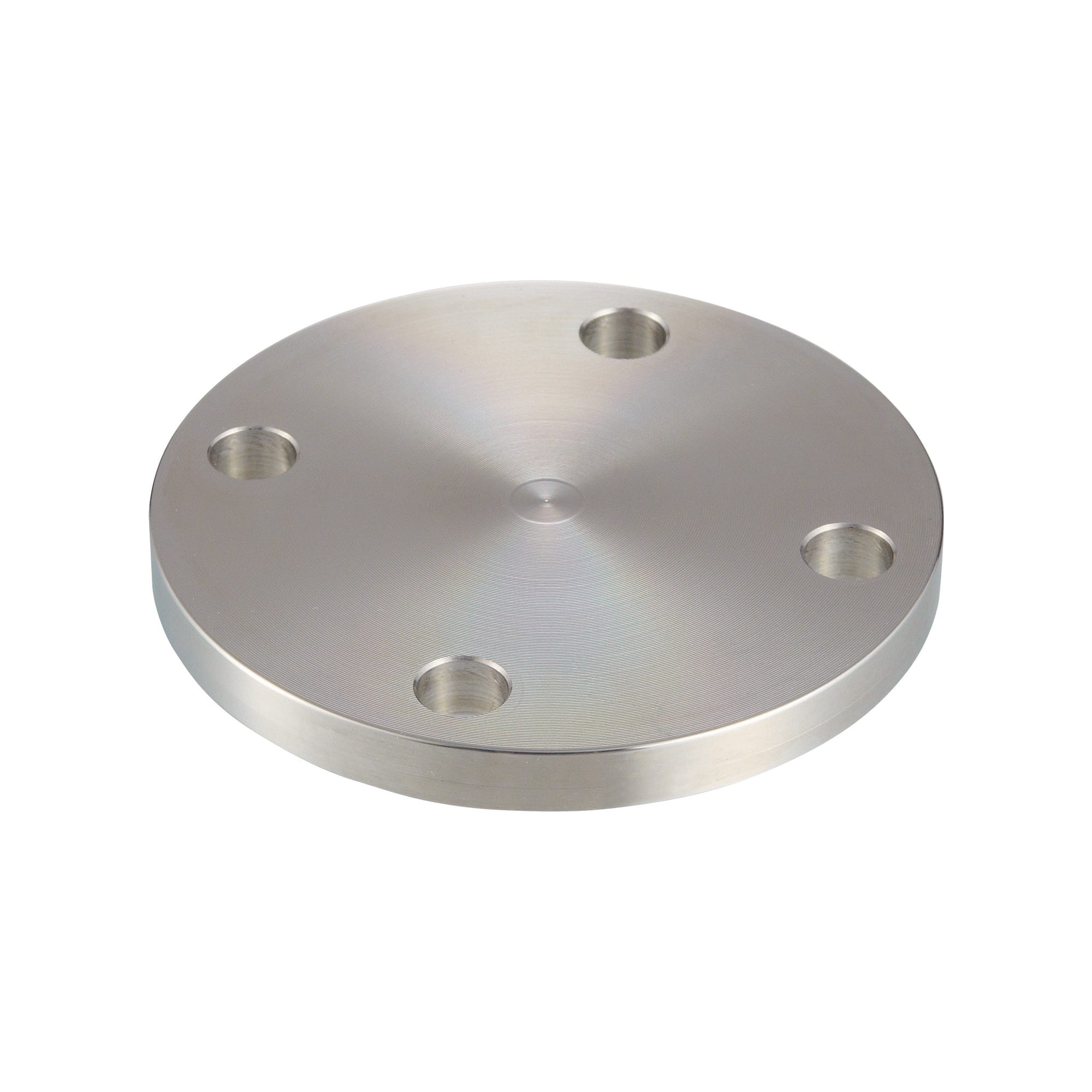

Fittings for Vacuum Plumbing / JIS Flanged / VF
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information

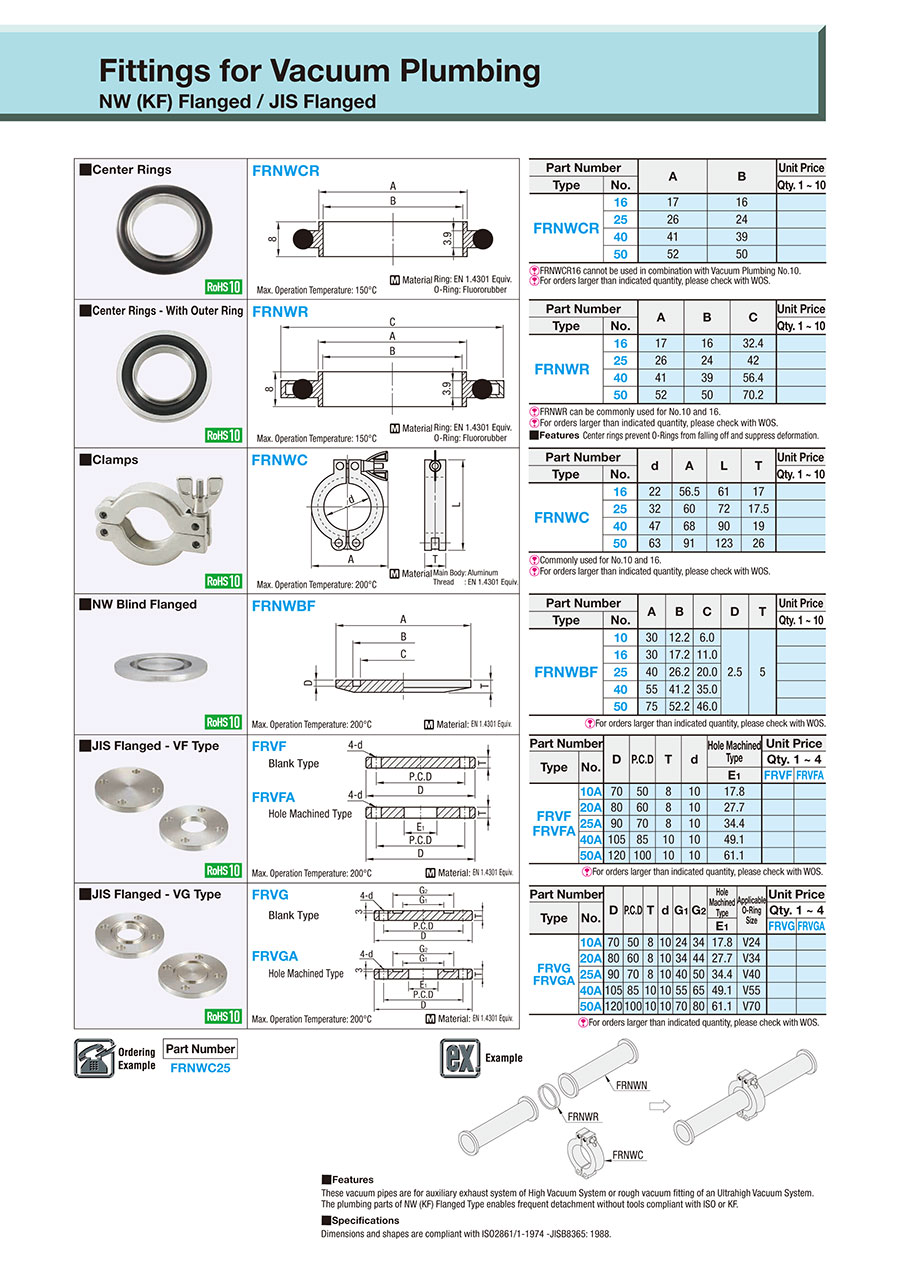

- Catalog
Material: EN 1.4301 Equiv.
Specifications
| Part Number |
| FRNWC25 |
| Part Number | D | P.C.D | T | d | Hole Machined Type | Unit Price | ||
| Type | No. | Qty. 1 ~ 4 | ||||||
| E1 | FRVF | FRVFA | ||||||
| FRVF FRVFA | 10A | 70 | 50 | 8 | 10 | 17.8 | ||
| 20A | 80 | 60 | 8 | 10 | 27.7 | |||
| 25A | 90 | 70 | 8 | 10 | 34.4 | |||
| 40A | 105 | 85 | 10 | 10 | 49.1 | |||
| 50A | 120 | 100 | 10 | 10 | 61.1 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| FRVF10A |
| FRVF20A |
| FRVF25A |
| FRVF40A |
| FRVF50A |
| FRVFA10A |
| FRVFA20A |
| FRVFA25A |
| FRVFA40A |
| FRVFA50A |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Flange Shape | Flange Size (Nominal) | Connection Pipe Type | |
|---|---|---|---|---|---|---|---|---|
26.44 € | 1 | 5 Days | 10 | Blank | 10 | 10A | ||
26.44 € | 1 | 5 Days | 10 | Blank | 20 | 20A | ||
30.23 € | 1 | 5 Days | 10 | Blank | 25 | 25A | ||
40.30 € | 1 | 5 Days | 10 | Blank | 40 | 40A | ||
44.08 € | 1 | 5 Days | 10 | Blank | 50 | 50A | ||
25.19 € | 1 | 10 Days | 10 | Standard | 10 | 10A | ||
25.19 € | 1 | 5 Days | 10 | Standard | 20 | 20A | ||
28.96 € | 1 | 5 Days | 10 | Standard | 25 | 25A | ||
39.04 € | 1 | 5 Days | 10 | Standard | 40 | 40A | ||
42.82 € | 1 | 5 Days | 10 | Standard | 50 | 50A |
Loading...
More Information
These vacuum pipes are for auxiliary exhaust system of High Vacuum System or rough vacuum fitting of an Ultrahigh Vacuum System.
The plumbing parts of NW (KF) Flanged Type enables frequent detachment without tools compliant with ISO or KF.
■Specifications
Dimensions and shapes are compliant with ISO2861/1-1974 -JISB8365: 1988.
Example of Use
Basic information
| Type | Flange | Flange Type | VF | Material | EN 1.4301 Equiv. |
|---|
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
