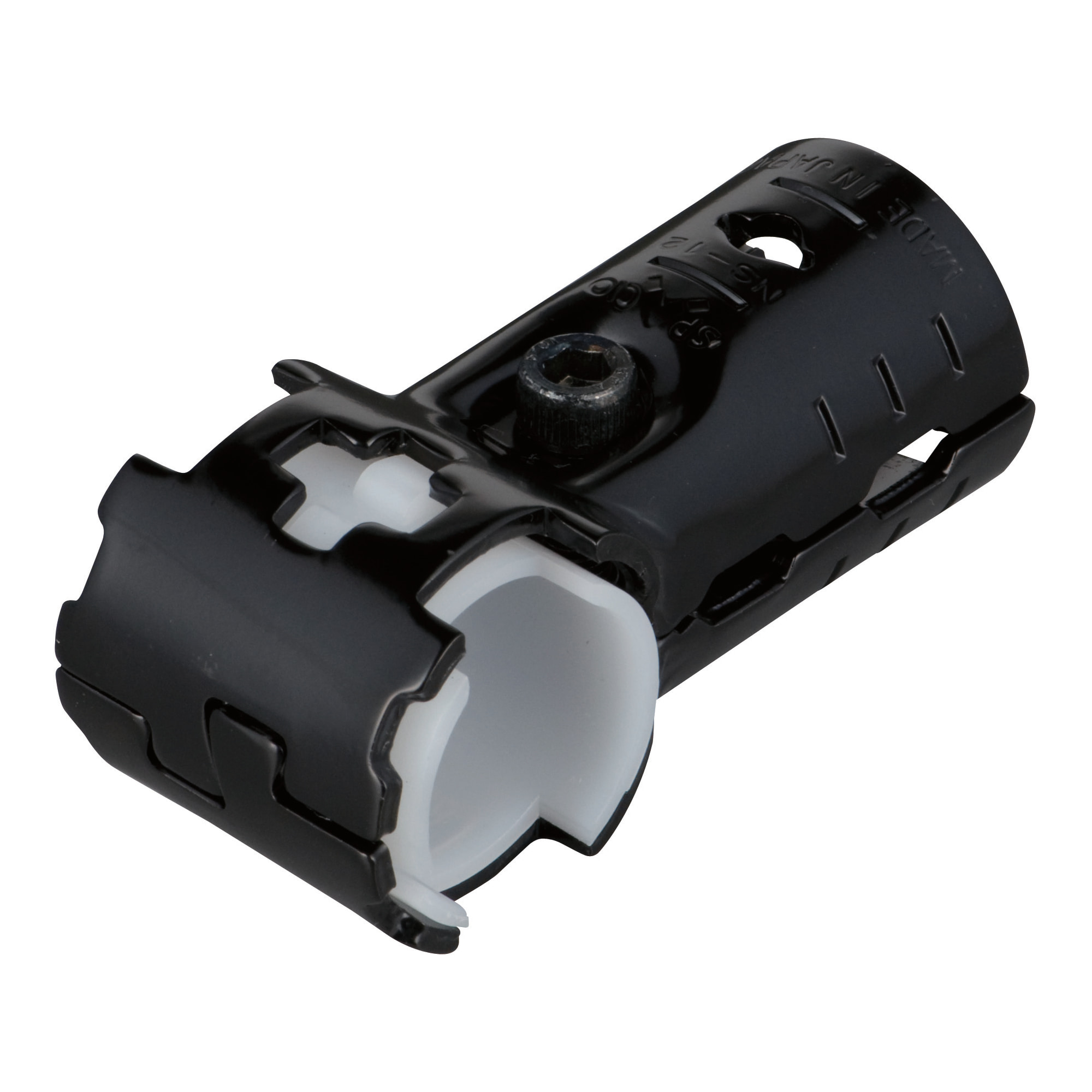

Metal Joint T-Shaped, Parallel
Part number:

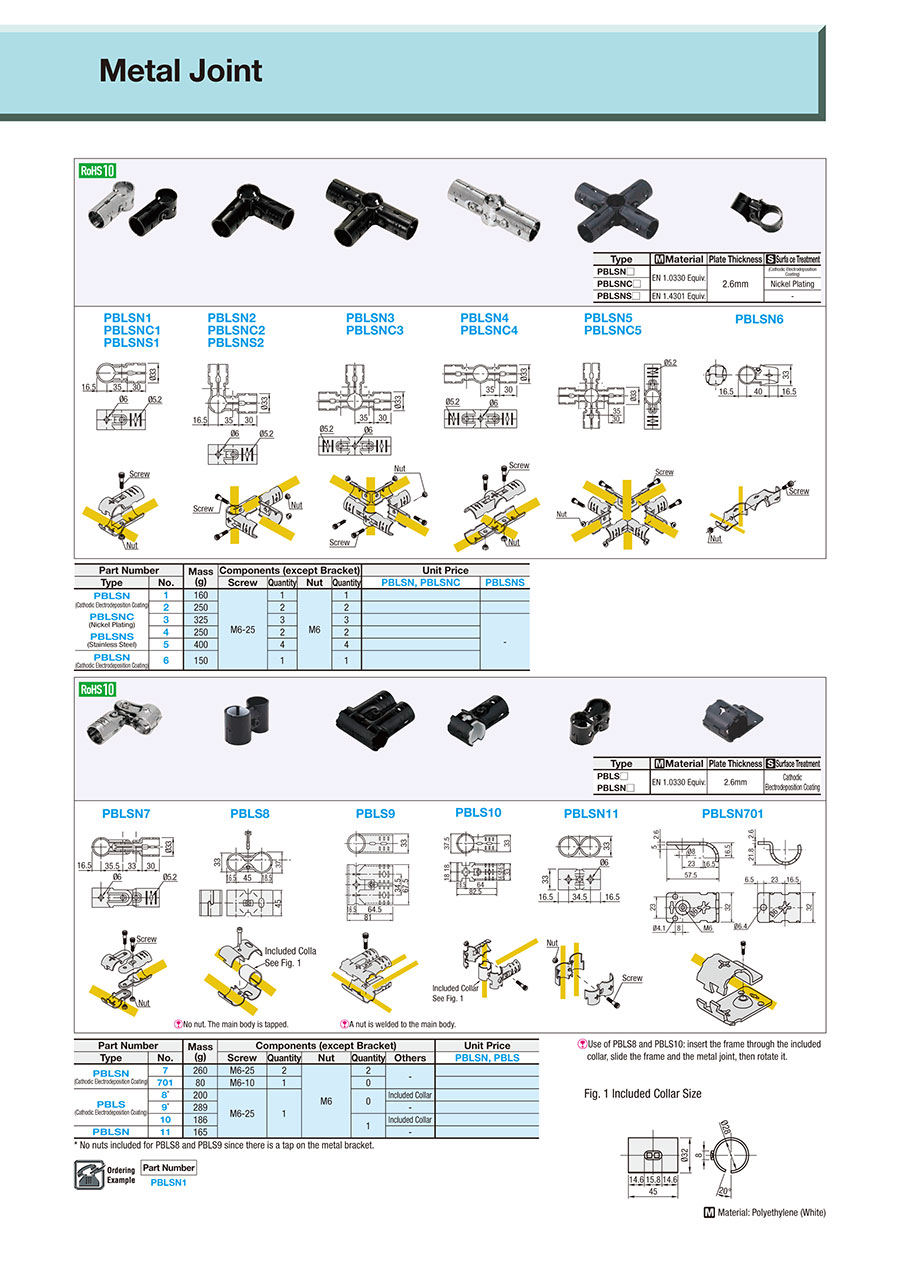

possible part numbers found.Outline drawing and specifications table
PBLSN7
PBLS8
PBLS9
PBLS10
PBLSN11
PBLSN701
[!] No nut.
The main body is tapped.
[ ! ] A nut is welded
to the main body.
| Type | [M] Material | Plate Thickness | [S] Surface Treatment |
| PBLS□ | EN 1.0330 Equiv. | 2.6 mm | (Cathodic Electrodeposition Coating) |
| PBLSN□ |
[M]Material: Polyethylene (white)
Specification Table
| Part Number |
| PBLSN11 |
| Part Number | Mass (g) | Components (except Bracket) | |||||
| Type | No. | Screw | Quantity | Nut | Quantity | Others | |
| PBLSN (Cathodic Electrodeposition Coating) | 7 | 260 | M6−25 | 2 | M6 | 2 | — |
| 701 | 80 | M6−10 | 1 | 0 | |||
| PBLS (Cathodic Electrodeposition Coating) | 8* | 200 | M6−25 | 1 | 0 | Included Collar | |
| 9* | 289 | — | |||||
| 10 | 186 | 1 | Included Collar | ||||
| PBLSN | 11 | 165 | — | ||||
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
5.92 € ( 7.04 € ) | 5 working days |
6.30 € ( 7.50 € ) | 5 working days |
5.04 € ( 6.00 € ) | 5 working days |
7.18 €4.81 € ( 5.72 € ) | Stock item: 1 working dayAvailable for same-day shipping |
4.27 € ( 5.08 € ) | 5 working days |
4.54 € ( 5.40 € ) | Stock item: 1 working dayAvailable for same-day shipping |
More Information
Basic information
[Features] Clamping bracket with screws. Various shapes are available, mainly L-shaped.
Outline and specifications
Specifications/Overview
[ ! ]To use PBLS8 and PBLS10, insert a pipe through the included collar, slide the pipe and the metal joint, then rotate it.
Fig. 1 Included Collar Size
