  • [Economy Series]Ball Bearings With Stainless Steel Flange (Small Diameter / Deep Groove) Double Shield Type, Light Duty / Medium Speed Rotation Type

    [Economy Series]Ball Bearings With Stainless Steel Flange (Small Diameter / Deep Groove) Double Shield Type, Light Duty / Medium Speed Rotation Type

    Click image to view enlarged image

    Part number:

    Still undefined. 35 possible part numbers found.
    Quantity:

    Outline drawing and specifications table

    Back to the Category Ball Bearings

    Technical Drawing - Ball Bearings



    Small/Deep Groove/Double Shielded with Flange/Stainless Ball/Cost Efficient Product:Related Image

    Available dimensions and tolerances can be found under the tab More information.



    Basic Properties (e.g., material, hardness, coating, tolerance) - Ball Bearings



    Material: EN 1.4125 Equiv.

    For further specifications please see the More information tab.
    Information on tolerances and rotational accuracy of the radial bearings can be found in the following PDF: Ball bearing table / tolerances as PDF



    Composition of a Product Code  - Ball Bearings



    Part Number
    CSFL673ZZ



    General Information - Ball Bearings



    Ball bearing - deep groove ball bearing - axial bearing - axial ball bearing - axial groove ball bearing - angular ball bearing - spherical ball bearing - tension bearing



    Ball Bearing Selection Details

    - Ball material: steel, stainless steel, ceramic, plastic, glass, chrome-plated

    - Type of bearings: axial ball bearings, thin section bearings, spherical ball bearings, deep groove ball bearings, single-row angular ball bearings, double-row ball bearings, tension bearings, four-point bearings

    - Outer ring: flat, spherical, with flange, annular groove, U-groove, V-groove

    - Properties: heat-resistant, non-magnetic, corrosion-resistant, dust-proof, vacuum, high speed

    - Inner diameter: 2 mm to 50 mm

    - Outer diameter: 5 mm to 110 mm


    Ball bearing designation (suffix):

    In addition to the dimensional designation of the ball bearing, ball bearings often also have a designation for a cover disc or sealing disc. The following names are the most common names of various manufacturers that can be selected in the MISUMI online shop.


    - Double-sided sealing washer: 2RSH/2RS1, 2RSR/C-2HRS, DDU/DD
    - Single-sided sealing washer: RSH/RS1, RSR/C-HRS, DU
    - Double-sided sealing washer with low friction: 2RSL/2RZ/VV
    - Double-sided cover disc: 2Z/ZZ, 2ZR/C-2Z
    - Single sided cover disc: Z, ZR/C-Z/Z


    Description/Basics



    Rolling bearings

    Rolling bearings are generally divided into ball bearings and roller bearings. Ball bearings are a popular type of rolling bearings due to their high permissible speed and low friction.
    In the MISUMI online shop, you can purchase ball bearings that can be customized to your applications and environmental conditions. Our ball bearings are available in different materials and in a combination of different materials (hybrid bearings). In addition, MISUMI offers ball bearings already integrated into the housing as bearing housing.



    Grooved ball bearings

    Grooved ball bearings are the most commonly used rotary rolling bearings. This type of ball bearing is ideally suited for supporting rotating machine elements. A grooved ball bearings are intended for load bearing of radial forces and light axial forces. Grooved ball bearings are designed for high speeds and are used in a wide variety of industrial applications and designs. MISUMI already offers ball bearings integrated into housings and holders as bearing housings.



    Areas of Application


    Ball bearing - chemical resistance

    Chemical resistance

    Plastic ball

    Metal ball

    Ceramic ball

    Bearing rings

    UHMW

    PEEK

    PTFE

    EN 1.4125 equivalent

    EN 1.4301 equivalent

    EN 1.4125 equivalent

    EN 1.4542 equivalent

    Cover plate

    -

    -

    -

    EN 1.4301 equivalent

    EN 1.4301 equivalent

    EN 1.4301 equivalent

    EN 1.4301 equivalent

    Bearing balls

    Glass

    Ceramic
    (aluminum oxide)

    Ceramic
    (aluminum oxide)

    EN 1.4125 equivalent

    EN 1.4301 equivalent

    Ceramic

    Ceramic

    Ball cage

    UHMW

    PEEK

    PTFE

    EN 1.4301 equivalent

    EN 1.4301 equivalent

    Fluoroplastic

    Fluoroplastic

    Acids

    Hydrochloric acid

    suitable to a limited extent

    good

    very good

    unsuitable

    good

    suitable to a limited extent

    good

    Sulfuric acid

    suitable to a limited extent

    good

    very good

    unsuitable

    very good

    good

    very good

    Nitric acid

    suitable to a limited extent

    good

    very good

    unsuitable

    very good

    good

    very good

    Bases

    unsuitable

    very good

    very good

    unsuitable

    very good

    good

    very good

    Solvents

    very good

    very good

    very good

    unsuitable

    very good

    good

    very good

    Salt water

    very good

    very good

    very good

    unsuitable

    very good

    good

    very good

    Water

    very good

    very good

    very good

    unsuitable

    very good

    very good

    very good

    Comparison Table The ball bearing comparison table is provided for comparison purposes only (consider the lubricant and the sealing washer separately).


    Ball bearing materials

    In the MISUMI online shop, ball bearings are available in cost-effective rolling bearing steel, corrosion-resistant stainless steel and stainless steel. Furthermore, our product range includes various hybrid bearings in the following combinations: metal & ceramic, plastic & ceramic, plastic & glass.

    Our various materials offer good resistance to various environmental influences. Our ball bearing shop includes the ball materials stainless steel, steel, UHMW, PEEK, PTFE, ceramic and glass.



    Instructions for Use / Installation Information - Ball Bearings



    Installation Information

    An incorrect assembly and disassembly can damage a ball bearing. Therefore, a suitable tool must always be used to assemble and disassemble ball bearings or roller bearings.
    Ball bearings should not be assembled with a hammer, as this can deform the ball bearing. It is recommended using a suitable press. During pressing, the contact surface can be provided with lubricant to protect the surfaces and facilitate assembly.
    It is best to use a bearing puller for disassembly.



    Maintenance

    The ball bearing in roller bearings should be inspected for damage during maintenance.
    Before regreasing, a ball bearing should first be thoroughly cleaned.
    Remaining contamination in the bearing can damage the ball bearing. As a rule, a ball bearing should not be completely filled with grease, as this can cause the bearing to heat up too much and can cause it to fail.
    For encapsulated and sealed ball bearings, it is recommended to replace the bearing. Maintenance is not recommended due to the risk of damage to the cover place or seal.


    Supplementary Article



    Bearing Lock Nuts

    Shaft nuts - lock nuts - steel shaft nut - stainless steel shaft nut - shaft with retaining nut - shaftnNut with clamp screw - shaft nut with grub screw - shaft assembly



    Bearings with Housing

    Bearing with housing - bearing housing - bearing units - ball bearing holder - ball bearing with housing - bearing housing with flange - shaft holder with ball bearing



    Axles / Rotary Shafts

    Rotary axis - offset rotary shaft - double offset shaft - female threaded shaft - keyway shaft



    Drive shafts

    Motor shaft - torsion shaft - shaft with collar - shaft with shoulder - offset shaft - keyway shaft



    Plain Bearing (Bushes)

    Plain bearing - maintenance free - plain bearing bushings - plain bearing bushing with collar - plain bearing bushing with flange - plastic bushing - plastic plain bearing bushing



    Industrial Applications



    3D printer industry
    Automotive industry
    Pharmaceutical industry
    Packaging industry



    Part number list

    Number of items

    I.D. d

    (φ)

    O.D. D

    (φ)

    Width B (or T)

    (mm)

    Basic Load Rating Cr (Dynamic)

    (N)

    Allowable Rotational Speed

    (1/min)

    Basic Load Rating Cor (Static)

    (N)

    Minimum order quantity
    2
    7
    3.5
    229.6
    60000
    71.4
    1 pieces
    3
    9
    5
    339.5
    56000
    105.7
    1 pieces
    5
    14
    5
    773.5
    40000
    282.8
    1 pieces
    6
    17
    6
    1344.7
    38000
    467.6
    1 pieces
    8
    22
    7
    1959.3
    34000
    772.1
    1 pieces
    3
    10
    4
    375.2
    50000
    122.5
    1 pieces
    5
    16
    5
    1028.3
    36000
    375.2
    1 pieces
    6
    19
    6
    1389.5
    32000
    495.6
    1 pieces
    10
    15
    4
    478.8
    15000
    243.6
    1 pieces
    12
    18
    4
    550.9
    13000
    296.8
    1 pieces
    15
    21
    4
    557.2
    11000
    326.2
    1 pieces
    3
    6
    2.5
    123.9
    71000
    41.3
    1 pieces
    4
    7
    2.5
    151.9
    60000
    60.2
    1 pieces
    5
    8
    2.5
    129.5
    53000
    50.4
    1 pieces
    6
    10
    3
    294.7
    45000
    121.8
    1 pieces
    8
    12
    3.5
    323.4
    40000
    153.3
    1 pieces
    10
    19
    5
    1021.3
    37000
    470.4
    1 pieces
    15
    24
    5
    1233.4
    28000
    701.4
    1 pieces
    2.5
    6
    2.6
    124.6
    71000
    41.3
    1 pieces
    2
    5
    2.3
    100.1
    85000
    28
    1 pieces
    3
    7
    3
    231.7
    63000
    72.8
    1 pieces
    4
    9
    4
    380.8
    53000
    125.3
    1 pieces
    5
    11
    5
    424.9
    45000
    157.5
    1 pieces
    6
    13
    5
    642.6
    40000
    246.4
    1 pieces
    8
    16
    5
    957.6
    36000
    397.6
    1 pieces
    10
    22
    6
    1509.2
    34000
    712.6
    1 pieces
    12
    24
    6
    1717.1
    31000
    821.1
    1 pieces
    15
    28
    7
    2570.4
    26000
    1264.9
    1 pieces
    2.5
    7
    3.5
    229.6
    63000
    71.4
    1 pieces
    2
    6
    3
    196.7
    75000
    55.3
    1 pieces
    3
    8
    4
    331.8
    60000
    100.8
    1 pieces
    4
    11
    4
    381.5
    48000
    127.4
    1 pieces
    5
    13
    4
    640.5
    43000
    240.8
    1 pieces
    6
    15
    5
    797.3
    40000
    292.6
    1 pieces
    8
    19
    6
    1330.7
    36000
    509.6
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.09 €
    ( 3.68 € )
    5 working days
    3.09 €
    ( 3.68 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.78 €
    ( 4.50 € )
    5 working days
    3.78 €
    ( 4.50 € )
    5 working days
    5.21 €
    ( 6.20 € )
    5 working days
    3.78 €1.13 €
    ( 1.34 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.09 €
    ( 3.68 € )
    5 working days
    2.95 €
    ( 3.51 € )
    Stock item: 1 working dayAvailable for same-day shipping
    7.94 €
    ( 9.45 € )
    5 working days
    11.48 €
    ( 13.66 € )
    Stock item: 1 working dayAvailable for same-day shipping
    14.28 €
    ( 16.99 € )
    5 working days
    3.78 €
    ( 4.50 € )
    5 working days
    3.78 €
    ( 4.50 € )
    5 working days
    3.78 €
    ( 4.50 € )
    5 working days
    3.78 €
    ( 4.50 € )
    5 working days
    4.39 €
    ( 5.22 € )
    5 working days
    7.85 €
    ( 9.34 € )
    5 working days
    14.14 €4.24 €
    ( 5.05 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.40 €
    ( 4.05 € )
    5 working days
    3.24 €
    ( 3.86 € )
    5 working days
    2.72 €
    ( 3.24 € )
    5 working days
    2.72 €
    ( 3.24 € )
    5 working days
    2.72 €
    ( 3.24 € )
    Stock item: 1 working dayAvailable for same-day shipping
    2.65 €
    ( 3.15 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.09 €
    ( 3.68 € )
    5 working days
    7.11 €
    ( 8.46 € )
    5 working days
    11.11 €
    ( 13.22 € )
    5 working days
    13.75 €
    ( 16.36 € )
    5 working days
    3.40 €1.26 €
    ( 1.50 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.24 €
    ( 3.86 € )
    5 working days
    3.78 €
    ( 4.50 € )
    5 working days
    3.78 €1.13 €
    ( 1.34 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.78 €
    ( 4.50 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.78 €
    ( 4.50 € )
    Stock item: 1 working dayAvailable for same-day shipping
    4.54 €
    ( 5.40 € )
    5 working days

    More Information

    Basic information

    Outline and specifications

    Back to the Category Ball Bearings

    Technical Drawing - Ball Bearings

    Small/Deep Groove/Double Shielded with Flange/Stainless Ball/Cost Efficient Product:Related Image

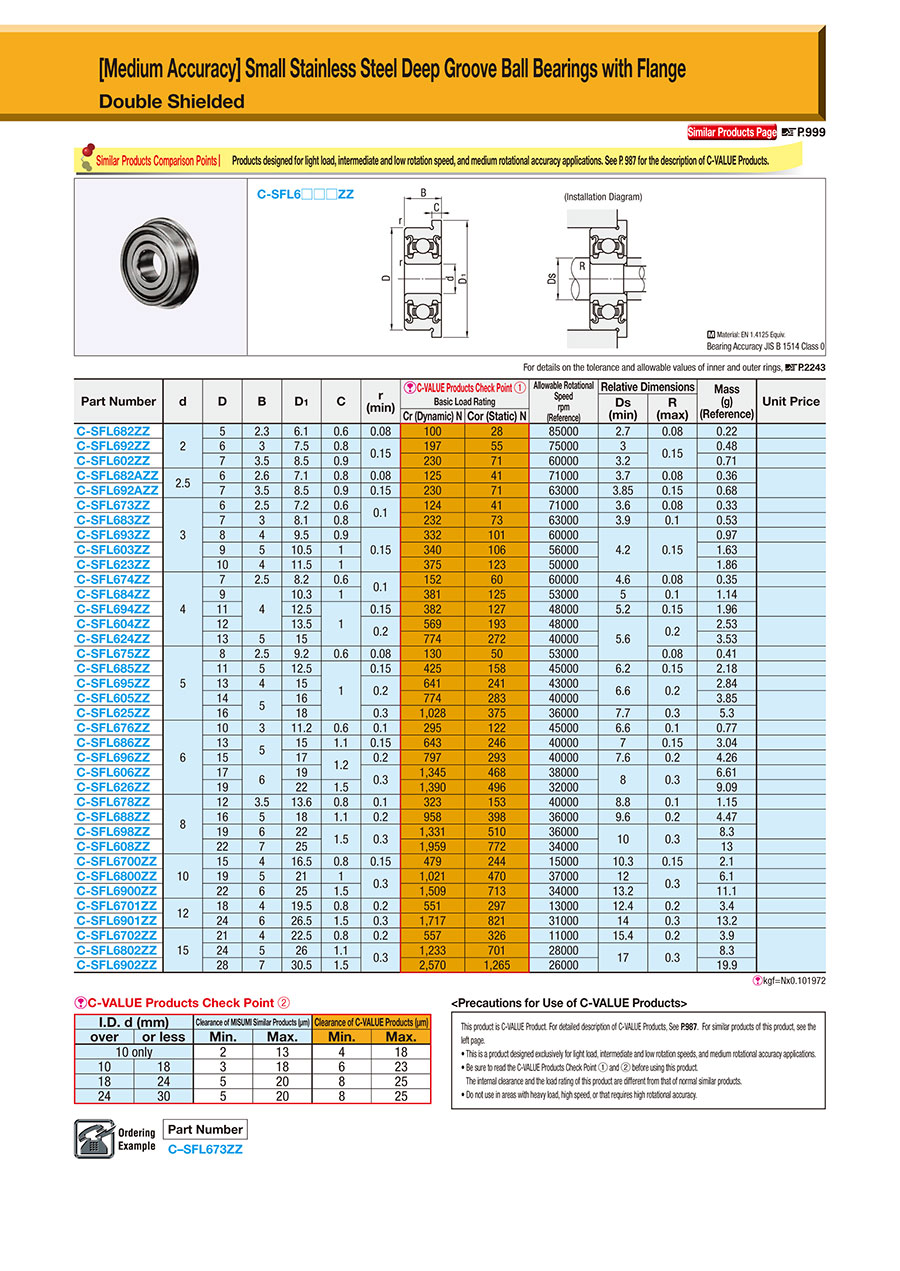

    Specification Tables - Ball Bearings

    Part NumberdDBD1Cr
    (min)
    C-VALUE Products Check Point
    Basic Load Rating
    Allowable Rotational Speed
    rpm
    (Reference)
    Relative DimensionsMass
    (g)
    (Reference)
    Unit Price
    Ds
    (min)
    R
    (max)
    Cr (Dynamic) NCor (Static) N
    C-SFL682ZZ252.36.10.60.0810028850002.70.080.22
    C-SFL692ZZ637.50.80.15197557500030.150.48
    C-SFL602ZZ73.58.50.923071600003.20.71
    C-SFL682AZZ2.562.67.10.80.0812541710003.70.080.36
    C-SFL692AZZ73.58.50.90.1523071630003.850.150.68
    C-SFL673ZZ362.57.20.60.112441710003.60.080.33
    C-SFL683ZZ738.10.823273630003.90.10.53
    C-SFL693ZZ849.50.90.15332101600004.20.150.97
    C-SFL603ZZ9510.51340106560001.63
    C-SFL623ZZ10411.51375123500001.86
    C-SFL674ZZ472.58.20.60.115260600004.60.080.35
    C-SFL684ZZ9410.313811255300050.11.14
    C-SFL694ZZ1112.510.15382127480005.20.151.96
    C-SFL604ZZ1213.50.2569193480005.60.22.53
    C-SFL624ZZ13515774272400003.53
    C-SFL675ZZ582.59.20.60.0813050530000.080.41
    C-SFL685ZZ11512.510.15425158450006.20.152.18
    C-SFL695ZZ134150.2641241430006.60.22.84
    C-SFL605ZZ14516774283400003.85
    C-SFL625ZZ16180.31,028375360007.70.35.3
    C-SFL676ZZ610311.20.60.1295122450006.60.10.77
    C-SFL686ZZ135151.10.156432464000070.153.04
    C-SFL696ZZ15171.20.2797293400007.60.24.26
    C-SFL606ZZ176190.31,3454683800080.36.61
    C-SFL626ZZ19221.51,390496320009.09
    C-SFL678ZZ8123.513.60.80.1323153400008.80.11.15
    C-SFL688ZZ165181.10.2958398360009.60.24.47
    C-SFL698ZZ196221.50.31,33151036000100.38.3
    C-SFL608ZZ227251,9597723400013
    C-SFL6700ZZ1015416.50.80.154792441500010.30.152.1
    C-SFL6800ZZ1952110.31,02147037000120.36.1
    C-SFL6900ZZ226251.51,5097133400013.211.1
    C-SFL6701ZZ1218419.50.80.25512971300012.40.23.4
    C-SFL6901ZZ24626.51.50.31,71782131000140.313.2
    C-SFL6702ZZ1521422.50.80.25573261100015.40.23.9
    C-SFL6802ZZ245261.10.31,23370128000170.38.3
    C-SFL6902ZZ28730.51.52,5701,2652600019.9
    kgf=Nx0.101972
    C-VALUE Products Check Point
    I.D. d (mm)Clearance of MISUMI Similar Products (µm)Clearance of C-VALUE Products (µm)
    overor lessMin.Max.Min.Max.
    10 only213418
    1018318623
    1824520825
    2430520825
    <Precautions for Use of C-VALUE Products>
    This product is C-VALUE Product. For detailed description of C-VALUE Products, See P.987. For similar products of this product, see the left page.
    • This is a product designed exclusively for light load, intermediate and low rotation speeds, and medium rotational accuracy applications.
    • Be sure to read the C-VALUE Products Check Point and before using this product.
    The internal clearance and the load rating of this product are different from that of normal similar products.
    • Do not use in areas with heavy load, high speed, or that requires high rotational accuracy.
