Cam Followers / Hex Socket on Head / Thread / Crown Type

Mouse over image to enlarge

CatalogP.1-1044-1

Part number:

Still undefined. 66 possible part numbers found.

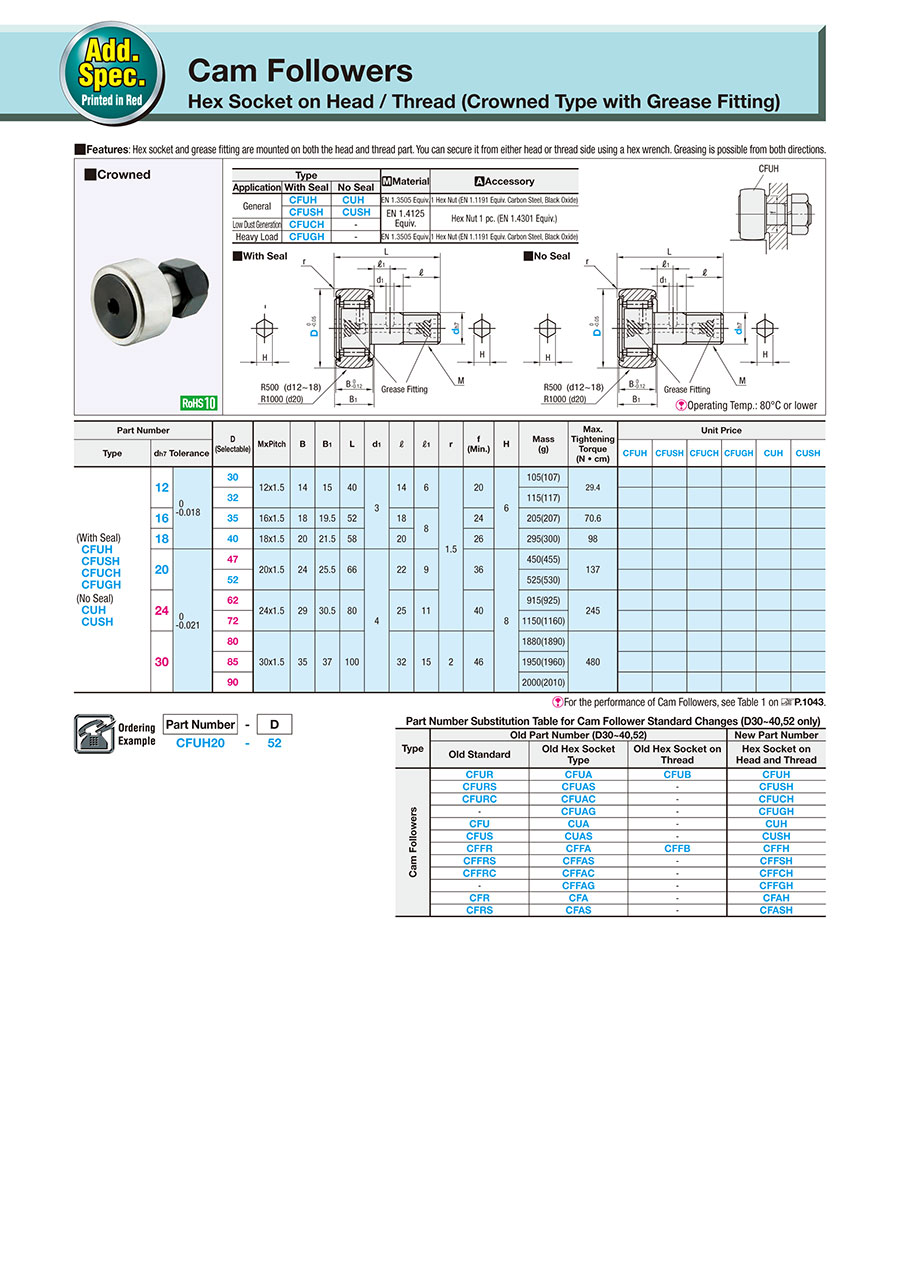

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Cam Follower - Hex Socket on Head and Thread, Crowned: Related Image

■With Seal

Cam Follower - Hex Socket on Head and Thread, Crowned: Related Image

[ ! ] Use THK Grease Gun Unit MG70 Attachment Type P when replenishing grease from the grease nipple.

■No Seal

Cam Follower - Hex Socket on Head and Thread, Crowned: Related Image

[ ! ] Operating Temp.: 80°C or lower

Type			[M] Material	[A] Accessory
Application	With Seal	No Seal	[M] Material	[A] Accessory
General	CFUH	CUH	EN 1.3505 Equiv.	Hex Nut 1 pc. (EN 1.1191 Equiv., Black Oxide)
General	CFUSH	CUSH	EN 1.4125 Equiv.	Hex Nut 1 pc. (EN 1.4301 Equiv.)
Low Dust Generation	CFUCH	—	EN 1.4125 Equiv.	Hex Nut 1 pc. (EN 1.4301 Equiv.)
Heavy Load	CFUGH	—	EN 1.3505 Equiv.	Hex Nut 1 pc. (EN 1.1191 Equiv., Black Oxide)

Specification Table

Part Number	—	D
CFUH20	—	52

Part Number			D (Selectable)	M × Pitch	B	B₁	L	d₁	ℓ	ℓ₁	r	f (Min.)	H	Mass (g)	Max. Tightening Torque (N⋅m)
Type	d_h7 Tolerance
(With Seal) CFUH CFUSH CFUCH CFUGH (No Seal) CUH CUSH	12	0 −0.018	30	12 × 1.5	14	15	40	3	14	6	1.5	20	6	105 (107)	29.4
			32											115 (117)
	16		35	16 × 1.5	18	19.5	52		18	8		24		205 (207)	70.6
	18		40	18 × 1.5	20	21.5	58		20			26		295 (300)	98
	20	0 −0.021	47	20 × 1.5	24	25.5	66	4	22	9		36	8	450 (455)	137
			52											525 (530)
	24		62	24 × 1.5	29	30.5	80		25	11		40		915 (925)	245※
			72											1150 (1160)
	30		80	30 × 1.5	35	37	100		32	15	2	46		1880 (1890)	480※
			85											1950 (1960)
			90											2000 (2010)

* When using stainless steel, it will be up to 70% of this value.
[ ! ] ( ) is the weight of Heavy Load Type.
[ ! ] 1 N⋅m = 0.102 kgf·m.

Cam Follower - Hex Socket on Head and Thread, Crowned: Related Image

Part Number Substitution Table for Cam Follower Standard Changes (D30 to 40, 52 only)

Type	Old Part Number (D30 to 40, 52 only)			New Part Number
Type	Old Standard	Old Hex Socket Type	Old Threaded Section With Hex Socket	Head and Thread With Hex Socket
Cam Followers	CFUR	CFUA	CFUB	CFUH
	CFURS	CFUAS	—	CFUSH
	CFURC	CFUAC	—	CFUCH
	—	CFUAG	—	CFUGH
	CFU	CUA	—	CUH
	CFUS	CUAS	—	CUSH
	CFFR	CFFA	CFFB	CFFH
	CFFRS	CFFAS	—	CFFSH
	CFFRC	CFFAC	—	CFFCH
	—	CFFAG	—	CFFGH
	CFR	CFA	—	CFAH
	CFRS	CFAS	—	CFASH

Table 1: Reference Data of Cam Followers

d-D	General								Heavy Load
	Basic Dynamic Load Rating Load C (kN)	Basic Static Load Rating Load Cor (kN)	Max. Allowable Load (kN)	Track Load Capacity (kN)		Max. Rotational Speed (rpm)		Mass (g)	Basic Dynamic Load Rating Load C (kN)	Basic Static Load Rating Load Cor (kN)	Max. Allowable Load (kN)	Track Load Capacity (kN)		Max. Rotational Speed With Seal (rpm)	Mass (g)
				Track Load Capacity (kN)		With Seal	No Seal					Track Load Capacity (kN)
				Crowned	Flat	With Seal	No Seal					Crowned	Flat
3−10	1.47	1.18	0.36	0.37	1.37	32900	47000	4.5	—	—	—	—	—	—	—
4−12	2.06	2.05	0.78	0.47	1.76	25900	37000	7.5	—	—	—	—	—	—	—
5−13	3.14	2.77	1.42	0.53	2.25	20300	29000	10.5	—	—	—	—	—	—	—
6−16	3.59	3.58	2.11	1.08	3.43	17500	25000	18.5	6.94	8.5	2.11	1.08	3.43	7700	19
8−19	4.17	4.65	4.73	1.37	4.02	14000	20000	28.5	8.13	11.2	4.73	1.37	4.02	6090	29
10−22	5.33	6.78	5.81	1.67	4.7	11900	17000	45	9.42	14.3	5.81	1.67	4.7	5040	46
10−26	5.33	6.78	5.81	2.06	5.49	11900	17000	60	9.42	14.3	5.81	2.06	5.49	5040	61
12−30	7.87	9.79	9.37	2.45	7.06	9800	14000	105	13.4	19.8	9.37	2.45	7.06	4060	107
12−32	7.87	9.79	9.37	2.74	7.45	9800	14000	115	13.4	19.8	9.37	2.74	7.45	4060	117
16−35	12	18.3	17.3	3.14	11.2	7000	10000	205	20.6	37.6	17.3	3.14	11.2	3150	207
18−40	14.7	25.2	26.1	3.72	14.4	5950	8500	295	25.2	51.3	26.1	3.72	14.4	2660	300
20-47	20.7	34.8	32.1	7.15	21	4900	7000	450	33.2	64.8	32.1	7.15	21	2380	455
20−52	20.7	34.8	32.1	8.23	23.2	4900	7000	525	33.2	64.8	32.1	8.23	23.2	2380	530
24-62	30.6	53.2	49.5	10.5	34.2	4550	6500	915	46.7	92.9	49.5	10.5	34.2	2030	925
24-72	30.6	53.2	49.5	12.9	39.8	4550	6500	1150	46.7	92.9	49.5	12.9	39.8	2030	1160
30-80	45.4	87.6	73.7	14.9	52.6	3500	5000	1880	67.6	145	73.7	14.9	52.6	1610	1890
30-85				16.1	56			1950				16.1	56		1960
30-90				17.3	59.3			2000				17.3	59.3		2010

[!] kgf = N × 0.101972
