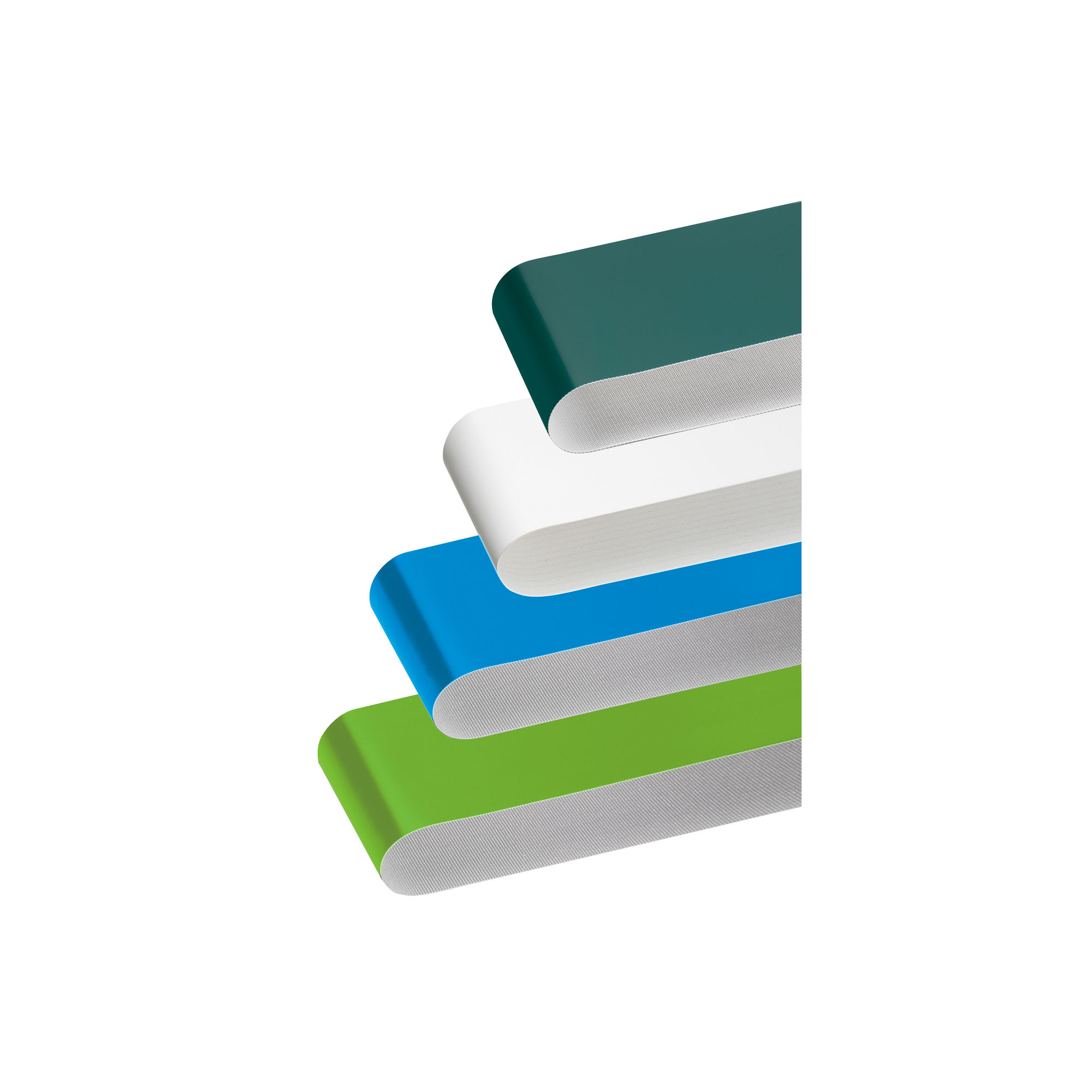

Flat Belts / General Purpose

Mouse over image to enlarge

CatalogP.1-1355

Caution

Please check the content on our website as the PDF does not contain the most up-to-date information.

Part number:

Still undefined. 550 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Dimensional Drawing

[ ! ]Endless jointing is applied before the product is shipped.
[ ! ]The circumference of the belt is the length of the back side of the belt (inner diameter circumference).

Type	Type No.	Ply count Qty.	Surface Shape	Color	[M] Material		Friction Coefficient (Ref. Against Polished Steel)		Thickness mm	Unit Mass kg/m²	Allowable Tension N/mm	Min. Pulley Dia. ⌀mm	Knife Edge	Continuous Use Temperature °C
Type	Type No.	Ply count Qty.	Surface Shape	Color	Surface	Back	Front	Back	Thickness mm	Unit Mass kg/m²	Allowable Tension N/mm	Min. Pulley Dia. ⌀mm	Knife Edge	Continuous Use Temperature °C
HBLT	(1)	1	Flat Surface	Green	Polyurethane	Polyester	0.3	0.1	0.8	0.9	4	15	R3	－10 to 80
HBLTWH	(2)	1	Flat Surface	White	Polyurethane	Polyester	0.3	0.1	0.8	0.9	4	15	R3	－10 to 80
HBLTG	(3)	1	Flat Surface	Green	Polyurethane	Polyester	0.8	0.2	0.8	0.7	4	15	R3	－30 to 80
HBLTGDN	(4)	2	Flat Surface	Green	Thermoplastic Polyurethane	Polyester Canvas	0.6	0.2	1.7	1.9	8	50	×	－30 to 100
HBLBN	(5)	2	Flat Surface	Sky Blue	Thermoplastic Polyurethane	Polyester Canvas	0.6	0.2	1.4	1.3	3	15	R3	－30 to 100
HBLTGCN	(7)	2	Flat Surface	Green	PVC	Polyester Canvas	1	0.2	1.8	1.9	8	30	×	－10 to 80
HBLTWCN	(8)	2	Flat Surface	White	PVC	Polyester Canvas	1	0.2	1.8	1.9	8	30	×	－10 to 80
HBLGT	(9)	3	Flat Surface	Green	PVC	Polyester Canvas	1	0.2	4.6	5	18	100	×	－10 to 80
HBLWT	(10)	3	Flat Surface	White	PVC	Polyester Canvas	1	0.2	4.6	5	18	100	×	－10 to 80
HBTDST	(11)	2	Flat Surface	Green	PVC	Polyester Canvas	1	0.2	3.4	3.7	8	75	×	－10 to 80

* 1: The numerical value in () is the one measured when allowable tension is 5 N/mm.
[!]The number of plies is the number of fabric layers in the belt. The greater the number of fabric layers, the higher the allowable tension, but the larger the minimum pulley diameter.
[ ! ]Former Specifications Content Until 2017

Type	Thickness mm	Unit Mass kg/m²	Min. Pulley Dia.
HBLTGCN	2.1	2.3	50
HBLTWCN	2.1	2.3	50
HBLGT	5	5.7	120
HBLWT	5	5.7	120
HBTDST	3.6	4.1	100

[ ! ]Former Specifications Content Until 2014

Type	Friction Coefficient (Ref. Against Polished Steel)		Thickness mm	Unit Mass kg/m²	Allowable Tension N/mm	Min. Pulley Dia. ⌀mm	Knife Edge	Continuous Use Temperature °C
Type	Front	Back	Thickness mm	Unit Mass kg/m²	Allowable Tension N/mm	Min. Pulley Dia. ⌀mm	Knife Edge	Continuous Use Temperature °C
HBLT	0.2	0.1	0.9	1	4	25	R5	－30 to 80
HBLTWH	0.2	0.1	0.9	1	4	25	R5	－30 to 80

■Flat Belt Tolerance Chart

Width tolerance		Thickness tolerance			Length tolerance
Width	Tolerance	Thickness	Tolerance	Joint tolerance	Length	Tolerance
Up to 400	±2	Up to 1.0	±0.1	±0.3	Up to 2000	±10
401 to 500	±3	1.1 to 1.5	±0.2		2001 to 7000	±20
		1.6 to 2.0	±0.2		7001 to 10000	±0.3%
		2.1 to 5.5	±0.4		10001 or more	±0.3%

Permanent elongation of the belt is up to 1% for the overall length. (Reference value)

Specification Table

Part Number		—	Belt Length L (m)

Type	Belt Width
HBLT	350	—	4.23

Part Number		Belt Length L (m)
Type	Belt Width W (mm)	Configurable 0.01 m Increments
Type	Belt Width W (mm)	Configurable 0.01 m Increments
HBLT HBLTWH HBLTG HBLTGDN HBLBN HBLTGCN HBLTWCN HBLGT HBLWT HBTDST	10	0.50 to 20.00
	15
	20
	25	0.80 to 20.00
	30
	35
	40
	50
	60
	70
	75
	80
	90
	100
	110
	120
	125
	130
	140
	150
	160
	170
	180
	190
	200
	210
	220
	230
	240
	250
	260
	270
	280
	290
	300
	310
	320
	330
	340
	350
	360
	370
	380
	390
	400
	410
	420
	430
	440
	450
	460
	470
	480
	490
	500

[!]For HBLT and HBLTWH, the connection area may become approx. 0.3 mm thicker. [!]Belt Length L must be four times belt width W. (L ≥ W × 4/1000)

Technical Information

·If this product is used under the minimum pulley diameter, a slip may occur between the belt and the pulley.
·The life of a belt is difficult to calculate, so if the belt appears damaged or worn on the surface, it should be replaced.
·Use the belt in the direction of the arrow printed on the main body.
