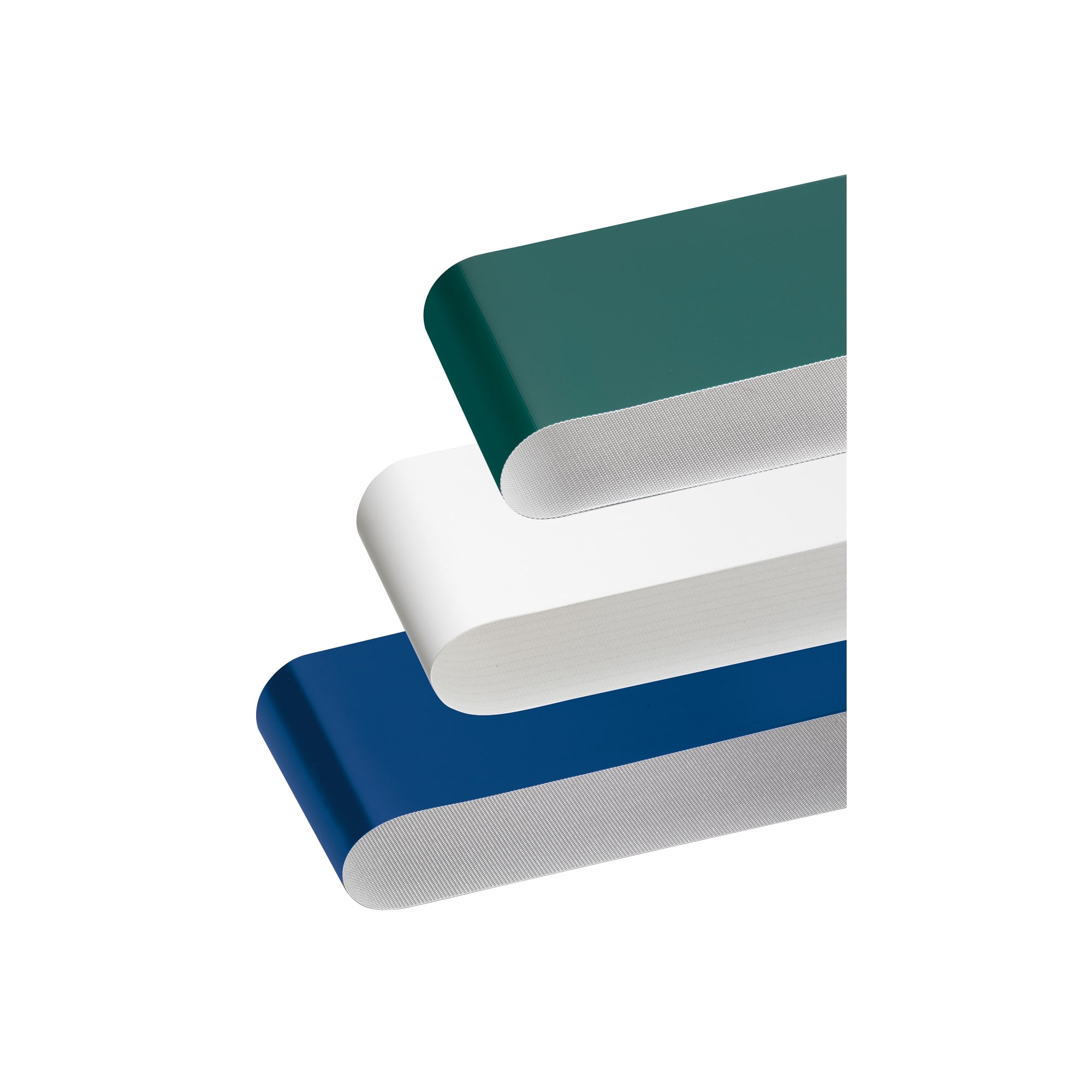

Flat Belts / Oil Resistant
Mouse over image to enlarge
Part number:

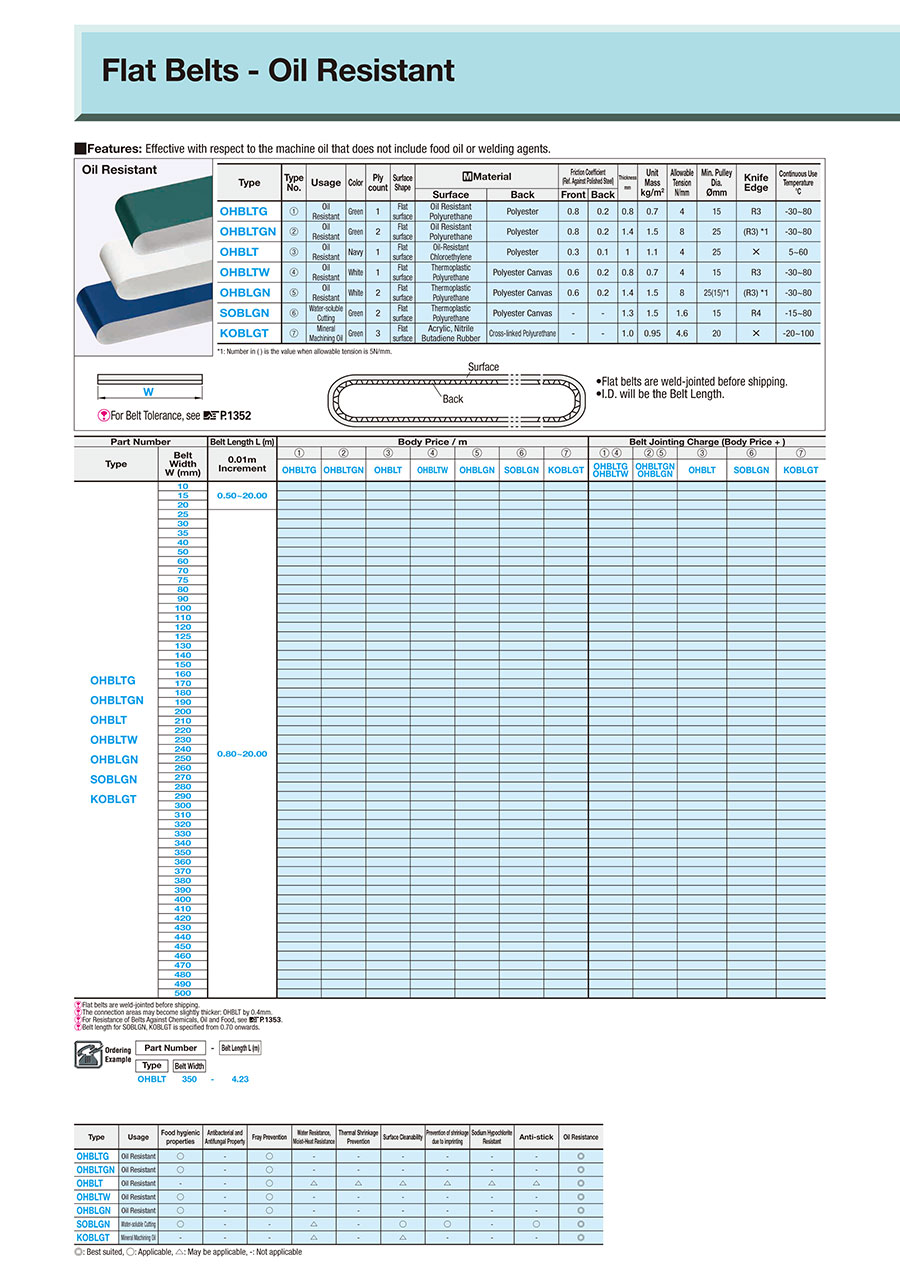

possible part numbers found.Outline drawing and specifications table
Dimensional Drawing
[ ! ]Endless jointing is applied before the product is shipped.
[ ! ]The circumference of the belt is the length of the back side of the belt (inner diameter circumference).
| Type | Type No. | Applications | Color | Ply count Qty. | Surface Shape | [M] Material | Friction Coefficient (Ref. Against Polished Steel) | Thickness mm | Unit Mass kg/m2 | Allowable Tension N/mm | Min. Pulley Dia. ⌀mm | Knife Edge | Continuous Use Temperature °C | ||
| Surface | Back | Front | Back | ||||||||||||
| OHBLTG | (1) | Oil-Resistant | Green | 1 | Flat Surface | Oil Resistant Polyurethane | Polyester | 0.8 | 0.2 | 0.8 | 0.7 | 4 | 15 | R3 | −30 to 80 |
| OHBLTGN | (2) | Oil-Resistant | Green | 2 | Flat Surface | Oil Resistant Polyurethane | Polyester | 0.8 | 0.2 | 1.4 | 1.5 | 8 | 20 | (R3)* 1 | −30 to 80 |
| OHBLT | (3) | Oil-Resistant | Navy | 1 | Flat Surface | Oil-Resistant Chloroethylene | Polyester | 0.3 | 0.1 | 1 | 1.1 | 4 | 25 | × | 5 to 60 |
| OHBLTW | (4) | Oil-Resistant | White | 1 | Flat Surface | Thermoplastic Polyurethane | Polyester Canvas | 0.6 | 0.2 | 0.8 | 0.7 | 4 | 15 | R3 | −30 to 80 |
| OHBLGN | (5) | Oil-Resistant | White | 2 | Flat Surface | Thermoplastic Polyurethane | Polyester Canvas | 0.6 | 0.2 | 1.4 | 1.5 | 8 | 25 (15)* 1 | (R3)* 1 | −30 to 80 |
| SOBLGN | (6) | Water Soluble Cutting Oil | Green | 2 | Flat Surface | Thermoplastic Polyurethane | Polyester Canvas | — | — | 1.3 | 1.5 | 1.6 | 15 | R4 | −15 to 80 |
| KOBLGT | (7) | Mineral Cutting Oil | Green | 3 | Flat Surface | Acrylic / Nitrile Butadiene Rubber | Cross-linked Polyurethane | — | — | 1 | 0.95 | 4.6 | 20 | × | −20 to 100 |
[!]The number of plies is the number of fabric layers in the belt. The greater the number of fabric layers, the higher the allowable tension, but the larger the minimum pulley diameter.
■Flat Belt Tolerance Chart
Width tolerance | Thickness tolerance | Length tolerance | ||||||
| Width | Tolerance | Thickness | Tolerance | Joint tolerance | Length | Tolerance | ||
Up to 400 | ±2 | Up to 1.0 | ±0.1 | ±0.3 | Up to 2000 | ±10 | ||
| 401 to 500 | ±3 | 1.1 to 1.5 | ±0.2 | 2001 to 7000 | ±20 | |||
| 1.6 to 2.0 | 7001 to 10000 | ±0.3% | ||||||
| 2.1 to 5.5 | ±0.4 | 10001 or more | ||||||
Permanent elongation of the belt is up to 1% for the overall length. (Reference value)
Specification Table
| Part Number | — | Belt Length L (m) | ||
| Type | Belt Width | |||
| OHBLT | 350 | — | 4.23 | |
| Part Number | Belt Length L (m) | |
| Type | Belt Width W (mm) | Configurable 0.01 m Increments |
| OHBLTG OHBLTGN OHBLT OHBLTW OHBLGN SOBLGN* KOBLGT* | 10 | 0.50 to 20.00 |
| 15 | ||
| 20 | ||
| 25 | 0.80 to 20.00 | |
| 30 | ||
| 35 | ||
| 40 | ||
| 50 | ||
| 60 | ||
| 70 | ||
| 75 | ||
| 80 | ||
| 90 | ||
| 100 | ||
| 110 | ||
| 120 | ||
| 125 | ||
| 130 | ||
| 140 | ||
| 150 | ||
| 160 | ||
| 170 | ||
| 180 | ||
| 190 | ||
| 200 | ||
| 210 | ||
| 220 | ||
| 230 | ||
| 240 | ||
| 250 | ||
| 260 | ||
| 270 | ||
| 280 | ||
| 290 | ||
| 300 | ||
| 310 | ||
| 320 | ||
| 330 | ||
| 340 | ||
| 350 | ||
| 360 | ||
| 370 | ||
| 380 | ||
| 390 | ||
| 400 | ||
| 410 | ||
| 420 | ||
| 430 | ||
| 440 | ||
| 450 | ||
| 460 | ||
| 470 | ||
| 480 | ||
| 490 | ||
| 500 | ||
* 2: Belt length for SOBLGN, KOBLGT can be configured beginning with 0.70.
Technical Information
·If this product is used under the minimum pulley diameter, a slip may occur between the belt and the pulley.
·The life of a belt is difficult to calculate, so if the belt appears damaged or worn on the surface, it should be replaced.
·Oil-resistant belts cannot be used in environments where oil adheres to the back face.
·Use the belt in the direction of the arrow printed on the main body.
Printing Example
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 16 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
More Information
Outline and specifications
Specifications / Overview
| Type | Applications | Food Hygienic Properties | Antibacterial/Anti-mold Properties | Fray Prevention | Water/Moist-Heat Resistant | Thermal Shrinkage Prevention | Surface Cleanability | Prevention of shrinkage due to imprinting | Sodium Hypochlorite Resistant | Anti-stick | Oil Resistance |
| OHBLTG | Oil-Resistant | ○ | — | ○ | — | — | — | — | — | — | ◎ |
| OHBLTGN | Oil-Resistant | ○ | — | ○ | — | — | — | — | — | — | ◎ |
| OHBLT | Oil-Resistant | — | — | ○ | △ | △ | △ | △ | △ | △ | ◎ |
| OHBLTW | Oil-Resistant | ○ | — | ○ | — | — | — | — | — | — | ◎ |
| OHBLGN | Oil-Resistant | ○ | — | ○ | — | — | — | — | — | — | ◎ |
| SOBLGN | Water Soluble Cutting Oil | ○ | — | — | △ | — | ○ | ○ | — | ○ | ◎ |
| KOBLGT | Mineral Cutting Oil | — | — | — | △ | — | △ | — | — | — | ◎ |
