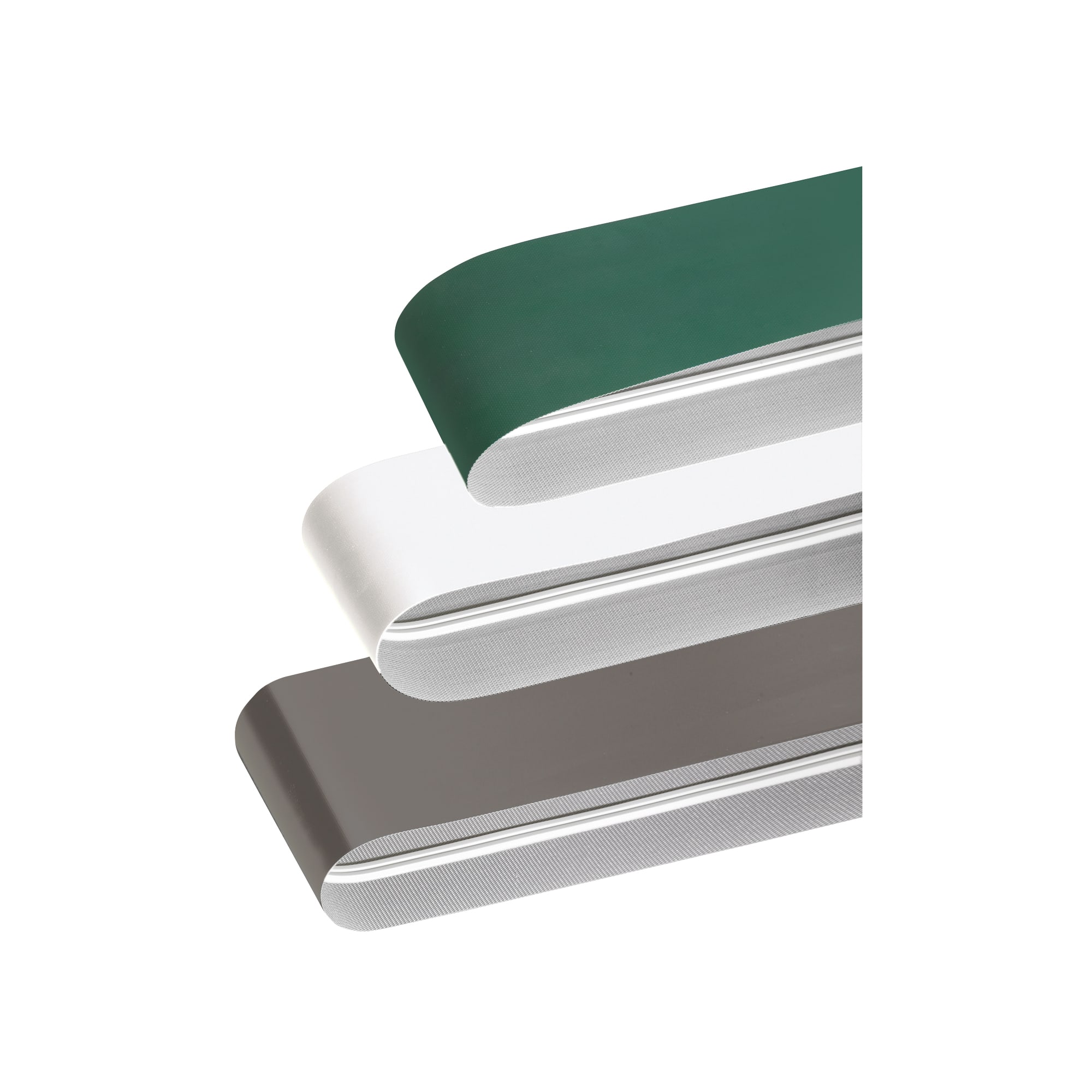

Belts With Meandering Prevention Crosspiece / For Inclined Transfer
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| Type | Type No. | Incline Angle Standard | Color | Ply count | Surface Shape | Material | Friction Coefficient (Ref. Against Polished Steel) | Thickness mm | Unit Mass kg/m2 | Allowable Tension N/mm | Min. Pulley Dia. Ømm | Continuous Use Temperature °C | ||
| Surface | Back | Front | Back | |||||||||||
| LHBLTDSG | 15 or less | Green | 1 | Vertical groove | Polyurethane | Polyester | 1.3 | 0.2 | 1.4 | 1 | 4 | 25 | -30~80 | |
| LHBLTDSW | 15 or less | White | 1 | Vertical groove | Polyurethane | Polyester | 1.3 | 0.2 | 1.4 | 1 | 4 | 25 | -30~80 | |
| LHBLWDSN | 15 or less | White | 2 | Vertical groove | Thermoplastic Polyurethane | Polyester Canvas | 1.6 | 0.2 | 2.3 | 2.2 | 8 | 50(25) *1 | -30~80 | |
| LHBLYADSN | 15 or less | Gray | 2 | Shallow groove | PVC | Polyester Canvas | 1.2 | 0.2 | 3.3 | 3.4 | 8 | 80 | -10~70 | |
| LHBLGDSN | 15 or less | Green | 2 | Basket-weave | PVC | Polyester Canvas | 1.1 | 0.2 | 2.3 | 2.4 | 8 | 100(70) *1 | -10~60 | |
| LHBLGADSN | 20 or less | Green | 2 | Deep groove | PVC | Polyester Canvas | 1.2 | 0.2 | 5.3 | 4.2 | 8 | 80 | -10~70 | |
| LHBLGTDSN | 20 or less | Green | 2 | Rough top | PVC | Polyester Canvas | 1.1 | 0.2 | 5.5 | 6.5 | 12 | 80 | -10~70 | |
| LHBLYTDSN | 20 or less | Gray | 2 | Rough top | PVC | Polyester Canvas | 1.1 | 0.2 | 5.5 | 6.5 | 12 | 80 | -10~70 | |
| LHBLGYDSN | 30 or less | Green | 2 | Herringbone | Special Thermoplastic Elastomer | Polyester Canvas | 2.0 | 0.2 | 3.4 | 3.0 | 8 | 50 | -10~60 | |
| LHBLYFDSN | 30 or less | Gray | 2 | Herringbone | Special Thermoplastic Elastomer | Polyester Canvas | 2.0 | 0.2 | 3.4 | 3.0 | 8 | 75(50) *1 | -10~60 | |
Specifications
| Part Number | - | Belt Length L (m) | ||
| Type | Belt Width | |||
| LHBLTDSG | 350 | - | 4.23 | |
| Part Number | Belt Length L (m) | Body Price / m | Belt Jointing Charge (Body Price + ) | |||||||
| Type | Belt Width W | 0.01m Increment | , , | ~ | ||||||
| 0.01m Increment 10mm Increment | LHBLTDSG LHBLTDSW | LHBLYADSN | LHBLGDSN | LHBLGADSN | LHBLGTDSN LHBLYTDSN | LHBLWDSN LHBLGYDSN LHBLYFDSN | LHBLTDSG LHBLTDSW | LHBLWDSN, LHBLYADSN LHBLGDSN, LHBLGADSN LHBLGTDSN, LHBLYTDSN LHBLGYDSN, LHBLYFDSN | ||
| LHBLTDSG LHBLTDSW LHBLWDSN LHBLYADSN LHBLGDSN LHBLGADSN LHBLGTDSN LHBLYTDSN LHBLGYDSN LHBLYFDSN | 50~90 | 0.50~20.00 (L≥Wx4) | ||||||||
| 100~190 | ||||||||||
| 200~290 | ||||||||||
| 300~400 | ||||||||||
| 410~500 | ||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Surface Cover Color | Surface Cover Material | Belt Width W (mm) | Surface Cover Shape | Friction Coefficient (Ref. Against Polished Steel) Front | Thickness (mm) | Unit Mass (kg/m²) | Allowable Tension (N/mm) | Min. Pulley Dia. (mm) | Continuous Use Temperature (°C) | Circumference Length (m) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 50 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 60 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 70 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 80 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 90 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 100 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 110 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 120 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 130 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 140 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 150 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 160 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 170 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 180 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 190 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 200 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 210 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 220 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 230 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 240 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 250 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 260 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 270 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 280 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 290 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 300 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 310 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 320 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 330 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 340 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 350 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 360 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 370 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 380 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 390 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 400 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 410 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 420 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 430 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 440 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 450 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 460 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 470 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 480 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 490 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | - | [Green] Green | [Vinyl Chloride] PVC | 500 | [Woven Fabric] Deep Groove | 1.2 | 5.3 | 4.2 | 8 | 80 | -10-70 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 50 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 60 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 70 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 80 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 90 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 100 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 110 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 120 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 130 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 140 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 150 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 160 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 170 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 | ||
- | 1 | 9 Days | 10 | [Green] Green | [Vinyl Chloride] PVC | 180 | [Woven Fabric] Basket-weave | 1.1 | 2.3 | 2.4 | 8 | 100 (70) *1 | -10-60 | 0.5 ～ 18 |
Loading...
More Information
| Type | Standard Inclination | Food hygienic properties | Antibacterial and Antifungal Property | Fray Prevention | Water Resistance, Moist-Heat Resistance | Thermal Shrinkage Prevention | Surface Cleanability | Prevention of shrinkage due to imprinting | Sodium Hypochlorite Resistant | Anti-stick | Oil Resistance |
| LHBLTDSG | 15 or less | ○ | - | ○ | - | - | - | - | - | - | ○ |
| LHBLTDSW | 15 or less | ○ | - | ○ | - | - | - | - | - | - | ○ |
| LHBLWDSN | 15 or less | ○ | - | ○ | - | - | - | - | - | - | ○ |
| LHBLYADSN | 15 or less | - | - | ○ | - | - | - | - | - | - | - |
| LHBLGDSN | 15 or less | - | - | - | - | - | - | - | - | - | - |
| LHBLGADSN | 20 or less | - | - | ○ | - | - | - | - | - | - | - |
| LHBLGTDSN | 20 or less | - | - | - | - | - | - | - | - | - | - |
| LHBLYTDSN | 20 or less | - | - | - | - | - | - | - | - | - | - |
| LHBLGYDSN | 30 or less | - | - | - | - | - | - | - | - | - | - |
| LHBLYFDSN | 30 or less | - | - | ○ | - | - | - | - | - | - | - |
◎: Best suited, ○: Applicable, △: May be applicable, -: Not applicable
Basic information
| Belt Specification | Inclination | Core Body Material | Polyester Canvas | The Number of Tire Ply | 2-ply |
|---|---|---|---|---|---|
| Friction Coefficient (Ref. Against Polished Steel) Back | 0.2 | Knife Edge(mm) | Not Provided |
Configure
Basic Attributes
-
Surface Cover Color
- White
- Green
- Gray
-
Surface Cover Material
- Polyurethane
- Vinyl Chloride
- Thermoplastic Elastomer
- Polyurethane
-
Belt Width W(mm)
-
Surface Cover Shape
- Vertical Groove
- Woven Fabric
- Rough top
- Herringbone
-
Friction Coefficient (Ref. Against Polished Steel) Front
-
Thickness(mm)
-
Unit Mass(kg/m²)
-
Allowable Tension(N/mm)
-
Min. Pulley Dia.(mm)
-
Continuous Use Temperature(°C)
-
Circumference Length(m)
-
Type
- LHBLGADSN
- LHBLGDSN
- LHBLGTDSN
- LHBLGYDSN
- LHBLWDSN
- LHBLYADSN
- LHBLYFDSN
- LHBLYTDSN
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
