Joint Links / Offset Links
Part number:

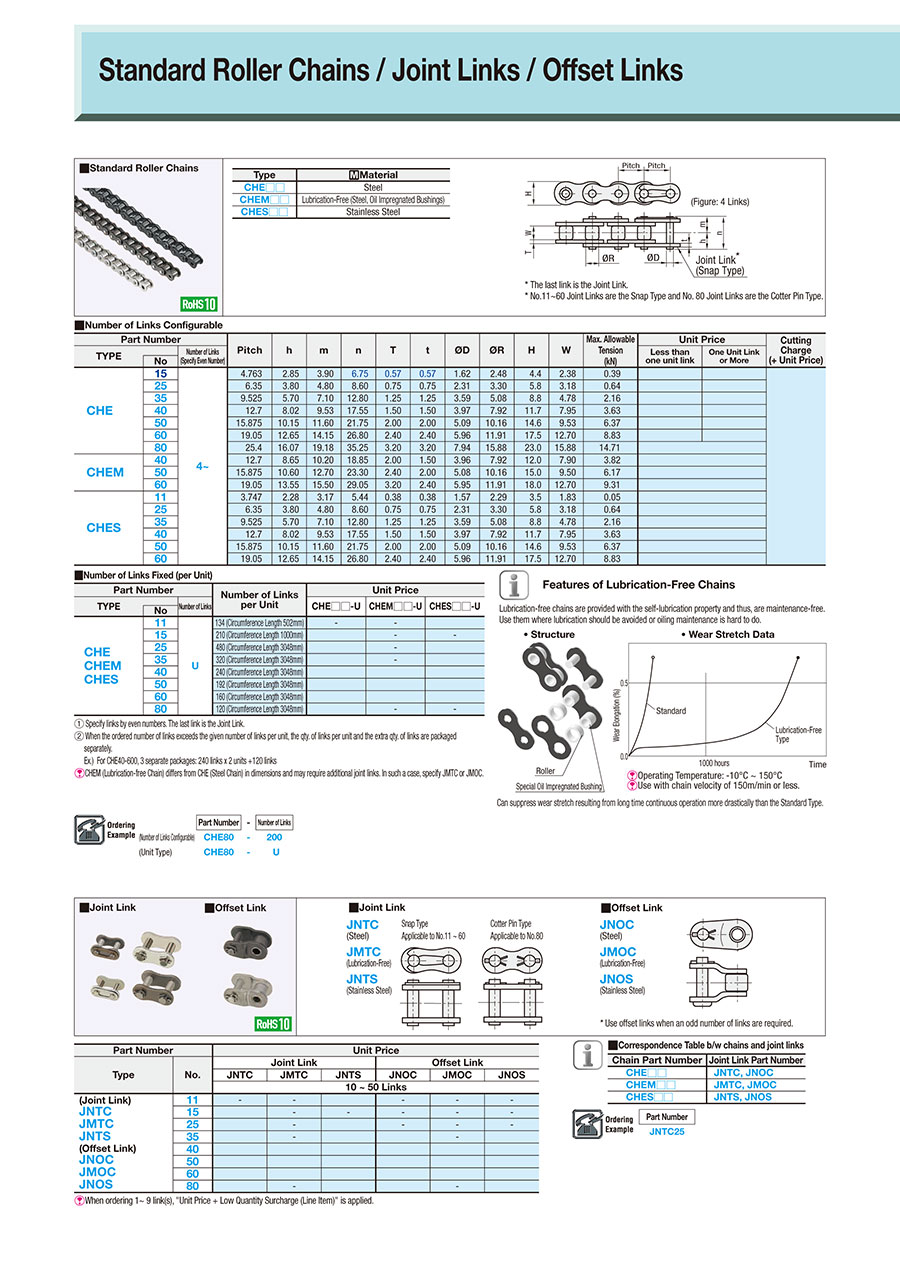

possible part numbers found.Outline drawing and specifications table
| JNTC (Steel) JMTC (Lubrication-Free) JNTS (Stainless Steel) |  |
Specification Table
| Part Number |
| JNTC60 |
* Values in () are dimensions of lubrication-free type.
| Part Number | h | m | n | t | D | H | |
| Type | Nominal | ||||||
| JNTC (Steel) JMTC (Lubrication-Free) JNTS (Stainless Steel) | 11 | 2.28 | 3.17 | 5.44 | 0.38 | 1.57 | 3.5 |
| 15 | 2.85 | 3.90 | 6.75 | 0.57 | 1.62 | 3.7 | |
| 25 | 3.80 | 4.80 | 8.80 | 0.78 | 2.31 | 5.2 | |
| 35 | 5.70 | 7.10 | 12.85 | 1.20 | 3.60 | 7.7 | |
| 40 | 8.02 (8.65) | 9.53 (10.20) | 17.55 (18.85) | 1.15 (1.50) | 3.97 (3.96) | 11.7 (10.4) | |
| 50 | 10.15 (10.60) | 11.60 (12.70) | 21.75 (23.30) | 2.00 | 5.09 (5.08) | 14.6 (13.0) | |
| 60 | 12.65 (13.55) | 14.15 (15.50) | 26.80 (29.05) | 2.40 | 5.96 (5.95) | 17.5 (15.6) | |
| 80 | 16.07 | 19.18 | 35.00 | 3.20 | 7.94 | 21.1 | |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
3.66 € ( 4.36 € ) | 5 working days |
3.66 € ( 4.36 € ) | 5 working days |
4.78 € ( 5.69 € ) | 5 working days |
1.25 € ( 1.49 € ) | Stock item: 1 working dayAvailable for same-day shipping |
2.19 € ( 2.61 € ) | 5 working days |
2.65 € ( 3.15 € ) | 5 working days |
1.01 € ( 1.20 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.14 € ( 1.36 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.51 € ( 1.80 € ) | 5 working days |
1.76 € ( 2.09 € ) | 5 working days |
2.65 € ( 3.15 € ) | 5 working days |
2.89 € ( 3.44 € ) | 5 working days |
3.27 € ( 3.89 € ) | 5 working days |
3.90 € ( 4.64 € ) | 5 working days |
10.07 € ( 11.98 € ) | 5 working days |
1.14 € ( 1.36 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.01 € ( 1.20 € ) | Stock item: 1 working dayAvailable for same-day shipping |
0.75 € ( 0.89 € ) | Stock item: 1 working dayAvailable for same-day shipping |
0.75 € ( 0.89 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.01 € ( 1.20 € ) | 5 working days |
1.25 € ( 1.49 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.76 € ( 2.09 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.76 € ( 2.09 € ) | 5 working days |
1.51 € ( 1.80 € ) | 5 working days |
1.64 € ( 1.95 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.76 € ( 2.09 € ) | Stock item: 1 working dayAvailable for same-day shipping |
2.77 € ( 3.30 € ) | 5 working days |
2.77 € ( 3.30 € ) | 5 working days |
5.28 € ( 6.28 € ) | 5 working days |
