Slot Pins for Inspection Components / Clamp Type / Straight

Slot Pins for Inspection Components / Clamp Type / Straight
  • Slot Pins for Inspection Components / Clamp Type / Straight
  • Slot Pins for Inspection Components / Clamp Type / Straight

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

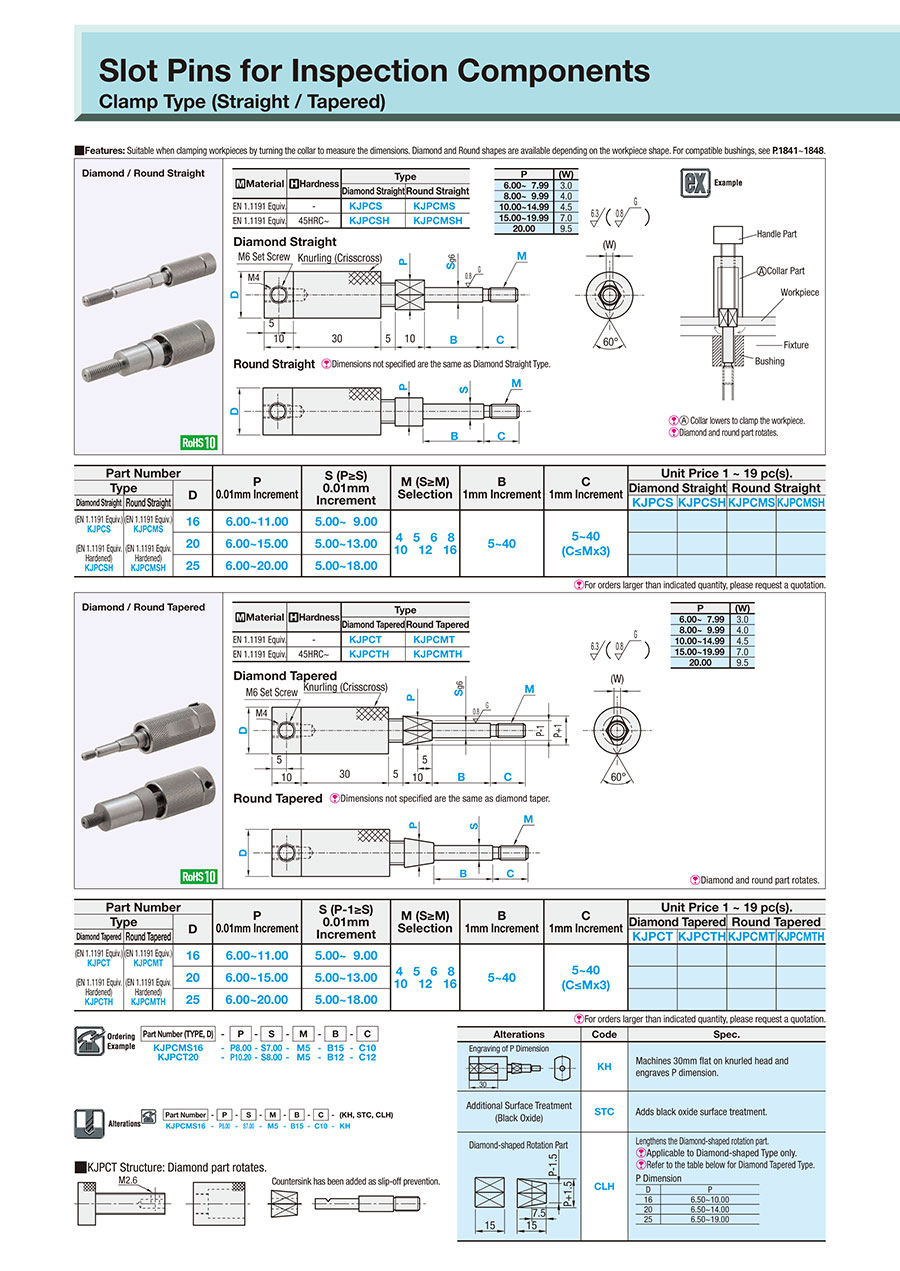

Outline drawing and specifications table

Diamond Straight

Round Straight [ ! ] Dimensions not specified are the same as those of Diamond Straight Type.

Dimensional Drawing: Related Image
[ ! ] The handle of this product is not hardened.
[!] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, tapped depth, and angular dimension tolerances are excluded.
[M] Material[H] HardnessType
Diamond StraightRound Straight
EN 1.1191 Equiv.—KJPCSKJPCMS
45HRC or moreKJPCSHKJPCMSH

Specification Table

Part Number (TYPE·D)—P—S—M—B—C
KJPCMS16
KJPCT20　		—
—		P8.00
P10.20		—
—		S7.00
S8.00		—
—		M5
M5		—
—		B15
B12		—
—		C10
C12
P(W)
6.00 to 7.993.0
8.00 to 9.994.0
10.00 to 14.994.5
15.00 to 19.997.0
20.009.5
Part NumberP
0.01 mm Increments		S (P ≥ S)
0.01 mm Increments		M (Coarse)
S ≥ M Selection		B
1 mm Increments		C
1 mm Increments
TYPED
Diamond StraightRound Straight
(EN 1.1191 Equiv.)
KJPCS

(EN 1.1191 Equiv. (hardened))
KJPCSH		(EN 1.1191 Equiv.)
KJPCMS

(EN 1.1191 Equiv. (hardened))
KJPCMSH		166.00 to 11.005.00 to 9.0045685 to 405 to 40
(C ≤ M × 3)
206.00 to 15.005.00 to 13.00
101216
256.00 to 20.005.00 to 18.00

Alterations

Part Number—P—S—M—B—C—(KH·STC·CLH)
KJPCMS16—P8.00—S7.00—M5—B15—C10—KH
AlterationsCodeSpec.
Engraving of P Dimension
Alterations: Related Image		KHMachines 30 mm flat on knurled head
and engraves P dimension.
Additional Surface Treatment
(Black Oxide)		STCAdds black oxide surface treatment.
Diamond-shaped Rotation Part
CLHLengthens the Diamond-shaped rotation part.
[ ! ] Applicable to Diamond-shaped Type only
[ ! ] Refer to the table below for Diamond Tapered Type.
P Dimension
DP
166.50 to 10.00
206.50 to 14.00
256.50 to 19.00

Part number list

Number of items
  • 1
    • Part number
    KJPCMS16-P[6-11/0.01]-S[5-9/0.01]-M[4,5,6,8]-B[5-40/1]-C[5-40/1]
    KJPCMS20-P[6-15/0.01]-S[5-13/0.01]-M[4,5,6,8,10,12]-B[5-40/1]-C[5-40/1]
    KJPCMS25-P[6-20/0.01]-S[5-18/0.01]-M[4,5,6,8,10,12,16]-B[5-40/1]-C[5-40/1]
    KJPCMSH16-P[6-11/0.01]-S[5-9/0.01]-M[4,5,6,8]-B[5-40/1]-C[5-40/1]
    KJPCMSH20-P[6-15/0.01]-S[5-13/0.01]-M[4,5,6,8,10,12]-B[5-40/1]-C[5-40/1]
    KJPCMSH25-P[6-20/0.01]-S[5-18/0.01]-M[4,5,6,8,10,12,16]-B[5-40/1]-C[5-40/1]
    KJPCS16-P[6-11/0.01]-S[5-9/0.01]-M[4,5,6,8]-B[5-40/1]-C[5-40/1]
    KJPCS20-P[6-15/0.01]-S[5-13/0.01]-M[4,5,6,8,10,12]-B[5-40/1]-C[5-40/1]
    KJPCS25-P[6-20/0.01]-S[5-18/0.01]-M[4,5,6,8,10,12,16]-B[5-40/1]-C[5-40/1]
    KJPCSH16-P[6-11/0.01]-S[5-9/0.01]-M[4,5,6,8]-B[5-40/1]-C[5-40/1]
    KJPCSH20-P[6-15/0.01]-S[5-13/0.01]-M[4,5,6,8,10,12]-B[5-40/1]-C[5-40/1]
    KJPCSH25-P[6-20/0.01]-S[5-18/0.01]-M[4,5,6,8,10,12,16]-B[5-40/1]-C[5-40/1]

    Shape of Stepped Section

    Hardness

    Diamond Part/Round Part Shape

    Outer Dia. D

    (Ø)

    B

    (mm)

    C

    (mm)

    M

    P

    (mm)

    S

    (mm)

    		RoHS?Minimum order quantity
    Circular Shape
    No Hardened
    Round, Straight
    16
    5 ～ 40
    5 ～ 40
    4 ～ 8
    6 ～ 11
    5 ～ 9
    10
    1 pieces
    Circular Shape
    No Hardened
    Round, Straight
    20
    5 ～ 40
    5 ～ 40
    4 ～ 12
    6 ～ 15
    5 ～ 13
    10
    1 pieces
    Circular Shape
    No Hardened
    Round, Straight
    25
    5 ～ 40
    5 ～ 40
    4 ～ 16
    6 ～ 20
    5 ～ 18
    10
    1 pieces
    Circular Shape
    45HRC ~
    Round, Straight
    16
    5 ～ 40
    5 ～ 40
    4 ～ 8
    6 ～ 11
    5 ～ 9
    10
    1 pieces
    Circular Shape
    45HRC ~
    Round, Straight
    20
    5 ～ 40
    5 ～ 40
    4 ～ 12
    6 ～ 15
    5 ～ 13
    10
    1 pieces
    Circular Shape
    45HRC ~
    Round, Straight
    25
    5 ～ 40
    5 ～ 40
    4 ～ 16
    6 ～ 20
    5 ～ 18
    10
    1 pieces
    Diamond
    No Hardened
    Diamond, Straight
    16
    5 ～ 40
    5 ～ 40
    4 ～ 8
    6 ～ 11
    5 ～ 9
    10
    1 pieces
    Diamond
    No Hardened
    Diamond, Straight
    20
    5 ～ 40
    5 ～ 40
    4 ～ 12
    6 ～ 15
    5 ～ 13
    10
    1 pieces
    Diamond
    No Hardened
    Diamond, Straight
    25
    5 ～ 40
    5 ～ 40
    4 ～ 16
    6 ～ 20
    5 ～ 18
    10
    1 pieces
    Diamond
    45HRC ~
    Diamond, Straight
    16
    5 ～ 40
    5 ～ 40
    4 ～ 8
    6 ～ 11
    5 ～ 9
    10
    1 pieces
    Diamond
    45HRC ~
    Diamond, Straight
    20
    5 ～ 40
    5 ～ 40
    4 ～ 12
    6 ～ 15
    5 ～ 13
    10
    1 pieces
    Diamond
    45HRC ~
    Diamond, Straight
    25
    5 ～ 40
    5 ～ 40
    4 ～ 16
    6 ～ 20
    5 ～ 18
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
  • 1

    • More Information

    Outline and specifications

    App. Example

    [ ! ] (A) Collar lowers to clamp the workpiece.
    [ ! ] Diamond and round part rotate.
