[Standard] Micrometer Head

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

MCMH6

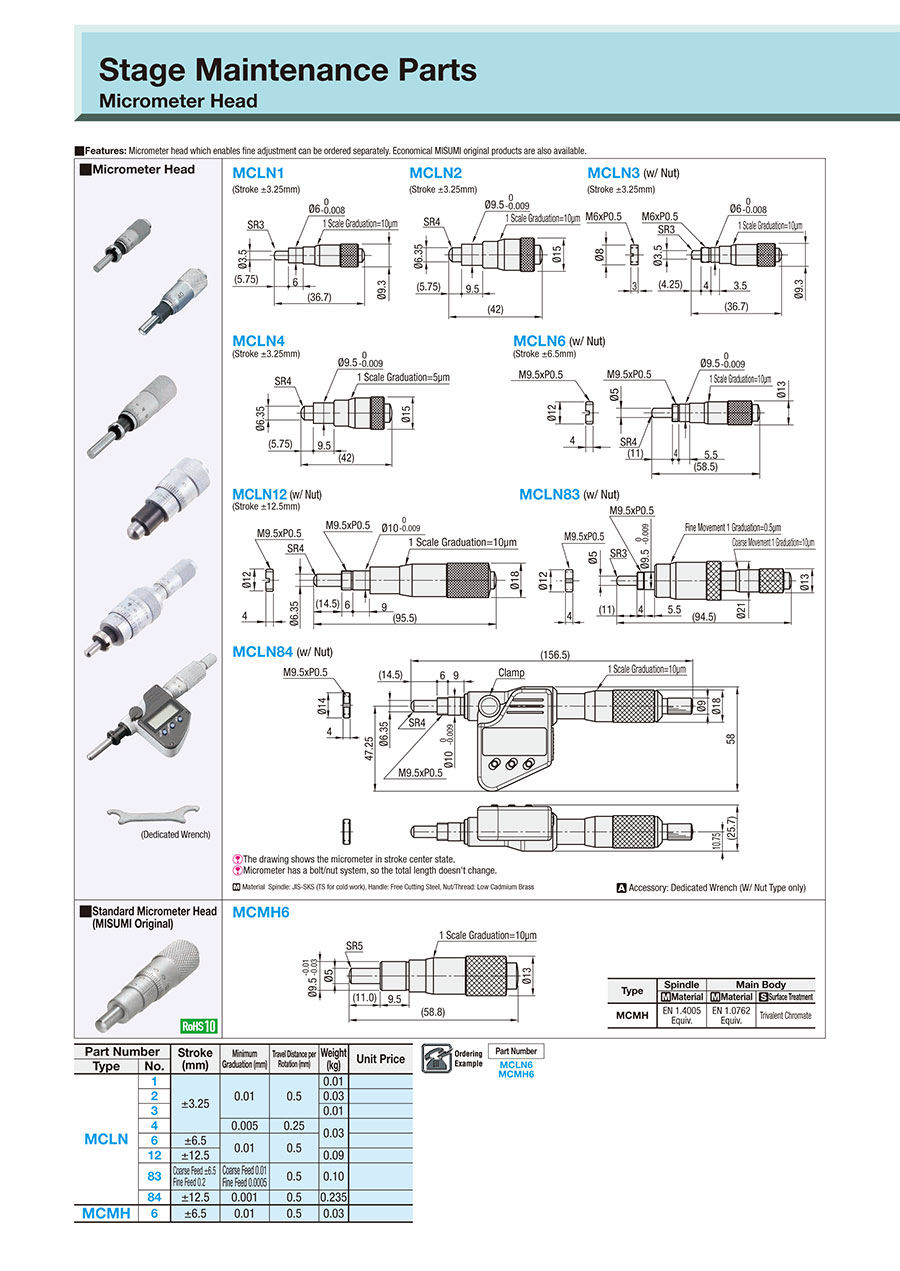

[Standard] Micrometer Head:Related Image

TypeSpindleMain Body
MaterialMaterialSurface Treatment
MCMHEN 1.4005 Equiv.EN 1.0762 Equiv.Trivalent Chromate

Specifications

Part Number
MCLN6
MCMH6
Part NumberStroke (mm)Minimum Graduation (mm)Travel Distance per Rotation (mm)Weight (kg)Unit Price
TypeNo.
MCLN1±3.250.010.50.01
20.03
30.01
40.0050.250.03
6±6.50.010.5
12±12.50.09
83Coarse Feed ±6.5
Fine Feed 0.2
Coarse Feed 0.01
Fine Feed 0.0005
0.50.10
84±12.50.0010.50.235
MCMH6±6.50.010.50.03

Part Number:

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
Part Number
MCMH6
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHS

45.50 €

Same day

Stock

10

Loading...

  1. 1

Basic information

Type Feed Screws for Stage Mounting Dia.(φ) 9.5 Tip Dia.(φ) 5
Mounting Threads Not Provided Stroke (Standard, Coarse)(mm) ±6.5 Min. Graduation (Standard, Coarse) 0.01
Travel Distance per 1 Rotation(mm) 0.5

This page is [Standard] Micrometer Head, part number MCMH6.
You can find the detail information about specifications and dimensions on part number MCMH6.
