Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Nut Type | Type | Accuracy Grade | Shaft Dia. | Lead | Screw Shaft | Nut | ||
Material | Hardness | Material | Hardness | |||||
Standard Nut | C-BSS | C5 | 10 | 2, 4 | EN 1.1203 Equiv. | Induction Hardened 58~62HRC | EN 1.7242 Equiv. | Carburized 58~62HRC |
Part Number | - | L |
C-BSS1002 | - | 200 |

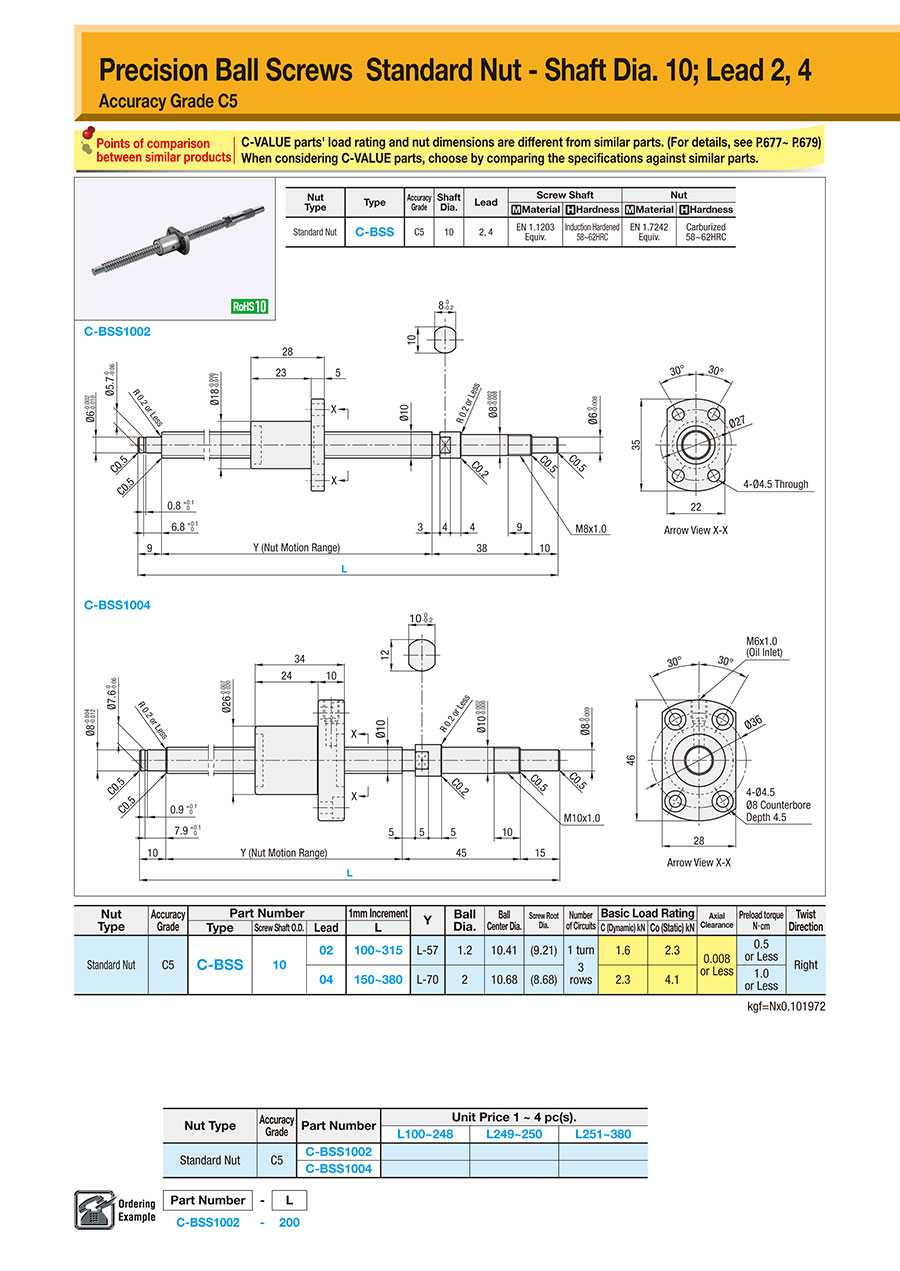

Nut Type | Accuracy Grade | Part Number | 1mm Increment | Y | Ball Dia. | Ball Center Dia. | Screw Root Dia. | Number of Circuits | Basic Load Rating | Axial Clearance | Preload torque N • cm | Twist Direction | |||
Type | Screw Shaft O.D. | Lead | L | C (Dynamic) kN | Co (Static) kN | ||||||||||
Standard Nut | C5 | C-BSS | 10 | 02 | 100~315 | L-57 | 1.2 | 10.41 | (9.21) | 1 turn 3 rows | 1.6 | 2.3 | 0.008 or Less | 0.5 or Less | Right |
04 | 150~380 | L-70 | 2 | 10.68 | (8.68) | 2.3 | 4.1 | 1.0 or Less |
3D preview is not available, because the part number has not yet been determined.
Part Number
|
---|
C-BSS1002-[100-315/1] |
C-BSS1004-[150-380/1] |
Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Lead (mm) | Shaft Overall Length L (mm) | Basic Load Rating Dynamic Rating (N) | Basic Load Rating Static Rating (N) | |
---|---|---|---|---|---|---|---|---|
- | 1 | 10 Days | 2 | 100 ~ 315 | 1600 | 2300 | ||
- | 1 | 10 Days | 4 | 150 ~ 380 | 2300 | 4100 |
Loading...
Type | Precision | Nut Type | Standard Nuts | Flange Shape | Round Shape 2 Sides Machined |
---|---|---|---|---|---|
Accuracy Grade | C5 | Screw Shaft O.D.(mm) | 10 | Preload | Not Preloaded |
Conditions of Use | Standard | Twisting Direction | Right | Axial Play | 0.010 or Less |
Nut structure | 1-fach | Circuit System | End Cap Type | Number of Circuits(Rows x Windings) | 1 x 3 |
Material | EN 1.1203 Equiv. | Screw Shaft Surface Treatment | Not Provided | Shaft End Dimension (Fixed, Configurable) | Stationary |
Nut Size | Standard |
