Support Units / Square / Fixed Side / Cost Efficient Product
Part number:

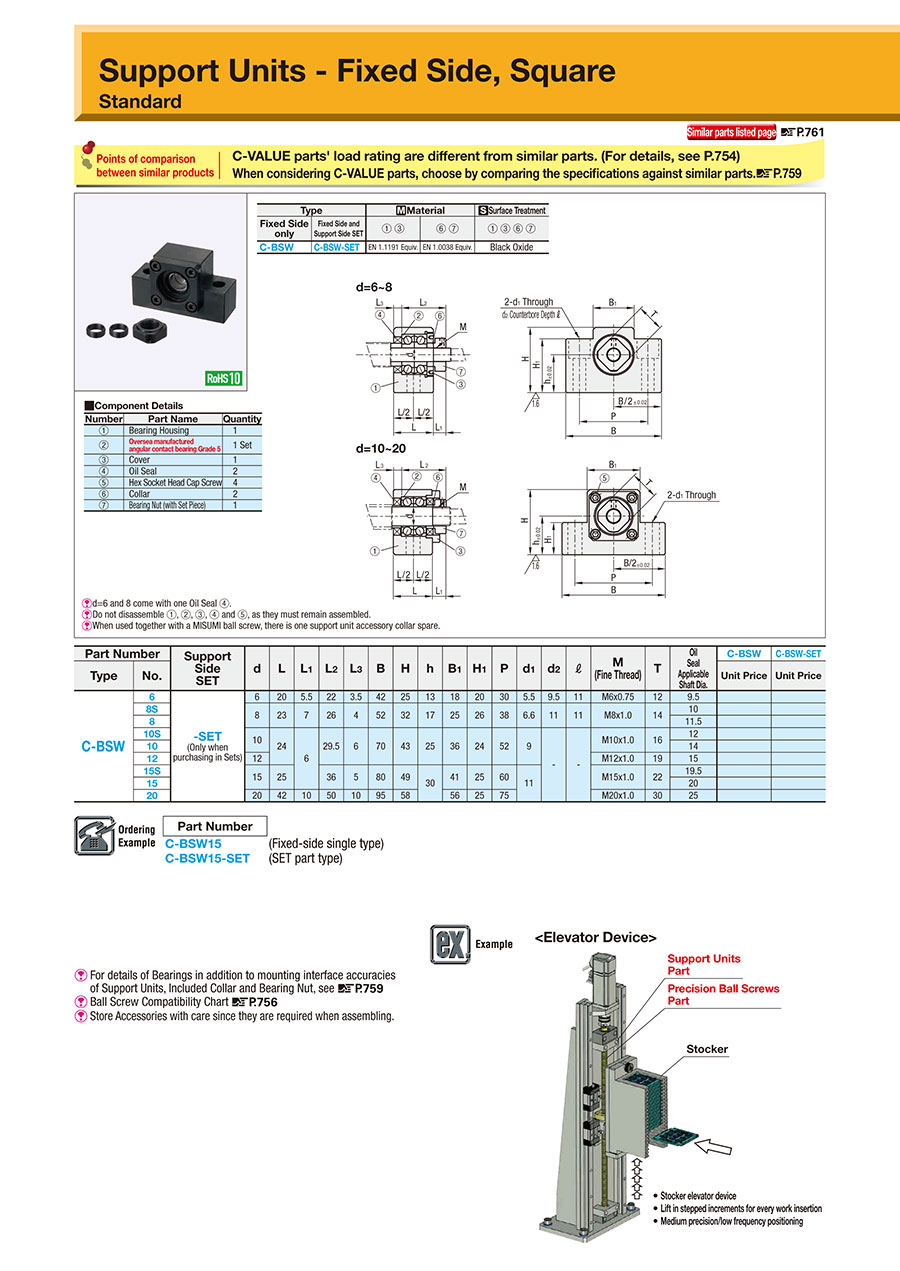

possible part numbers found.Outline drawing and specifications table
| Type | Material | Surface Treatment | ||
| Fixed Side only | Fixed Side and Support Side SET | |||
| C-BSW | C-BSW-SET | EN 1.1191 Equiv. | EN 1.0038 Equiv. | Black Oxide |
Specifications
| Part Number | |
| C-BSW15 | (Fixed-side single type) |
| C-BSW15-SET | (SET part type) |
■Component Details
d=6 and 8 come with one Oil Seal .
Do not disassemble , , , and , as they must remain assembled.
When used together with a MISUMI ball screw, there is one support unit accessory collar spare.
| Number | Part Name | Quantity |
| Bearing Housing | 1 | |
| Oversea manufactured angular contact bearing Grade 5 | 1 Set | |
| Cover | 1 | |
| Oil Seal | 2 | |
| Hex Socket Head Cap Screw | 4 | |
| Collar | 2 | |
| Bearing Nut (with Set Piece) | 1 |
Do not disassemble , , , and , as they must remain assembled.
When used together with a MISUMI ball screw, there is one support unit accessory collar spare.
| Part Number | Support Side SET | d | L | L1 | L2 | L3 | B | H | h | B1 | H1 | P | d1 | d2 | ℓ | M (Fine Thread) | T | Oil Seal Applicable Shaft Dia. | C-BSW | C-BSW-SET | |
| Type | No. | Unit Price | Unit Price | ||||||||||||||||||
| C-BSW | 6 | -SET (Only when purchasing in Sets) | 6 | 20 | 5.5 | 22 | 3.5 | 42 | 25 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 | M6x0.75 | 12 | 9.5 | ||
| 8S | 8 | 23 | 7 | 26 | 4 | 52 | 32 | 17 | 25 | 26 | 38 | 6.6 | 11 | 11 | M8x1.0 | 14 | 10 | ||||
| 8 | 11.5 | ||||||||||||||||||||
| 10S | 10 | 24 | 6 | 29.5 | 6 | 70 | 43 | 25 | 36 | 24 | 52 | 9 | - | - | M10x1.0 | 16 | 12 | ||||
| 10 | 14 | ||||||||||||||||||||
| 12 | 12 | M12x1.0 | 19 | 15 | |||||||||||||||||
| 15S | 15 | 25 | 36 | 5 | 80 | 49 | 30 | 41 | 25 | 60 | 11 | M15x1.0 | 22 | 19.5 | |||||||
| 15 | 20 | ||||||||||||||||||||
| 20 | 20 | 42 | 10 | 50 | 10 | 95 | 58 | 56 | 25 | 75 | M20x1.0 | 30 | 25 | ||||||||
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
53.27 € ( 63.39 € ) | Stock item: 1 working dayAvailable for same-day shipping |
65.66 € ( 78.14 € ) | 5 working days |
53.27 € ( 63.39 € ) | Stock item: 1 working dayAvailable for same-day shipping |
66.34 € ( 78.94 € ) | Stock item: 1 working dayAvailable for same-day shipping |
53.27 € ( 63.39 € ) | Stock item: 1 working dayAvailable for same-day shipping |
66.34 € ( 78.94 € ) | Stock item: 1 working dayAvailable for same-day shipping |
46.62 € ( 55.48 € ) | Stock item: 1 working dayAvailable for same-day shipping |
63.24 € ( 75.26 € ) | 5 working days |
46.62 € ( 55.48 € ) | Stock item: 1 working dayAvailable for same-day shipping |
63.24 € ( 75.26 € ) | 5 working days |
47.83 € ( 56.92 € ) | Stock item: 1 working dayAvailable for same-day shipping |
65.52 € ( 77.97 € ) | Stock item: 1 working dayAvailable for same-day shipping |
55.99 € ( 66.63 € ) | Stock item: 1 working dayAvailable for same-day shipping |
74.36 € ( 88.49 € ) | Stock item: 1 working dayAvailable for same-day shipping |
74.56 € ( 88.73 € ) | 5 working days |
98.99 € ( 117.80 € ) | 5 working days |
70.88 € ( 84.35 € ) | Stock item: 1 working dayAvailable for same-day shipping |
89.55 € ( 106.56 € ) | Stock item: 1 working dayAvailable for same-day shipping |
More Information
Basic information
[Specifications]
・Bearing Type: Angular Contact Bearing
・Mounting Method: Face Mounting
・Surface Treatment: Black Oxide
・Material: EN 1.1191 Equiv.
