    Washers / steel / black oxided, nickel-plated【50 to 100 pieces】

    Washers / steel / black oxided, nickel-plated

    Part number:

    Still undefined. 26 possible part numbers found.
    Quantity:

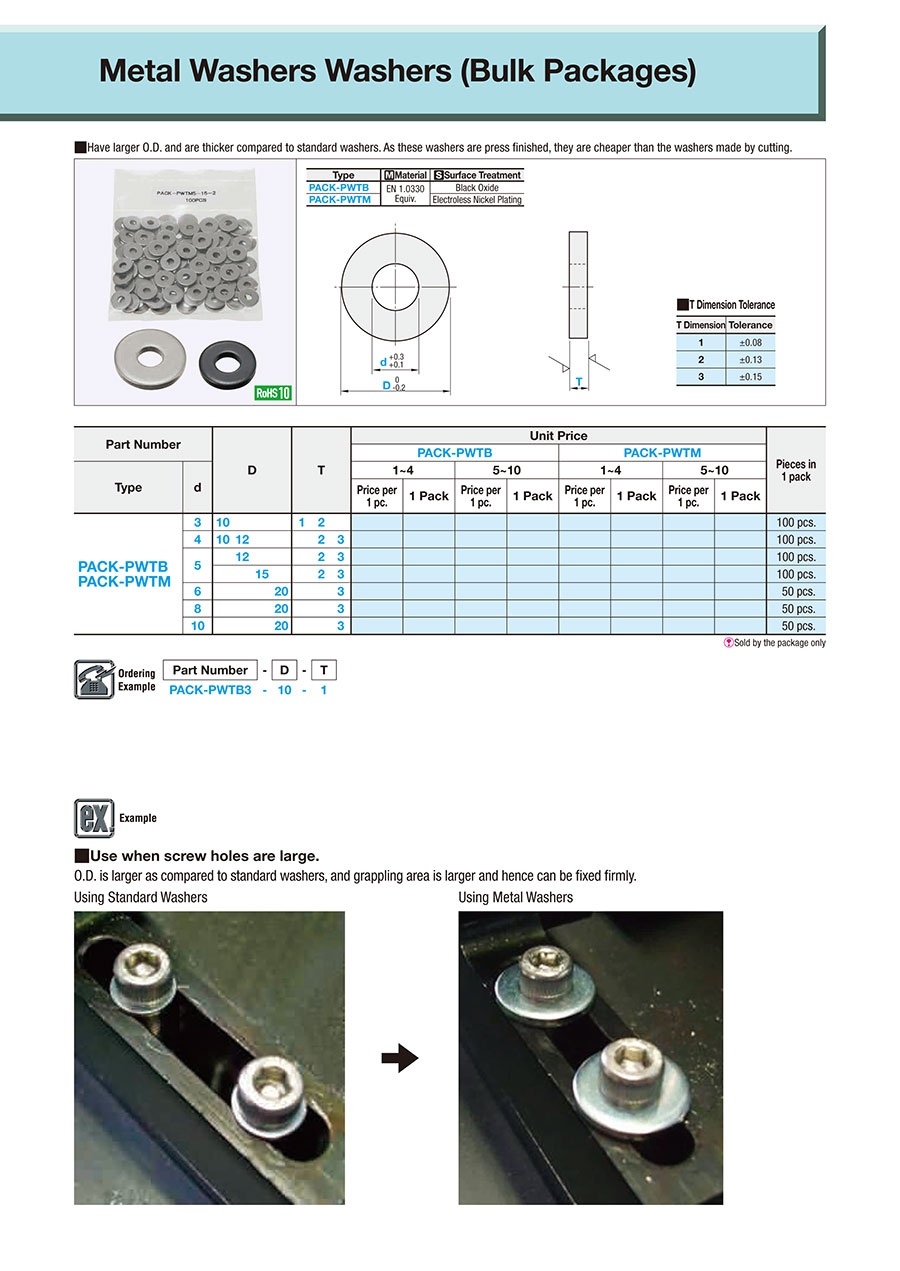

    Outline drawing and specifications table

      ■T dimension tolerance
    　T Dimension　　Tolerance　
    1±0.08
    2±0.13
    3±0.15

    Type[M] Material[S] Surface Treatment
    PACK－PWTBEN 1.0330 Equiv.Black Oxide
    PACK－PWTMElectroless Nickel Plating

    Specification Table

    Part Number—D—T
    PACK－PWTB3—10—1
    Part NumberDTPieces in
    1 package
    Typed
    PACK－PWTB
    PACK－PWTM    		310   12 100 pcs.
    41012   23100 pcs.
    5 12   23100 pcs.
      15  23100 pcs.
    6   20  350 pcs.
    8   20  350 pcs.
    10   20  350 pcs.
    [ ! ] Sold by the package only

    Part number list

    Number of items
  • 1
    • Part number
    PACK-PWTB3-10-1
    PACK-PWTB3-10-2
    PACK-PWTB4-10-2
    PACK-PWTB4-10-3
    PACK-PWTB4-12-2
    PACK-PWTB4-12-3
    PACK-PWTB5-12-2
    PACK-PWTB5-12-3
    PACK-PWTB5-15-2
    PACK-PWTB5-15-3
    PACK-PWTB6-20-3
    PACK-PWTB8-20-3
    PACK-PWTB10-20-3
    PACK-PWTM3-10-1
    PACK-PWTM3-10-2
    PACK-PWTM4-10-2
    PACK-PWTM4-10-3
    PACK-PWTM4-12-2
    PACK-PWTM4-12-3
    PACK-PWTM5-12-2
    PACK-PWTM5-12-3
    PACK-PWTM5-15-2
    PACK-PWTM5-15-3
    PACK-PWTM6-20-3
    PACK-PWTM8-20-3
    PACK-PWTM10-20-3

    O.D. D

    (mm)

    I.D.

    (mm)

    Thickness/Length

    (mm)

    Surface Treatment

    Thickness/Length Tolerance

    		RoHS?Minimum order quantity
    10
    3
    1
    Black Oxide
    ±0.08
    10
    1 packs

    100 pieces

    10
    3
    2
    Black Oxide
    ±0.13
    10
    1 packs

    100 pieces

    10
    4
    2
    Black Oxide
    ±0.13
    10
    1 packs

    100 pieces

    10
    4
    3
    Black Oxide
    ±0.15
    10
    1 packs

    100 pieces

    12
    4
    2
    Black Oxide
    ±0.13
    10
    1 packs

    100 pieces

    12
    4
    3
    Black Oxide
    ±0.15
    10
    1 packs

    100 pieces

    12
    5
    2
    Black Oxide
    ±0.13
    10
    1 packs

    100 pieces

    12
    5
    3
    Black Oxide
    ±0.15
    10
    1 packs

    100 pieces

    15
    5
    2
    Black Oxide
    ±0.13
    10
    1 packs

    100 pieces

    15
    5
    3
    Black Oxide
    ±0.15
    10
    1 packs

    100 pieces

    20
    6
    3
    Black Oxide
    ±0.15
    10
    1 packs

    50 pieces

    20
    8
    3
    Black Oxide
    ±0.15
    10
    1 packs

    50 pieces

    20
    10
    3
    Black Oxide
    ±0.15
    10
    1 packs

    50 pieces

    10
    3
    1
    Electroless Nickel Plating
    ±0.08
    10
    1 packs

    100 pieces

    10
    3
    2
    Electroless Nickel Plating
    ±0.13
    10
    1 packs

    100 pieces

    10
    4
    2
    Electroless Nickel Plating
    ±0.13
    10
    1 packs

    100 pieces

    10
    4
    3
    Electroless Nickel Plating
    ±0.15
    10
    1 packs

    100 pieces

    12
    4
    2
    Electroless Nickel Plating
    ±0.13
    10
    1 packs

    100 pieces

    12
    4
    3
    Electroless Nickel Plating
    ±0.15
    10
    1 packs

    100 pieces

    12
    5
    2
    Electroless Nickel Plating
    ±0.13
    10
    1 packs

    100 pieces

    12
    5
    3
    Electroless Nickel Plating
    ±0.15
    10
    1 packs

    100 pieces

    15
    5
    2
    Electroless Nickel Plating
    ±0.13
    10
    1 packs

    100 pieces

    15
    5
    3
    Electroless Nickel Plating
    ±0.15
    10
    1 packs

    100 pieces

    20
    6
    3
    Electroless Nickel Plating
    ±0.15
    10
    1 packs

    50 pieces

    20
    8
    3
    Electroless Nickel Plating
    ±0.15
    10
    1 packs

    50 pieces

    20
    10
    3
    Electroless Nickel Plating
    ±0.15
    10
    1 packs

    50 pieces

    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    43.01 €
    ( 51.18 € )
    5 working days
    43.01 €
    ( 51.18 € )
    5 working days
    43.01 €
    ( 51.18 € )
    5 working days
    43.01 €
    ( 51.18 € )
    5 working days
    43.01 €
    ( 51.18 € )
    5 working days
    43.01 €
    ( 51.18 € )
    5 working days
    43.01 €
    ( 51.18 € )
    5 working days
    43.01 €
    ( 51.18 € )
    5 working days
    56.95 €
    ( 67.77 € )
    5 working days
    56.95 €
    ( 67.77 € )
    Stock item: 1 working dayAvailable for same-day shipping
    31.64 €
    ( 37.65 € )
    5 working days
    31.64 €
    ( 37.65 € )
    5 working days
    31.64 €
    ( 37.65 € )
    5 working days
    51.87 €
    ( 61.73 € )
    5 working days
    51.87 €
    ( 61.73 € )
    5 working days
    51.87 €
    ( 61.73 € )
    5 working days
    51.87 €
    ( 61.73 € )
    5 working days
    51.87 €
    ( 61.73 € )
    5 working days
    51.87 €
    ( 61.73 € )
    5 working days
    51.87 €
    ( 61.73 € )
    5 working days
    51.87 €
    ( 61.73 € )
    5 working days
    63.26 €
    ( 75.28 € )
    5 working days
    63.26 €
    ( 75.28 € )
    5 working days
    34.17 €
    ( 40.66 € )
    5 working days
    34.17 €
    ( 40.66 € )
    5 working days
    34.17 €
    ( 40.66 € )
    5 working days
  • 1

    • More Information

    Outline and specifications

    App. Example

    ■Use when screw holes are large.
    This type of washer has the larger O.D. and larger gripping area compared to standard washers, and thus can fasten screws firmly.
    Using standard washers
    Using Metal Washers
