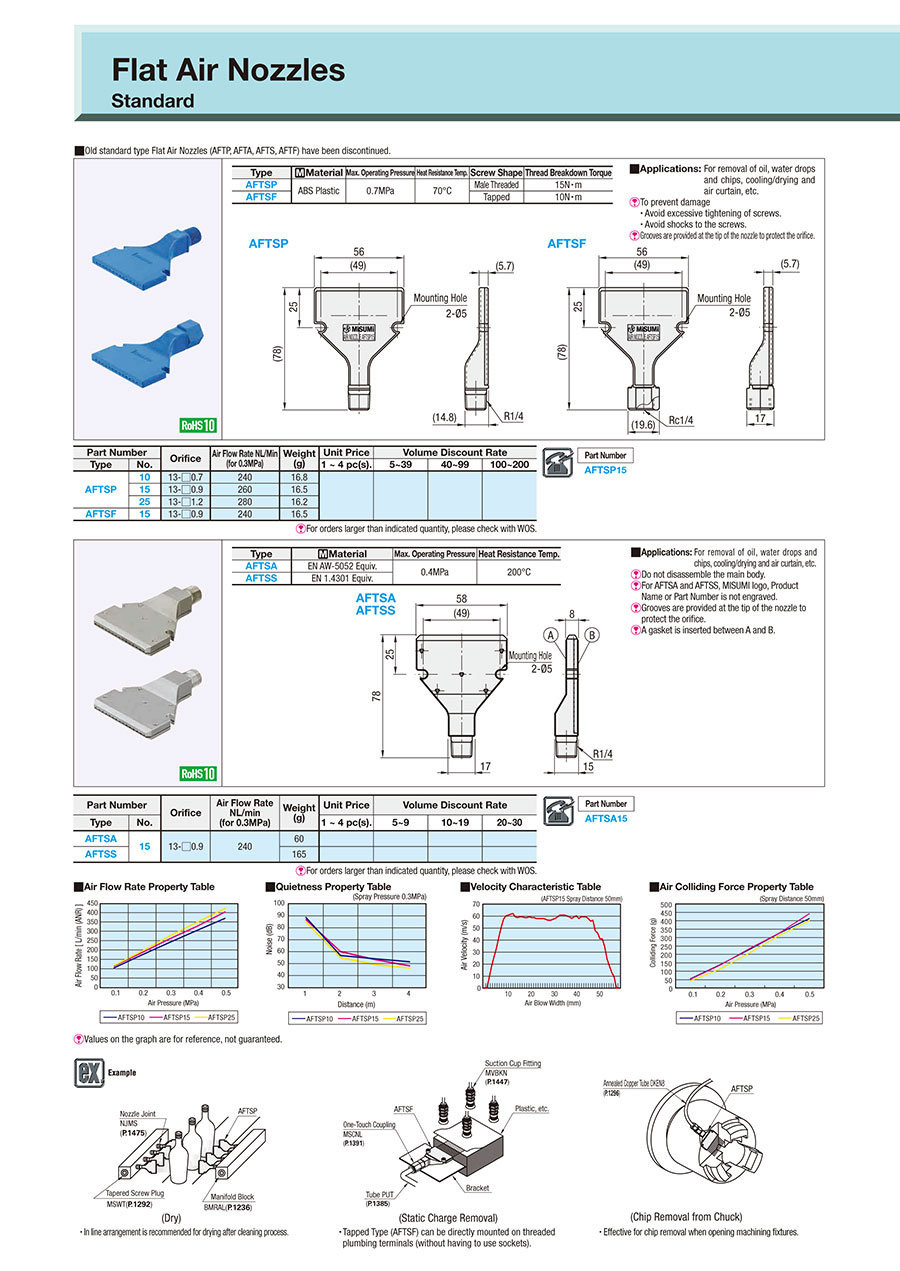

Flat Air Nozzle Standard Type, Metal, Machined
Click image to view enlarged image
Part number:
possible part numbers found.Outline drawing and specifications table
| Type | Material | Max. Operating Pressure | Heat Resistance Temp. |
| AFTSA | EN AW-5052 Equiv. | 0.4MPa | 200°C |
| AFTSS | EN 1.4301 Equiv. |
Specifications
| Part Number |
| AFTSA15 |
| Part Number | Orifice | Air Flow Rate NL/min (for 0.3MPa) | Weight (g) | Unit Price | Volume Discount Rate | |||
| Type | No. | 1 ~ 4 pc(s). | 5~9 | 10~19 | 20~30 | |||
| AFTSA | 15 | 13-□0.9 | 240 | 60 | ||||
| AFTSS | 165 | |||||||
More Information
Outline and specifications
More Information
■Applications: For removal of oil, water drops and chips, cooling/drying and air curtain, etc.
Do not disassemble the main body.
For AFTSA and AFTSS, MISUMI logo, Product Name or Part Number is not engraved.
Grooves are provided at the tip of the nozzle to protect the orifice.
A gasket is inserted between A and B.
Do not disassemble the main body.
For AFTSA and AFTSS, MISUMI logo, Product Name or Part Number is not engraved.
Grooves are provided at the tip of the nozzle to protect the orifice.
A gasket is inserted between A and B.
Example of Use
