Round Wire Coil Springs / Deflection 45% / I.D. Referenced

Promotional pricing
Volume Discount

MISUMI

Order quantities extended (D-JIT)
Stock

(i)Remark

Please check the content on our website as the PDF does not contain the most up-to-date information.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Drawing / Specifications
3D Preview 3D preview is available after complete configuration
Part Numbers
Catalog
Technical Information

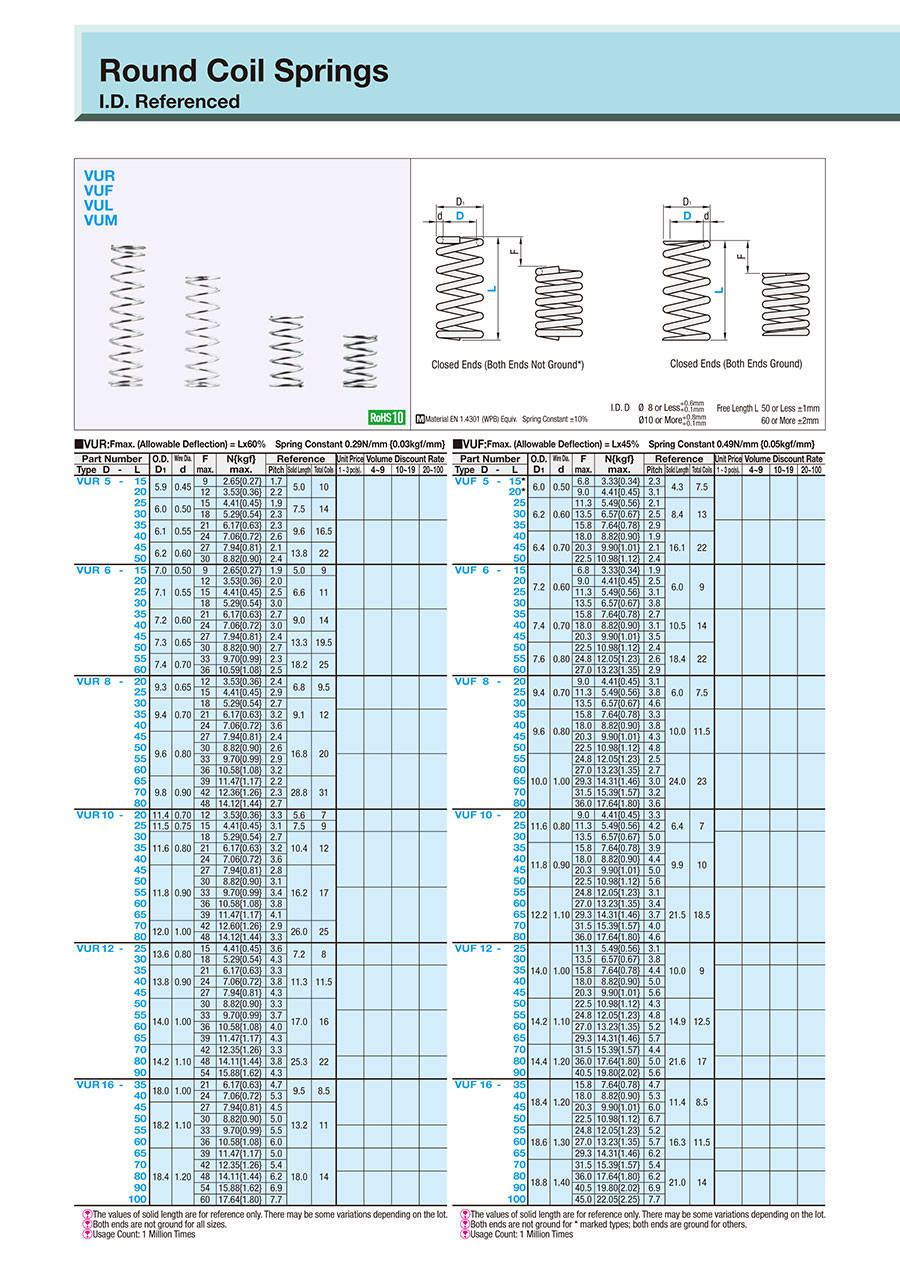

Round Wire Coil Springs/Deflection 45%/I.D. Referenced:Related Image

Material EN 1.4301 (WPB) Equiv. Spring Constant ±10%

Specifications

Part Number	-	L
VUR10	-	40

■VUR:Fmax. (Allowable Deflection) = Lx60% Spring Constant 0.29N/mm {0.03kgf/mm}

Part Number				O.D.	Wire Dia.	F	N{kgf}		Reference			Unit Price	Volume Discount Rate
Type	D	-	L	D₁	d	max.	max.		Pitch	Solid Length	Total Coils	1 ~ 3 pc(s).	4~9	10~19	20~100
VUR	5	-	15	6.25	0.45	9	2.65	{0.27}	1.7	5.0	10
			20			12	3.53	{0.36}	2.2
			25	6.35	0.50	15	4.41	{0.45}	1.9	7.5	14
			30			18	5.29	{0.54}	2.3
			35	6.45	0.55	21	6.17	{0.63}	2.3	9.6	16.5
			40			24	7.06	{0.72}	2.6
			45	6.55	0.60	27	7.94	{0.81}	2.1	13.8	22
			50			30	8.82	{0.90}	2.4
VUR	6	-	15	7.35	0.50	9	2.65	{0.27}	1.9	5.0	9
			20	7.45	0.55	12	3.53	{0.36}	2.0	6.6	11
			25			15	4.41	{0.45}	2.5
			30			18	5.29	{0.54}	3.0
			35	7.55	0.60	21	6.17	{0.63}	2.7	9.0	14
			40			24	7.06	{0.72}	3.0
			45	7.65	0.65	27	7.94	{0.81}	2.4	13.3	19.5
			50			30	8.82	{0.90}	2.7
			55	7.75	0.70	33	9.70	{0.99}	2.3	18.2	25
			60			36	10.59	{1.08}	2.5
VUR	8	-	20	9.65	0.65	12	3.53	{0.36}	2.4	6.8	9.5
			25			15	4.41	{0.45}	2.9
			30	9.75	0.70	18	5.29	{0.54}	2.7	9.1	12
			35			21	6.17	{0.63}	3.2
			40			24	7.06	{0.72}	3.6
			45	9.95	0.80	27	7.94	{0.81}	2.4	16.8	20
			50			30	8.82	{0.90}	2.6
			55			33	9.70	{0.99}	2.9
			60			36	10.58	{1.08}	3.2
			65	10.15	0.90	39	11.47	{1.17}	2.2	28.8	31
			70			42	12.36	{1.26}	2.3
			80			48	14.12	{1.44}	2.7
VUR	10	-	20	11.85	0.70	12	3.53	{0.36}	3.3	5.6	7
			25	11.95	0.75	15	4.41	{0.45}	3.1	7.5	9
			30	12.05	0.80	18	5.29	{0.54}	2.7	10.4	12
			35			21	6.17	{0.63}	3.2
			40			24	7.06	{0.72}	3.6
			45	12.25	0.90	27	7.94	{0.81}	2.8	16.2	17
			50			30	8.82	{0.90}	3.1
			55			33	9.70	{0.99}	3.4
			60			36	10.58	{1.08}	3.8
			65			39	11.47	{1.17}	4.1
			70	12.45	1.00	42	12.60	{1.26}	2.9	26.0	25
			80			48	14.12	{1.44}	3.3
VUR	12	-	25	14.05	0.80	15	4.41	{0.45}	3.6	7.2	8
			30			18	5.29	{0.54}	4.3
			35	14.25	0.90	21	6.17	{0.63}	3.3	11.3	11.5
			40			24	7.06	{0.72}	3.8
			45			27	7.94	{0.81}	4.3
			50	14.45	1.00	30	8.82	{0.90}	3.3	17.0	16
			55			33	9.70	{0.99}	3.7
			60			36	10.58	{1.08}	4.0
			65			39	11.47	{1.17}	4.3
			70	14.65	1.10	42	12.35	{1.26}	3.3	25.3	22
			80			48	14.11	{1.44}	3.8
			90			54	15.88	{1.62}	4.3
VUR	16	-	35	18.45	1.00	21	6.17	{0.63}	4.7	9.5	8.5
			40			24	7.06	{0.72}	5.3
			45	18.65	1.10	27	7.94	{0.81}	4.5	13.2	11
			50			30	8.82	{0.90}	5.0
			55			33	9.70	{0.99}	5.5
			60			36	10.58	{1.08}	6.0
			65	18.85	1.20	39	11.47	{1.17}	5.0	18.0	14
			70			42	12.35	{1.26}	5.4
			80			48	14.11	{1.44}	6.2
			90			54	15.88	{1.62}	6.9
			100			60	17.64	{1.80}	7.7

The values of solid length are for reference only. There may be some variations depending on the lot.
Both ends are not ground for all sizes.
Usage Count: 1 Million Times

■VUF:Fmax. (Allowable Deflection) = Lx45% Spring Constant 0.49N/mm {0.05kgf/mm}

Part Number				O.D.	Wire Dia.	F	N{kgf}		Reference			Unit Price	Volume Discount Rate
Type	D	-	L	D₁	d	max.	max.		Pitch	Solid Length	Total Coils	1 ~ 3 pc(s).	4~9	10~19	20~100
VUF	5	-	15*	6.35	0.50	6.75	3.33	{0.34}	2.3	4.3	7.5
			20*			9.0	4.41	{0.45}	3.1
			25	6.55	0.60	11.25	5.49	{0.56}	2.1	8.4	13
			30			13.5	6.57	{0.67}	2.5
			35			15.75	7.64	{0.78}	2.9
			40	6.75	0.70	18.0	8.82	{0.90}	1.9	16.1	22
			45			20.25	9.90	{1.01}	2.1
			50			22.5	10.98	{1.12}	2.4
VUF	6	-	15	7.55	0.60	6.75	3.33	{0.34}	1.9	6.0	9
			20			9.0	4.41	{0.45}	2.5
			25			11.25	5.49	{0.56}	3.1
			30			13.5	6.57	{0.67}	3.8
			35	7.75	0.70	15.75	7.64	{0.78}	2.7	10.5	14
			40			18.0	8.82	{0.90}	3.1
			45			20.25	9.90	{1.01}	3.5
			50	7.95	0.80	22.5	10.98	{1.12}	2.4	18.4	22
			55			24.75	12.05	{1.23}	2.6
			60			27.0	13.23	{1.35}	2.9
VUF	8	-	20	9.75	0.70	9.0	4.41	{0.45}	3.1	6.0	7.5
			25			11.25	5.49	{0.56}	3.8
			30			13.5	6.57	{0.67}	4.6
			35	9.95	0.80	15.75	7.64	{0.78}	3.3	10.0	11.5
			40			18.0	8.82	{0.90}	3.8
			45			20.25	9.90	{1.01}	4.3
			50			22.5	10.98	{1.12}	4.8
			55	10.35	1.00	24.75	12.05	{1.23}	2.5	24.0	23
			60			27.0	13.23	{1.35}	2.7
			65			29.25	14.31	{1.46}	3.0
			70			31.5	15.39	{1.57}	3.2
			80			36.0	17.64	{1.80}	3.6
VUF	10	-	20	12.05	0.80	9.0	4.41	{0.45}	3.3	6.4	7
			25			11.25	5.49	{0.56}	4.2
			30			13.5	6.57	{0.67}	5.0
			35	12.25	0.90	15.75	7.64	{0.78}	3.9	9.9	10
			40			18.0	8.82	{0.90}	4.4
			45			20.25	9.90	{1.01}	5.0
			50			22.5	10.98	{1.12}	5.6
			55	12.65	1.10	24.75	12.05	{1.23}	3.1	21.5	18.5
			60			27.0	13.23	{1.35}	3.4
			65			29.25	14.31	{1.46}	3.7
			70			31.5	15.39	{1.57}	4.0
			80			36.0	17.64	{1.80}	4.6
VUF	12	-	25	14.45	1.00	11.25	5.49	{0.56}	3.1	10.0	9
			30			13.5	6.57	{0.67}	3.8
			35			15.75	7.64	{0.78}	4.4
			40			18.0	8.82	{0.90}	5.0
			45			20.25	9.90	{1.01}	5.6
			50	14.65	1.10	22.5	10.98	{1.12}	4.3	14.9	12.5
			55			24.75	12.05	{1.23}	4.8
			60			27.0	13.23	{1.35}	5.2
			65			29.25	14.31	{1.46}	5.7
			70	14.85	1.20	31.5	15.39	{1.57}	4.4	21.6	17
			80			36.0	17.64	{1.80}	5.0
			90			40.5	19.80	{2.02}	5.6
VUF	16	-	35	18.85	1.20	15.75	7.64	{0.78}	4.7	11.4	8.5
			40			18.0	8.82	{0.90}	5.3
			45			20.25	9.90	{1.01}	6.0
			50			22.5	10.98	{1.12}	6.7
			55	19.05	1.30	24.75	12.05	{1.23}	5.2	16.3	11.5
			60			27.0	13.23	{1.35}	5.7
			65			29.25	14.31	{1.46}	6.2
			70	19.25	1.40	31.5	15.39	{1.57}	5.4	21.0	14
			80			36.0	17.64	{1.80}	6.2
			90			40.5	19.80	{2.02}	6.9
			100			45.0	22.05	{2.25}	7.7

The values of solid length are for reference only. There may be some variations depending on the lot.
Both ends are not ground for * marked types; both ends are ground for others.
Usage Count: 1 Million Times

■VUL:Fmax. (Allowable Deflection) = Lx40% Spring Constant 0.98N/mm{0.10kgf/mm}

Part Number				O.D.	Wire Dia.	F	N{kgf}		Reference			Unit Price	Volume Discount Rate
Type	D	-	L	D₁	d	max.	max.		Pitch	Solid Length	Total Coils	1 ~ 3 pc(s).	4~9	10~19	20~100
VUL	5	-	15	6.55	0.60	6	5.88	{0.60}	2.5	4.8	7
			20			8	7.84	{0.80}	3.3
			25	6.75	0.70	10	9.80	{1.00}	2.3	9.1	12
			30			12	11.76	{1.20}	2.7
			35			14	13.72	{1.40}	3.2
			40	6.95	0.80	16	15.68	{1.60}	2.2	16.0	19
			45			18	17.64	{1.80}	2.5
			50			20	19.60	{2.00}	2.8
VUL	6	-	15	7.75	0.70	6	5.88	{0.60}	2.1	6.3	8
			20			8	7.84	{0.80}	2.9
			25	7.95	0.80	10	9.80	{1.00}	2.3	10.4	12
			30			12	11.76	{1.20}	2.7
			35			14	13.72	{1.40}	3.2
			40	8.15	0.90	16	15.68	{1.60}	2.5	16.2	17
			45			18	17.64	{1.80}	2.8
			50			20	19.60	{2.00}	3.1
			55			22	21.56	{2.20}	3.4
			60			24	23.52	{2.40}	3.8
VUL	8	-	20	10.15	0.90	8	7.84	{0.80}	2.4	9.5	9.5
			25			10	9.80	{1.00}	2.9
			30	10.35	1.00	12	11.76	{1.20}	2.5	14.0	13
			35			14	13.72	{1.40}	2.9
			40			16	15.68	{1.60}	3.3
			45			18	17.64	{1.80}	3.8
			50			20	19.60	{2.00}	4.2
			55			22	21.56	{2.20}	4.6
			60	10.75	1.20	24	23.52	{2.40}	2.7	28.8	23
			65			26	25.48	{2.60}	3.0
			70			28	27.44	{2.80}	3.2
			80			32	31.36	{3.20}	3.6
VUL	10	-	20	12.45	1.00	8	7.84	{0.80}	3.1	8.5	7.5
			25			10	9.80	{1.00}	3.8
			30	12.65	1.10	12	11.76	{1.20}	3.2	12.7	10.5
			35			14	13.72	{1.40}	3.7
			40			16	15.68	{1.60}	4.2
			45			18	17.64	{1.80}	4.7
			50			20	19.60	{2.00}	5.3
			55	13.05	1.30	22	21.56	{2.20}	3.1	25.4	18.5
			60			24	23.52	{2.40}	3.4
			65			26	25.48	{2.60}	3.7
			70			28	27.44	{2.80}	4.0
			80			32	31.36	{3.20}	4.6
VUL	12	-	25	14.85	1.20	10	9.80	{1.00}	2.9	12.6	9.5
			30			12	11.76	{1.20}	3.5
			35			14	13.72	{1.40}	4.1
			40			16	15.68	{1.60}	4.7
			45			18	17.64	{1.80}	5.3
			50			20	19.60	{2.00}	5.9
			55	15.25	1.40	22	21.56	{2.20}	4.1	21.7	14.5
			60			24	23.52	{2.40}	4.4
			65			26	25.48	{2.60}	4.8
			70			28	27.44	{2.80}	5.2
			80			32	31.36	{3.20}	5.9
			90			36	35.28	{3.60}	6.7
VUL	16	-	35	19.45	1.50	14	13.72	{1.40}	4.1	15.8	9.5
			40			16	15.68	{1.60}	4.7
			45			18	17.64	{1.80}	5.3
			50			20	19.60	{2.00}	5.9
			55	19.85	1.70	22	21.56	{2.20}	4.4	24.7	13.5
			60			24	23.52	{2.40}	4.8
			65			26	25.48	{2.60}	5.2
			70			28	27.44	{2.80}	5.6
			80			32	31.36	{3.20}	6.4
			90			36	35.28	{3.60}	7.2
			100			40	39.20	{4.00}	8.0

The values of solid length are for reference only. There may be some variations depending on the lot.
Both ends are ground for all sizes.
Usage Count: 1 Million Times

■VUM:Fmax. (Allowable Deflection) = Lx35% Spring Constant 2.94N/mm{0.30kgf/mm}

Part Number				O.D.	Wire Dia.	F	N{kgf}		Reference			Unit Price	Volume Discount Rate
Type	D	-	L	D₁	d	max.	max.		Pitch	Solid Length	Total Coils	1 ~ 3 pc(s).	4~9	10~19	20~100
VUM	5	-	15	6.95	0.80	5.25	15.39	{1.57}	2.3	6.8	7.5
			20	7.15	0.90	7.0	20.58	{2.10}	1.8	11.7	12
			25			8.75	25.68	{2.62}	2.3
			30	7.35	1.00	10.5	30.87	{3.15}	2.4	14.5	13.5
			35			12.25	35.97	{3.67}	2.8
			40			14.0	41.16	{4.20}	3.2
			45	7.55	1.10	15.75	46.26	{4.72}	2.5	22.0	19
			50			17.5	51.45	{5.25}	2.8
VUM	6	-	15	8.15	0.90	5.25	15.39	{1.57}	2.3	7.7	7.5
			20			7.0	20.58	{2.10}	3.0
			25	8.35	1.00	8.75	25.68	{2.62}	2.8	11.0	10
			30			10.5	30.87	{3.15}	3.3
			35			12.25	35.97	{3.67}	3.9
			40	8.75	1.20	14.0	41.16	{4.20}	2.6	21.0	16.5
			45			15.75	46.26	{4.72}	2.9
			50			17.5	51.45	{5.25}	3.2
			55	8.95	1.30	19.25	56.55	{5.77}	2.6	29.9	22
			60			21.0	61.74	{6.30}	2.9
VUM	8	-	20	10.55	1.10	7.0	20.58	{2.10}	3.3	8.8	7
			25			8.75	25.68	{2.62}	4.2
			30			10.5	30.87	{3.15}	5.0
			35	10.95	1.30	12.25	35.97	{3.67}	3.5	15.6	11
			40			14.0	41.16	{4.20}	4.0
			45			15.75	46.26	{4.72}	4.5
			50			17.5	51.45	{5.25}	5.0
			55	11.35	1.50	19.25	56.55	{5.77}	3.3	27.8	17.5
			60			21.0	61.74	{6.30}	3.6
			65			22.75	66.84	{6.82}	3.9
			70			24.5	72.03	{7.35}	4.2
			80			28.0	82.32	{8.40}	4.8
VUM	10	-	20	12.85	1.20	7.0	20.58	{2.10}	4.0	8.4	6
			25	13.05	1.30	8.75	25.68	{2.62}	4.2	10.4	7
			30			10.5	30.87	{3.15}	5.0
			35			12.25	35.97	{3.67}	5.8
			40	13.45	1.50	14.0	41.16	{4.20}	3.8	18.8	11.5
			45			15.75	46.26	{4.72}	4.3
			50			17.5	51.45	{5.25}	4.8
			55			19.25	56.55	{5.77}	5.2
			60			21.0	61.74	{6.30}	5.7
			65	13.85	1.70	22.75	66.84	{6.82}	4.3	28.9	16
			70			24.5	72.03	{7.35}	4.7
			80			28.0	82.32	{8.40}	5.3
VUM	12	-	25	15.25	1.40	8.75	25.68	{2.62}	5.0	9.8	6
			30			10.5	30.87	{3.15}	6.0
			35			12.25	35.97	{3.67}	7.0
			40	15.65	1.60	14.0	41.16	{4.20}	5.0	16.0	9
			45			15.75	46.26	{4.72}	5.6
			50			17.5	51.45	{5.25}	6.3
			55			19.25	56.55	{5.77}	6.9
			60	16.05	1.80	21.0	61.74	{6.30}	5.5	23.4	12
			65			22.75	66.84	{6.82}	5.9
			70			24.5	72.03	{7.35}	6.4
			80			28.0	82.32	{8.40}	7.3
			90			31.5	92.61	{9.45}	8.2
VUM	16	-	35	20.05	1.80	12.25	35.97	{3.67}	5.8	14.4	7
			40			14.0	41.16	{4.20}	6.7
			45			15.75	46.26	{4.72}	7.5
			50			17.5	51.45	{5.25}	8.3
			55			19.25	56.55	{5.77}	9.2
			60	20.85	2.20	21.0	61.74	{6.30}	5.5	28.6	12
			65			22.75	66.84	{6.82}	5.9
			70			24.5	72.03	{7.35}	6.4
			80			28.0	82.32	{8.40}	7.3
			90			31.5	92.61	{9.45}	8.2
			100			35.0	102.90	{10.50}	9.1

The values of solid length are for reference only. There may be some variations depending on the lot.
Both ends are ground for all sizes.
Usage Count: 1 Million Times

■Spring Constant

Type

VUR

VUF

VUL

VUM

N/mm
0.29
{kgf/mm}
{0.03}

N/mm
0.49
{kgf/mm}
{0.05}

N/mm
0.98
{kgf/mm}
{0.10}

N/mm
2.94
{kgf/mm}
{0.30}

Fmax.

F=Lx60%

F=Lx45%

F=Lx40%

F=Lx35%

Part Number:

3D preview is not available, because the part number has not yet been determined.

In order to open the 3D preview, the part number must be fixed.

Plug-in is required for 3D Preview

CAD Download

Data to be displayed: 30; 45; 60

1
2
3
4
5
Next >>

Part Number
VUF5-15
VUF5-20
VUF5-25
VUF5-30
VUF5-35
VUF5-40
VUF5-45
VUF5-50
VUF6-15
VUF6-20
VUF6-25
VUF6-30
VUF6-35
VUF6-40
VUF6-45
VUF6-50
VUF6-55
VUF6-60
VUF8-20
VUF8-25
VUF8-30
VUF8-35
VUF8-40
VUF8-45
VUF8-50
VUF8-55
VUF8-60
VUF8-65
VUF8-70
VUF8-80
VUF10-20
VUF10-25
VUF10-30
VUF10-35
VUF10-40
VUF10-45
VUF10-50
VUF10-55
VUF10-60
VUF10-65
VUF10-70
VUF10-80
VUF12-25
VUF12-30
VUF12-35
VUF12-40
VUF12-45
VUF12-50
VUF12-55
VUF12-60
VUF12-65
VUF12-70
VUF12-80
VUF12-90
VUF16-35
VUF16-40
VUF16-45
VUF16-50
VUF16-55
VUF16-60

Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	RoHS	Allowable Load (Configurable Range) (N)	End Surface Status	Max. Load (N)	Height upon Max. Load applied L-F (mm)	Free Length L (mm)	Outer Dia. D (or D1) (mm)	Inner Dia. D-2d (or D) (mm)	Spring Constant (N/mm)	Wire Dia. (mm)	Solid Length (mm)	Total Coils	Allowable Deflection (mm)
2.89 €	1	Available	5 Days	10	1.51 to 4.50	Without Grinding	3.33	8.25	15	6.35	5	0.49	0.5	4.3	7.5	6.75
2.89 €	1	Available	5 Days	10	1.51 to 4.50	Without Grinding	4.41	11	20	6.35	5	0.49	0.5	4.3	7.5	9
2.89 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	5.49	13.75	25	6.55	5	0.49	0.6	8.4	13	11.25
2.89 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	6.57	16.5	30	6.55	5	0.49	0.6	8.4	13	13.5
3.66 € 1.10 €	1	Available	Same day Stock	10	4.51 to 8.50	With Grinding	7.64	19.25	35	6.55	5	0.49	0.6	8.4	13	15.75
3.66 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	8.82	22	40	6.75	5	0.49	0.7	16.1	22	18
3.66 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	9.9	24.75	45	6.75	5	0.49	0.7	16.1	22	20.25
3.66 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	10.98	27.5	50	6.75	5	0.49	0.7	16.1	22	22.5
3.02 €	1	Available	5 Days	10	1.51 to 4.50	With Grinding	3.33	8.25	15	7.55	6	0.49	0.6	6	9	6.75
3.02 €	1	Available	Same day Stock	10	1.51 to 4.50	With Grinding	4.41	11	20	7.55	6	0.49	0.6	6	9	9
3.02 €	1	Available	Same day Stock	10	4.51 to 8.50	With Grinding	5.49	13.75	25	7.55	6	0.49	0.6	6	9	11.25
3.02 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	6.57	16.5	30	7.55	6	0.49	0.6	6	9	13.5
3.78 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	7.64	19.25	35	7.75	6	0.49	0.7	10.5	14	15.75
3.78 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	8.82	22	40	7.75	6	0.49	0.7	10.5	14	18
3.78 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	9.9	24.75	45	7.75	6	0.49	0.7	10.5	14	20.25
3.78 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	10.98	27.5	50	7.95	6	0.49	0.8	18.4	22	22.5
3.78 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	12.05	30.25	55	7.95	6	0.49	0.8	18.4	22	24.75
3.78 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	13.23	33	60	7.95	6	0.49	0.8	18.4	22	27
3.02 €	1	Available	Same day Stock	10	1.51 to 4.50	With Grinding	4.41	11	20	9.75	8	0.49	0.7	6	7.5	9
3.02 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	5.49	13.75	25	9.75	8	0.49	0.7	6	7.5	11.25
3.02 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	6.57	16.5	30	9.75	8	0.49	0.7	6	7.5	13.5
4.16 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	7.64	19.25	35	9.95	8	0.49	0.8	10	11.5	15.75
4.16 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	8.82	22	40	9.95	8	0.49	0.8	10	11.5	18
4.16 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	9.9	24.75	45	9.95	8	0.49	0.8	10	11.5	20.25
4.16 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	10.98	27.5	50	9.95	8	0.49	0.8	10	11.5	22.5
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	12.05	30.25	55	10.35	8	0.49	1	24	23	24.75
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	13.23	33	60	10.35	8	0.49	1	24	23	27
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	14.31	35.75	65	10.35	8	0.49	1	24	23	29.25
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	15.39	38.5	70	10.35	8	0.49	1	24	23	31.5
5.04 €	1	Available	5 Days	10	16.01 to 30.00	With Grinding	17.64	44	80	10.35	8	0.49	1	24	23	36
3.15 €	1	Available	Same day Stock	10	1.51 to 4.50	With Grinding	4.41	11	20	12.05	10	0.49	0.8	6.4	7	9
3.15 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	5.49	13.75	25	12.05	10	0.49	0.8	6.4	7	11.25
4.41 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	6.57	16.5	30	12.05	10	0.49	0.8	6.4	7	13.5
4.41 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	7.64	19.25	35	12.25	10	0.49	0.9	9.9	10	15.75
4.41 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	8.82	22	40	12.25	10	0.49	0.9	9.9	10	18
4.41 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	9.9	24.75	45	12.25	10	0.49	0.9	9.9	10	20.25
4.41 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	10.98	27.5	50	12.25	10	0.49	0.9	9.9	10	22.5
5.42 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	12.05	30.25	55	12.65	10	0.49	1.1	21.5	18.5	24.75
5.42 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	13.23	33	60	12.65	10	0.49	1.1	21.5	18.5	27
5.42 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	14.31	35.75	65	12.65	10	0.49	1.1	21.5	18.5	29.25
5.42 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	15.39	38.5	70	12.65	10	0.49	1.1	21.5	18.5	31.5
5.42 €	1	Available	5 Days	10	16.01 to 30.00	With Grinding	17.64	44	80	12.65	10	0.49	1.1	21.5	18.5	36
4.41 € 1.32 €	1	Available	Same day Stock	10	4.51 to 8.50	With Grinding	5.49	13.75	25	14.45	12	0.49	1	10	9	11.25
4.41 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	6.57	16.5	30	14.45	12	0.49	1	10	9	13.5
5.04 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	7.64	19.25	35	14.45	12	0.49	1	10	9	15.75
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	8.82	22	40	14.45	12	0.49	1	10	9	18
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	9.9	24.75	45	14.45	12	0.49	1	10	9	20.25
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	10.98	27.5	50	14.65	12	0.49	1.1	14.9	12.5	22.5
5.42 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	12.05	30.25	55	14.65	12	0.49	1.1	14.9	12.5	24.75
5.42 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	13.23	33	60	14.65	12	0.49	1.1	14.9	12.5	27
5.42 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	14.31	35.75	65	14.65	12	0.49	1.1	14.9	12.5	29.25
5.42 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	15.39	38.5	70	14.85	12	0.49	1.2	21.6	17	31.5
5.92 €	1	Available	5 Days	10	16.01 to 30.00	With Grinding	17.64	44	80	14.85	12	0.49	1.2	21.6	17	36
5.92 €	1	Available	5 Days	10	16.01 to 30.00	With Grinding	19.8	49.5	90	14.85	12	0.49	1.2	21.6	17	40.5
5.04 €	1	Available	5 Days	10	4.51 to 8.50	With Grinding	7.64	19.25	35	18.85	16	0.49	1.2	11.4	8.5	15.75
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	8.82	22	40	18.85	16	0.49	1.2	11.4	8.5	18
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	9.9	24.75	45	18.85	16	0.49	1.2	11.4	8.5	20.25
5.04 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	10.98	27.5	50	18.85	16	0.49	1.2	11.4	8.5	22.5
5.92 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	12.05	30.25	55	19.05	16	0.49	1.3	16.3	11.5	24.75
5.92 €	1	Available	5 Days	10	8.51 to 16.00	With Grinding	13.23	33	60	19.05	16	0.49	1.3	16.3	11.5	27

1
2
3
4
5
Next >>

Products homepage

Basic information

Material	EN 1.4301 (WPB) Equiv.

Configure

260Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.

Stock

- Show only stock items
Clear

Basic Attributes

Allowable Load (Configurable Range)(N)
- 1.51 to 4.50
- 4.51 to 8.50
- 8.51 to 16.00
- 16.01 to 30.00
- 30.01 to 50.00
- 50.01 to 73.00
- 73.01 to 107.00
Clear
End Surface Status
- With Grinding
- Without Grinding
Clear
Max. Load(N)
2.65

3.33

3.53

4.41

5.29

5.49

5.88

6.17

6.57

7.06

7.64

7.84

7.94

8.82

9.7

9.8

9.9

10.58

10.59

10.98

11.47

11.76

12.05

12.35

12.36

12.6

13.23

13.72

14.11

14.12

14.31

15.39

15.68

15.88

17.64

19.6

19.8

20.58

21.56

22.05

23.52

25.48

25.68

27.44

30.87

31.36

35.28

35.97

39.2

41.16

46.26

51.45

56.55

61.74

66.84

72.03

82.32

92.61

102.90
Clear
Height upon Max. Load applied L-F(mm)
6

8

8.25

9

9.75

10

11

12

13

13.75

14

15

16

16.25

16.5

18

19.25

19.5

20

21

22

22.75

24

24.75

26

27

27.5

28

29.25

30

30.25

32

32.5

33

35.75

36

38.5

39

40

42

42.25

44

45.5

48

49.5

52

54

55

58.5

60

65
Clear
Free Length L(mm)
15

20

25

30

35

40

45

50

55

60

65

70

80

90

100
Clear
Outer Dia. D (or D1)(mm)
6.25

6.35

6.45

6.55

6.75

6.95

7.15

7.35

7.45

7.55

7.65

7.75

7.95

8.15

8.35

8.75

8.95

9.65

9.75

9.95

10.15

10.35

10.55

10.75

10.95

11.35

11.85

11.95

12.05

12.25

12.45

12.65

12.85

13.05

13.45

13.85

14.05

14.25

14.45

14.65

14.85

15.25

15.65

16.05

18.45

18.65

18.85

19.05

19.25

19.45

19.85

20.05

20.85
Clear
Inner Dia. D-2d (or D)(mm)
5

6

8

10

12

16
Clear
Spring Constant(N/mm)
0.29

0.49

0.98

2.94
Clear
Wire Dia.(mm)
0.45

0.5

0.55

0.6

0.65

0.7

0.75

0.8

0.9

1

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

2.2
Clear
Solid Length(mm)
4.3

4.8

5

5.6

6

6.3

6.4

6.6

6.8

7.2

7.5

7.7

8.4

8.5

8.8

9

9.1

9.5

9.6

9.8

9.9

10

10.4

10.5

11

11.3

11.4

11.7

12.6

12.7

13.2

13.3

13.8

14

14.4

14.5

14.9

15.6

15.8

16

16.1

16.2

16.3

16.8

17

18.2

18.4

18.8

21

21.5

21.6

21.7

22

23.4

24

24.7

25.3

25.4

26

27.8

28.6

28.8

28.9

29.9
Clear
Total Coils
6

7

7.5

8

8.5

9

9.5

10

10.5

11

11.5

12

12.5

13

13.5

14

14.5

16

16.5

17

17.5

18.5

19

19.5

20

22

23

25

31
Clear
Type
- VUF
- VUL
- VUM
- VUR
Clear
Filter by CAD data type
- 2D
- 3D
Clear
