Flat Wire Coil Springs / Deflection 19%-24% / O.D. Referenced

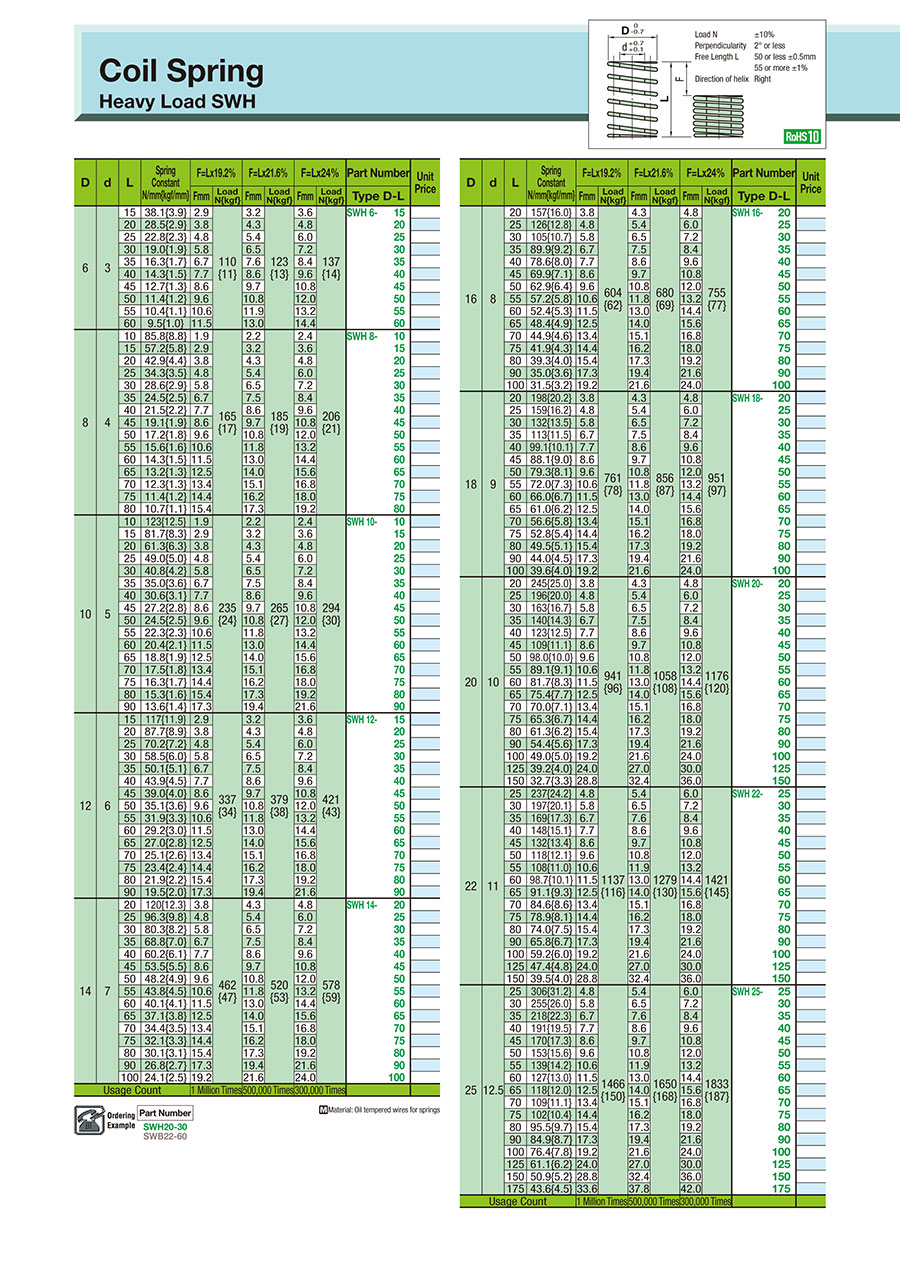

CatalogP.2-369

Part number:

Still undefined. 151 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Flat Wire Coil Springs/Deflection 19%-24%/O.D. Referenced:Related Image

Material: Oil tempered wires for springs

Specifications

Part Number

SWH20-30
SWB22-60

D	d	L	Spring Constant N/mm{kgf/mm}	F=Lx19.2%		F=Lx21.6%		F=Lx24%		Part Number		Unit Price
D	d	L	Spring Constant N/mm{kgf/mm}	Fmm	Load N{kgf}	Fmm	Load N{kgf}	Fmm	Load N{kgf}	Type D-L		Unit Price
6	3	15	38.1{3.9}	2.9	110 {11}	3.2	123 {13}	3.6	137 {14}	SWH 6-	15
		20	28.5{2.9}	3.8		4.3		4.8			20
		25	22.8{2.3}	4.8		5.4		6.0			25
		30	19.0{1.9}	5.8		6.5		7.2			30
		35	16.3{1.7}	6.7		7.6		8.4			35
		40	14.3{1.5}	7.7		8.6		9.6			40
		45	12.7{1.3}	8.6		9.7		10.8			45
		50	11.4{1.2}	9.6		10.8		12.0			50
		55	10.4{1.1}	10.6		11.9		13.2			55
		60	9.5{1.0}	11.5		13.0		14.4			60
8	4	10	85.8{8.8}	1.9	165 {17}	2.2	185 {19}	2.4	206 {21}	SWH 8-	10
		15	57.2{5.8}	2.9		3.2		3.6			15
		20	42.9{4.4}	3.8		4.3		4.8			20
		25	34.3{3.5}	4.8		5.4		6.0			25
		30	28.6{2.9}	5.8		6.5		7.2			30
		35	24.5{2.5}	6.7		7.5		8.4			35
		40	21.5{2.2}	7.7		8.6		9.6			40
		45	19.1{1.9}	8.6		9.7		10.8			45
		50	17.2{1.8}	9.6		10.8		12.0			50
		55	15.6{1.6}	10.6		11.8		13.2			55
		60	14.3{1.5}	11.5		13.0		14.4			60
		65	13.2{1.3}	12.5		14.0		15.6			65
		70	12.3{1.3}	13.4		15.1		16.8			70
		75	11.4{1.2}	14.4		16.2		18.0			75
		80	10.7{1.1}	15.4		17.3		19.2			80
10	5	10	123{12.5}	1.9	235 {24}	2.2	265 {27}	2.4	294 {30}	SWH 10-	10
		15	81.7{8.3}	2.9		3.2		3.6			15
		20	61.3{6.3}	3.8		4.3		4.8			20
		25	49.0{5.0}	4.8		5.4		6.0			25
		30	40.8{4.2}	5.8		6.5		7.2			30
		35	35.0{3.6}	6.7		7.5		8.4			35
		40	30.6{3.1}	7.7		8.6		9.6			40
		45	27.2{2.8}	8.6		9.7		10.8			45
		50	24.5{2.5}	9.6		10.8		12.0			50
		55	22.3{2.3}	10.6		11.8		13.2			55
		60	20.4{2.1}	11.5		13.0		14.4			60
		65	18.8{1.9}	12.5		14.0		15.6			65
		70	17.5{1.8}	13.4		15.1		16.8			70
		75	16.3{1.7}	14.4		16.2		18.0			75
		80	15.3{1.6}	15.4		17.3		19.2			80
		90	13.6{1.4}	17.3		19.4		21.6			90
12	6	15	117{11.9}	2.9	337 {34}	3.2	379 {38}	3.6	421 {43}	SWH 12-	15
		20	87.7{8.9}	3.8		4.3		4.8			20
		25	70.2{7.2}	4.8		5.4		6.0			25
		30	58.5{6.0}	5.8		6.5		7.2			30
		35	50.1{5.1}	6.7		7.5		8.4			35
		40	43.9{4.5}	7.7		8.6		9.6			40
		45	39.0{4.0}	8.6		9.7		10.8			45
		50	35.1{3.6}	9.6		10.8		12.0			50
		55	31.9{3.3}	10.6		11.8		13.2			55
		60	29.2{3.0}	11.5		13.0		14.4			60
		65	27.0{2.8}	12.5		14.0		15.6			65
		70	25.1{2.6}	13.4		15.1		16.8			70
		75	23.4{2.4}	14.4		16.2		18.0			75
		80	21.9{2.2}	15.4		17.3		19.2			80
		90	19.5{2.0}	17.3		19.4		21.6			90
14	7	20	120{12.3}	3.8	462 {47}	4.3	520 {53}	4.8	578 {59}	SWH 14-	20
		25	96.3{9.8}	4.8		5.4		6.0			25
		30	80.3{8.2}	5.8		6.5		7.2			30
		35	68.8{7.0}	6.7		7.5		8.4			35
		40	60.2{6.1}	7.7		8.6		9.6			40
		45	53.5{5.5}	8.6		9.7		10.8			45
		50	48.2{4.9}	9.6		10.8		12.0			50
		55	43.8{4.5}	10.6		11.8		13.2			55
		60	40.1{4.1}	11.5		13.0		14.4			60
		65	37.1{3.8}	12.5		14.0		15.6			65
		70	34.4{3.5}	13.4		15.1		16.8			70
		75	32.1{3.3}	14.4		16.2		18.0			75
		80	30.1{3.1}	15.4		17.3		19.2			80
		90	26.8{2.7}	17.3		19.4		21.6			90
		100	24.1{2.5}	19.2		21.6		24.0			100
Usage Count				1 Million Times		500,000 Times		300,000 Times

D	d	L	Spring Constant N/mm{kgf/mm}	F=Lx19.2%		F=Lx21.6%		F=Lx24%		Part Number		Unit Price
D	d	L	Spring Constant N/mm{kgf/mm}	Fmm	Load N{kgf}	Fmm	Load N{kgf}	Fmm	Load N{kgf}	Type D-L		Unit Price
16	8	20	157{16.0}	3.8	604 {62}	4.3	680 {69}	4.8	755 {77}	SWH 16-	20
		25	126{12.8}	4.8		5.4		6.0			25
		30	105{10.7}	5.8		6.5		7.2			30
		35	89.9{9.2}	6.7		7.5		8.4			35
		40	78.6{8.0}	7.7		8.6		9.6			40
		45	69.9{7.1}	8.6		9.7		10.8			45
		50	62.9{6.4}	9.6		10.8		12.0			50
		55	57.2{5.8}	10.6		11.8		13.2			55
		60	52.4{5.3}	11.5		13.0		14.4			60
		65	48.4{4.9}	12.5		14.0		15.6			65
		70	44.9{4.6}	13.4		15.1		16.8			70
		75	41.9{4.3}	14.4		16.2		18.0			75
		80	39.3{4.0}	15.4		17.3		19.2			80
		90	35.0{3.6}	17.3		19.4		21.6			90
		100	31.5{3.2}	19.2		21.6		24.0			100
18	9	20	198{20.2}	3.8	761 {78}	4.3	856 {87}	4.8	951 {97}	SWH 18-	20
		25	159{16.2}	4.8		5.4		6.0			25
		30	132{13.5}	5.8		6.5		7.2			30
		35	113{11.5}	6.7		7.5		8.4			35
		40	99.1{10.1}	7.7		8.6		9.6			40
		45	88.1{9.0}	8.6		9.7		10.8			45
		50	79.3{8.1}	9.6		10.8		12.0			50
		55	72.0{7.3}	10.6		11.8		13.2			55
		60	66.0{6.7}	11.5		13.0		14.4			60
		65	61.0{6.2}	12.5		14.0		15.6			65
		70	56.6{5.8}	13.4		15.1		16.8			70
		75	52.8{5.4}	14.4		16.2		18.0			75
		80	49.5{5.1}	15.4		17.3		19.2			80
		90	44.0{4.5}	17.3		19.4		21.6			90
		100	39.6{4.0}	19.2		21.6		24.0			100
20	10	20	245{25.0}	3.8	941 {96}	4.3	1058 {108}	4.8	1176 {120}	SWH 20-	20
		25	196{20.0}	4.8		5.4		6.0			25
		30	163{16.7}	5.8		6.5		7.2			30
		35	140{14.3}	6.7		7.5		8.4			35
		40	123{12.5}	7.7		8.6		9.6			40
		45	109{11.1}	8.6		9.7		10.8			45
		50	98.0{10.0}	9.6		10.8		12.0			50
		55	89.1{9.1}	10.6		11.8		13.2			55
		60	81.7{8.3}	11.5		13.0		14.4			60
		65	75.4{7.7}	12.5		14.0		15.6			65
		70	70.0{7.1}	13.4		15.1		16.8			70
		75	65.3{6.7}	14.4		16.2		18.0			75
		80	61.3{6.2}	15.4		17.3		19.2			80
		90	54.4{5.6}	17.3		19.4		21.6			90
		100	49.0{5.0}	19.2		21.6		24.0			100
		125	39.2{4.0}	24.0		27.0		30.0			125
		150	32.7{3.3}	28.8		32.4		36.0			150
22	11	25	237{24.2}	4.8	1137 {116}	5.4	1279 {130}	6.0	1421 {145}	SWH 22-	25
		30	197{20.1}	5.8		6.5		7.2			30
		35	169{17.3}	6.7		7.6		8.4			35
		40	148{15.1}	7.7		8.6		9.6			40
		45	132{13.4}	8.6		9.7		10.8			45
		50	118{12.1}	9.6		10.8		12.0			50
		55	108{11.0}	10.6		11.9		13.2			55
		60	98.7{10.1}	11.5		13.0		14.4			60
		65	91.1{9.3}	12.5		14.0		15.6			65
		70	84.6{8.6}	13.4		15.1		16.8			70
		75	78.9{8.1}	14.4		16.2		18.0			75
		80	74.0{7.5}	15.4		17.3		19.2			80
		90	65.8{6.7}	17.3		19.4		21.6			90
		100	59.2{6.0}	19.2		21.6		24.0			100
		125	47.4{4.8}	24.0		27.0		30.0			125
		150	39.5{4.0}	28.8		32.4		36.0			150
25	12.5	25	306{31.2}	4.8	1466 {150}	5.4	1650 {168}	6.0	1833 {187}	SWH 25-	25
		30	255{26.0}	5.8		6.5		7.2			30
		35	218{22.3}	6.7		7.6		8.4			35
		40	191{19.5}	7.7		8.6		9.6			40
		45	170{17.3}	8.6		9.7		10.8			45
		50	153{15.6}	9.6		10.8		12.0			50
		55	139{14.2}	10.6		11.9		13.2			55
		60	127{13.0}	11.5		13.0		14.4			60
		65	118{12.0}	12.5		14.0		15.6			65
		70	109{11.1}	13.4		15.1		16.8			70
		75	102{10.4}	14.4		16.2		18.0			75
		80	95.5{9.7}	15.4		17.3		19.2			80
		90	84.9{8.7}	17.3		19.4		21.6			90
		100	76.4{7.8}	19.2		21.6		24.0			100
		125	61.1{6.2}	24.0		27.0		30.0			125
		150	50.9{5.2}	28.8		32.4		36.0			150
		175	43.6{4.5}	33.6		37.8		42.0			175
Usage Count				1 Million Times		500,000 Times		300,000 Times

Part number list

Number of items

Part number

Allowable Load (Configurable Range)

(N)

Max. Load

(N)

Height upon Max. Load applied L-F

(mm)

Free Length L

(mm)

Outer Dia. D (or D1)

(mm)

Inner Dia. D-2d (or D)

(mm)

Spring Constant

(N/mm)

RoHS?

Minimum order quantity

107.01 to 150.00	137	11.4	15	6	3	38.1	10	1 pieces
107.01 to 150.00	137	15.2	20	6	3	28.5	10	1 pieces
107.01 to 150.00	137	19	25	6	3	22.8	10	1 pieces
107.01 to 150.00	137	22.8	30	6	3	19	10	1 pieces
107.01 to 150.00	137	26.6	35	6	3	16.3	10	1 pieces
107.01 to 150.00	137	30.4	40	6	3	14.3	10	1 pieces
107.01 to 150.00	137	34.2	45	6	3	12.7	10	1 pieces
107.01 to 150.00	137	38	50	6	3	11.4	10	1 pieces
107.01 to 150.00	137	41.8	55	6	3	10.4	10	1 pieces
107.01 to 150.00	137	45.6	60	6	3	9.5	10	1 pieces
150.01 to 230.00	206	7.6	10	8	4	85.8	10	1 pieces
150.01 to 230.00	206	11.4	15	8	4	57.2	10	1 pieces
150.01 to 230.00	206	15.2	20	8	4	42.9	10	1 pieces
150.01 to 230.00	206	19	25	8	4	34.3	10	1 pieces
150.01 to 230.00	206	22.8	30	8	4	28.6	10	1 pieces
150.01 to 230.00	206	26.6	35	8	4	24.5	10	1 pieces
150.01 to 230.00	206	30.4	40	8	4	21.5	10	1 pieces
150.01 to 230.00	206	34.2	45	8	4	19.1	10	1 pieces
150.01 to 230.00	206	38	50	8	4	17.2	10	1 pieces
150.01 to 230.00	206	41.8	55	8	4	15.6	10	1 pieces
150.01 to 230.00	206	45.6	60	8	4	14.3	10	1 pieces
150.01 to 230.00	206	49.4	65	8	4	13.2	10	1 pieces
150.01 to 230.00	206	53.2	70	8	4	12.3	10	1 pieces
150.01 to 230.00	206	57	75	8	4	11.4	10	1 pieces
150.01 to 230.00	206	60.8	80	8	4	10.7	10	1 pieces
230.01 to 580.00	294	7.6	10	10	5	123	10	1 pieces
230.01 to 580.00	294	11.4	15	10	5	81.7	10	1 pieces
230.01 to 580.00	294	15.2	20	10	5	61.3	10	1 pieces
230.01 to 580.00	294	19	25	10	5	49	10	1 pieces
230.01 to 580.00	294	22.8	30	10	5	40.8	10	1 pieces
230.01 to 580.00	294	26.6	35	10	5	35	10	1 pieces
230.01 to 580.00	294	30.4	40	10	5	30.6	10	1 pieces
230.01 to 580.00	294	34.2	45	10	5	27.2	10	1 pieces
230.01 to 580.00	294	38	50	10	5	24.5	10	1 pieces
230.01 to 580.00	294	41.8	55	10	5	22.3	10	1 pieces
230.01 to 580.00	294	45.6	60	10	5	20.4	10	1 pieces
230.01 to 580.00	294	49.4	65	10	5	18.8	10	1 pieces
230.01 to 580.00	294	53.2	70	10	5	17.5	10	1 pieces
230.01 to 580.00	294	57	75	10	5	16.3	10	1 pieces
230.01 to 580.00	294	60.8	80	10	5	15.3	10	1 pieces
230.01 to 580.00	294	68.4	90	10	5	13.6	10	1 pieces
230.01 to 580.00	421	11.4	15	12	6	117	10	1 pieces
230.01 to 580.00	421	15.2	20	12	6	87.7	10	1 pieces
230.01 to 580.00	421	19	25	12	6	70.2	10	1 pieces
230.01 to 580.00	421	22.8	30	12	6	58.5	10	1 pieces
230.01 to 580.00	421	26.6	35	12	6	50.1	10	1 pieces
230.01 to 580.00	421	30.4	40	12	6	43.9	10	1 pieces
230.01 to 580.00	421	34.2	45	12	6	39	10	1 pieces
230.01 to 580.00	421	38	50	12	6	35.1	10	1 pieces
230.01 to 580.00	421	41.8	55	12	6	31.9	10	1 pieces
230.01 to 580.00	421	45.6	60	12	6	29.2	10	1 pieces
230.01 to 580.00	421	49.4	65	12	6	27	10	1 pieces
230.01 to 580.00	421	53.2	70	12	6	25.1	10	1 pieces
230.01 to 580.00	421	57	75	12	6	23.4	10	1 pieces
230.01 to 580.00	421	60.8	80	12	6	21.9	10	1 pieces
230.01 to 580.00	421	68.4	90	12	6	19.5	10	1 pieces
230.01 to 580.00	578	15.2	20	14	7	120	10	1 pieces
230.01 to 580.00	578	19	25	14	7	96.3	10	1 pieces
230.01 to 580.00	578	22.8	30	14	7	80.3	10	1 pieces
230.01 to 580.00	578	26.6	35	14	7	68.8	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1.54 € ( 1.83 € )	5 working days
1.54 € ( 1.83 € )	5 working days
1.61 € ( 1.92 € )	5 working days
1.72 € ( 2.05 € )	5 working days
1.87 € ( 2.23 € )	5 working days
2.02 € ( 2.40 € )	5 working days
2.15 € ( 2.56 € )	5 working days
2.26 € ( 2.69 € )	5 working days
2.41 € ( 2.87 € )	5 working days
2.31 € ( 2.75 € )	5 working days
1.02 € ( 1.21 € )	5 working days
1.05 € ( 1.25 € )	5 working days
1.09 € ( 1.30 € )	Stock item: 1 working dayAvailable for same-day shipping
1.35 € ( 1.61 € )	5 working days
1.63 € ( 1.94 € )	5 working days
1.82 € ( 2.17 € )	5 working days
1.92 € ( 2.28 € )	5 working days
2.13 € ( 2.53 € )	5 working days
2.26 € ( 2.69 € )	Stock item: 1 working dayAvailable for same-day shipping
2.28 € ( 2.71 € )	5 working days
2.40 € ( 2.86 € )	5 working days
2.74 € ( 3.26 € )	Stock item: 1 working dayAvailable for same-day shipping
3.16 € ( 3.76 € )	5 working days
3.54 € ( 4.21 € )	5 working days
3.82 € ( 4.55 € )	5 working days
0.92 € ( 1.09 € )	Stock item: 1 working dayAvailable for same-day shipping
1.23 € ( 1.46 € )	5 working days
1.21 € ( 1.44 € )	Stock item: 1 working dayAvailable for same-day shipping
1.21 € ( 1.44 € )	Stock item: 1 working dayAvailable for same-day shipping
1.43 € ( 1.70 € )	5 working days
1.61 € ( 1.92 € )	5 working days
1.72 € ( 2.05 € )	5 working days
1.80 € ( 2.14 € )	5 working days
1.90 € ( 2.26 € )	5 working days
2.13 € ( 2.53 € )	5 working days
2.28 € ( 2.71 € )	5 working days
2.41 € ( 2.87 € )	5 working days
2.43 € ( 2.89 € )	5 working days
2.46 € ( 2.93 € )	5 working days
2.74 € ( 3.26 € )	5 working days
3.04 € ( 3.62 € )	5 working days
1.66 € ( 1.98 € )	Stock item: 1 working dayAvailable for same-day shipping
1.42 € ( 1.69 € )	Stock item: 1 working dayAvailable for same-day shipping
1.74 € ( 2.07 € )	5 working days
1.92 € ( 2.28 € )	5 working days
2.13 € ( 2.53 € )	5 working days
2.30 € ( 2.74 € )	5 working days
2.46 € ( 2.93 € )	5 working days
2.58 € ( 3.07 € )	5 working days
2.80 € ( 3.33 € )	5 working days
2.82 € ( 3.36 € )	5 working days
3.00 € ( 3.57 € )	5 working days
3.02 € ( 3.59 € )	5 working days
3.05 € ( 3.63 € )	5 working days
2.54 €1.04 € ( 1.24 € )	Stock item: 1 working dayAvailable for same-day shipping
3.74 € ( 4.45 € )	5 working days
2.02 € ( 2.40 € )	5 working days
2.13 € ( 2.53 € )	5 working days
2.30 € ( 2.74 € )	5 working days
2.42 € ( 2.88 € )	5 working days

Basic information
Outline and specifications

Basic information

Technical information

Outline and specifications

More Information

• Load calculation method = Spring constant x Deflection
(Int'l Unit) N=N/mmxFmm
kgf=kgf/mmxFmm
(kgf=Nx0.101972)
How to use coil springs, and precautions>> P.328
About D dimension and back facing hole, and D dimension and shaft, see >>P.1881.
Sizes larger than D25 are listed in "Press Die and Mold Components".
See the left-hand page for ordering example.

Catalog

Products homepage

Catalog (2-page spread)
