Flat Wire Coil Springs / Deflection 16%-20% / O.D. Referenced

CatalogP.2-370

Part number:

Still undefined. 151 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information

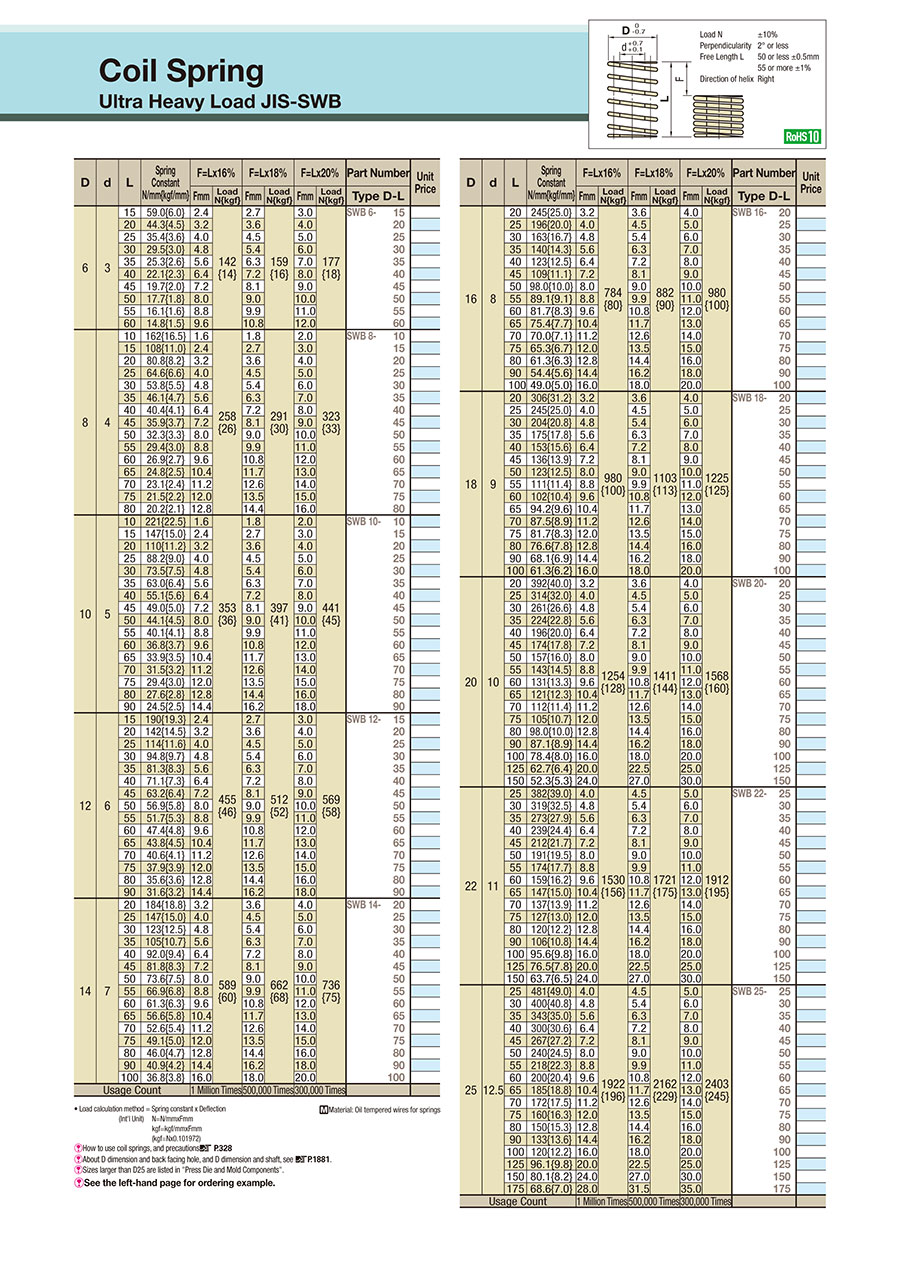

Catalog

Outline drawing and specifications table

Flat Wire Coil Springs/Deflection 16%-20%/O.D. Referenced:Related Image

Material: Oil tempered wires for springs

Specifications

Part Number

SWH20-30
SWB22-60

D	d	L	Spring Constant N/mm{kgf/mm}	F=Lx16%		F=Lx18%		F=Lx20%		Part Number		Unit Price
D	d	L	Spring Constant N/mm{kgf/mm}	Fmm	Load N{kgf}	Fmm	Load N{kgf}	Fmm	Load N{kgf}	Type D-L		Unit Price
6	3	15	59.0{6.0}	2.4	142 {14}	2.7	159 {16}	3.0	177 {18}	SWB 6-	15
		20	44.3{4.5}	3.2		3.6		4.0			20
		25	35.4{3.6}	4.0		4.5		5.0			25
		30	29.5{3.0}	4.8		5.4		6.0			30
		35	25.3{2.6}	5.6		6.3		7.0			35
		40	22.1{2.3}	6.4		7.2		8.0			40
		45	19.7{2.0}	7.2		8.1		9.0			45
		50	17.7{1.8}	8.0		9.0		10.0			50
		55	16.1{1.6}	8.8		9.9		11.0			55
		60	14.8{1.5}	9.6		10.8		12.0			60
8	4	10	162{16.5}	1.6	258 {26}	1.8	291 {30}	2.0	323 {33}	SWB 8-	10
		15	108{11.0}	2.4		2.7		3.0			15
		20	80.8{8.2}	3.2		3.6		4.0			20
		25	64.6{6.6}	4.0		4.5		5.0			25
		30	53.8{5.5}	4.8		5.4		6.0			30
		35	46.1{4.7}	5.6		6.3		7.0			35
		40	40.4{4.1}	6.4		7.2		8.0			40
		45	35.9{3.7}	7.2		8.1		9.0			45
		50	32.3{3.3}	8.0		9.0		10.0			50
		55	29.4{3.0}	8.8		9.9		11.0			55
		60	26.9{2.7}	9.6		10.8		12.0			60
		65	24.8{2.5}	10.4		11.7		13.0			65
		70	23.1{2.4}	11.2		12.6		14.0			70
		75	21.5{2.2}	12.0		13.5		15.0			75
		80	20.2{2.1}	12.8		14.4		16.0			80
10	5	10	221{22.5}	1.6	353 {36}	1.8	397 {41}	2.0	441 {45}	SWB 10-	10
		15	147{15.0}	2.4		2.7		3.0			15
		20	110{11.2}	3.2		3.6		4.0			20
		25	88.2{9.0}	4.0		4.5		5.0			25
		30	73.5{7.5}	4.8		5.4		6.0			30
		35	63.0{6.4}	5.6		6.3		7.0			35
		40	55.1{5.6}	6.4		7.2		8.0			40
		45	49.0{5.0}	7.2		8.1		9.0			45
		50	44.1{4.5}	8.0		9.0		10.0			50
		55	40.1{4.1}	8.8		9.9		11.0			55
		60	36.8{3.7}	9.6		10.8		12.0			60
		65	33.9{3.5}	10.4		11.7		13.0			65
		70	31.5{3.2}	11.2		12.6		14.0			70
		75	29.4{3.0}	12.0		13.5		15.0			75
		80	27.6{2.8}	12.8		14.4		16.0			80
		90	24.5{2.5}	14.4		16.2		18.0			90
12	6	15	190{19.3}	2.4	455 {46}	2.7	512 {52}	3.0	569 {58}	SWB 12-	15
		20	142{14.5}	3.2		3.6		4.0			20
		25	114{11.6}	4.0		4.5		5.0			25
		30	94.8{9.7}	4.8		5.4		6.0			30
		35	81.3{8.3}	5.6		6.3		7.0			35
		40	71.1{7.3}	6.4		7.2		8.0			40
		45	63.2{6.4}	7.2		8.1		9.0			45
		50	56.9{5.8}	8.0		9.0		10.0			50
		55	51.7{5.3}	8.8		9.9		11.0			55
		60	47.4{4.8}	9.6		10.8		12.0			60
		65	43.8{4.5}	10.4		11.7		13.0			65
		70	40.6{4.1}	11.2		12.6		14.0			70
		75	37.9{3.9}	12.0		13.5		15.0			75
		80	35.6{3.6}	12.8		14.4		16.0			80
		90	31.6{3.2}	14.4		16.2		18.0			90
14	7	20	184{18.8}	3.2	589 {60}	3.6	662 {68}	4.0	736 {75}	SWB 14-	20
		25	147{15.0}	4.0		4.5		5.0			25
		30	123{12.5}	4.8		5.4		6.0			30
		35	105{10.7}	5.6		6.3		7.0			35
		40	92.0{9.4}	6.4		7.2		8.0			40
		45	81.8{8.3}	7.2		8.1		9.0			45
		50	73.6{7.5}	8.0		9.0		10.0			50
		55	66.9{6.8}	8.8		9.9		11.0			55
		60	61.3{6.3}	9.6		10.8		12.0			60
		65	56.6{5.8}	10.4		11.7		13.0			65
		70	52.6{5.4}	11.2		12.6		14.0			70
		75	49.1{5.0}	12.0		13.5		15.0			75
		80	46.0{4.7}	12.8		14.4		16.0			80
		90	40.9{4.2}	14.4		16.2		18.0			90
		100	36.8{3.8}	16.0		18.0		20.0			100
Usage Count				1 Million Times		500,000 Times		300,000 Times

D	d	L	Spring Constant N/mm{kgf/mm}	F=Lx16%		F=Lx18%		F=Lx20%		Part Number		Unit Price
D	d	L	Spring Constant N/mm{kgf/mm}	Fmm	Load N{kgf}	Fmm	Load N{kgf}	Fmm	Load N{kgf}	Type D-L		Unit Price
16	8	20	245{25.0}	3.2	784 {80}	3.6	882 {90}	4.0	980 {100}	SWB 16-	20
		25	196{20.0}	4.0		4.5		5.0			25
		30	163{16.7}	4.8		5.4		6.0			30
		35	140{14.3}	5.6		6.3		7.0			35
		40	123{12.5}	6.4		7.2		8.0			40
		45	109{11.1}	7.2		8.1		9.0			45
		50	98.0{10.0}	8.0		9.0		10.0			50
		55	89.1{9.1}	8.8		9.9		11.0			55
		60	81.7{8.3}	9.6		10.8		12.0			60
		65	75.4{7.7}	10.4		11.7		13.0			65
		70	70.0{7.1}	11.2		12.6		14.0			70
		75	65.3{6.7}	12.0		13.5		15.0			75
		80	61.3{6.3}	12.8		14.4		16.0			80
		90	54.4{5.6}	14.4		16.2		18.0			90
		100	49.0{5.0}	16.0		18.0		20.0			100
18	9	20	306{31.2}	3.2	980 {100}	3.6	1103 {113}	4.0	1225 {125}	SWB 18-	20
		25	245{25.0}	4.0		4.5		5.0			25
		30	204{20.8}	4.8		5.4		6.0			30
		35	175{17.8}	5.6		6.3		7.0			35
		40	153{15.6}	6.4		7.2		8.0			40
		45	136{13.9}	7.2		8.1		9.0			45
		50	123{12.5}	8.0		9.0		10.0			50
		55	111{11.4}	8.8		9.9		11.0			55
		60	102{10.4}	9.6		10.8		12.0			60
		65	94.2{9.6}	10.4		11.7		13.0			65
		70	87.5{8.9}	11.2		12.6		14.0			70
		75	81.7{8.3}	12.0		13.5		15.0			75
		80	76.6{7.8}	12.8		14.4		16.0			80
		90	68.1{6.9}	14.4		16.2		18.0			90
		100	61.3{6.2}	16.0		18.0		20.0			100
20	10	20	392{40.0}	3.2	1254 {128}	3.6	1411 {144}	4.0	1568 {160}	SWB 20-	20
		25	314{32.0}	4.0		4.5		5.0			25
		30	261{26.6}	4.8		5.4		6.0			30
		35	224{22.8}	5.6		6.3		7.0			35
		40	196{20.0}	6.4		7.2		8.0			40
		45	174{17.8}	7.2		8.1		9.0			45
		50	157{16.0}	8.0		9.0		10.0			50
		55	143{14.5}	8.8		9.9		11.0			55
		60	131{13.3}	9.6		10.8		12.0			60
		65	121{12.3}	10.4		11.7		13.0			65
		70	112{11.4}	11.2		12.6		14.0			70
		75	105{10.7}	12.0		13.5		15.0			75
		80	98.0{10.0}	12.8		14.4		16.0			80
		90	87.1{8.9}	14.4		16.2		18.0			90
		100	78.4{8.0}	16.0		18.0		20.0			100
		125	62.7{6.4}	20.0		22.5		25.0			125
		150	52.3{5.3}	24.0		27.0		30.0			150
22	11	25	382{39.0}	4.0	1530 {156}	4.5	1721 {175}	5.0	1912 {195}	SWB 22-	25
		30	319{32.5}	4.8		5.4		6.0			30
		35	273{27.9}	5.6		6.3		7.0			35
		40	239{24.4}	6.4		7.2		8.0			40
		45	212{21.7}	7.2		8.1		9.0			45
		50	191{19.5}	8.0		9.0		10.0			50
		55	174{17.7}	8.8		9.9		11.0			55
		60	159{16.2}	9.6		10.8		12.0			60
		65	147{15.0}	10.4		11.7		13.0			65
		70	137{13.9}	11.2		12.6		14.0			70
		75	127{13.0}	12.0		13.5		15.0			75
		80	120{12.2}	12.8		14.4		16.0			80
		90	106{10.8}	14.4		16.2		18.0			90
		100	95.6{9.8}	16.0		18.0		20.0			100
		125	76.5{7.8}	20.0		22.5		25.0			125
		150	63.7{6.5}	24.0		27.0		30.0			150
25	12.5	25	481{49.0}	4.0	1922 {196}	4.5	2162 {229}	5.0	2403 {245}	SWB 25-	25
		30	400{40.8}	4.8		5.4		6.0			30
		35	343{35.0}	5.6		6.3		7.0			35
		40	300{30.6}	6.4		7.2		8.0			40
		45	267{27.2}	7.2		8.1		9.0			45
		50	240{24.5}	8.0		9.0		10.0			50
		55	218{22.3}	8.8		9.9		11.0			55
		60	200{20.4}	9.6		10.8		12.0			60
		65	185{18.8}	10.4		11.7		13.0			65
		70	172{17.5}	11.2		12.6		14.0			70
		75	160{16.3}	12.0		13.5		15.0			75
		80	150{15.3}	12.8		14.4		16.0			80
		90	133{13.6}	14.4		16.2		18.0			90
		100	120{12.2}	16.0		18.0		20.0			100
		125	96.1{9.8}	20.0		22.5		25.0			125
		150	80.1{8.2}	24.0		27.0		30.0			150
		175	68.6{7.0}	28.0		31.5		35.0			175
Usage Count				1 Million Times		500,000 Times		300,000 Times

Part number list

Number of items

Part number

Allowable Load (Configurable Range)

(N)

Max. Load

(N)

Height upon Max. Load applied L-F

(mm)

Free Length L

(mm)

Outer Dia. D (or D1)

(mm)

Inner Dia. D-2d (or D)

(mm)

Spring Constant

(N/mm)

RoHS?

Minimum order quantity

150.01 to 230.00	177	12	15	6	3	59.0	10	1 pieces
150.01 to 230.00	177	16	20	6	3	44.3	10	1 pieces
150.01 to 230.00	177	20	25	6	3	35.4	10	1 pieces
150.01 to 230.00	177	24	30	6	3	29.5	10	1 pieces
150.01 to 230.00	177	28	35	6	3	25.3	10	1 pieces
150.01 to 230.00	177	32	40	6	3	22.1	10	1 pieces
150.01 to 230.00	177	36	45	6	3	19.7	10	1 pieces
150.01 to 230.00	177	40	50	6	3	17.7	10	1 pieces
150.01 to 230.00	177	44	55	6	3	16.1	10	1 pieces
150.01 to 230.00	177	48	60	6	3	14.8	10	1 pieces
230.01 to 580.00	323	8	10	8	4	162	10	1 pieces
230.01 to 580.00	323	12	15	8	4	108	10	1 pieces
230.01 to 580.00	323	16	20	8	4	80.8	10	1 pieces
230.01 to 580.00	323	20	25	8	4	64.6	10	1 pieces
230.01 to 580.00	323	24	30	8	4	53.8	10	1 pieces
230.01 to 580.00	323	28	35	8	4	46.1	10	1 pieces
230.01 to 580.00	323	32	40	8	4	40.4	10	1 pieces
230.01 to 580.00	323	36	45	8	4	35.9	10	1 pieces
230.01 to 580.00	323	40	50	8	4	32.3	10	1 pieces
230.01 to 580.00	323	44	55	8	4	29.4	10	1 pieces
230.01 to 580.00	323	48	60	8	4	26.9	10	1 pieces
230.01 to 580.00	323	52	65	8	4	24.8	10	1 pieces
230.01 to 580.00	323	56	70	8	4	23.1	10	1 pieces
230.01 to 580.00	323	60	75	8	4	21.5	10	1 pieces
230.01 to 580.00	323	64	80	8	4	20.2	10	1 pieces
230.01 to 580.00	441	8	10	10	5	221	10	1 pieces
230.01 to 580.00	441	12	15	10	5	147	10	1 pieces
230.01 to 580.00	441	16	20	10	5	110	10	1 pieces
230.01 to 580.00	441	20	25	10	5	88.2	10	1 pieces
230.01 to 580.00	441	24	30	10	5	73.5	10	1 pieces
230.01 to 580.00	441	28	35	10	5	63	10	1 pieces
230.01 to 580.00	441	32	40	10	5	55.1	10	1 pieces
230.01 to 580.00	441	36	45	10	5	49	10	1 pieces
230.01 to 580.00	441	40	50	10	5	44.1	10	1 pieces
230.01 to 580.00	441	44	55	10	5	40.1	10	1 pieces
230.01 to 580.00	441	48	60	10	5	36.8	10	1 pieces
230.01 to 580.00	441	52	65	10	5	33.9	10	1 pieces
230.01 to 580.00	441	56	70	10	5	31.5	10	1 pieces
230.01 to 580.00	441	60	75	10	5	29.4	10	1 pieces
230.01 to 580.00	441	64	80	10	5	27.6	10	1 pieces
230.01 to 580.00	441	72	90	10	5	24.5	10	1 pieces
230.01 to 580.00	569	12	15	12	6	190	10	1 pieces
230.01 to 580.00	569	16	20	12	6	142	10	1 pieces
230.01 to 580.00	569	20	25	12	6	114	10	1 pieces
230.01 to 580.00	569	24	30	12	6	94.8	10	1 pieces
230.01 to 580.00	569	28	35	12	6	81.3	10	1 pieces
230.01 to 580.00	569	32	40	12	6	71.7	10	1 pieces
230.01 to 580.00	569	36	45	12	6	63.2	10	1 pieces
230.01 to 580.00	569	40	50	12	6	56.9	10	1 pieces
230.01 to 580.00	569	44	55	12	6	51.7	10	1 pieces
230.01 to 580.00	569	48	60	12	6	47.4	10	1 pieces
230.01 to 580.00	569	52	65	12	6	43.8	10	1 pieces
230.01 to 580.00	569	56	70	12	6	40.6	10	1 pieces
230.01 to 580.00	569	60	75	12	6	37.9	10	1 pieces
230.01 to 580.00	569	64	80	12	6	35.6	10	1 pieces
230.01 to 580.00	569	72	90	12	6	31.6	10	1 pieces
580.01 or More	736	16	20	14	7	184	10	1 pieces
580.01 or More	736	20	25	14	7	147	10	1 pieces
580.01 or More	736	24	30	14	7	123	10	1 pieces
580.01 or More	736	28	35	14	7	105	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1.60 € ( 1.90 € )	5 working days
1.92 € ( 2.28 € )	5 working days
1.77 € ( 2.11 € )	5 working days
1.77 € ( 2.11 € )	5 working days
1.84 € ( 2.19 € )	5 working days
2.29 € ( 2.73 € )	5 working days
2.12 € ( 2.52 € )	5 working days
2.17 € ( 2.58 € )	5 working days
2.67 € ( 3.18 € )	5 working days
2.85 € ( 3.39 € )	5 working days
1.34 € ( 1.59 € )	5 working days
1.36 € ( 1.62 € )	5 working days
1.58 € ( 1.88 € )	5 working days
1.81 € ( 2.15 € )	5 working days
1.54 € ( 1.83 € )	5 working days
1.67 € ( 1.99 € )	5 working days
1.77 € ( 2.11 € )	5 working days
1.84 € ( 2.19 € )	5 working days
2.38 € ( 2.83 € )	5 working days
2.54 € ( 3.02 € )	5 working days
2.12 € ( 2.52 € )	5 working days
3.01 € ( 3.58 € )	5 working days
3.30 € ( 3.93 € )	5 working days
2.91 € ( 3.46 € )	5 working days
3.86 € ( 4.59 € )	5 working days
1.20 € ( 1.43 € )	5 working days
1.45 € ( 1.73 € )	5 working days
1.36 € ( 1.62 € )	Stock item: 1 working dayAvailable for same-day shipping
1.47 € ( 1.75 € )	5 working days
1.42 € ( 1.69 € )	5 working days
1.54 € ( 1.83 € )	5 working days
1.67 € ( 1.99 € )	5 working days
1.77 € ( 2.11 € )	5 working days
1.77 € ( 2.11 € )	5 working days
1.84 € ( 2.19 € )	5 working days
1.95 € ( 2.32 € )	5 working days
2.71 € ( 3.22 € )	5 working days
2.86 € ( 3.40 € )	5 working days
2.17 € ( 2.58 € )	5 working days
3.10 € ( 3.69 € )	5 working days
2.52 € ( 3.00 € )	5 working days
1.99 € ( 2.37 € )	Stock item: 1 working dayAvailable for same-day shipping
2.30 € ( 2.74 € )	5 working days
1.77 € ( 2.11 € )	5 working days
1.77 € ( 2.11 € )	5 working days
2.40 € ( 2.86 € )	5 working days
1.95 € ( 2.32 € )	5 working days
2.12 € ( 2.52 € )	5 working days
2.96 € ( 3.52 € )	5 working days
3.10 € ( 3.69 € )	5 working days
2.40 € ( 2.86 € )	5 working days
3.15 € ( 3.75 € )	5 working days
2.62 € ( 3.12 € )	5 working days
2.74 € ( 3.26 € )	5 working days
2.98 € ( 3.55 € )	5 working days
3.20 € ( 3.81 € )	5 working days
1.95 € ( 2.32 € )	5 working days
1.95 € ( 2.32 € )	5 working days
1.95 € ( 2.32 € )	5 working days
2.06 € ( 2.45 € )	5 working days

Basic information
Outline and specifications

Basic information

Technical information

Outline and specifications

More Information

• Load calculation method = Spring constant x Deflection
(Int'l Unit) N=N/mmxFmm
kgf=kgf/mmxFmm
(kgf=Nx0.101972)
How to use coil springs, and precautions>> P.328
About D dimension and back facing hole, and D dimension and shaft, see >>P.1881.
Sizes larger than D25 are listed in "Press Die and Mold Components".
See the left-hand page for ordering example.

Catalog

Products homepage

Catalog (2-page spread)
