8 Series / Pre-Assembly Insertion Offset Nuts

8 Series / Pre-Assembly Insertion Offset Nuts HNTHSN8

Part number:

HNTHSN8
Clear
Quantity:

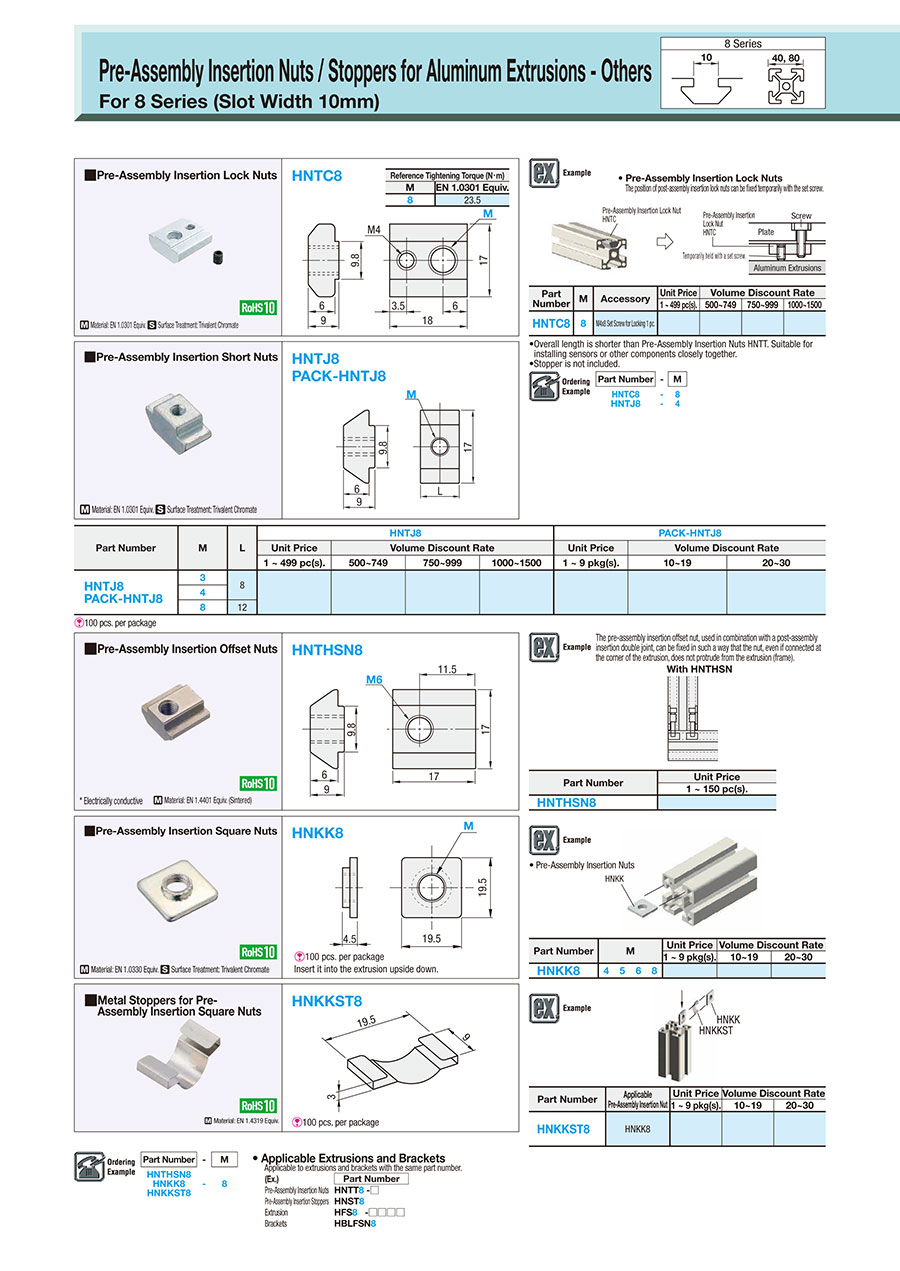

Outline drawing and specifications table

8 Series/Pre-Assembly Insertion Offset Nuts:Related Image

* Electrically conductive
Material: EN 1.4401 Equiv. (Sintered)

Specifications

Part Number-M
HNTHSN8
HNKK8
HNKKST8		-8
• Applicable Extrusions and Brackets
Applicable to extrusions and brackets with the same part number.
(Ex.) Part Number
Pre-Assembly Insertion Nuts HNTT8 -□
Pre-Assembly Insertion Stoppers HNST8
Extrusion HFS8 -□□□□
Brackets HBLFSN8
Part NumberUnit Price
1 ~ 150 pc(s).
HNTHSN8

Part number list

Number of items
  • 1
    • Part number
    HNTHSN8
    RoHS?Minimum order quantity
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.67 €
    ( 0.80 € )
    5 working days
  • 1

    • More Information

    Basic information


    The tapped hole position is eccentric. By using it together with a pre-assembly push-in double joint, the nut can be fastened without protruding from the frame, even if it is connected to the corner of the frame.

    Technical information

    Outline and specifications

    Example of Use

    8 Series/Pre-Assembly Insertion Offset Nuts:Related Image
