8 Series / Post-Assembly Insertion Nuts with Leaf Springs
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information

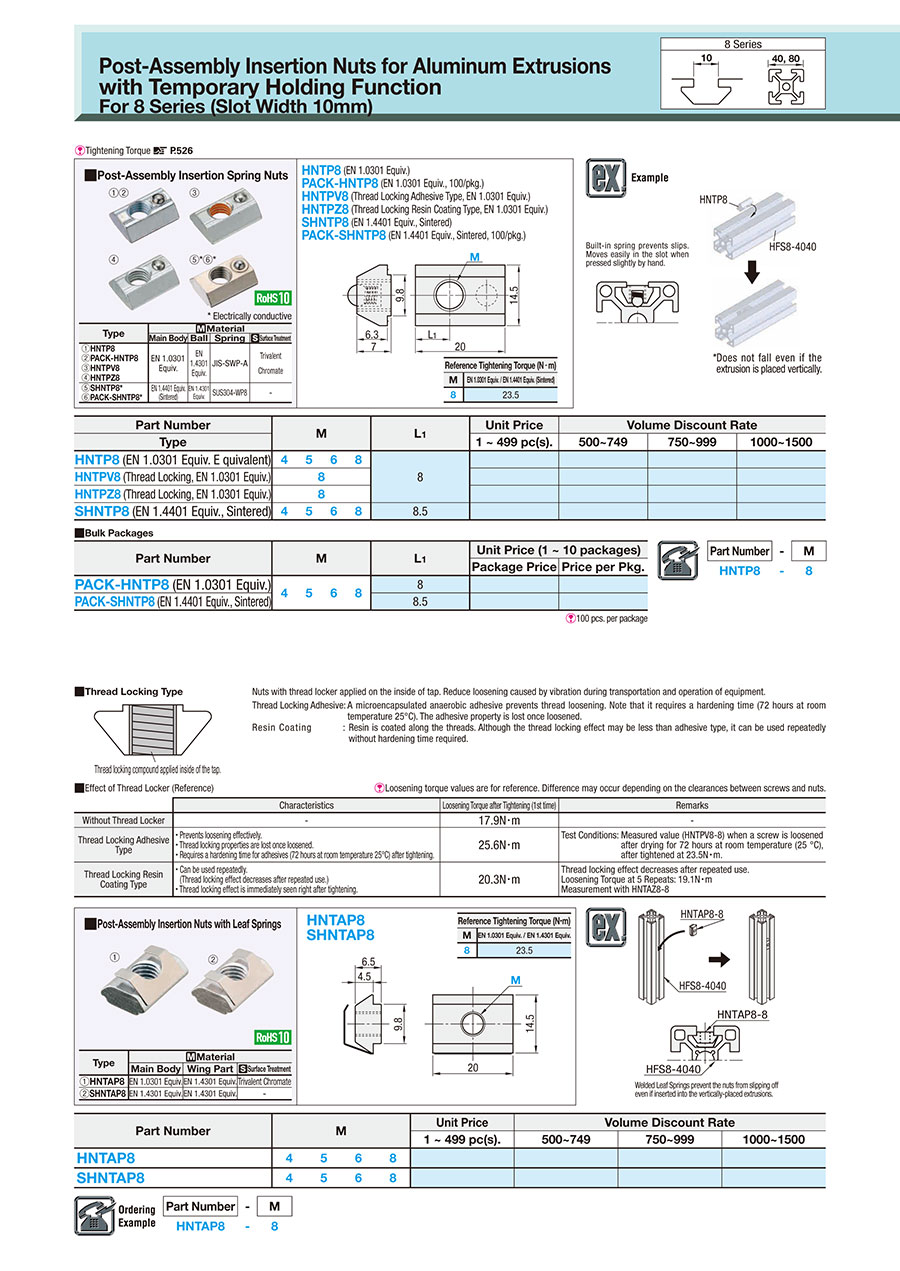

- Catalog
- Technical Information
| Type | Material | ||
| Main Body | Wing Part | Surface Treatment | |
| HNTAP8 | EN 1.0301 Equiv. | EN 1.4301 Equiv. | Trivalent Chromate |
| SHNTAP8 | EN 1.4301 Equiv. | EN 1.4301 Equiv. | - |
Specifications
| Part Number | - | M |
| HNTAP8 | - | 8 |
| Part Number | M | Unit Price | Volume Discount Rate | |||||
| 1 ~ 499 pc(s). | 500~749 | 750~999 | 1000~1500 | |||||
| HNTAP8 | 4 | 5 | 6 | 8 | ||||
| SHNTAP8 | 4 | 5 | 6 | 8 | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HNTAP8-4 |
| HNTAP8-5 |
| HNTAP8-6 |
| HNTAP8-8 |
| SHNTAP8-4 |
| SHNTAP8-5 |
| SHNTAP8-6 |
| SHNTAP8-8 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Thread Nominal M (mm) | Material | Material | Surface Treatment | |
|---|---|---|---|---|---|---|---|---|---|
0.63 € | 1 | Available |
Same day
Stock | 10 | M4 | Steel | EN 1.0301 Equiv., Wing Part EN 1.4301 Equiv. | Trivalent Chromate | |
0.63 € | 1 | Available |
Same day
Stock | 10 | M5 | Steel | EN 1.0301 Equiv., Wing Part EN 1.4301 Equiv. | Trivalent Chromate | |
0.63 € | 1 | Available |
Same day
Stock | 10 | M6 | Steel | EN 1.0301 Equiv., Wing Part EN 1.4301 Equiv. | Trivalent Chromate | |
0.63 € | 1 | Available |
Same day
Stock | 10 | M8 | Steel | EN 1.0301 Equiv., Wing Part EN 1.4301 Equiv. | Trivalent Chromate | |
0.89 € | 1 | Available | 5 Days | 10 | M4 | Stainless Steel | EN 1.4301 Equiv., Wing Part EN 1.4301 Equiv. | - | |
0.89 € | 1 | Available | 5 Days | 10 | M5 | Stainless Steel | EN 1.4301 Equiv., Wing Part EN 1.4301 Equiv. | - | |
0.89 € | 1 | Available |
Same day
Stock | 10 | M6 | Stainless Steel | EN 1.4301 Equiv., Wing Part EN 1.4301 Equiv. | - | |
0.89 € | 1 | Available |
Same day
Stock | 10 | M8 | Stainless Steel | EN 1.4301 Equiv., Wing Part EN 1.4301 Equiv. | - |
Loading...
Example of Use
Basic information
| Nut Type | Post-Assembly Insertion Nuts | Series Name | 8 Series / 8-45 Series | Function | With Leaf Spring |
|---|---|---|---|---|---|
| Loosening Prevention | Not Provided | Type | HFS | Sale Type | Post-Assembly Insertion Nuts with Leaf Springs |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Thread Nominal M(mm)
- M4
- M5
- M6
- M8
-
Material
-
Material
-
Surface Treatment
- Trivalent Chromate
-
Type
- HNTAP8
- SHNTAP8
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
8 Series (Groove Width 10 mm), 1-Row Groove, Reversing Bracket With Protrusion
MISUMI Standard Price : 1.04 € Shipping Days: Same day
