    8 Series / Pre-Assembly Insertion Screws for Aluminum Extrusions

    8 Series / Pre-Assembly Insertion Screws for Aluminum Extrusions

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

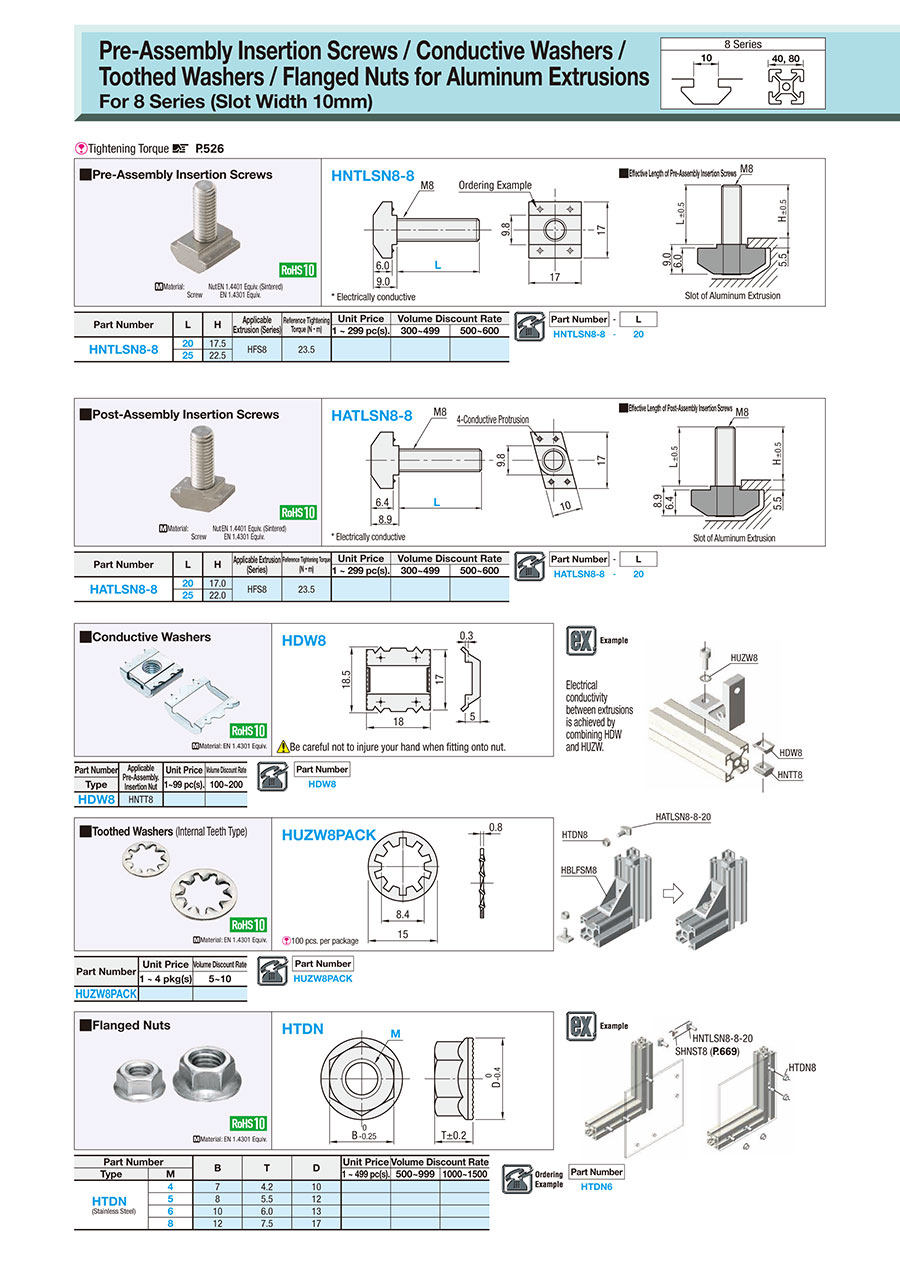

    Outline drawing and specifications table

    8 Series/Pre-Assembly Insertion Screws for Aluminum Extrusions:Related Image

    Material: Nut EN 1.4401 Equiv. (Sintered)
    Screw EN 1.4301 Equiv.

    Specifications

    Part Number-L
    HNTLSN8-8-20
    Part NumberLHApplicable Extrusion (Series)Reference Tightening Torque (N • m)Unit PriceVolume Discount Rate
    1 ~ 299 pc(s).300~499500~600
    HNTLSN8-82017.5HFS823.5
    2522.5

    Part number list

    Number of items
  • 1
    • Part number
    HNTLSN8-8-20
    HNTLSN8-8-25

    Thread Length L

    (mm)

    		RoHS?Minimum order quantity
    20
    10
    1 pieces
    25
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.89 €
    ( 3.44 € )
    Stock item: 1 working dayAvailable for same-day shipping
    2.89 €
    ( 3.44 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information


    -It is a bolted nut. -Labour hours for bolting can be reduced.
