    8 Series / Long Nuts / L Dimension Fixed Type

    8 Series / Long Nuts / L Dimension Fixed Type

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

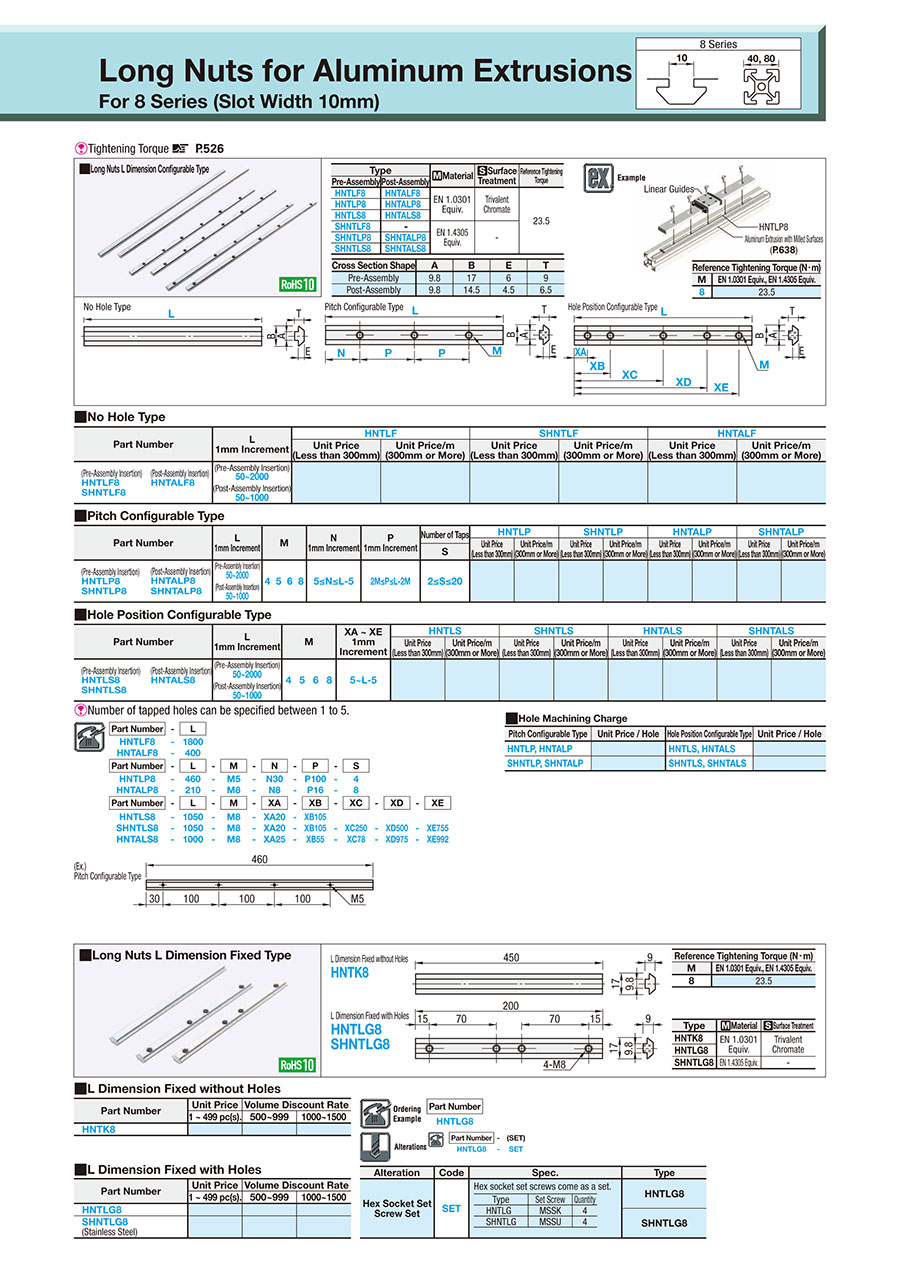

    Outline drawing and specifications table

    8 Series/Long Nuts/L Dimension Fixed Type:Related Image

    TypeMaterialSurface Treatment
    HNTK8EN 1.0301 Equiv.Trivalent Chromate
    HNTLG8
    SHNTLG8EN 1.4305 Equiv.-

    Specifications

    Part Number
    HNTLG8
    ■L Dimension Fixed without Holes
    Part NumberUnit PriceVolume Discount Rate
    1 ~ 499 pc(s).500~9991000~1500
    HNTK8
    ■L Dimension Fixed with Holes
    Part NumberUnit PriceVolume Discount Rate
    1 ~ 499 pc(s).500~9991000~1500
    HNTLG8
    SHNTLG8
    (Stainless Steel)

    Alterations

    8 Series/Long Nuts/L Dimension Fixed Type:Related Image

    Part number list

    Number of items
  • 1
    • Part number
    HNTK8
    HNTLG8
    HNTLG8-SET
    SHNTLG8
    SHNTLG8-SET

    Material

    Material

    Surface Treatment

    Sale Type

    		RoHS?Minimum order quantity
    Steel
    EN 1.0301 Equiv.
    Trivalent Chromate
    Single Item
    10
    1 pieces
    Steel
    EN 1.0301 Equiv.
    Trivalent Chromate
    Single Item
    10
    1 pieces
    Steel
    EN 1.0301 Equiv.
    Trivalent Chromate
    SET (With Hex Socket Set Screws)
    10
    1 pieces
    Stainless Steel
    EN 1.4305 Equiv.
    -
    Single Item
    10
    1 pieces
    Stainless Steel
    EN 1.4305 Equiv.
    -
    SET (With Hex Socket Set Screws)
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    7.81 €
    ( 9.29 € )
    5 working days
    5.79 €
    ( 6.89 € )
    Stock item: 1 working dayAvailable for same-day shipping
    5.59 €
    ( 6.65 € )
    5 working days
    8.18 €
    ( 9.73 € )
    5 working days
    9.26 €
    ( 11.02 € )
    5 working days
  • 1

    • More Information

    Basic information


    These are long nuts with a fixed length (L dimension) of 450 mm. Workpieces, such as sliding guides, can be attached to the frame at any pitch. It can also be used for attaching frames.
