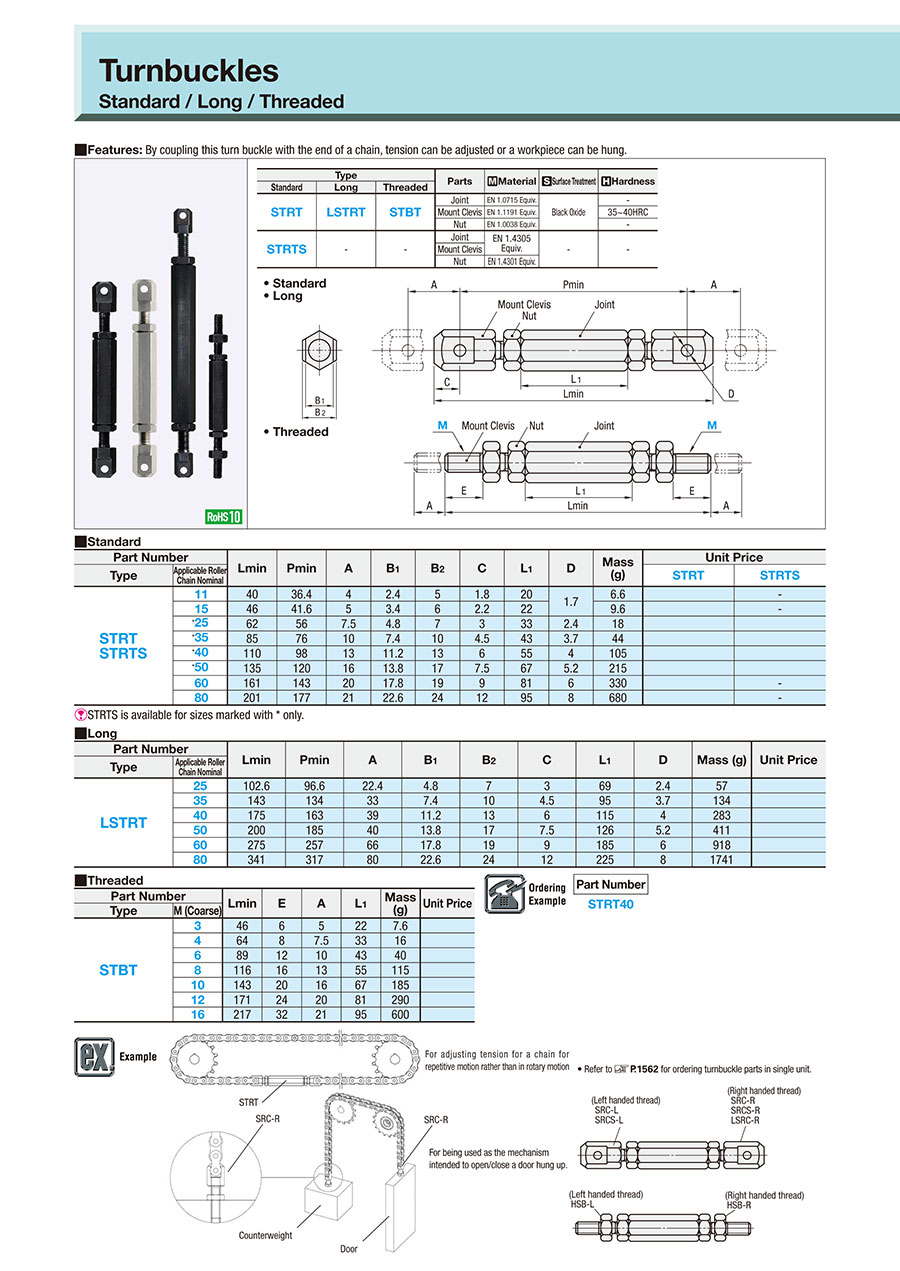

Turnbuckles / Standard / Long

Type		Parts	Material	Surface Treatment	Hardness
Standard	Long
STRT	LSTRT	Joint	EN 1.0715 Equiv.	Black Oxide	-
		Mount Clevis	EN 1.1191 Equiv.		35~40HRC
		Nut	EN 1.0038 Equiv.		-
STRTS	-	Joint	EN 1.4305 Equiv.	-	-
		Mount Clevis
		Nut	EN 1.4301 Equiv.

Part Number

STRT40

■Standard

Part Number		Lmin	Pmin	A	B1	B2	C	L1	D	Mass (g)	Compliance with Standard
Type	Applicable Roller Chain Nominal										STRT	STRTS
STRT STRTS	11	40	36.4	4	2.4	5	1.8	20	1.7	6.6	●	-
	15	46	41.6	5	3.4	6	2.2	22	1.7	9.6	●	-
	*25	62	56	7.5	4.8	7	3	33	2.4	18	●	●
	*35	85	76	10	7.4	10	4.5	43	3.7	44	●	●
	*40	110	98	13	11.2	13	6	55	4	105	●	●
	*50	135	120	16	13.8	17	7.5	67	5.2	215	●	●
	60	161	143	20	17.8	19	9	81	6	330	●	-
	80	201	177	21	22.6	24	12	95	8	680	●	-

STRTS is available for sizes marked with * only.

■Long

Part Number		Lmin	Pmin	A	B1	B2	C	L1	D	Mass (g)
Type	Applicable Roller Chain Nominal
LSTRT	25	102.6	96.6	22.4	4.8	7	3	69	2.4	57
	35	143	134	33	7.4	10	4.5	95	3.7	134
	40	175	163	39	11.2	13	6	115	4	283
	50	200	185	40	13.8	17	7.5	126	5.2	411
	60	275	257	66	17.8	19	9	185	6	918
	80	341	317	80	22.6	24	12	225	8	1741
