Locating Pins - Large Flat Head, DP Tolerance Selectable - Tapped

Configure

Material
Steel
EN 1.2510 Equiv.
Stainless Steel
EN 1.4037 Equiv.
EN 1.4301 Equiv.
Surface Treatment
No Treatment
Hard Chrome Plating
Hard Chrome Plating
Heat Treatment
- No Treatment
- Directly Quenched
[D] Diameter (Mounting Side)(mm)
- 6
- 6T
- 8
- 8T
- 10
- 10T
- 12
- 12T
- 13
- 13T
- 16
- 16T
- 20
- 20T
ISO Tolerance (Mounting Side)
- p6
- m6
- h7
- g6
ISO Tolerance (Head)
- p6
- m6
- h7
- g6
- 0/-0.01
[M] Diameter (Screw)(mm)
- 2.6
- 3
- 4
- 5
- 6
- 8
B
[1-40/0.1]
L
[6-40/1]
P
[6.5-30/0.01]
Type
Est. shipping days
- All
- Within 6 working days

Locating Pins - Large Flat Head, DP Tolerance Selectable - Tapped

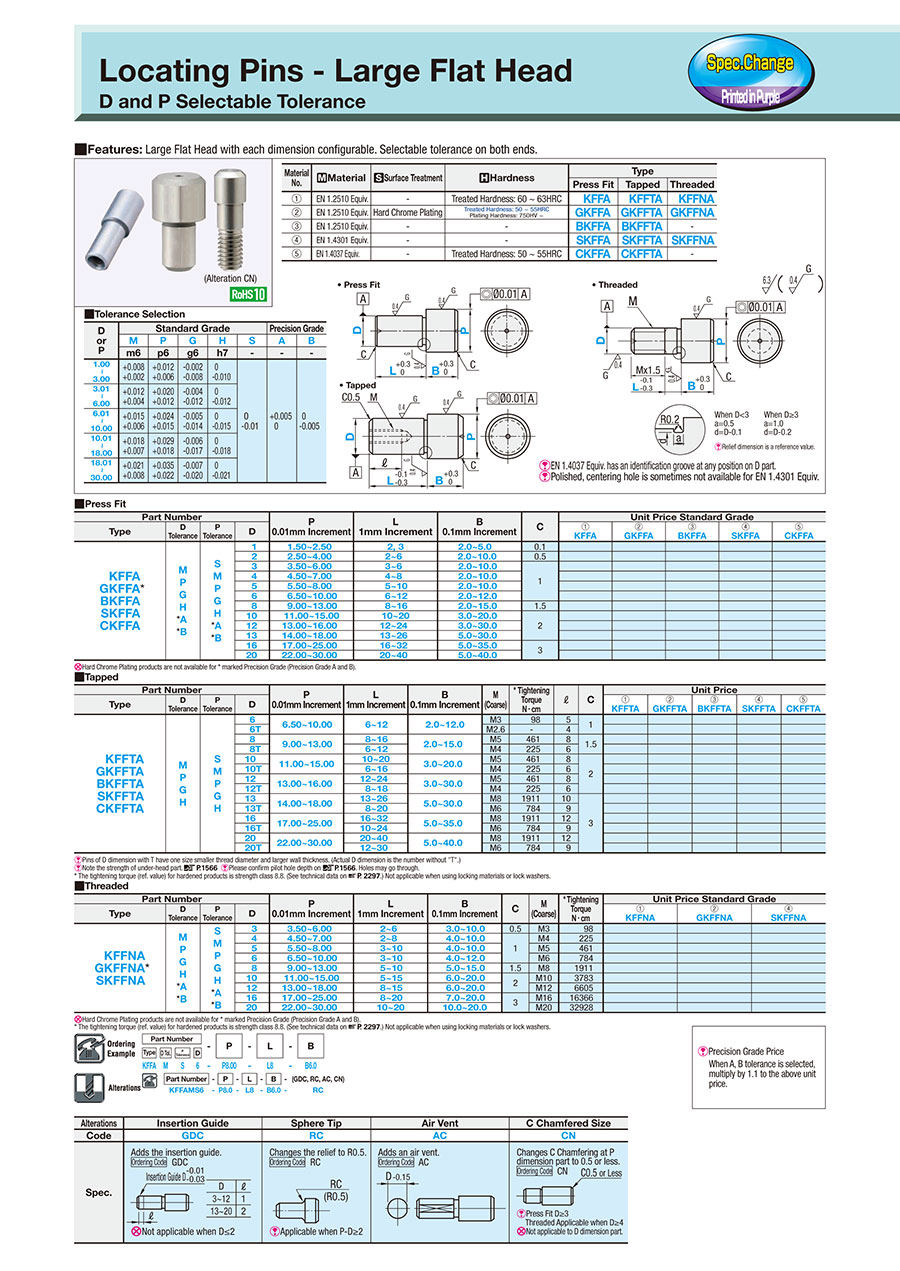

CatalogP.1-1599

Part number:

Still undefined. 1,400 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

...

Part number

BKFFTAGG6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGG6T-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGG8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

BKFFTAGG8T-P[9-13/0.01]-L[6-12/1]-B[2-15/0.1]

BKFFTAGG10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1]

BKFFTAGG10T-P[11-15/0.01]-L[6-16/1]-B[3-20/0.1]

BKFFTAGG12-P[13-16/0.01]-L[12-24/1]-B[3-30/0.1]

BKFFTAGG12T-P[13-16/0.01]-L[8-18/1]-B[3-30/0.1]

BKFFTAGG13-P[14-18/0.01]-L[13-26/1]-B[5-30/0.1]

BKFFTAGG13T-P[14-18/0.01]-L[8-20/1]-B[5-30/0.1]

BKFFTAGG16-P[17-25/0.01]-L[16-32/1]-B[5-35/0.1]

BKFFTAGG16T-P[17-25/0.01]-L[10-24/1]-B[5-35/0.1]

BKFFTAGG20-P[22-30/0.01]-L[20-40/1]-B[5-40/0.1]

BKFFTAGG20T-P[22-30/0.01]-L[12-30/1]-B[5-40/0.1]

BKFFTAGH6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGH6T-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGH8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

BKFFTAGH8T-P[9-13/0.01]-L[6-12/1]-B[2-15/0.1]

BKFFTAGH10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1]

BKFFTAGH10T-P[11-15/0.01]-L[6-16/1]-B[3-20/0.1]

BKFFTAGH12-P[13-16/0.01]-L[12-24/1]-B[3-30/0.1]

BKFFTAGH12T-P[13-16/0.01]-L[8-18/1]-B[3-30/0.1]

BKFFTAGH13-P[14-18/0.01]-L[13-26/1]-B[5-30/0.1]

BKFFTAGH13T-P[14-18/0.01]-L[8-20/1]-B[5-30/0.1]

BKFFTAGH16-P[17-25/0.01]-L[16-32/1]-B[5-35/0.1]

BKFFTAGH16T-P[17-25/0.01]-L[10-24/1]-B[5-35/0.1]

BKFFTAGH20-P[22-30/0.01]-L[20-40/1]-B[5-40/0.1]

BKFFTAGH20T-P[22-30/0.01]-L[12-30/1]-B[5-40/0.1]

BKFFTAGM6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGM6T-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGM8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

BKFFTAGM8T-P[9-13/0.01]-L[6-12/1]-B[2-15/0.1]

BKFFTAGM10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1]

BKFFTAGM10T-P[11-15/0.01]-L[6-16/1]-B[3-20/0.1]

BKFFTAGM12-P[13-16/0.01]-L[12-24/1]-B[3-30/0.1]

BKFFTAGM12T-P[13-16/0.01]-L[8-18/1]-B[3-30/0.1]

BKFFTAGM13-P[14-18/0.01]-L[13-26/1]-B[5-30/0.1]

BKFFTAGM13T-P[14-18/0.01]-L[8-20/1]-B[5-30/0.1]

BKFFTAGM16-P[17-25/0.01]-L[16-32/1]-B[5-35/0.1]

BKFFTAGM16T-P[17-25/0.01]-L[10-24/1]-B[5-35/0.1]

BKFFTAGM20-P[22-30/0.01]-L[20-40/1]-B[5-40/0.1]

BKFFTAGM20T-P[22-30/0.01]-L[12-30/1]-B[5-40/0.1]

BKFFTAGP6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGP6T-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGP8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

BKFFTAGP8T-P[9-13/0.01]-L[6-12/1]-B[2-15/0.1]

BKFFTAGP10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1]

BKFFTAGP10T-P[11-15/0.01]-L[6-16/1]-B[3-20/0.1]

BKFFTAGP12-P[13-16/0.01]-L[12-24/1]-B[3-30/0.1]

BKFFTAGP12T-P[13-16/0.01]-L[8-18/1]-B[3-30/0.1]

BKFFTAGP13-P[14-18/0.01]-L[13-26/1]-B[5-30/0.1]

BKFFTAGP13T-P[14-18/0.01]-L[8-20/1]-B[5-30/0.1]

BKFFTAGP16-P[17-25/0.01]-L[16-32/1]-B[5-35/0.1]

BKFFTAGP16T-P[17-25/0.01]-L[10-24/1]-B[5-35/0.1]

BKFFTAGP20-P[22-30/0.01]-L[20-40/1]-B[5-40/0.1]

BKFFTAGP20T-P[22-30/0.01]-L[12-30/1]-B[5-40/0.1]

BKFFTAGS6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGS6T-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BKFFTAGS8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

BKFFTAGS8T-P[9-13/0.01]-L[6-12/1]-B[2-15/0.1]

Material

Surface Treatment

Heat Treatment

[D] Diameter (Mounting Side)

(mm)

ISO Tolerance (Mounting Side)

ISO Tolerance (Head)

[M] Diameter (Screw)

(mm)

RoHS?

Minimum order quantity

[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6	g6	g6	3	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6T	g6	g6	2.6	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8	g6	g6	5	2 ～ 15	8 ～ 16	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8T	g6	g6	4	2 ～ 15	6 ～ 12	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	10	g6	g6	5	3 ～ 20	10 ～ 20	11 ～ 15	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	10T	g6	g6	4	3 ～ 20	6 ～ 16	11 ～ 15	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	12	g6	g6	5	3 ～ 30	12 ～ 24	13 ～ 16	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	12T	g6	g6	4	3 ～ 30	8 ～ 18	13 ～ 16	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	13	g6	g6	8	5 ～ 30	13 ～ 26	14 ～ 18	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	13T	g6	g6	6	5 ～ 30	8 ～ 20	14 ～ 18	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	16	g6	g6	8	5 ～ 35	16 ～ 32	17 ～ 25	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	16T	g6	g6	6	5 ～ 35	10 ～ 24	17 ～ 25	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	20	g6	g6	8	5 ～ 40	20 ～ 40	22 ～ 30	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	20T	g6	g6	6	5 ～ 40	12 ～ 30	22 ～ 30	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6	g6	h7	3	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6T	g6	h7	2.6	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8	g6	h7	5	2 ～ 15	8 ～ 16	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8T	g6	h7	4	2 ～ 15	6 ～ 12	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	10	g6	h7	5	3 ～ 20	10 ～ 20	11 ～ 15	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	10T	g6	h7	4	3 ～ 20	6 ～ 16	11 ～ 15	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	12	g6	h7	5	3 ～ 30	12 ～ 24	13 ～ 16	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	12T	g6	h7	4	3 ～ 30	8 ～ 18	13 ～ 16	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	13	g6	h7	8	5 ～ 30	13 ～ 26	14 ～ 18	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	13T	g6	h7	6	5 ～ 30	8 ～ 20	14 ～ 18	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	16	g6	h7	8	5 ～ 35	16 ～ 32	17 ～ 25	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	16T	g6	h7	6	5 ～ 35	10 ～ 24	17 ～ 25	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	20	g6	h7	8	5 ～ 40	20 ～ 40	22 ～ 30	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	20T	g6	h7	6	5 ～ 40	12 ～ 30	22 ～ 30	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6	g6	m6	3	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6T	g6	m6	2.6	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8	g6	m6	5	2 ～ 15	8 ～ 16	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8T	g6	m6	4	2 ～ 15	6 ～ 12	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	10	g6	m6	5	3 ～ 20	10 ～ 20	11 ～ 15	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	10T	g6	m6	4	3 ～ 20	6 ～ 16	11 ～ 15	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	12	g6	m6	5	3 ～ 30	12 ～ 24	13 ～ 16	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	12T	g6	m6	4	3 ～ 30	8 ～ 18	13 ～ 16	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	13	g6	m6	8	5 ～ 30	13 ～ 26	14 ～ 18	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	13T	g6	m6	6	5 ～ 30	8 ～ 20	14 ～ 18	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	16	g6	m6	8	5 ～ 35	16 ～ 32	17 ～ 25	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	16T	g6	m6	6	5 ～ 35	10 ～ 24	17 ～ 25	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	20	g6	m6	8	5 ～ 40	20 ～ 40	22 ～ 30	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	20T	g6	m6	6	5 ～ 40	12 ～ 30	22 ～ 30	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6	g6	p6	3	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6T	g6	p6	2.6	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8	g6	p6	5	2 ～ 15	8 ～ 16	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8T	g6	p6	4	2 ～ 15	6 ～ 12	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	10	g6	p6	5	3 ～ 20	10 ～ 20	11 ～ 15	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	10T	g6	p6	4	3 ～ 20	6 ～ 16	11 ～ 15	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	12	g6	p6	5	3 ～ 30	12 ～ 24	13 ～ 16	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	12T	g6	p6	4	3 ～ 30	8 ～ 18	13 ～ 16	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	13	g6	p6	8	5 ～ 30	13 ～ 26	14 ～ 18	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	13T	g6	p6	6	5 ～ 30	8 ～ 20	14 ～ 18	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	16	g6	p6	8	5 ～ 35	16 ～ 32	17 ～ 25	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	16T	g6	p6	6	5 ～ 35	10 ～ 24	17 ～ 25	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	20	g6	p6	8	5 ～ 40	20 ～ 40	22 ～ 30	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	20T	g6	p6	6	5 ～ 40	12 ～ 30	22 ～ 30	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6	g6	0/-0.01	3	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	6T	g6	0/-0.01	2.6	2 ～ 12	6 ～ 12	6.5 ～ 10	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8	g6	0/-0.01	5	2 ～ 15	8 ～ 16	9 ～ 13	10	1 pieces
[Steel] EN 1.2510 Equiv.	No Treatment	No Treatment	8T	g6	0/-0.01	4	2 ～ 15	6 ～ 12	9 ～ 13	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
