Blocks for Adjusting Bolts / Side Mounting

CatalogP.1-1729

Caution

Please check the content on our website as the PDF does not contain the most up-to-date information.

Part number:

Still undefined. 57 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information

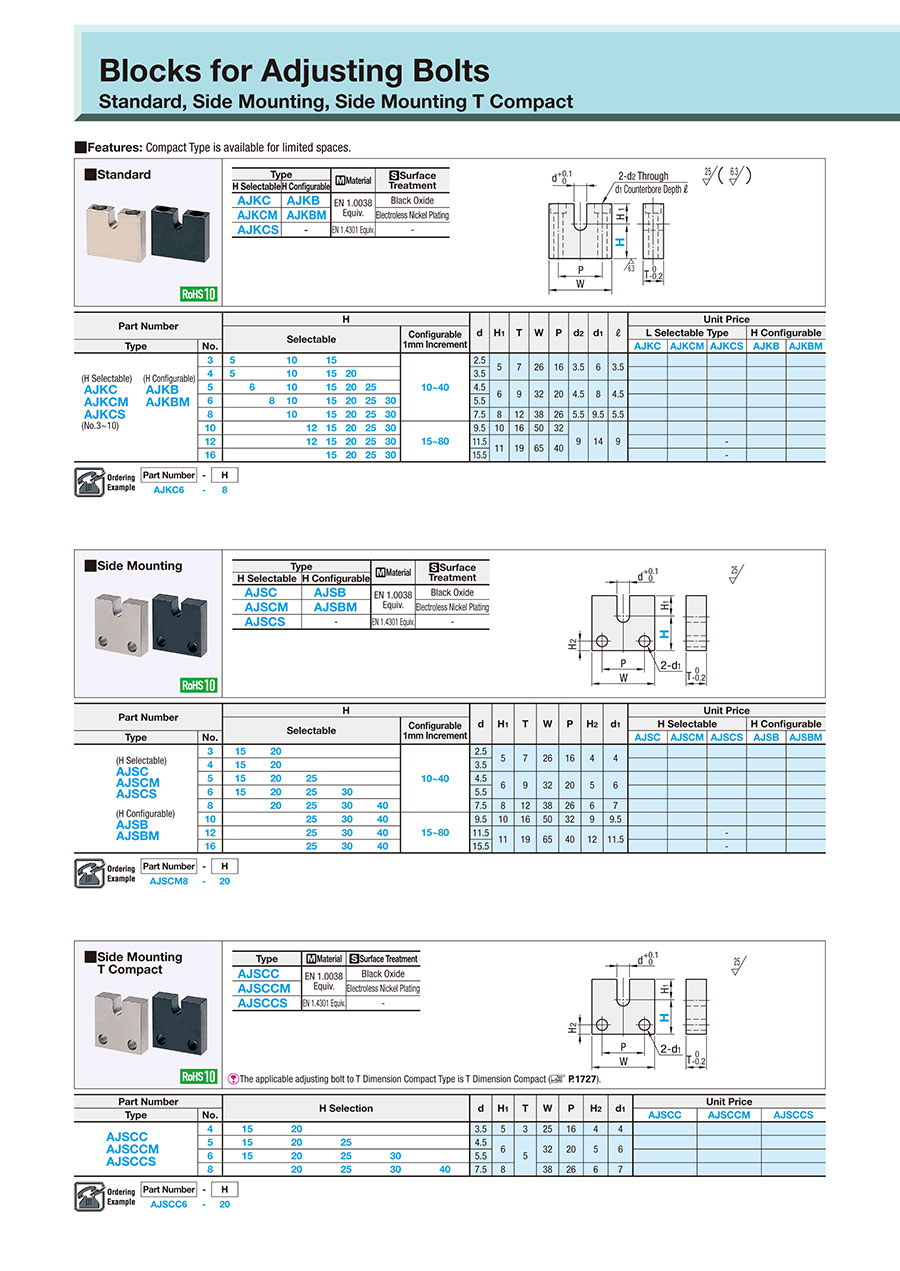

Catalog

Outline drawing and specifications table

Blocks for Adjusting Bolts/Side Mounting:Related Image

Type			[ M ] Material	[ S ]Surface Treatment
Standard		T Compact
H Selectable	H Configurable	T Compact
AJSC	AJSB	AJSCC	EN 1.0038 Equiv.	Black Oxide
AJSCM	AJSBM	AJSCCM	EN 1.0038 Equiv.	Electroless Nickel Plating
AJSCS	-	AJSCCS	EN 1.4301 Equiv.	-

Specifications

Part Number	-	H
AJSCM8	-	20

[ ! ]The applicable adjusting bolt T Dimension Compact Type is T Dimension Compact ≫P.1727
■Standard

Type	No.	H						d	H₁	T	W	P	H₂	d₁	Compliance with Standard
		Selectable					Configurable 1mm Increment								EN 1.0038 Equiv.				EN 1.4301 Equiv.
															Black Oxide		Electroless Nickel Plating		ー
															AJSC	AJSB	AJSCM	AJSBM	AJSCS
(H Selectable) AJSC AJSCM AJSCS (H Configurable) AJSB AJSBM	3	15	20				10～40	2.5	5	7	26	16	4	4	●	●	●	●	●
	4	15	20					3.5	5	7	26	16	4	4	●	●	●	●	●
	5	15	20	25				4.5	6	9	32	20	5	6	●	●	●	●	●
	6	15	20	25	30			5.5	6	9	32	20	5	6	●	●	●	●	●
	8		20	25	30	40		7.5	8	12	38	26	6	7	●	●	●	●	●
	10			25	30	40	15～80	9.5	10	16	50	32	9	9.5	●	●	●	●	●
	12			25	30	40		11.5	11	19	65	40	12	11.5	●	●	●	●	ー
	16			25	30	40		15.5	11	19	65	40	12	11.5	●	●	●	●	ー

■T Compact

Type	No.	H					d	H₁	T	W	P	H₂	d₁	Compliance with Standard
		H Selectable												EN 1.0038 Equiv.		EN 1.4301 Equiv.
														Black Oxide	Electroless Nickel Plating	ー
														AJSCC	AJSCCM	AJSCCS
AJSCC AJSCCM AJSCCS	4	15	20				3.5	5	3	25	16	4	4	●	●	●
	5	15	20	25			4.5	6	5	32	20	5	6	●	●	●
	6	15	20	25	30		5.5	6		32	20	5	6	●	●	●
	8		20	25	30	40	7.5	8		38	26	6	7	●	●	●

Part number list

Number of items

Part number

AJSCCM6-[15,20,25,30]

AJSCCM8-[20,25,30,40]

AJSCCS4-[15,20]

AJSCCS5-[15,20,25]

AJSCCS6-[15,20,25,30]

AJSCCS8-[20,25,30,40]

Material

Surface Treatment

H Dimension Selection/Specify

No.(d)

T Dimension

(mm)

RoHS?

Minimum order quantity

EN 1.0038 Equiv.	Black Oxide	H Configurable	3(2.5)	7	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Configurable	4(3.5)	7	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Configurable	5(4.5)	9	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Configurable	6(5.5)	9	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Configurable	8(7.5)	12	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Configurable	10(9.5)	16	15 ～ 80	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Configurable	12(11.5)	19	15 ～ 80	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Configurable	16(15.5)	19	15 ～ 80	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Configurable	3(2.5)	7	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Configurable	4(3.5)	7	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Configurable	5(4.5)	9	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Configurable	6(5.5)	9	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Configurable	8(7.5)	12	10 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Configurable	10(9.5)	16	15 ～ 80	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Configurable	12(11.5)	19	15 ～ 80	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Configurable	16(15.5)	19	15 ～ 80	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	3(2.5)	7	15 ～ 20	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	3(2.5)	7	-	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	4(3.5)	7	15 ～ 20	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	4(3.5)	7	-	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	5(4.5)	9	15 ～ 25	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	5(4.5)	9	-	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	6(5.5)	9	15 ～ 30	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	6(5.5)	9	-	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	8(7.5)	12	20 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	8(7.5)	12	-	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	10(9.5)	16	25 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	10(9.5)	16	-	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	12(11.5)	19	25 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	12(11.5)	19	-	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	H Selectable	16(15.5)	19	25 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	-	4(3.5)	3	15 ～ 20	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	-	5(4.5)	5	15 ～ 25	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	-	6(5.5)	5	15 ～ 30	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	-	8(7.5)	5	20 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	-	4(3.5)	3	15 ～ 20	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	-	5(4.5)	5	15 ～ 25	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	-	6(5.5)	5	15 ～ 30	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	-	8(7.5)	5	20 ～ 40	10	1 pieces
EN 1.4301 Equiv.	Not Provided	-	4(3.5)	3	15 ～ 20	10	1 pieces
EN 1.4301 Equiv.	Not Provided	-	5(4.5)	5	15 ～ 25	10	1 pieces
EN 1.4301 Equiv.	Not Provided	-	6(5.5)	5	15 ～ 30	10	1 pieces
EN 1.4301 Equiv.	Not Provided	-	8(7.5)	5	20 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Selectable	3(2.5)	7	15 ～ 20	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Selectable	4(3.5)	7	15 ～ 20	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Selectable	5(4.5)	9	15 ～ 25	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Selectable	6(5.5)	9	15 ～ 30	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Selectable	8(7.5)	12	20 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Selectable	10(9.5)	16	25 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Selectable	12(11.5)	19	25 ～ 40	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	H Selectable	16(15.5)	19	25 ～ 40	10	1 pieces
EN 1.4301 Equiv.	Not Provided	H Selectable	3(2.5)	7	15 ～ 20	10	1 pieces
EN 1.4301 Equiv.	Not Provided	H Selectable	4(3.5)	7	15 ～ 20	10	1 pieces
EN 1.4301 Equiv.	Not Provided	H Selectable	5(4.5)	9	15 ～ 25	10	1 pieces
EN 1.4301 Equiv.	Not Provided	H Selectable	6(5.5)	9	15 ～ 30	10	1 pieces
EN 1.4301 Equiv.	Not Provided	H Selectable	8(7.5)	12	20 ～ 40	10	1 pieces
EN 1.4301 Equiv.	Not Provided	H Selectable	10(9.5)	16	25 ～ 40	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	14 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days
- ( - )	4 working days

More Information

Basic information

Basic information

[Specifications]
・Material: EN 1.0038 Equiv., EN 1.4301 Equiv.

[Features]
・Compact Type is available for limited spaces
・Side Mounting
