    Clamping Screws / Tip Clamp / Angle Type

    Clamping Screws / Tip Clamp / Angle Type

    Caution

    • This product is used not to rotate face balls but to clamp workpieces.
      (The face balls do not necessarily rotate depending on each caulking conditions of face balls.)
      For Angle Type, a sphere of its hemisphere appears on the face, instead of a flat plane by its rotation.
      In such a case, return its position using adhesive tape and magnet.

    Part number:

    Still undefined. 12 possible part numbers found.
    Quantity:

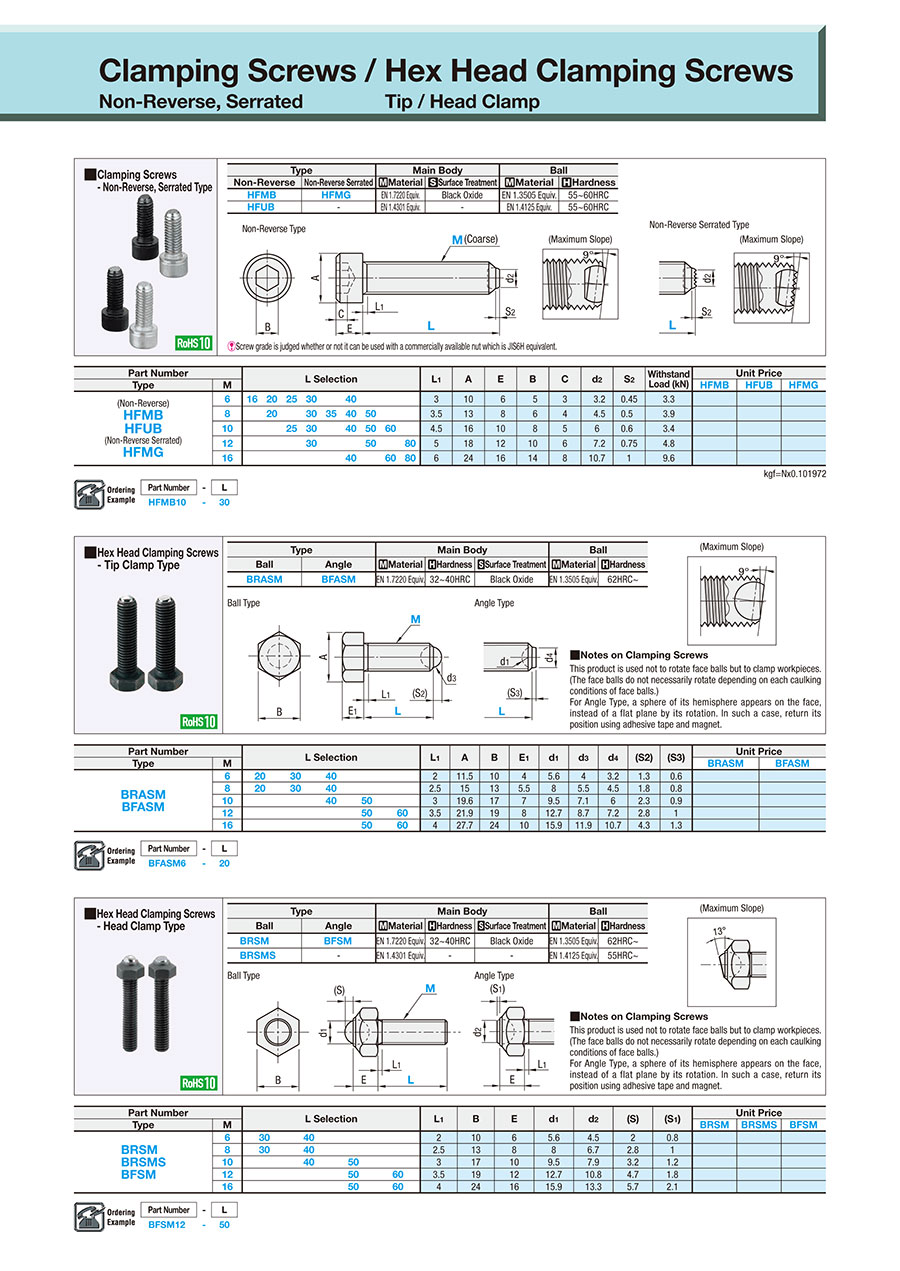

    Outline drawing and specifications table

    Clamping Screws - Tip Clamp Angle Type: Related Image Angle Type (Maximum Slope)
    TypeMain BodyBall
    [M] Material[ H ] Hardness[S] Surface treatment[M] Material[ H ] Hardness
    BFASMEN 1.7220 Equiv.32 to 40HRCBlack OxideEN 1.3505 Equiv.62HRC or more

    Specification Table

    Part Number—L
    BFASM6—20
    Part NumberL SelectionL1ABE1d1d4(S3)
    TypeM
    (Coarse)
    BFASM6203040  211.51045.63.20.6
    8203040  2.515135.584.50.8
    10  4050 319.61779.560.9
    12   50603.521.919812.77.21
    16   5060427.7241015.910.71.3
    MLMass (g) Ref. Value
    6206
    309
    4011
    82014
    3018
    4022
    104034
    5039
    125056
    6059
    165091
    60122

    Part number list

    Number of items
  • 1
    • Part number
    BFASM6-20
    BFASM6-30
    BFASM6-40
    BFASM8-20
    BFASM8-30
    BFASM8-40
    BFASM10-40
    BFASM10-50
    BFASM12-50
    BFASM12-60
    BFASM16-50
    BFASM16-60

    Thread Dia.

    Overall Length L

    (mm)

    		RoHS?Minimum order quantity
    6
    20
    10
    1 pieces
    6
    30
    10
    1 pieces
    6
    40
    10
    1 pieces
    8
    20
    10
    1 pieces
    8
    30
    10
    1 pieces
    8
    40
    10
    1 pieces
    10
    40
    10
    1 pieces
    10
    50
    10
    1 pieces
    12
    50
    10
    1 pieces
    12
    60
    10
    1 pieces
    16
    50
    10
    1 pieces
    16
    60
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    7.84 €
    ( 9.33 € )
    5 working days
    7.84 €
    ( 9.33 € )
    5 working days
    7.84 €2.35 €
    ( 2.80 € )
    Stock item: 1 working dayAvailable for same-day shipping
    9.49 €
    ( 11.29 € )
    5 working days
    9.49 €
    ( 11.29 € )
    Stock item: 1 working dayAvailable for same-day shipping
    9.49 €
    ( 11.29 € )
    5 working days
    10.63 €3.30 €
    ( 3.93 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.63 €
    ( 12.65 € )
    5 working days
    13.92 €
    ( 16.56 € )
    5 working days
    13.92 €
    ( 16.56 € )
    5 working days
    20.00 €
    ( 23.80 € )
    5 working days
    20.00 €
    ( 23.80 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] Bevelled tip, bolt-shaped clamping screw with hexagonal head.

    Caution

    • This product is used not to rotate face balls but to clamp workpieces.
      (The face balls do not necessarily rotate depending on each caulking conditions of face balls.)
      For Angle Type, a sphere of its hemisphere appears on the face, instead of a flat plane by its rotation.
      In such a case, return its position using adhesive tape and magnet.

    Outline and specifications

    Specifications/Overview

    ■Notes on Clamping Screws
    This product is used not to rotate face balls but to clamp workpieces. (The face balls do not necessarily rotate depending on each caulking conditions of face balls.)
    For Angle Type, a sphere of its hemisphere appears on the face, instead of a flat plane by its rotation. In such a case, return its position using adhesive tape and magnet.
