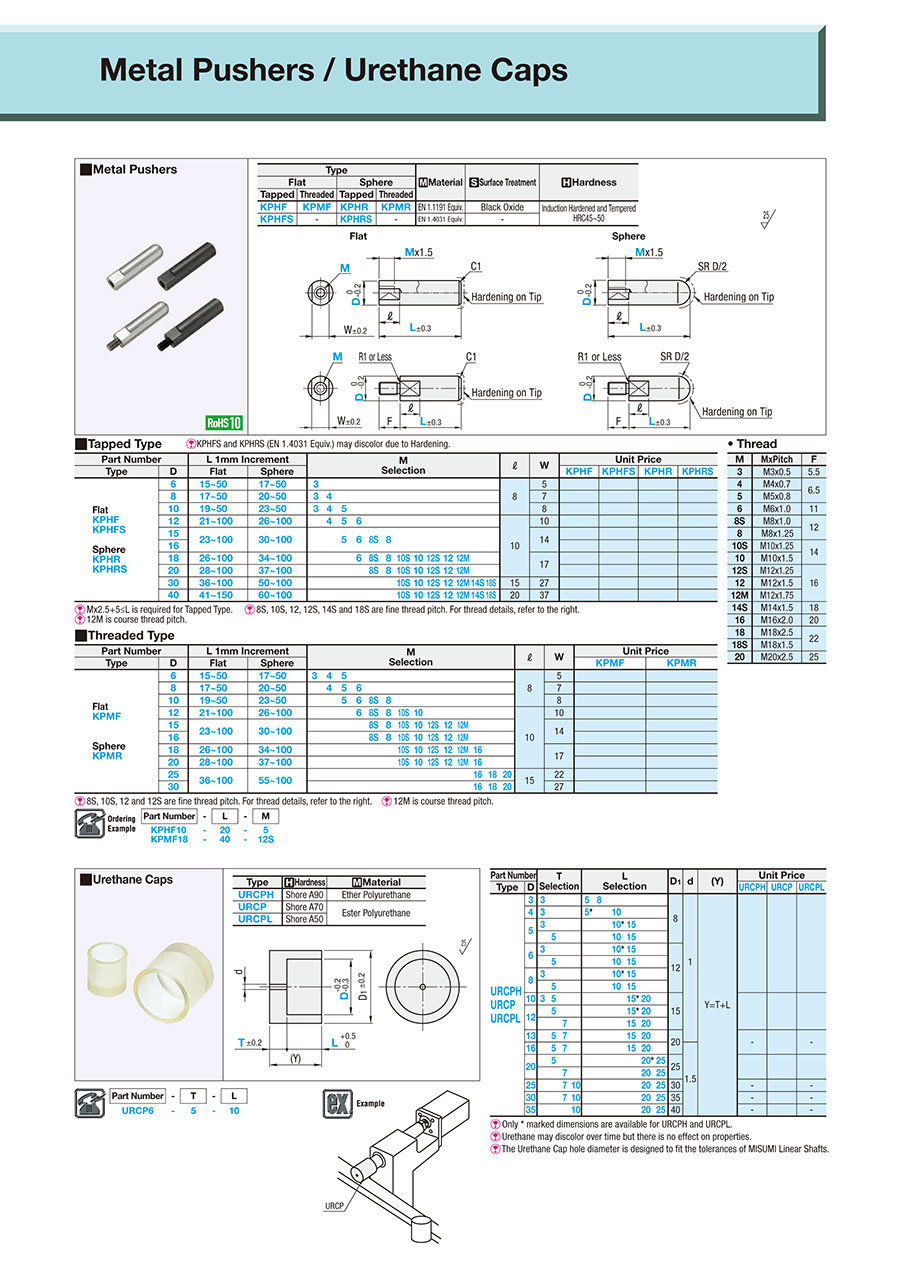

Metal Pushers / Tapped

■Tapped Type " ! " KPHFS and KPHRS (EN 1.4037 Equiv.) may discolor due to Hardening.

Part Number		L 1 mm Increments		M Selection													ℓ	W
Type	D	Flat	Sphere
Flat KPHF KPHFS Sphere KPHR KPHRS	6	15 to 50	17 to 50	3													8	5
	8	17 to 50	20 to 50	3	4												8	7
	10	19 to 50	23 to 50	3	4	5											8	8
	12	21 to 100	26 to 100		4	5	6										10	10
	15	23 to 100	30 to 100			5	6	8S	8								10	14
	16																10	14
	18	26 to 100	34 to 100				6	8S	8	10S	10	12S	12	12M			10	17
	20	28 to 100	37 to 100					8S	8	10S	10	12S	12	12M			10	17
	30	36 to 100	50 to 100							10S	10	12S	12	12M	14S	18S	15	27
	40	41 to 150	60 to 100							10S	10	12S	12	12M	14S	18S	20	37

[!] M × 2.5 + 5 ≤ L is required for Tapped Type. [!] 8S, 10S, 12, 12S, 14S, and 18S are fine thread pitch.
[ ! ] 12M is course thread pitch.
