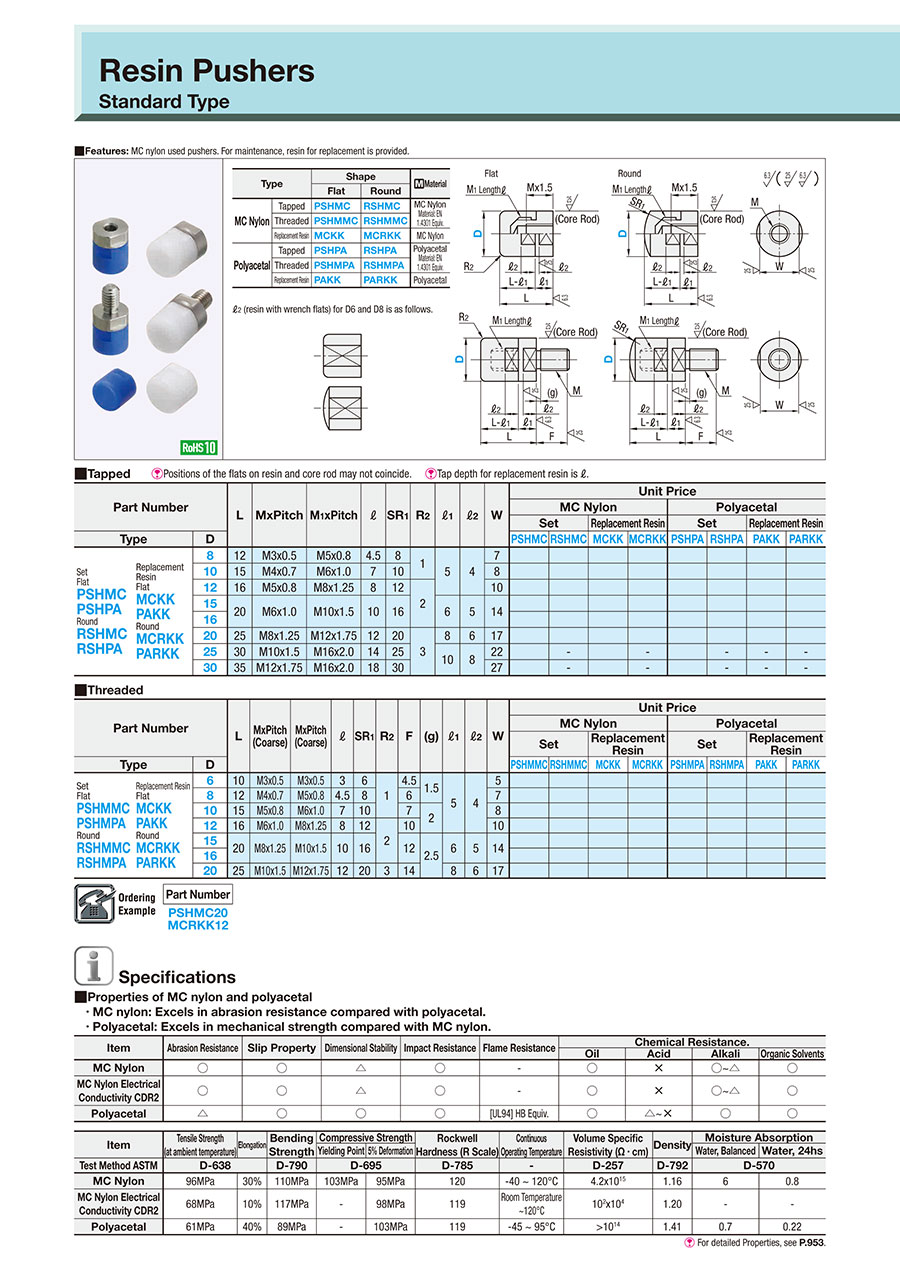

Resin Pushers / Standard / Threaded

Specifications
■Properties of MC nylon and polyacetal
• MC nylon: Excels in abrasion resistance compared with polyacetal.
• Polyacetal: Excels in mechanical strength compared with MC nylon.

Item	Abrasion Resistance	Slip Property	Dimensional Stability	Impact Resistance	Flame Resistance	Chemical Resistance.
						Oil	Acid	Alkali	Organic Solvents
MC Nylon	○	○	△	○	-	○	×	○~△	○
MC Nylon Electrical Conductivity CDR2	○	○	△	○	-	○	×	○~△	○
Polyacetal	△	○	○	○	[UL94] HB Equiv.	○	△~×	○	○

Item	Tensile Strength (at ambient temperature)	Elongation	Bending Strength	Compressive Strength		Rockwell Hardness (R Scale)	Continuous Operating Temperature	Volume Specific Resistivity (Ω • cm)	Density	Moisture Absorption
				Yielding Point	5% Deformation					Water, Balanced	Water, 24hs
Test Method ASTM	D-638		D-790	D-695		D-785	-	D-257	D-792	D-570
MC Nylon	96MPa	30%	110MPa	103MPa	95MPa	120	-40 ~ 120°C	4.2x1015	1.16	6	0.8
MC Nylon Electrical Conductivity CDR2	68MPa	10%	117MPa	-	98MPa	119	Room Temperature ~120°C	102x104	1.20	-	-
Polyacetal	61MPa	40%	89MPa	-	103MPa	119	-45 ~ 95°C	>1014	1.41	0.7	0.22

 For detailed Properties, see P.953.
