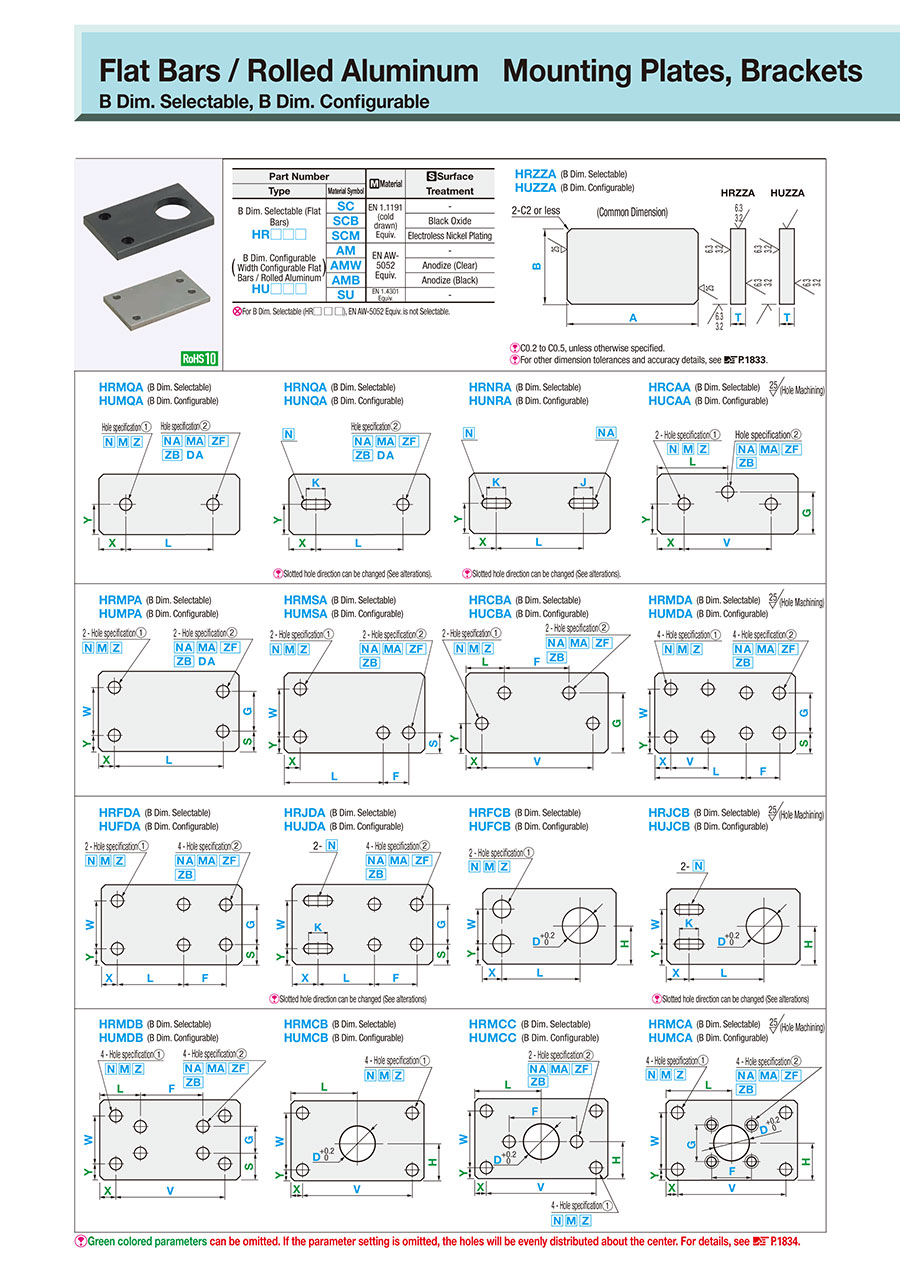

Part number:
possible part numbers found.Hole Type | Tapped Hole | Bolt Hole | Counterbore Front | Counterbore Back | |||||||||||||||||||||||||||||||||||||||
Code | M·MA | N・NA | Z·ZF | ZB | |||||||||||||||||||||||||||||||||||||||
Shape Diagram | ![]() | ![]() | ![]() | ![]() | |||||||||||||||||||||||||||||||||||||||
Machining Specifications | Tap effective length maximum M, MA × 2 [ ! ] When T ≥ M × 3, tap pilot might not go through. |
|
Part Number | [M] Material | [S] Surface Treatment | |
Type | Material Symbol | ||
B Dim. Selectable (Flat Bars) HRJDA B Dim. Configurable (Width Configurable Flat Bars / Rolled Aluminum) HUJDA | SC | EN 1.1191 Equiv. (cold drawn) | — |
SCB | Black Oxide | ||
SCM | Electroless Nickel Plating | ||
AM | EN AW-5052 Equiv. | — | |
AMW | Anodize (Clear) | ||
AMB | Anodize (Black) | ||
SU | EN 1.4301 Equiv. | — |
Part Number | - | A | - | B | - | T | - | X | - | Y | - | W | - | Hole Specification (1) Code / Nominal Dia. | K | L | F | S | G | - | Hole Specification (2) Code / Nominal Dia. | |||||||
- | - | - | - | - | ||||||||||||||||||||||||
Type | — | Material Symbol | ||||||||||||||||||||||||||
HRJDA | - | SC | - | A80 | - | B50 | - | T6 | - | X10 | - | Y10 | - | W30 | - | N6 | - | K5 | - | L40 | - | F20 | - | S15 | - | G20 | - | NA6 |
HUJDA | - | AMB | - | A100 | - | B80 | - | T10 | - | X15 | - | Y10 | - | W60 | - | N4 | - | K10 | - | L30 | - | F40 | - | S30 | - | G20 | - | ZB4 |
Type | Part Number | 0.1 mm Increments | B | T | X | Y | W | Hole Specification (1) | K | L | F | S | G | Hole Specification (2) | |||
Type | Material Symbol | A | Code | Nominal Dia. | Code | Nominal Dia. | |||||||||||
B Dim. Selectable | HRJDA | SC SCB SCM | 25.0 to 200.0 | 16 22 25 32 38 50 60 75 100 125 | 6 9 (10) 12 16 19 | Configurable 0.1 mm Unit | N [ ! ] [ ! ] For the machining dimensions, see Hole Type Selection Chart. | 0(No Hole) 3 4 5 6 8 10 12 14 16 | Configurable 0.1 mm Unit [ ! ]K≤N×5 | NA [ ! ] MA ZF [ ! ] ZB [ ! ] [ ! ] For the machining dimensions, see Hole Type Selection Chart. | 0(No Hole) 3 4 5 6 8 10 12 14 16 | ||||||
SU | 15 20 25 32 38 50 65 100 125 | ||||||||||||||||
B Dim. Configurable | HUJDA | SC SCB SCM SU | 25.0 to 200.0 | 15.0 to 150.0 (0.1 mm Increments) | 6 9 (10) 12 16 19 | ||||||||||||
AM AMW AMB | 10.0 to 200.0 (0.1 mm Increments) | 5 6 8 10 12 15 20 | |||||||||||||||
[ NG ]T10 is not selectable for SC(□) | [ NG ]For SU with B = 15, T10 to 19 are not selectable | ||||||||||||||||
[ NG ]For SC(□) with B = 16 or 22, T19 is not selectable | [ NG ]For SU with B = 20, T19 is not selectable |
Alterations | Corner Cut Change | Slotted Hole Angle Change |
![]() | ![]() | |
Code | CC | RC |
Spec. | Changes corner cuts. CC = 1 mm Increments [ ! ]1 ≤ CC ≤ 50 Specifying Method Add CC to the end of a Part Number. Example: ... -CC10 | Slotted holes are changed as shown above. [!] Note the dimensional relationship Specifying Method Add RC to the end of a Part Number. (Example) ... -RC |
