L-Shaped Finishing Angle Mounting Plate / Bracket -Custom Dimensions Type- LAFSD

Configure

Material
Surface Treatment
Plate Thickness T
- 5
- 6
- 8
- 10
- 12
- 15
External Dimension A(mm)
[10-130/0.5mm units]
External Dimension B(mm)
[10-130/0.5mm units]
External Dimension L(mm)
[10-100/0.5mm units]
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 7 working days
- Within 8 working days
- Within 10 working days
- Within 11 working days

L-Shaped Finishing Angle Mounting Plate / Bracket -Custom Dimensions Type- LAFSD

CatalogP.2-1857

Part number:

Still undefined. 30 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information

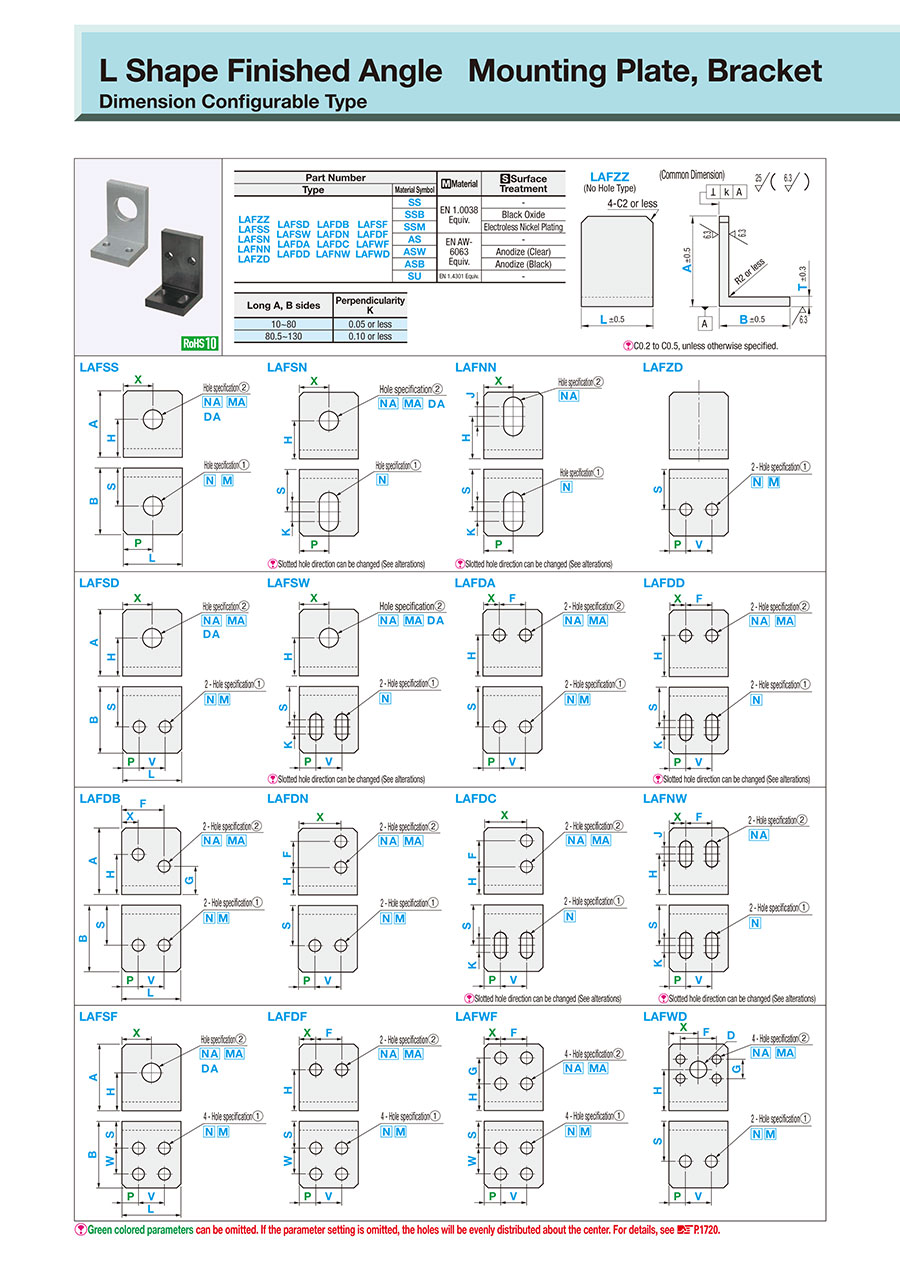

Catalog

Outline drawing and specifications table

Dimensional Drawing

Common Dimension

LAFSD

[ ! ] C0.2 to C0.5, unless otherwise specified
[ ! ] Hole pitch dimension tolerance conforms to JIS B 0405 Class m.

Green colored parameters can be omitted.　
If the parameter setting is omitted, the holes will be evenly distributed about the center.

■Hole Type Selection Chart

Hole Type

Tapped Hole

Bolt Hole

Through Hole

Code

M·MA

N・NA

D·DA

Diagram
,
Code

Machining
Specifications

Effective Tap Length
Max. M, MA × 2


Dimensions	Screw Nominal Size
Dimensions	3	4	5	6	8	10	12
d	3.5	4.5	5.5	6.5	9	11	14


	Dimensions	Hole Dia. Tolerance
	3 to 30	±0.2
	31 to 60	±0.3

■Machining Limits
There are machining limits for thickness between holes, and between hole and edge.

Part Number		Material	Surface Treatment
Type	Material Symbol	Material	Surface Treatment
LAFSD	SS	EN 1.0038 Equiv.	—
	SSB		Black Oxide
	SSM		Electroless Nickel Plating
	AS	EN AW−6063 Equiv.	—
	ASW		Anodize (Clear)
	ASB		Anodize (Black)
	SU	EN 1.4301 Equiv.	—

Long A, B sides	Perpendicularity K
10 to 80	Within 0.05
80.5 to 130	Within 0.10

Specification Table

Part Number

—

Hole Specification
Code / Nominal Dia.

—

Hole Specification
Code / Nominal Dia.

—

Type

—

Material Symbol

LAFSS

—

A50

—

B30

—

L30

—

S20

—

H35

—

NA6

LAFDA

—

A50

—

B30

—

L30

—

V15

—

S20

—

H30

—

F15

—

NA5

[ ! ] Please make sure that all are half-size characters.

Part Number

External Dimensions

Hole Specification

Selection

0.5 mm Increments

Type

Material Symbol

Code

Nominal Dia.

Code

Nominal Dia.

Code

Configurable

LAFSD

SS
SSB
SSM

5
6

10.0 to 75.0

10.0 to 100.0

0.1 mm Increments

N

M

0 (No Hole)
3
4
5
6
8
10
12
For the machining dimensions,
see Hole Type Selection Chart
　

0.1 mm Increments

NA

MA

0 (No Hole)
3
4
5
6
8
10
12
For the machining dimensions,
see Hole Type Selection Chart
　

3 to 30 (0.5 mm Increments)
31 to 60 (1 mm Increments)

10.0 to 125.0

50.0 to 125.0

50.0 to 100.0

50.0 to 130.0

AS
ASW
ASB

5
6

10.0 to 75.0

10.0 to 100.0

50.0 to 125.0

50.0 to 100.0

5·6·8

10.0 to 90.0

10.0 to 100.0

Alteration

Alterations	Corner Cut Change
Alterations
Code	CC
Spec.	CC = 1 mm Increments [ ! ]1 ≤ CC ≤ 30 Specifying Method Add CC to the end of a Part Number. Example: ... -CC10

Part number list

Number of items

Part number

LAFSD-AS-T5-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-AS-T6-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-AS-T10-A[10-100/0.5]-B[10-100/0.5]-L[10-100/0.5]

LAFSD-AS-T12-A[50-125/0.5]-B[50-125/0.5]-L[50-100/0.5]

LAFSD-ASB-T5-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-ASB-T6-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-ASB-T10-A[10-100/0.5]-B[10-100/0.5]-L[10-100/0.5]

LAFSD-ASB-T12-A[50-125/0.5]-B[50-125/0.5]-L[50-100/0.5]

LAFSD-ASW-T5-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-ASW-T6-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-ASW-T10-A[10-100/0.5]-B[10-100/0.5]-L[10-100/0.5]

LAFSD-ASW-T12-A[50-125/0.5]-B[50-125/0.5]-L[50-100/0.5]

LAFSD-SS-T5-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-SS-T6-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-SS-T10-A[10-125/0.5]-B[10-125/0.5]-L[10-100/0.5]

LAFSD-SS-T12-A[50-125/0.5]-B[50-125/0.5]-L[50-100/0.5]

LAFSD-SS-T15-A[50-130/0.5]-B[50-130/0.5]-L[50-100/0.5]

LAFSD-SSB-T5-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-SSB-T6-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-SSB-T10-A[10-125/0.5]-B[10-125/0.5]-L[10-100/0.5]

LAFSD-SSB-T12-A[50-125/0.5]-B[50-125/0.5]-L[50-100/0.5]

LAFSD-SSB-T15-A[50-130/0.5]-B[50-130/0.5]-L[50-100/0.5]

LAFSD-SSM-T5-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-SSM-T6-A[10-75/0.5]-B[10-75/0.5]-L[10-100/0.5]

LAFSD-SSM-T10-A[10-125/0.5]-B[10-125/0.5]-L[10-100/0.5]

LAFSD-SSM-T12-A[50-125/0.5]-B[50-125/0.5]-L[50-100/0.5]

LAFSD-SSM-T15-A[50-130/0.5]-B[50-130/0.5]-L[50-100/0.5]

LAFSD-SU-T5-A[10-90/0.5]-B[10-90/0.5]-L[10-100/0.5]

LAFSD-SU-T6-A[10-90/0.5]-B[10-90/0.5]-L[10-100/0.5]

LAFSD-SU-T8-A[10-90/0.5]-B[10-90/0.5]-L[10-100/0.5]

Material

Surface Treatment

Plate Thickness T

External Dimension A

(mm)

External Dimension B

(mm)

External Dimension L

(mm)

RoHS?

Minimum order quantity

EN AW-6063 Equiv.	Not Provided	5	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN AW-6063 Equiv.	Not Provided	6	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN AW-6063 Equiv.	Not Provided	10	10 ～ 100	10 ～ 100	10 ～ 100	10	1 pieces
EN AW-6063 Equiv.	Not Provided	12	50 ～ 125	50 ～ 125	50 ～ 100	10	1 pieces
Aluminum Alloy 6000 series	Black Anodize	5	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
Aluminum Alloy 6000 series	Black Anodize	6	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
Aluminum Alloy 6000 series	Black Anodize	10	10 ～ 100	10 ～ 100	10 ～ 100	10	1 pieces
Aluminum Alloy 6000 series	Black Anodize	12	50 ～ 125	50 ～ 125	50 ～ 100	10	1 pieces
EN AW-6063 Equiv.	Clear Anodize	5	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN AW-6063 Equiv.	Clear Anodize	6	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN AW-6063 Equiv.	Clear Anodize	10	10 ～ 100	10 ～ 100	10 ～ 100	10	1 pieces
EN AW-6063 Equiv.	Clear Anodize	12	50 ～ 125	50 ～ 125	50 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Not Provided	5	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Not Provided	6	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Not Provided	10	10 ～ 125	10 ～ 125	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Not Provided	12	50 ～ 125	50 ～ 125	50 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Not Provided	15	50 ～ 130	50 ～ 130	50 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	5	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	6	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	10	10 ～ 125	10 ～ 125	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	12	50 ～ 125	50 ～ 125	50 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Black Oxide	15	50 ～ 130	50 ～ 130	50 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	5	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	6	10 ～ 75	10 ～ 75	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	10	10 ～ 125	10 ～ 125	10 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	12	50 ～ 125	50 ～ 125	50 ～ 100	10	1 pieces
EN 1.0038 Equiv.	Electroless Nickel Plating	15	50 ～ 130	50 ～ 130	50 ～ 100	10	1 pieces
EN 1.4301 Equiv.	Not Provided	5	10 ～ 90	10 ～ 90	10 ～ 100	10	1 pieces
EN 1.4301 Equiv.	Not Provided	6	10 ～ 90	10 ～ 90	10 ～ 100	10	1 pieces
EN 1.4301 Equiv.	Not Provided	8	10 ～ 90	10 ～ 90	10 ～ 100	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	10 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
