Sheet Metal Mounting Plate / Bracket -Convex Bending Type- BLUES

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

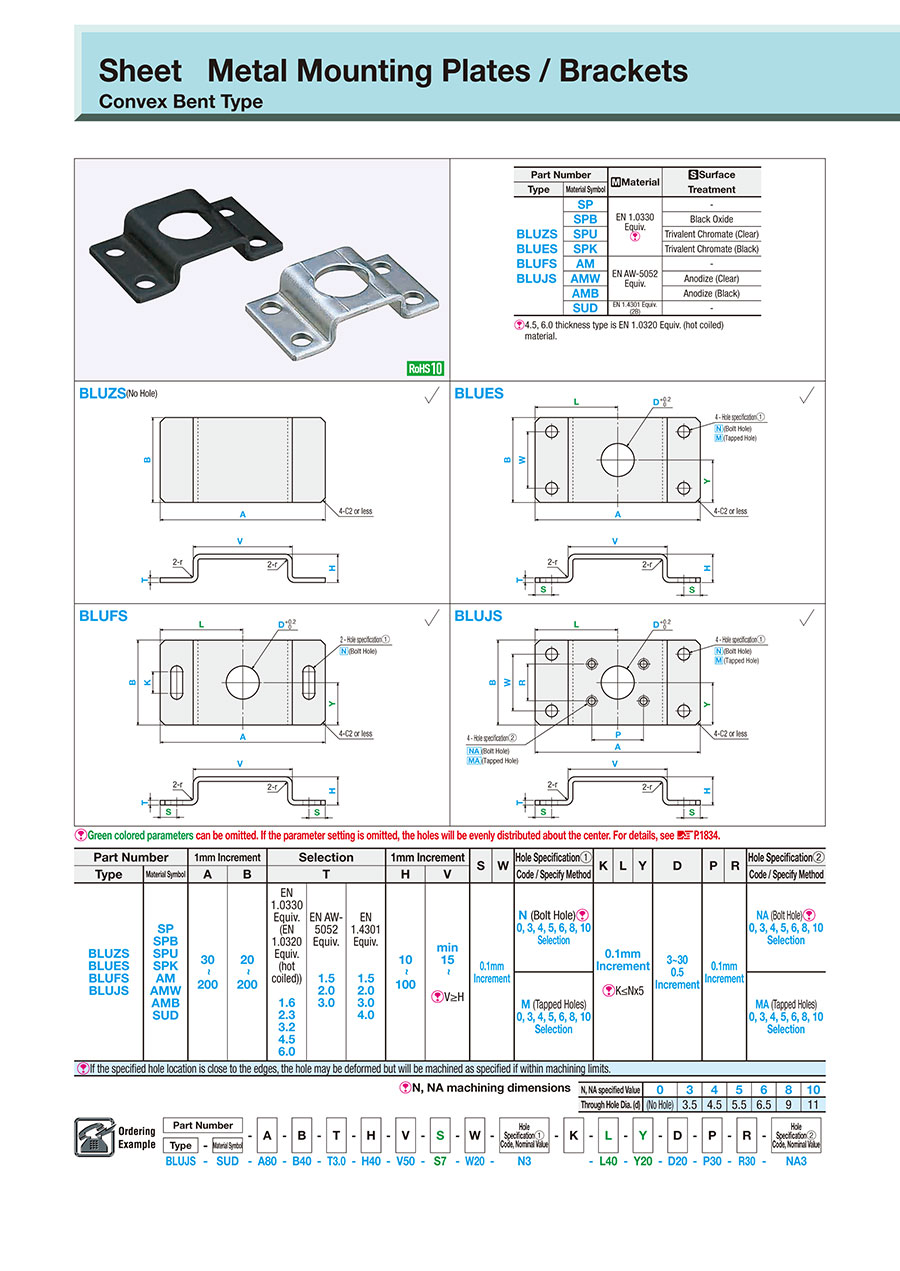

Sheet Metal Mounting Plates/Brackets/Convex Bent:Related Image
Sheet Metal Mounting Plates/Brackets/Convex Bent:Related Image
Sheet Metal Mounting Plates/Brackets/Convex Bent:Related Image

Part NumberMaterialSurface Treatment
TypeMaterial Symbol
BLUESSPEN 1.0330 Equiv.
-
SPBBlack Oxide
SPUTrivalent Chromate (Clear)
SPKTrivalent Chromate (Black)
AMEN AW-5052 Equiv.-
AMWAnodize (Clear)
AMBAnodize (Black)
SUDEN 1.4301 Equiv. (2B)-

Specifications

Part Number-A-B-T-H-V-S-W-Hole
Specification
Code, Nominal Value
-K-L-Y-D-P-R-Hole
Specification
Code, Nominal Value

Type-Material
Symbol
BLUES-SUD-A80-B40-T3.0-H40-V50-S7-W20-N3  -L40-Y20-D20
Part Number1mm IncrementSelection1mm IncrementSWHole SpecificationLYD
TypeMaterial SymbolABTHVCode / Specify Method
BLUESSP
SPB
SPU
SPK
AM
AMW
AMB
SUD
30
~
200
20
~
200
EN 1.0330 Equiv.
(EN 1.0320 Equiv. (hot coiled))

1.6
2.3
3.2
4.5
6.0
EN AW-5052 Equiv.


1.5
2.0
3.0

EN 1.4301 Equiv.


1.5
2.0
3.0
4.0
10
~
100
min
15
~

V≥H
0.1mm IncrementN (Bolt Hole)
0, 3, 4, 5, 6, 8, 10
Selection
0.1mm Increment

K≤Nx5
3~30
0.5 Increment
M (Tapped Holes)
0, 3, 4, 5, 6, 8, 10
Selection
If the specified hole location is close to the edges, the hole may be deformed but will be machined as specified if within machining limits.

N, NA machining dimensions
N, NA specified Value03456810
Through Hole Dia. (d)(No Hole)3.54.55.56.5911

Alterations

Sheet Metal Mounting Plates/Brackets/Convex Bent:Related Image

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
BLUES-AM-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUES-AMB-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUES-AMW-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUES-SP-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUES-SPB-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUES-SPK-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUES-SPU-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUES-SUD-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3,​4]-H[10-100/1]-V[15-200/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSMaterial Surface Treatment External Dimension A
(mm)
External Dimension B
(mm)
H
(mm)
Plate Thickness T
(mm)
V
(mm)
1 7 Days 10EN AW-5052 Equiv.Not Provided30 ~ 20020 ~ 20010 ~ 1001.5 ~ 315 ~ 200
1 9 Days 10EN AW-5052 Equiv.Black Anodize30 ~ 20020 ~ 20010 ~ 1001.5 ~ 315 ~ 200
1 9 Days 10EN AW-5052 Equiv.Clear Anodize30 ~ 20020 ~ 20010 ~ 1001.5 ~ 315 ~ 200
1 7 Days 10EN 1.0330 Equiv. (EN 1.0320 Equiv. (hot-rolled))Not Provided30 ~ 20020 ~ 20010 ~ 1001.6 ~ 615 ~ 200
1 9 Days 10EN 1.0330 Equiv. (EN 1.0320 Equiv. (hot-rolled))Black Oxide30 ~ 20020 ~ 20010 ~ 1001.6 ~ 615 ~ 200
1 9 Days 10EN 1.0330 Equiv. (EN 1.0320 Equiv. (hot-rolled))Trivalent Chromate (Black) 30 ~ 20020 ~ 20010 ~ 1001.6 ~ 615 ~ 200
1 9 Days 10EN 1.0330 Equiv. (EN 1.0320 Equiv. (hot-rolled))Trivalent Chromate (White)30 ~ 20020 ~ 20010 ~ 1001.6 ~ 615 ~ 200
1 7 Days 10EN 1.4301 Equiv. (2B)Not Provided30 ~ 20020 ~ 20010 ~ 1001.5 ~ 415 ~ 200

Loading...

  1. 1

Example of Use

Sheet Metal Mounting Plates/Brackets/Convex Bent:Related Image

Basic information

Type BLUES
