Configure

Material
Hardness(HRC)
- Only End Face Hardened 55HRC –
- No Hardening
T Dim. Selection(mm)
- 9
- 12
- 16
- 19
- 20
1.L Dim. Specification(mm)
[25-70/1mm units]
2.H Dim. Selection(mm)
- 10
- 12
- 15
- 20
3.W Dim. Specification(mm)
[13-48/1mm units]
4.A Dim. Specification(mm)
[10-100/0.01mm units]
5.D Dim. Specification(mm)
[10-100/0.01mm units]
6.Mounting Hole (Through Hole)[N]
- 7
- 9
7.Mounting Hole (Tapped Hole)[M]
- 6
- 8
8.Mounting Hole (Counterbored Hole)[Z]
- 6
- 8
9.Mounting Hole Dimension[P](mm)
[4.5-43.5/0.1mm units]
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 8 working days

Locators (Vertically Inclined) One Hole Type

Name: Locators (Vertically Inclined) One Hole Type from MISUMI | MISUMI
Brand: MISUMI
SKU: 110302757060
Availability: Instock

Mouse over image to enlarge

Part number:

Still undefined. 48 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information

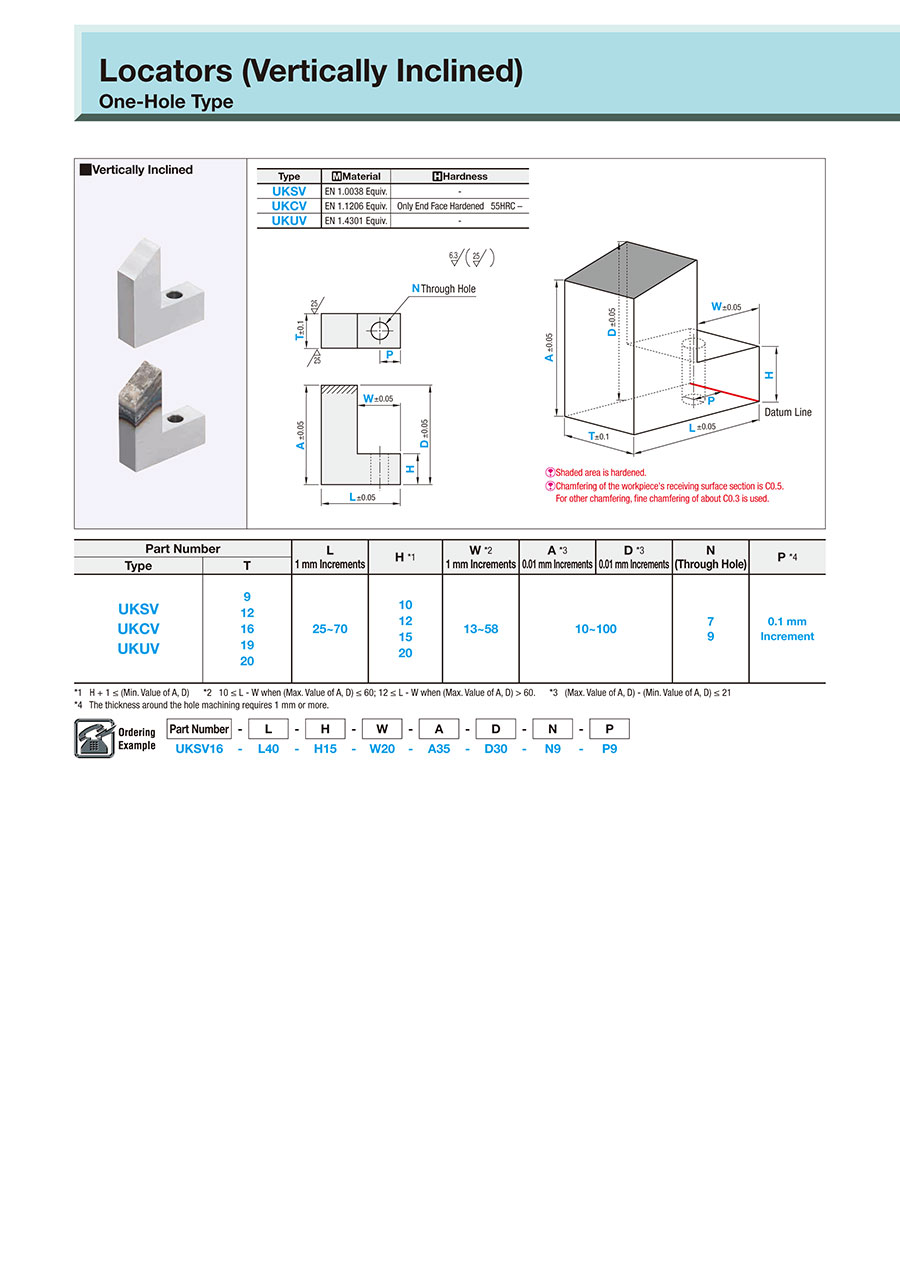

Catalog

Outline drawing and specifications table

Receiving Piece (Vertical Gradient) - 1 Hole Type: Related Image

[!]Height dimensional accuracy is a program guarantee of machining to the standard.
[!]The shaded area is the hardened area.
[!]The chamfer on the workpiece receiving surface is C0.5. The other chamfers will be slight chamfering of approximately C0.3.
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m.

Type	[M] Material	[ H ] Hardness
UKSV	EN 1.0038 Equiv.	—
UKCV	EN 1.1206 Equiv.	Partially hardened only at the tip 55HRC or higher
UKUV	EN 1.4301 Equiv.	—

Specification Table

Part Number

—

UKSV16

—

L40

—

H15

—

W20

—

A35

—

D30

—

Part Number		L Configurable 1 mm Increments	H Selection *1	W Configurable *2 1 mm Increments	A Specification *3 0.01 mm Increments	D Specification *3 0.01 mm Increments	N Selection (Through Hole)	P Configurable *4
Type	T Selection
UKSV UKCV UKUV	9 12 16 19 20	25 to 70	10 12 15 20	13 to 58	10 to 100		7 9	Configurable 0.1 mm Unit

* 1 H+1 ≤ (Min. Value of A, D)
* 2 When (max. value of A, D) ≤ 60, 10 ≤ L-W; when (max. value of A, D) > 60, 12 ≤ L-W.
* 3 (Max. value of A, D) - (Min. value of A, D) ≤ 21
* 4 A minimum wall thickness of 1 mm is required around the hole machining.

Alterations

Alterations
Code

Alteration details

Applicable conditions

Ordering example

Change
hole
type

Tapped Hole
Receiving Piece (Vertical Gradient) - 1 Hole Type: Related Image

Change the through hole (N) to a tapped hole.
·M6/M8
Ordering Code: N7→M6

UKSV16-L40-H15-W20-A35.01-D30.01-M8-P9

[ ! ] A minimum wall thickness of 1 mm is required around the holes machining for the alteration described on the left.

Counterbored Hole
Receiving Piece (Vertical Gradient) - 1 Hole Type: Related Image

Changes Through Hole (N) to Counterbored Hole.
·Z6/Z8
Ordering Code: N9→Z8

Dimension	Screw Nominal Dia.
Dimension	6	8
d·h	7	9
d₁	11	14

[!]Only applicable to T = 16, 19, 20

UKSV16-L40-H15-W20-A35.01-D30.01-Z8-P9

Counterbored Hole (For spring washer)
Receiving Piece (Vertical Gradient) - 1 Hole Type: Related Image

Changed Through Hole (N) to Counterbored Hole (for Spring Washer).
·ZG6/ZG8
Ordering Code: N9→ZG8

Dimension	Screw Nominal Dia.
Dimension	6	8
d	7	9
d₁	11	14
h	8	11

[!]Only applicable to T = 16, 19, 20

UKSV16-L40-H15-W20-A35.01-D30.01-ZG8-P9

Add
Hole
Type

Tapped Hole

Tapped Hole on the bottom of the receiving surface.
·MB6/MB8
·J dimension = 0.1 mm Increments
Ordering Code: MB6-J33

[NG] Tapped holes cannot be added within the W dimension range.

[NG] Combination with LPH/K is not possible.

UKSV16-L40-H15-W20-A35.01-D30.01-N9-P9-MB6-J33

Add dowel hole

Dowel hole on the bottom of the receiver.
·K6/K8
·E dimension = 0.1 mm Increments
Ordering Code: K6-E33

[NG] Tapped holes cannot be added within the W dimension range.

[NG] Combination with LPH/MB is not possible.

UKSV16-L40-H15-W20-A35.01-D30.01-N9-P9-K6-E33

CA/
CB/
CC/
CD/
CT

Chamfer

Chamfer the receiving surface or bottom surface.
·Chamfer Location: Please select the required location from CA/CB/CC/CD/CT.
·Chamfer width specified: Specify 1, 3, 5 or 10.
Ordering Code: CA5

UKSV16-L40-H15-W20-A35.01-D30.01-N9-P9-CA1-CB3

LPH

Through hole machining for locating pin
Receiving Piece (Vertical Gradient) - 1 Hole Type: Related Image

A through hole for locating pin has been added to the shaded area of the diagram, which includes the receiving surface of the workpiece.
·LPH = ø6 to ø14 0.5 mm Increments
·X dimension = 0.1 mm increments
Ordering Code: LPH7-X33

[ ! ] If the height of the receiving surface is greater than (ø × 8), misalignment within 0.2 mm will occur.

[NG] Combination with MB/K is not possible.

UKSV16-L40-H15-W20-A35.01-D30.01-N9-P9-LPH7-X33

ZKC

Height accuracy
Receiving Piece (Vertical Gradient) - 1 Hole Type: Related Image

Changed the tolerance of A and D dimensions to ±0.03.
Ordering Code: ZKC

UKSV16-L40-H15-W20-A35.01-D30.01-M8-P9-ZKC

Marking (V Groove)
Receiving Piece (Vertical Gradient) - 1 Hole Type: Related Image

Add a marking line V groove to the receiving surface.
·V groove is 0.5 mm wide and 0.2 mm deep
·They are evenly spaced across the length/width of the receiving surface.
Ordering Code: VK

[ ! ] The width tolerance is ±0.2 and the depth tolerance is ±0.1.

UKSV16-L40-H15-W20-A35.01-D30.01-N9-P9-VK

Part number list

Number of items

Part number

UKCV9-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M6-P[4.5-43.5/0.1]

UKCV9-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N7-P[4.5-43.5/0.1]

UKCV12-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKCV12-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKCV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKCV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKCV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKCV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

UKCV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKCV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKCV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKCV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

UKCV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKCV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKCV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKCV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

UKSV9-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M6-P[4.5-43.5/0.1]

UKSV9-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N7-P[4.5-43.5/0.1]

UKSV12-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKSV12-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKSV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKSV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKSV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKSV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

UKSV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKSV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKSV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKSV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

UKSV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKSV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKSV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKSV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

UKUV9-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M6-P[4.5-43.5/0.1]

UKUV9-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N7-P[4.5-43.5/0.1]

UKUV12-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKUV12-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKUV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKUV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKUV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKUV16-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

UKUV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKUV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKUV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKUV19-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

UKUV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-M[6,8]-P[4.5-43.5/0.1]

UKUV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-N[7,9]-P[4.5-43.5/0.1]

UKUV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-Z[6,8]-P[4.5-43.5/0.1]

UKUV20-L[25-70/1]-H[10,12,15,20]-W[13-48/1]-A[10-100/0.01]-D[10-100/0.01]-ZG[6,8]-P[4.5-43.5/0.1]

Material

Hardness

(HRC)

T Dim. Selection

(mm)

1.L Dim. Specification

(mm)

2.H Dim. Selection

(mm)

3.W Dim. Specification

(mm)

4.A Dim. Specification

(mm)

5.D Dim. Specification

(mm)

6.Mounting Hole (Through Hole)[N]

7.Mounting Hole (Tapped Hole)[M]

8.Mounting Hole (Counterbored Hole)[Z]

9.Mounting Hole Dimension[P]

(mm)

RoHS?

Minimum order quantity

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.1206 Equiv.

Only End Face Hardened 55HRC –

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.0038 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

7 ～ 9

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

6 ～ 8

4.5 ～ 43.5

1 pieces

EN 1.4301 Equiv.

No Hardening

25 ～ 70

10 ～ 20

13 ～ 48

10 ～ 100

4.5 ～ 43.5

1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days
- ( - )	8 working days

More Information

Basic information

Basic information

[Features] Shape of the mounting surface: longitudinal slope, fixing holes: This is a 1-circle mounting block.

Catalog

Products homepage

Catalog (2-page spread)
