Locators (Horizontally Inclined) One Dowel Hole and One Through Hole Type
Part number:

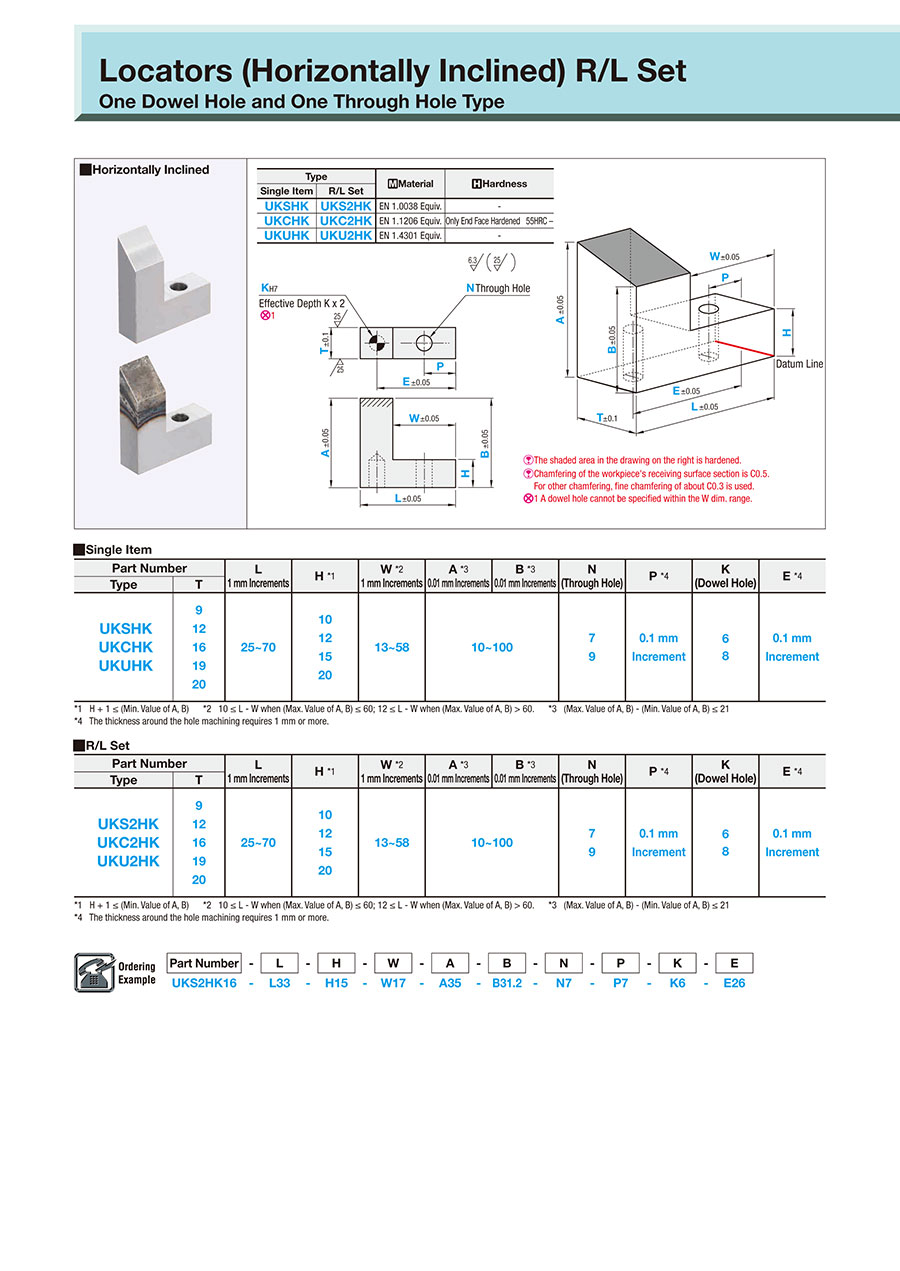

possible part numbers found.Outline drawing and specifications table
※1 [!]The shaded area is the hardened area.
[!]Height dimensional accuracy is a program guarantee of machining to the standard.
[!]The chamfer on the workpiece receiving surface is C0.5. The other chamfers will be slight chamfering of approximately C0.3.
[NG] *1 Dowel holes cannot be specified within the W dimension range.
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m.
| Type | [M] Material | [ H ] Hardness | |
| Single Item | R/L Set | ||
| UKSHK | UKS2HK | EN 1.0038 Equiv. | — |
| UKCHK | UKC2HK | EN 1.1206 Equiv. | Partially hardened only at the tip 55HRC or higher |
| UKUHK | UKU2HK | EN 1.4301 Equiv. | — |
Specification Table
| Part Number | — | L | — | H | — | W | — | A | — | B | — | N | — | P | — | K | — | E |
| UKS2HK16 | — | L33 | — | H15 | — | W17 | — | A35 | — | B31.2 | — | N7 | — | P7 | — | K6 | — | E26 |
■ Single Item
| Part Number | L Configurable 1 mm Increments | H Selection *1 | W Configurable *2 1 mm Increments | A Specification *3 0.01 mm Increments | B Specification *3 0.01 mm Increments | N Selection (Through Hole) | P Configurable *4 | K Selection (Dowel Hole) | E Specification *4 | |
| Type | T Selection | |||||||||
| UKSHK UKCHK UKUHK | 9 12 16 19 20 | 25 to 70 | 10 12 15 20 | 13 to 58 | 10 to 100 | 7 9 | Configurable 0.1 mm Unit | 6 8 | Configurable 0.1 mm Unit | |
* 1 H+1 ≤ (Min. value of A, B)
* 2 When (max. values of A and B) ≤ 60, 10 ≤ L-W; When (max. values of A, B) > 60, 12 ≤ L-W.
* 3 (Max. value of A, B) - (Min. value of A, B) ≤ 21
* 4 A minimum wall thickness of 1 mm is required around the hole machining.
■ R/L Set
| Part Number | L Configurable 1 mm Increments | H Selection *1 | W Configurable *2 1 mm Increments | A Specification *3 0.01 mm Increments | B Specification *3 0.01 mm Increments | N Selection (Through Hole) | P Configurable *4 | K Selection (Dowel Hole) | E Specification *4 | |
| Type | T Selection | |||||||||
| UKS2HK UKC2HK UKU2HK | 9 12 16 19 20 | 25 to 70 | 10 12 15 20 | 13 to 58 | 10 to 100 | 7 9 | Configurable 0.1 mm Unit | 6 8 | Configurable 0.1 mm Unit | |
* 1 H+1 ≤ (Min. value of A, B)
* 2 When (max. values of A and B) ≤ 60, 10 ≤ L-W; When (max. values of A, B) > 60, 12 ≤ L-W.
* 3 (Max. value of A, B) - (Min. value of A, B) ≤ 21
* 4 A minimum wall thickness of 1 mm is required around the hole machining.
Alterations
| Alterations Code | Alteration details | Applicable conditions | Ordering example | |||||||||||||||
| Change hole type | M | Tapped Hole | Change the through hole (N) to a tapped hole. ·M6/M8 Ordering Code: N7→M6 | - | UKS2HK16-L33-H15-W17-A35-B31.2-M8-P7-K6-E26 | [ ! ] A minimum wall thickness of 1 mm is required around the holes machining for the alteration described on the left. | ||||||||||||
| Z | Counterbored Hole | Changes Through Hole (N) to Counterbored Hole. ·Z6/Z8 Ordering Code: N9→Z8
| [!]Only applicable to T = 16, 19, 20 | UKSHK16-L33-H15-W17-A35-B31.2-Z6-P7-K6-E26 | ||||||||||||||
| ZG | Counterbored Hole (For spring washer) | Changed Through Hole (N) to Counterbored Hole (for Spring Washer). ·ZG6/ZG8 Ordering Code: N9→ZG8
| [!]Only applicable to T = 16, 19, 20 | UKSHK16-L33-H15-W17-A35-B31.2-ZG6-P7-K6-E26 | ||||||||||||||
| CA/ CB/ CC/ CD/ CT | Chamfer | Chamfer the receiving surface or bottom surface. ·Chamfer Location: Please select the required location from CA/CB/CC/CD/CT. ·Chamfer width specified: Specify 1, 3, 5 or 10. Ordering Code: CA5 | - | UKSHK16-L33-H15-W17-A35-B31.2-N7-P7-K6-E26-CA1-CC1 | ||||||||||||||
| ZKC | Height accuracy | Changed the tolerance of A and B dimensions to ±0.03. Ordering Code: ZKC | - | UKSHK16-L33-H15-W17-A35-B31.2-N7-P7-K6-E26-ZKC | ||||||||||||||
| MR | Reversed | You will receive the reversed type of specified part number. Ordering Code: MR | [ ! ] Only the reversed type will be delivered. [ ! ] The chamfer location is also on the reversed side. | UKSHK16-L33-H15-W17-A35-B31.2-N7-P7-K6-E26-MR | ||||||||||||||
| VK | Marking (V Groove) | Add a marking line V groove to the receiving surface. ·V groove is 0.5 mm wide and 0.2 mm deep ·They are evenly spaced across the length/width of the receiving surface. Ordering Code: VK | [ ! ] The width tolerance is ±0.2 and the depth tolerance is ±0.1. | UKS2HK16-L33-H15-W17-A35-B31.2-N7-P7-K6-E26-VK | ||||||||||||||
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
More Information
Basic information
[Features] Shape of locating surface: Cross slope, fixing holes: This is a locating block with 1 dowel hole and 1 through hole.
