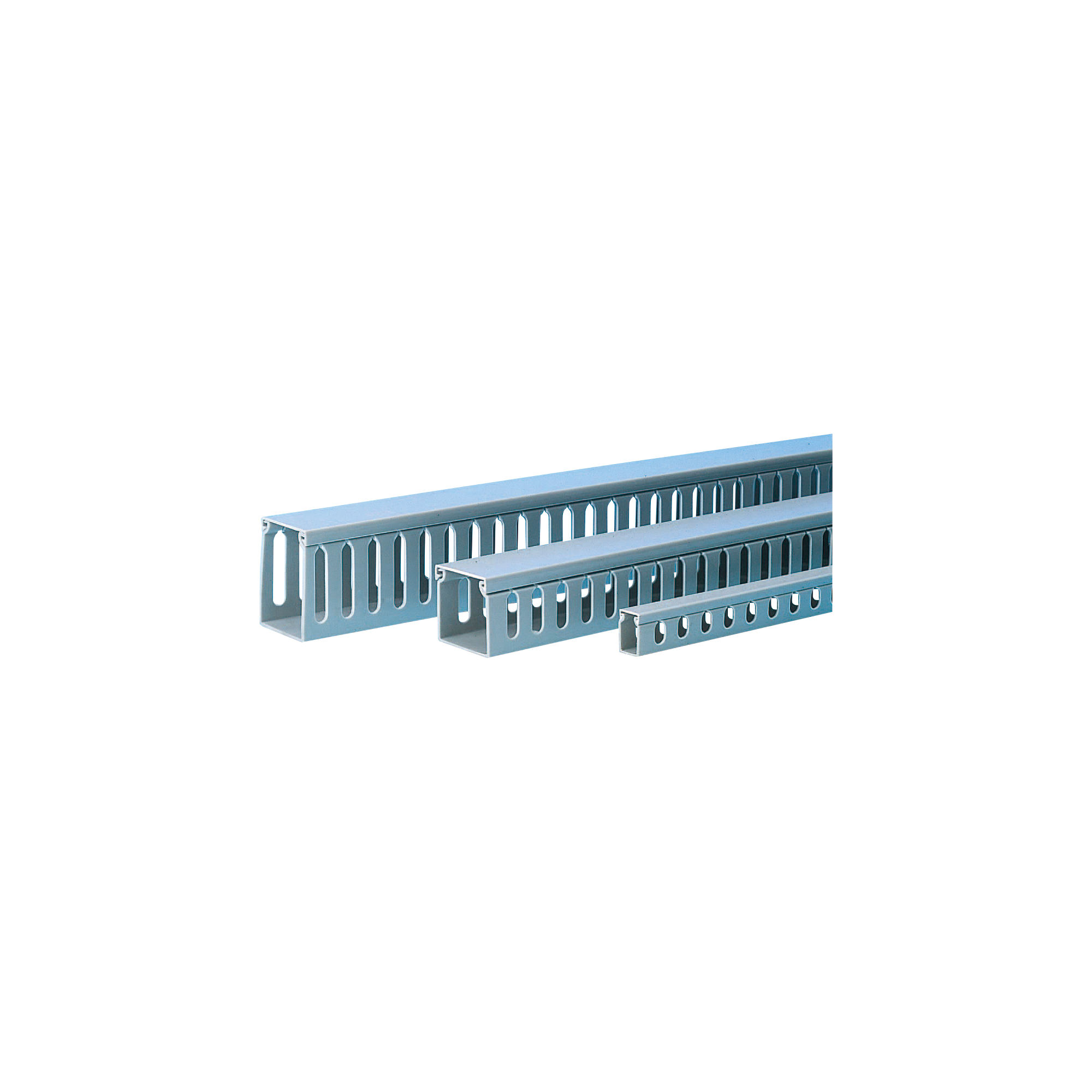

Wiring Duct (with Upper Slit / Low Cost)
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
● Wire can be easily passed through the slit at the top of this wiring duct.
● Overall lengths of 1 m and 1.7 m can be selected.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Specification Table
| Model | Dimensions (W×H, mm) |
| MD-0.5L-R | 15×25 |
| MD-0L-R | 25×25 |
| MD-1L-R | 25×45 |
| MD-1.5L-R | 33×45 |
| MD-2L-R | 45×45 |
| MD-2.2L-R | 50×50 |
| MD-2.5L-R | 65×45 |
| MD-3L-R | 33×65 |
| MD-4L-R | 25×65 |
| MD-5L-R | 45×65 |
| MD-5.5L-R | 60×60 |
| MD-5.7L-R | 65×65 |
| MD-7L-R | 70×100 |
■ Overall length: 1.7 m
| Model | Dimensions (W×H, mm) |
| MD-0.5L-1.7-R | 15×25 |
| MD-0L-1.7-R | 25×25 |
| MD-1L-1.7-R | 25×45 |
| MD-1.5L-1.7-R | 33×45 |
| MD-2L-1.7-R | 45×45 |
| MD-2.2L-1.7-R | 50×50 |
| MD-2.5L-1.7-R | 65×45 |
| MD-3L-1.7-R | 33×65 |
| MD-4L-1.7-R | 25×65 |
| MD-5L-1.7-R | 45×65 |
| MD-5.5L-1.7-R | 60×60 |
| MD-5.7L-1.7-R | 65×65 |
| MD-7L-1.7-R | 70×100 |
Overview of Specifications
| Material | Hard Vinyl Chloride UL94V-0 |
| Operating Temperature Range | −20°C to +60°C |
| Color | Gray |
| Specific Gravity | 1.397 |
| Tensile Strength | 436 kgs |
| Elongation | 80% |
| Softening Temperature | 75°C |
| Impact Strength | 22 kg/cm2 |
| Dielectric Strength | 35 KV/mm |
| Model | Overall Length (L) | W | H | P | B | C | D | Number of storable wires (IV wire 2 mm2 conversion) | Weight (g) |
| MD-0.5L-R | 990 mm | 15 | 25 | 18 | 8 | 4.3 | 9.5 | 5 to 12 pcs | 143 |
| MD-0L-R | 25 | 10 to 25 pcs | 223 | ||||||
| MD-1L-R | 45 | 18 | 12 | 20 to 25 pcs | 292 | ||||
| MD-1.5L-R | 33 | 15 | 14 | 40 to 55 pcs | 334 | ||||
| MD-2L-R | 45 | 18 | 12 | 60 to 70 pcs | 430 | ||||
| MD-2.2L-R | 50 | 50 | 21 | 11 | 80 to 90 pcs | 451 | |||
| MD-2.5L-R | 65 | 45 | 18 | 13 | 110 to 120 pcs | 572 | |||
| MD-3L-R | 33 | 65 | 35 | 13.5 | 60 to 75 pcs | 389 | |||
| MD-4L-R | 25 | 17 | 40 to 45 pcs | 352 | |||||
| MD-5L-R | 45 | 14 | 110 to 120 pcs | 495 | |||||
| MD-5.5L-R | 60 | 60 | 28 | 15 | 120 to 135 pcs | 604 | |||
| MD-5.7L-R | 65 | 65 | 35 | 180 to 200 pcs | 631 | ||||
| MD-7L-R | 70 | 100 | 65 | 18 | 250 to 300 pcs | 842 | |||
| MD-0.5L-1.7-R | 1,700 mm | 15 | 25 | 18 | 8 | 4.3 | 9.5 | 5 to 12 pcs | 229 |
| MD-0L-1.7-R | 25 | 10 to 25 pcs | 369 | ||||||
| MD-1L-1.7-R | 25 | 45 | 18 | 12 | 20 to 25 pcs | 480 | |||
| MD-1.5L-1.7-R | 33 | 15 | 14 | 40 to 55 pcs | 555 | ||||
| MD-2L-1.7-R | 45 | 18 | 12 | 60 to 70 pcs | 642 | ||||
| MD-2.2L-1.7-R | 50 | 50 | 21 | 11 | 80 to 90 pcs | 785 | |||
| MD-2.5L-1.7-R | 65 | 45 | 18 | 13 | 110 to 120 pcs | 955 | |||
| MD-3L-1.7-R | 33 | 65 | 35 | 14 | 60 to 75 pcs | 690 | |||
| MD-4L-1.7-R | 25 | 17 | 40 to 45 pcs | 640 | |||||
| MD-5L-1.7-R | 45 | 14 | 110 to 120 pcs | 820 | |||||
| MD-5.5L-1.7-R | 60 | 60 | 28 | 15 | 120 to 135 pcs | 984 | |||
| MD-5.7L-1.7-R | 65 | 65 | 35 | 180 to 200 pcs | 1108 | ||||
| MD-7L-1.7-R | 70 | 100 | 65 | 18 | 250 to 300 pcs | 1342 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width (mm) | Height (mm) | Overall Length (mm) | Wire Storage Capacity (IV Wire 2 mm2 Conversion) (Piece) | |
|---|---|---|---|---|---|---|---|---|
11.64 € | 1 | Available | 5 Days | 25 | 25 | 1700 | 10 ~ 25 | |
7.35 € | 1 | Available | 5 Days | 25 | 25 | 990 | 10 ~ 25 | |
10.09 € | 1 | Available | 5 Days | 15 | 25 | 1700 | 5 ~ 12 | |
6.54 € | 1 | Available | 5 Days | 15 | 25 | 990 | 5 ~ 12 | |
13.72 € | 1 | Available | 5 Days | 25 | 45 | 1700 | 20 ~ 25 | |
8.11 € | 1 | Available | 5 Days | 25 | 45 | 990 | 20 ~ 25 | |
13.92 € | 1 | Available | 5 Days | 33 | 45 | 1700 | 40 ~ 55 | |
10.02 € | 1 | Available | 5 Days | 33 | 45 | 990 | 40 ~ 55 | |
18.38 € | 1 | Available | 5 Days | 45 | 45 | 1700 | 60 ~ 70 | |
11.87 € | 1 | Available | 5 Days | 45 | 45 | 990 | 60 ~ 70 | |
20.81 € | 1 | Available | 5 Days | 50 | 50 | 1700 | 80 ~ 90 | |
13.19 € | 1 | Available | 5 Days | 50 | 50 | 990 | 80 ~ 90 | |
22.73 € | 1 | Available | 5 Days | 65 | 45 | 1700 | 110 ~ 120 | |
15.31 € | 1 | Available | 5 Days | 65 | 45 | 990 | 110 ~ 120 | |
20.05 € | 1 | Available | 5 Days | 33 | 65 | 1700 | 60 ~ 75 | |
12.66 € | 1 | Available | 5 Days | 33 | 65 | 990 | 60 ~ 75 | |
18.34 € | 1 | Available | 5 Days | 25 | 65 | 1700 | 40 ~ 45 | |
11.76 € | 1 | Available | 5 Days | 25 | 65 | 990 | 40 ~ 45 | |
22.01 € | 1 | Available | 5 Days | 45 | 65 | 1700 | 110 ~ 120 | |
14.23 € | 1 | Available | 5 Days | 45 | 65 | 990 | 110 ~ 120 | |
25.45 € | 1 | Available | 5 Days | 60 | 60 | 1700 | 120 ~ 135 | |
14.94 € | 1 | Available | 5 Days | 60 | 60 | 990 | 120 ~ 135 | |
26.74 € | 1 | Available | 5 Days | 65 | 65 | 1700 | 180 ~ 200 | |
17.21 € | 1 | Available | 5 Days | 65 | 65 | 990 | 180 ~ 200 | |
43.21 € | 1 | Available | 5 Days | 70 | 100 | 1700 | 250 ~ 300 | |
27.00 € | 1 | Available | 5 Days | 70 | 100 | 990 | 250 ~ 300 |
