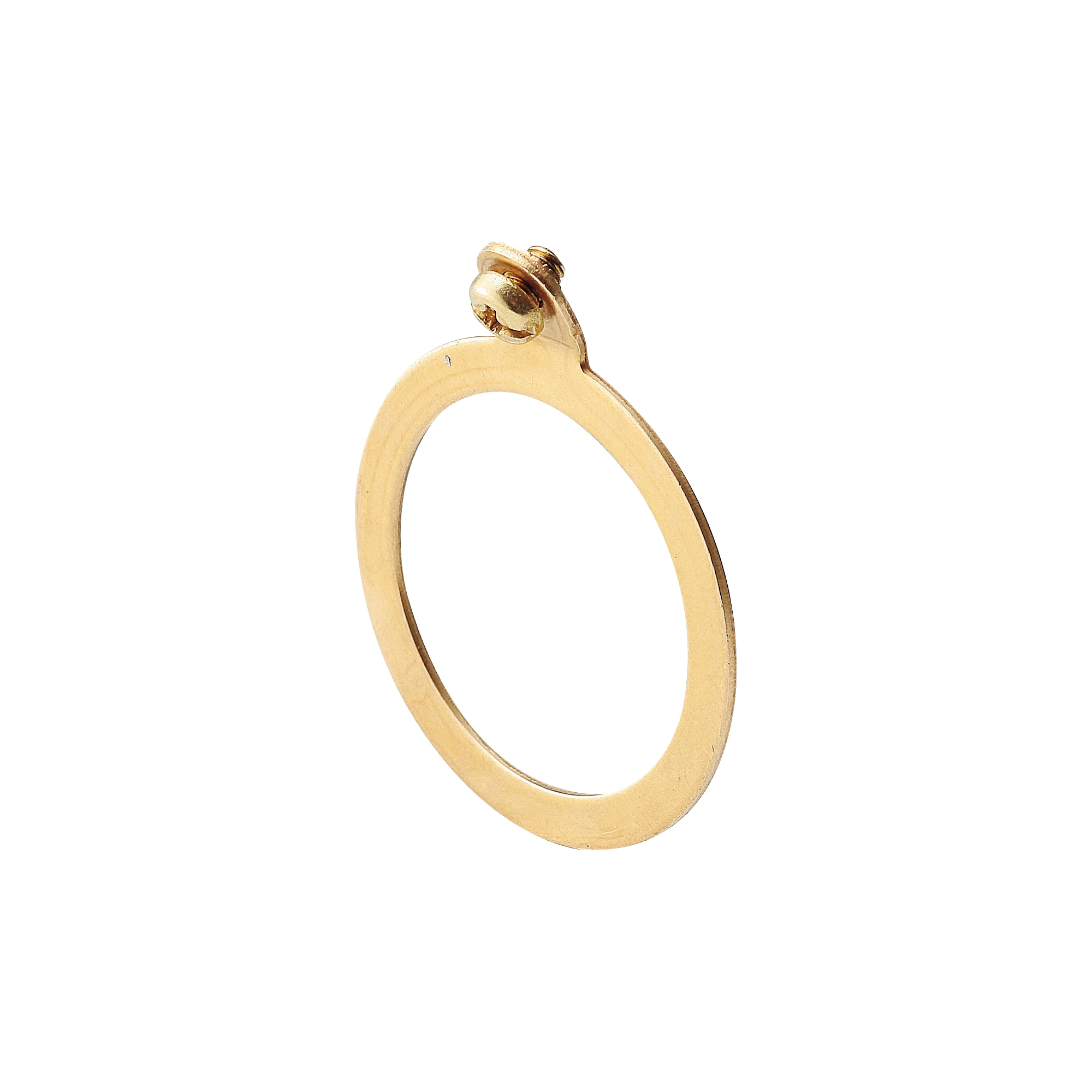

Metal Conduit Ground Ring
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Ground ring for FAG / FSV / FTUB / FSN series only.
Please use in areas where there is a risk of the power cable tube and the box becoming electrically and mechanically defective.
It can be easily connected with a lock nut.
Please use in areas where there is a risk of the power cable tube and the box becoming electrically and mechanically defective.
It can be easily connected with a lock nut.
● Ground ring (for thick steel threads) can be used for conduit and box connections where electrical and mechanical grounding appears to be incomplete. It can be used easily by simply tightening with a lock nut for connector mounting.
● Allows a round model terminal to be attached to the small cross-recessed screw area. Compatible with round model terminals (1.25-4).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Specifications
■Standard Table
| Part Number | Model Number | Quantity | Material, Other |
| 1 | Ring | 1 | C2801P (Brass) |
| 2 | Cross-Recessed Small Screw | 1 | C2700W M4 × 5 |
| Symbol Model Number | Compatible Screw Nominal | Compatible Conduit Connector Size MSS, MA, MH | A | B | H | t | Mass (g) | ||
| Thick Steel Conduit Thread Nominal | Parallel Screw Nominal for Pipes | Thin Steel Conduit Thread Nominal | |||||||
| ER-1619 | CTG16 | G1/2 | CTC19 | 10-16, 12-16, 16-16 | 28 | 21.3 | 25 | 1.0 | 5 |
| ER-2225 | CTG22 | G3/4 | CTC25 | 16-22, 22-22 | 35 | 26.7 | 28 | 1.0 | 6 |
| ER-2831 | CTG28 | G1 | CTC31 | 28-28 | 43 | 33.6 | 32 | 1.2 | 8 |
More Information
Basic information
| Type | Other | Color | Yellow | Material | Brass / Surface Treatment / Nickel Plating |
|---|---|---|---|---|---|
| Material | Ring: C2801P (brass) cross-recessed head machine screw: C2700W M4 x 5 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
