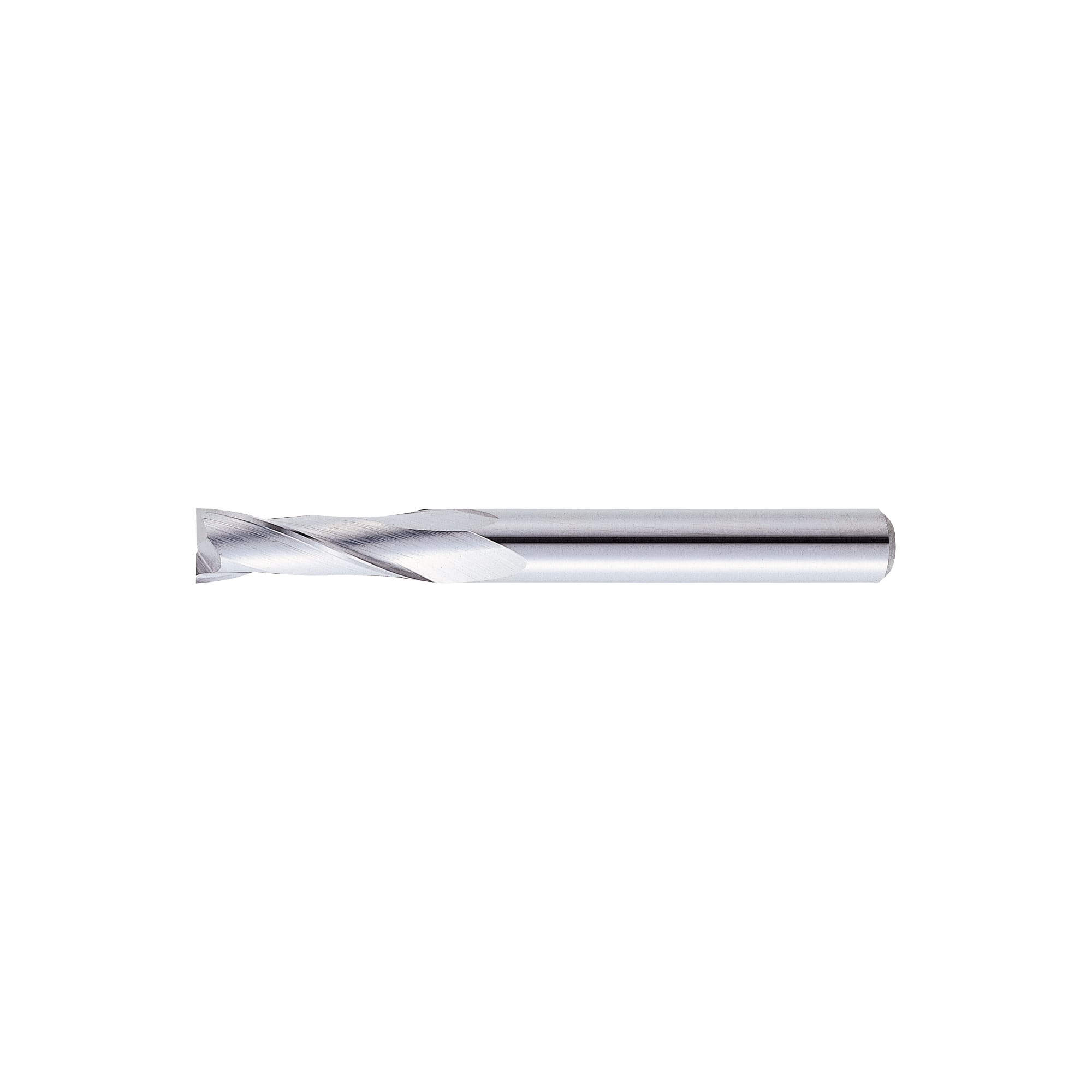

Carbide Square End Mill for Copper Electrode Machining, 2-Flute / Regular Model
Mouse over image to enlarge
Part number:
possible part numbers found.Outline drawing
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
37.21 € ( 44.28 € ) | 5 working days |
42.26 € ( 50.29 € ) | 5 working days |
31.71 € ( 37.73 € ) | 5 working days |
28.66 € ( 34.11 € ) | 5 working days |
23.81 € ( 28.33 € ) | 5 working days |
46.81 € ( 55.70 € ) | 5 working days |
43.23 € ( 51.44 € ) | 5 working days |
38.57 € ( 45.90 € ) | 5 working days |
57.92 € ( 68.92 € ) | 5 working days |
81.62 € ( 97.13 € ) | 5 working days |
97.50 € ( 116.03 € ) | 5 working days |
97.95 € ( 116.56 € ) | 5 working days |
134.55 € ( 160.11 € ) | 5 working days |
214.80 € ( 255.61 € ) | 5 working days |
363.12 € ( 432.11 € ) | 5 working days |
More Information
Basic information
A non-coated type that has achieved both the cost reduction and processing performance
Specifications and price
Specifications
| Model Number | Flute Length ℓ |
Overall Length L |
Shank Diameter d |
|
| Outer Diameter D |
||||
| CUEM | 0.5 | 1.5 | 50 | 4 |
| 0.8 | 2.4 | 50 | 4 | |
| 1 | 3 | 50 | 4 | |
| 1.5 | 4.5 | 50 | 4 | |
| 2 | 6 | 50 | 4 | |
| 2.5 | 7.5 | 50 | 4 | |
| 3 | 9 | 60 | 6 | |
| 4 | 12 | 60 | 6 | |
| 5 | 15 | 70 | 6 | |
| 6 | 18 | 70 | 6 | |
| 8 | 24 | 80 | 8 | |
| 10 | 30 | 90 | 10 | |
| 12 | 36 | 90 | 12 | |
| 16 | 48 | 110 | 16 | |
| 20 | 60 | 130 | 20 |
For Cutting Conditions, Refer to >>Click here.
