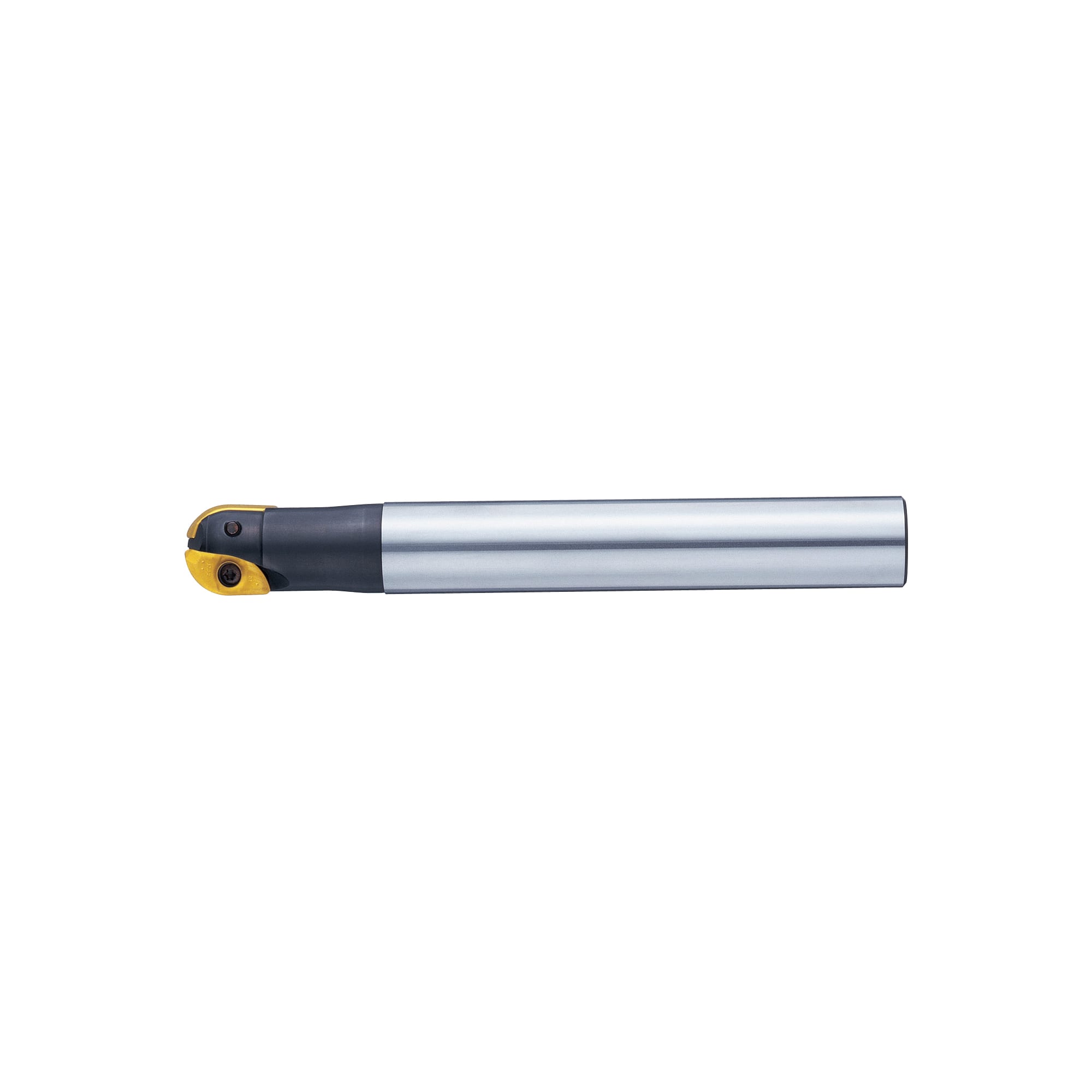

Roughing Ball Cutter, End Mill Model

Roughing Ball Cutter, End Mill Model

Mouse over image to enlarge

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Outline drawing

Roughing Ball Cutter, End Mill Model:Related Image

Part number list

Number of items
  • 1
    • Part number
    MMRBM-16-20-200
    MMRBM-20-25-200
    MMRBM-25-32-250

    Outer Diameter D

    (mm)

    Overall Length (L)

    (mm)

    Shank Diameter (d)

    (mm)

    Max. Cutting Depth (Ad)

    (mm)

    Length Under Neck (ℓ1)

    (mm)

    Applicable Screw Model Number

    Applicable Wrench

    Applicable Tip

    Shank Length

    		Minimum order quantity
    16
    200
    20
    14.4
    27
    MMNJ-2507
    MMTX-208
    NRBN16
    155
    1 pieces
    20
    200
    25
    17.9
    33
    MMNJ-2394
    MMTX-210P
    NRBN20
    145
    1 pieces
    25
    250
    32
    22.3
    40
    MMNJ-2396
    MMTX-3125
    NRBN25
    185
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    374.05 €
    ( 445.12 € )
    5 working days
    399.82 €
    ( 475.79 € )
    5 working days
    443.52 €
    ( 527.79 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features]
    -Easy to handle as main and secondary cutting edges consist of one insert
    -Large selection of small diameters from ø10.

    Specifications and price

    Specifications

    Roughing Ball Cutter, End Mill Model:Related Image
    Roughing Ball Cutter, End Mill Model:Related Image

    Model Number
    MMRBM

    Outer Diameter
    D    		 Shank Diameter
    d    		 Overall Length
    L    		 Number of Flutes Length Under Neck
    ℓ1    		 Shank Length
    ℓ2    		 Cutting Depth
    a    		 Applicable Tips
    (>>P.763)    		 Accessory Screw Part Number
    (>> table below)    		 Accessory Wrench Part Number
    (>>table below)
    10 16 160 2 20 110 8.9 NRBM-10 MMNJ-2655 MMTX-1650
    12 20 200 2 20 155 10.7 NRBM-12 MMNJ-2564 MMTX-208P
    16 20 200 2 27 155 14.4 NRBM-16 MMNJ-2507 MMTX-208
    20 20 250 2 33 200 17.9 NRBM-20 MMNJ-2394 MMTX-210P
    25 200 2 33 145 17.9 NRBM-20
    32 250 2 33 194 17.9 NRBM-20
    25 25 250 2 40 190 22.3 NRBM-25 MMNJ-2396 MMTX-3125
    32 250 2 40 185 22.3 NRBM-25
    32 32 250 2 50 180 28.6 NRBM-32 MMNJ-28349 MMTX-2099



    Model Number Component Name
    MMNJ-2655 Screws
    MMNJ-2564
    MMNJ-2507
    MMNJ-2394
    MMNJ-2396
    MMNJ-28349
    MMTX-1650 Wrench
    MMTX-208P
    MMTX-208
    MMTX-210P
    MMTX-3125
    MMTX-2099



    Actual Cutting Diameter >>Click here.

    Features and usage examples

    More Information


    ● Since the form of a single tip model comprises both a main blade and a secondary blade, it is easy to control.
    ● Plentiful small diameter variations are available from Ø 10 up.
