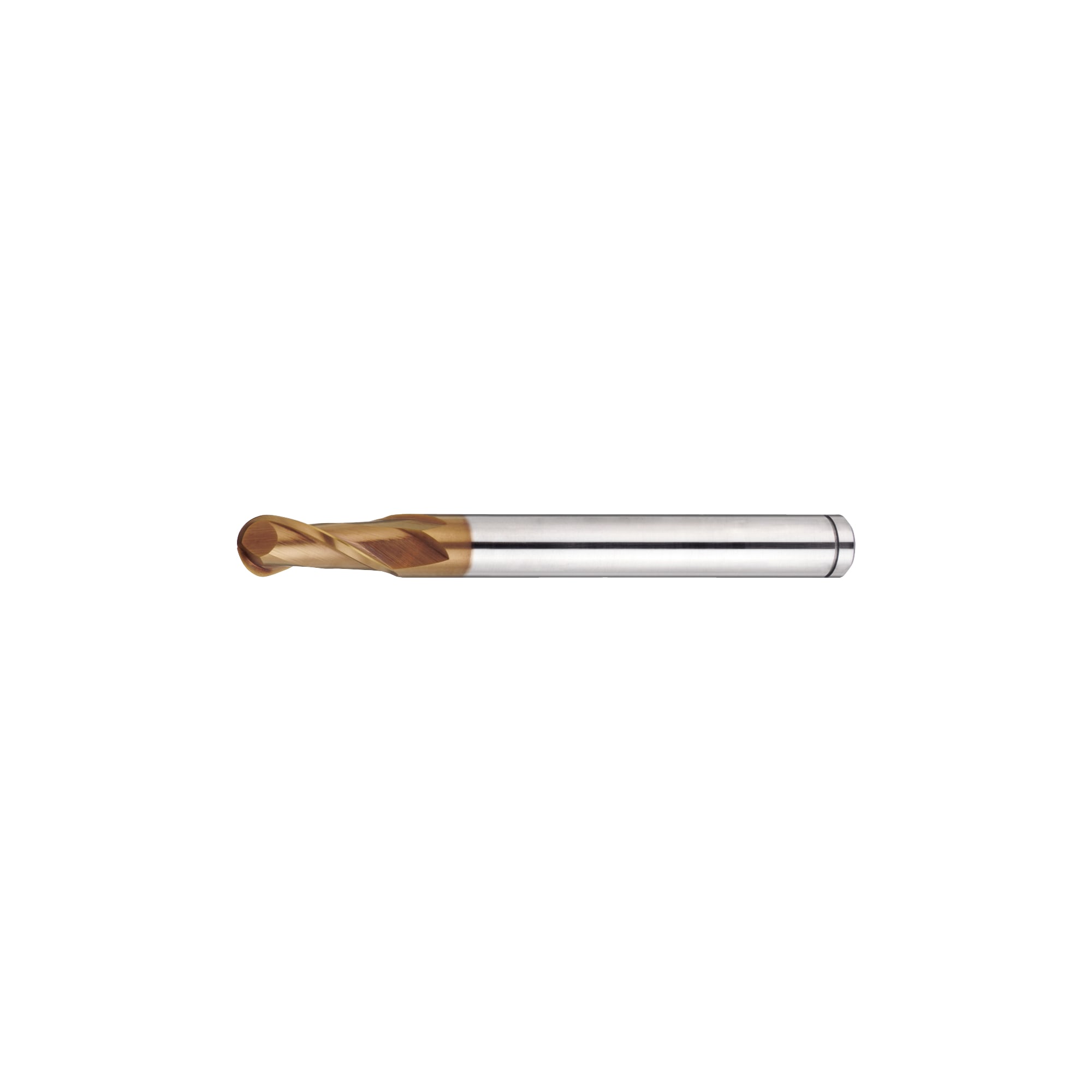

AS Coated Powdered High-Speed Steel Ball End Mill, 2-Flute / Regular
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
-Ball cutter with 2 flutes and regular length
-The coating has high oxidation resistance and high hardness and achieves long life. Effective in high speed machining and dry machining as coating properties
-Can be reground. Please refer to the "Regrinding Service" page for application procedures, range of services, prices, etc.
- AS
- 2 Flutes
- R (Regular)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| ASPM-BEM2R1.5 |
| ASPM-BEM2R2 |
| ASPM-BEM2R2.5 |
| ASPM-BEM2R3 |
| ASPM-BEM2R4 |
| ASPM-BEM2R5 |
| ASPM-BEM2R6 |
| ASPM-BEM2R7 |
| ASPM-BEM2R8 |
| ASPM-BEM2R9 |
| ASPM-BEM2R10 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Flute Length (ℓ) (mm) | Overall Length (L) (mm) | Shank Diameter (d) (mm) | Outer Diameter D (mm) | Length Under Neck (θ) | |
|---|---|---|---|---|---|---|---|---|---|---|
39.88 € | 1 | Available | 5 Days | 1.5 | 8 | 56 | 6 | 3 | 15° | |
42.35 € | 1 | Available | 5 Days | 2 | 11 | 63 | 6 | 4 | 15° | |
42.45 € | 1 | Available | 5 Days | 2.5 | 13 | 68 | 6 | 5 | 15° | |
44.44 € | 1 | Available | 5 Days | 3 | 13 | 68 | 6 | 6 | - | |
58.08 € | 1 | Available | 5 Days | 4 | 19 | 82 | 8 | 8 | - | |
86.63 € | 1 | Available | 5 Days | 5 | 22 | 95 | 10 | 10 | - | |
112.31 € | 1 | Available | 5 Days | 6 | 26 | 110 | 12 | 12 | - | |
122.01 € | 1 | Available | 5 Days | 7 | 26 | 110 | 12 | 14 | - | |
136.60 € | 1 | Available | 5 Days | 8 | 32 | 123 | 16 | 16 | - | |
180.90 € | 1 | Available | 5 Days | 9 | 32 | 123 | 16 | 18 | - | |
120.15 € | 1 | Available | 5 Days | 10 | 38 | 141 | 20 | 20 | - |
Loading...
Specifications
Model Number
ASPM-BEM2R
| Tip R |
Outer Diameter D |
Flute Length ℓ |
Overall Length L |
Under Neck Angle θ |
Shank Diameter d |
| 1.5 | 3 | 8 | 56 | 15° | 6 |
| 2 | 4 | 11 | 63 | 15° | 6 |
| 2.5 | 5 | 13 | 68 | 15° | 6 |
| 3 | 6 | 13 | 68 | — | 6 |
| 4 | 8 | 19 | 82 | — | 8 |
| 5 | 10 | 22 | 95 | — | 10 |
| 6 | 12 | 26 | 110 | — | 12 |
| 7 | 14 | 26 | 110 | — | 12 |
| 8 | 16 | 32 | 123 | — | 16 |
| 9 | 18 | 32 | 123 | — | 16 |
| 10 | 20 | 38 | 141 | — | 20 |
Basic information
| Work Material | General Steel / Heat-Treated Steel / Stainless Steel / Cast Iron / Aluminum / Copper | Tool Material Type | Powdered High-Speed Steel | Number of Flutes(sheet) | 2 |
|---|---|---|---|---|---|
| Coating | For High Hardness (Silicone-Based) | Processing Applications | Curved Surface / Carving / R-Groove | R Precision(µm) | ±0.02 |
| Torsion Availability | Included |
Configure
Basic Attributes
-
R Size(mm)
-
Flute Length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Shank Diameter (d)(mm)
-
Type
- ASPM-BEM2R
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
