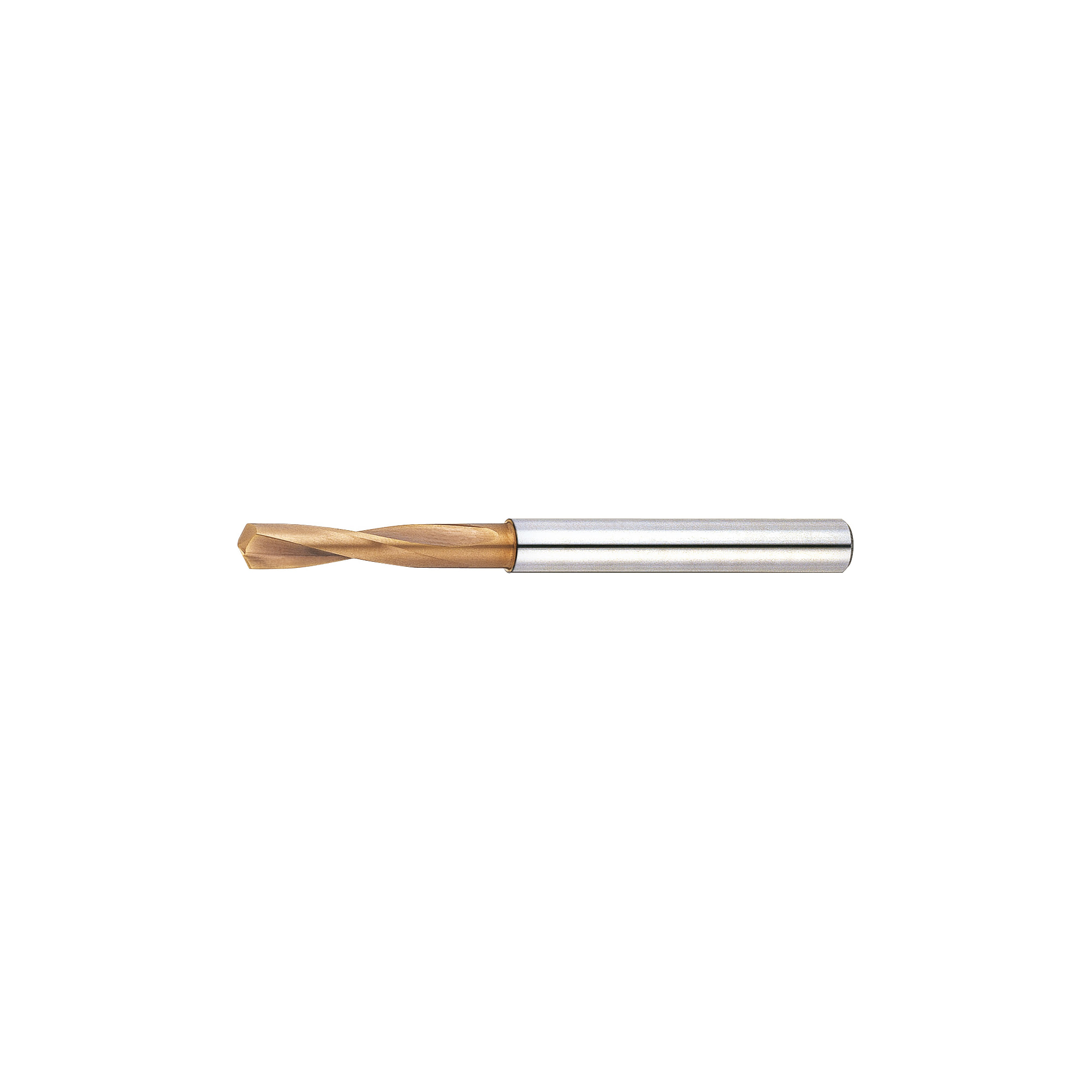

TS Coated Carbide Drill for High-Hardness Steel Machining, Stub Model, Regular
- Volume Discount
-Weak helix angle and high core diameter improve the rigidity of the tool
-Achieves excellent strength by using a straight cutting edge
-Ideal for machining high hardness steels from HRC40 to 60
-It has a coating with high oxidation resistance and high hardness and achieves long life. Effective in high speed machining and dry machining as coating properties
-Can be reground. Please refer to the "Regrinding Service" page for application procedures, range of services, prices, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Hole diameter (drill diameter) D (mm) | Groove Length L (mm) | Overall Length L (mm) | Shank Diameter d | Diameter Tolerance | Tolerance of Shank Diameter | |
|---|---|---|---|---|---|---|---|---|---|---|
79.72 € | 1 | Available | 5 Days | 3 | 28 | 66 | 6 | 0 ~ -0.014 | 0 ~ -0.008 | |
94.60 € | 1 | Available | 5 Days | 3.3 | 28 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
89.49 € | 1 | Available | 5 Days | 3.5 | 28 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
93.81 € | 1 | Available | 5 Days | 4 | 36 | 74 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
108.62 € | 1 | Available | 5 Days | 4.2 | 36 | 74 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
139.24 € | 1 | Available | 5 Days | 4.5 | 36 | 74 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
103.60 € | 1 | Available | 5 Days | 5 | 44 | 82 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
178.36 € | 1 | Available | 5 Days | 5.5 | 44 | 82 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
123.19 € | 1 | Available | 5 Days | 6 | 44 | 82 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
176.84 € | 1 | Available | 5 Days | 6.5 | 53 | 91 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
194.64 € | 1 | Available | 5 Days | 6.8 | 53 | 91 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
126.67 € | 1 | Available | 5 Days | 7 | 53 | 91 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
140.14 € | 1 | Available | 5 Days | 8 | 53 | 91 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
204.20 € | 1 | Available | 5 Days | 8.5 | 61 | 103 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
159.59 € | 1 | Available | 5 Days | 9 | 61 | 103 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
109.32 € | 1 | Available | 5 Days | 10 | 61 | 103 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
149.45 € | 1 | Available | 5 Days | 10.3 | 71 | 118 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
116.34 € | 1 | Available | 5 Days | 11 | 71 | 118 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
124.69 € | 1 | Available | 5 Days | 12 | 71 | 118 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
139.28 € | 1 | Available | 5 Days | 13 | 77 | 124 | 14 | 0 ~ -0.027 | 0 ~ -0.011 | |
58.66 € | 1 | Available | 5 Days | 3 | 20 | 62 | 6 | 0 ~ -0.014 | 0 ~ -0.008 | |
66.97 € | 1 | Available | 5 Days | 3.2 | 20 | 62 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
66.97 € | 1 | Available | 5 Days | 3.3 | 20 | 62 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
66.97 € | 1 | Available | 5 Days | 3.5 | 20 | 62 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
66.93 € | 1 | Available | 5 Days | 3.8 | 22 | 62 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
59.31 € | 1 | Available | 5 Days | 4 | 24 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
75.94 € | 1 | Available | 5 Days | 4.2 | 24 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
75.94 € | 1 | Available | 5 Days | 4.5 | 24 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
76.05 € | 1 | Available | 5 Days | 5 | 28 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
95.78 € | 1 | Available | 5 Days | 5.3 | 28 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
95.78 € | 1 | Available | 5 Days | 5.5 | 28 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
91.01 € | 1 | Available | 5 Days | 6 | 28 | 66 | 6 | 0 ~ -0.018 | 0 ~ -0.008 | |
103.12 € | 1 | Available | 5 Days | 6.3 | 30 | 79 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
103.12 € | 1 | Available | 5 Days | 6.5 | 30 | 79 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
108.20 € | 1 | Available | 5 Days | 6.8 | 34 | 79 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
95.50 € | 1 | Available | 5 Days | 7 | 34 | 79 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
113.00 € | 1 | Available | 5 Days | 7.3 | 34 | 79 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
113.00 € | 1 | Available | 5 Days | 7.5 | 34 | 79 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
119.49 € | 1 | Available | 5 Days | 7.8 | 41 | 79 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
105.38 € | 1 | Available | 5 Days | 8 | 41 | 79 | 8 | 0 ~ -0.022 | 0 ~ -0.009 | |
124.55 € | 1 | Available | 5 Days | 8.3 | 47 | 89 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
124.55 € | 1 | Available | 5 Days | 8.5 | 47 | 89 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
129.35 € | 1 | Available | 5 Days | 8.8 | 47 | 89 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
114.13 € | 1 | Available | 5 Days | 9 | 47 | 89 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
140.07 € | 1 | Available | 5 Days | 9.3 | 47 | 89 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
140.07 € | 1 | Available | 5 Days | 9.5 | 47 | 89 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
133.40 € | 1 | Available | 5 Days | 10 | 47 | 89 | 10 | 0 ~ -0.022 | 0 ~ -0.009 | |
97.36 € | 1 | Available | 5 Days | 10.3 | 50 | 102 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
97.36 € | 1 | Available | 5 Days | 10.5 | 50 | 102 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
100.49 € | 1 | Available | 5 Days | 10.8 | 50 | 102 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
151.92 € | 1 | Available | 5 Days | 11 | 50 | 102 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
104.83 € | 1 | Available | 5 Days | 11.5 | 55 | 102 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
154.55 € | 1 | Available | 5 Days | 12 | 55 | 102 | 12 | 0 ~ -0.027 | 0 ~ -0.011 | |
107.96 € | 1 | Available | 5 Days | 12.5 | 55 | 112 | 14 | 0 ~ -0.027 | 0 ~ -0.011 | |
175.13 € | 1 | Available | 5 Days | 13 | 60 | 112 | 14 | 0 ~ -0.027 | 0 ~ -0.011 |
Loading...
Specifications
Model Number
TSC-XESDR (Stub)
| Diameter D | Groove Length ℓ | Overall Length L | Shank Diameter d |
| 3 | 20 | 62 | 6 |
| 3.2 | 20 | 62 | 6 |
| 3.3 | 20 | 62 | 6 |
| 3.5 | 20 | 62 | 6 |
| 3.8 | 22 | 62 | 6 |
| 4 | 24 | 66 | 6 |
| 4.2 | 24 | 66 | 6 |
| 4.5 | 24 | 66 | 6 |
| 5 | 28 | 66 | 6 |
| 5.3 | 28 | 66 | 6 |
| 5.5 | 28 | 66 | 6 |
| 6 | 28 | 66 | 6 |
| 6.3 | 30 | 79 | 8 |
| 6.5 | 30 | 79 | 8 |
| 6.8 | 34 | 79 | 8 |
| 7 | 34 | 79 | 8 |
| 7.3 | 34 | 79 | 8 |
| 7.5 | 34 | 79 | 8 |
| 7.8 | 41 | 79 | 8 |
| 8 | 41 | 79 | 8 |
| 8.3 | 47 | 89 | 10 |
| 8.5 | 47 | 89 | 10 |
| 8.8 | 47 | 89 | 10 |
| 9 | 47 | 89 | 10 |
| 9.3 | 47 | 89 | 10 |
| 9.5 | 47 | 89 | 10 |
| 10 | 47 | 89 | 10 |
| 10.3 | 50 | 102 | 12 |
| 10.5 | 50 | 102 | 12 |
| 10.8 | 50 | 102 | 12 |
| 11 | 50 | 102 | 12 |
| 11.5 | 55 | 102 | 12 |
| 12 | 55 | 102 | 12 |
| 12.5 | 55 | 112 | 14 |
| 13 | 60 | 112 | 14 |
Model Number
TSC-XESDM (Regular)
| Diameter D | Groove Length ℓ | Overall Length L | Shank Diameter d |
| 3 | 28 | 66 | 6 |
| 3.3 | 28 | 66 | 6 |
| 3.5 | 28 | 66 | 6 |
| 4 | 36 | 74 | 6 |
| 4.2 | 36 | 74 | 6 |
| 4.5 | 36 | 74 | 6 |
| 5 | 44 | 82 | 6 |
| 5.5 | 44 | 82 | 6 |
| 6 | 44 | 82 | 6 |
| 6.5 | 53 | 91 | 8 |
| 6.8 | 53 | 91 | 8 |
| 7 | 53 | 91 | 8 |
| 8 | 53 | 91 | 8 |
| 8.5 | 61 | 103 | 10 |
| 9 | 61 | 103 | 10 |
| 10 | 61 | 103 | 10 |
| 10.3 | 71 | 118 | 12 |
| 11 | 71 | 118 | 12 |
| 12 | 71 | 118 | 12 |
| 13 | 77 | 124 | 14 |
For Cutting Conditions, Refer to >>Click here.
More Information
● Has a TS film coating with much greater oxidation resistance and hardness than conventional films, realizing a longer operational life and ideal for high speed cutting.
● Weak torsion and high core thickness enhance the rigidity of the tool.
● Adopting a straight cutting edge achieves outstanding strength.
● Ideal for machining HRC 40 ~ 60 high-hardness steel.
Basic information
| work material | Heat-Treated Steel / High-Hardness Steel | Tool Material Type | Carbide | Shank Type | End Mill Shank |
|---|---|---|---|---|---|
| Coating Y/N | Included | With/without Oil Hole | None | Point Angle(°) | 140 |
| Thinning | Included |
