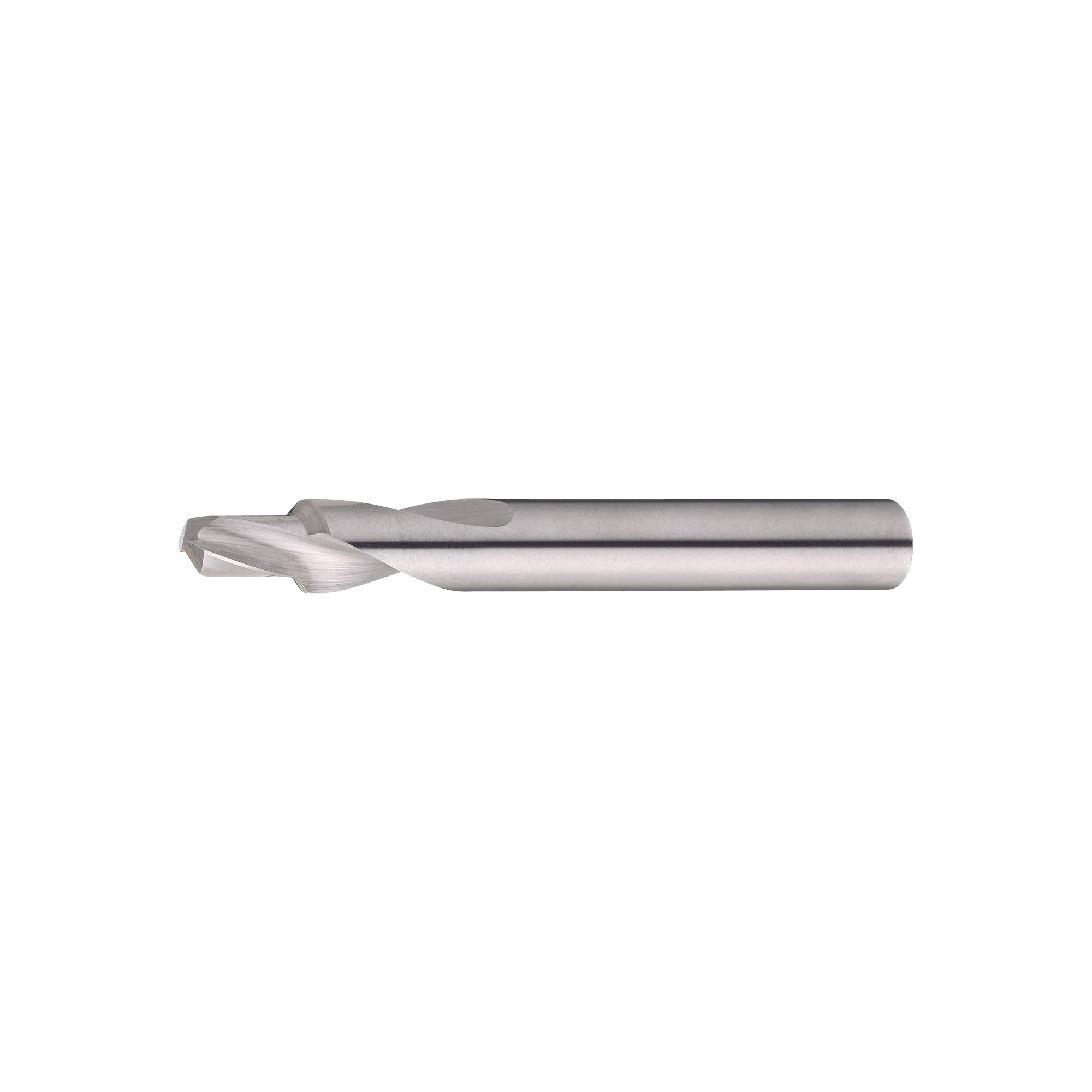

      Carbide Stepped Drill, for Drilling Pilot Holes for Screws, with Chamfering Blade, Size Designation Model

      Carbide Stepped Drill, for Drilling Pilot Holes for Screws, with Chamfering Blade, Size Designation Model

      Mouse over image to enlarge

      Part number:

      Still undefined. 7 possible part numbers found.
      Quantity:

      Outline drawing

      Carbide Stepped Drill, for Drilling Pilot Holes for Screws, with Chamfering Blade, Size Designation Model:Related Image

      Part number list

      Number of items
    • 1
      • Part number
      C-SC-TSDR3-[2.2-2.99/0.01]-[5-13/1]-[60,90,120]
      C-SC-TSDR4-[3-3.89/0.01]-[5-18/1]-[60,90,120]
      C-SC-TSDR5-[3.9-4.69/0.01]-[8-23/1]-[60,90,120]
      C-SC-TSDR6-[4.7-6.49/0.01]-[10-28/1]-[60,90,120]
      C-SC-TSDR8-[6.5-8.19/0.01]-[15-35/1]-[60,90,120]
      C-SC-TSDR10-[8.2-9.99/0.01]-[15-45/1]-[60,90,120]
      C-SC-TSDR12-[10-11/0.01]-[20-50/1]-[60,90,120]

      M Model

      (M)

      Chamfer Angle (Double Angle θ)

      (°)

      Stepped Length (ℓ)

      (mm)

      Tip Diameter (D)

      (mm)

      Shank Diameter d

      Tolerance of Shank Diameter

      Major Diameter D1

      (φ)

      ℓ1

      (mm)

      Groove Length L1

      (mm)

      		Minimum order quantity
      3
      60 ～ 120
      5 ～ 13
      2.2 ～ 2.99
      4
      0 ~ -0.008
      4
      50
      Step Length + 8
      1 pieces
      4
      60 ～ 120
      5 ～ 18
      3 ～ 3.89
      6
      0 ~ -0.008
      6
      59
      Step Length + 13
      1 pieces
      5
      60 ～ 120
      8 ～ 23
      3.9 ～ 4.69
      8
      0 ~ -0.009
      8
      61
      Step Length + 16
      1 pieces
      6
      60 ～ 120
      10 ～ 28
      4.7 ～ 6.49
      8
      0 ~ -0.009
      8
      62
      Step Length + 18
      1 pieces
      8
      60 ～ 120
      15 ～ 35
      6.5 ～ 8.19
      10
      0 ~ -0.009
      10
      69
      Step Length + 24
      1 pieces
      10
      60 ～ 120
      15 ～ 45
      8.2 ～ 9.99
      12
      0 ~ -0.011
      12
      77
      Step Length + 30
      1 pieces
      12
      60 ～ 120
      20 ～ 50
      10 ～ 11
      14
      0 ~ -0.011
      14
      86
      Step Length + 36
      1 pieces
      Unit price (excluding VAT)(Unit price including VAT)
      Standard shipping days
      -
      ( - )
      12 working days
      -
      ( - )
      12 working days
      -
      ( - )
      12 working days
      -
      ( - )
      12 working days
      -
      ( - )
      12 working days
      -
      ( - )
      12 working days
      -
      ( - )
      12 working days
    • 1

      • More Information

      Basic information

      [Features]
      -No complicated estimates required. It is possible to order the part number of the step drill without drawings
      .

      Specifications and price

      Specifications

      Carbide Stepped Drill, for Drilling Pilot Holes for Screws, with Chamfering Blade, Size Designation Model:Related Image

      Model Number Tip Diameter
      D
      0.01 mm Increment Designation      		Step Length
      ℓ
      1 mm Increment Designation      		Chamfer Angles
       Double Angle θ
      (Selection)      		Large Diameter
      D1      		ℓ1Groove Length
      L1      		Overall Length
      L      		Shank Diameter
      d
      Nominal
      M
      C-SC-TSDR32.20 ~2.995 ~ 13 450ℓ+8ℓ+ℓ14
      43.00 ~3.895 ~ 18 659ℓ+136
      53.90 ~4.698 ~ 2360861ℓ+168
      64.70 ~6.4910 ~ 2890862ℓ+188
      86.50 ~8.1915 ~ 351201069ℓ+2410
      108.20 ~9.9915 ~ 45 1277ℓ+3012
      1210.00 ~ 11.0020 ~ 50 1486ℓ+3614


      For Cutting Conditions, Refer to >>Click here.

      Features and usage examples

      More Information


      ● Pilot holes for M3-M12 metric coarse thread (boring / chamfering) can be done in a single step to realize a high-efficiency process.
      ● Since the tip diameter, step length, and chamfering angle can all be chosen freely, the tool shape can be manufactured as you like.

      Additional options and coating

      Alterations

      Additional Processing DetailsCodeDetails
      TS CoatingTSCarbide Stepped Drill, for Drilling Pilot Holes for Screws, with Chamfering Blade, Size Designation Model:Related ImageWith TS Coating
      TiAℓN
      Coat      		TACarbide Stepped Drill, for Drilling Pilot Holes for Screws, with Chamfering Blade, Size Designation Model:Related ImageTiAℓN with Coating
