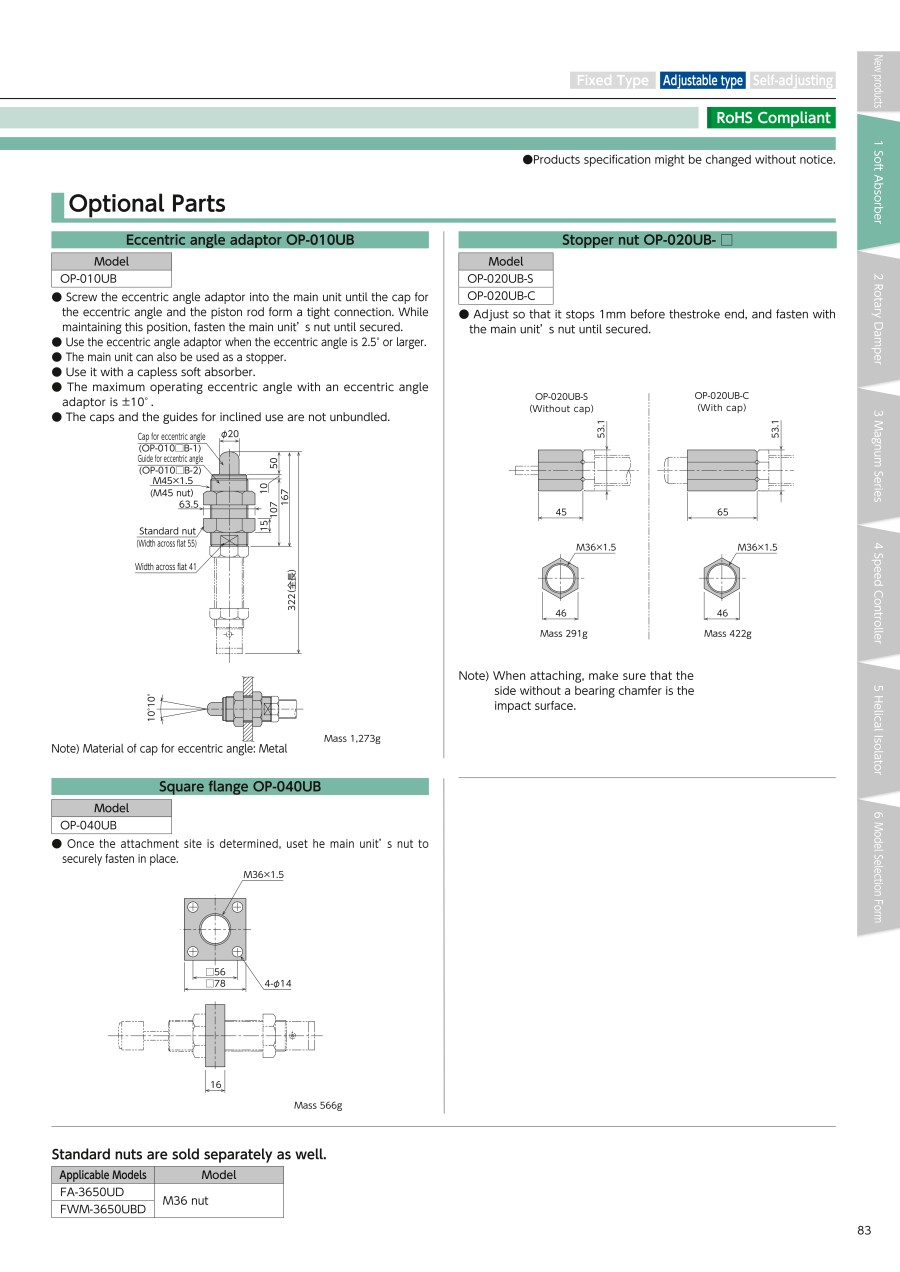

Optional Parts - (Stopper Nut) OP-020UB
This product prevents bottoming (resistance generated when the stroke end is mechanically impacted) from directly acting on the end of the damper. Be sure to use it when there is no external stopper.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| OP-020UB-C |
| OP-020UB-S |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Overall Length (mm) | Cap | |
|---|---|---|---|---|---|---|---|
52.18 € | 1 | 10 Days | 10 | 65 | Available | ||
42.11 € | 1 | 10 Days | 10 | 45 | NA |
Loading...
Basic information
| Main Body/Related Parts | Related Components | Main Body Material | Steel | Diameter of Screw with External Damper Shape(mm) | M36 |
|---|---|---|---|---|---|
| Damper Stroke(mm) | 50 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
