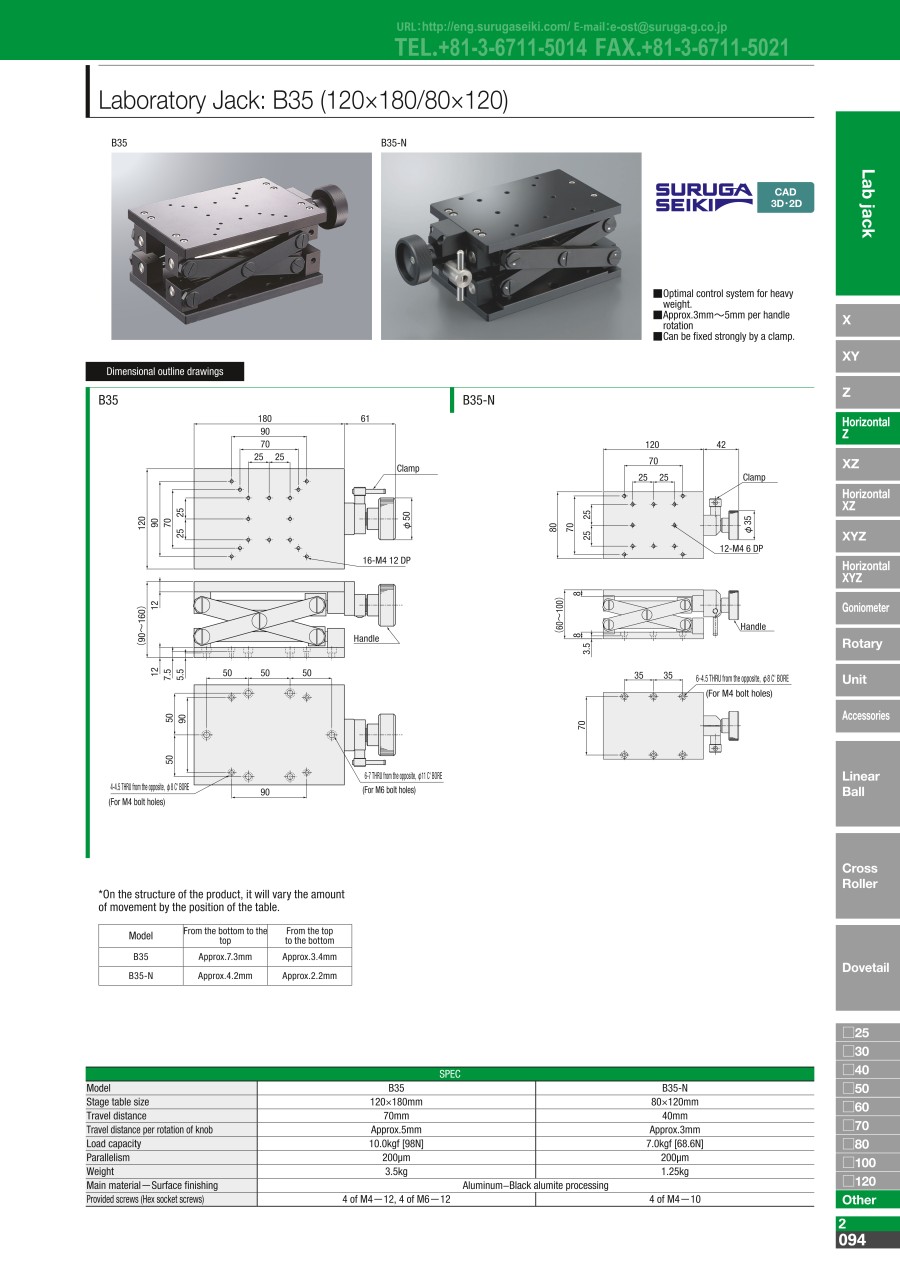

Lab Jack
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| B35 |
| B35-N |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Table Size (Length) L (Range Selectable) (mm) | Table Size (Width) W (Range Selectable) (mm) | Stroke (Range Selectable) | Table Size (Thickness) H (Range Selectable) (mm) | Table Size (Length) L (mm) | Table Size (Width) W (mm) | Allowable Load (N) | Stroke (Z Distance) (mm) | Table Size (Thickness) H (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
730.57 € | 1 | Available | 5 Days | 10 | 121～ | 91~120 | ±30mm~ | 80.1~100 | 180 | 120 | 98 | ±35 | 90 | |
841.48 € | 1 | Available | 5 Days | 10 | 91~120 | 61~90 | ±10~30mm | 50.1~60 | 120 | 80 | 68.6 | ±20 | 60 |
Loading...
Basic information
| Type | Horizontal Surface Z-Axis | Load Capacity (Range Selectable)(N) | 50.1~100 | Feeding Method | Handle |
|---|---|---|---|---|---|
| Table Material | Aluminum Alloy | Table Surface Treatment | Black Anodized Aluminum | Guiding Mechanism | Lab Jacks |
| Z-Axis Stage Surface | Horizontal | Through Hole (Table Center Hole) | NA | Table Parallelism(µm) | 200 |
| Feed Knob Position | Center | Clamp | Standard | Reversed | Standard |
| Feed method (handle type) | Standard |
Configure
Basic Attributes
-
Table Size (Length) L (Range Selectable)(mm)
-
Table Size (Width) W (Range Selectable)(mm)
-
Stroke (Range Selectable)
- ±10~30mm
- ±30mm~
-
Table Size (Thickness) H (Range Selectable)(mm)
-
Table Size (Length) L(mm)
-
Table Size (Width) W(mm)
-
Allowable Load(N)
-
Stroke (Z Distance)(mm)
-
Table Size (Thickness) H(mm)
-
Type
- B35
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
