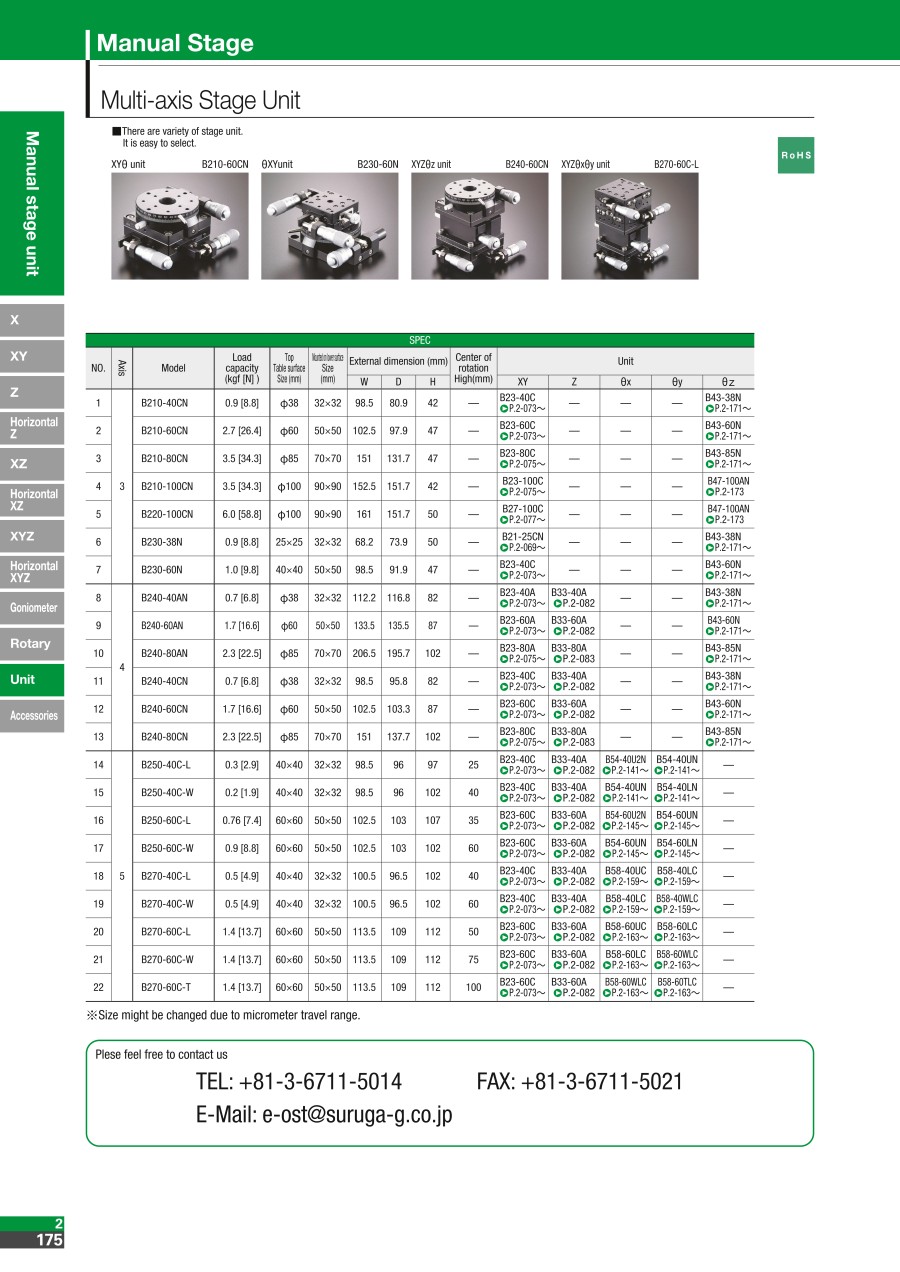

Multi-Axis Stage Unit
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Table Size (Dia.) (Range Selectable) (D(Ø)) | Load Capacity (Range Selectable) (N) | Table Size (Dia.) D (Ø) | Allowable Load (N) | Multi-Axis Stage Combination | Table Size (Length) L (mm) | Table Size (Width) W (mm) | Goniometer Stages Rotation Center Height (mm) | Feed Knob Position | External Dimension W (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
632.78 € | 1 | 9 Days | 10 | XY Axis + Rotary Stage | 50mm or Less | 5–30 | 38 | 8.8 | XYθ Axis Stage | - | - | - | Side | 98.5 | ||
745.15 € | 1 | 5 Days | 10 | XY Axis + Rotary Stage | 60mm | 5–30 | 60 | 26.4 | XYθ Axis Stage | - | - | - | Side | 102.5 | ||
898.77 € | 1 | 5 Days | 10 | XY Axis + Rotary Stage | 85mm | 30.1~50 | 85 | 34.3 | XYθ Axis Stage | - | - | - | Side | 151 | ||
1,593.07 € | 1 | 8 Days | 10 | XY Axis + Rotary Stage | 100mm or More | 30.1~50 | 100 | 34.3 | XYθ Axis Stage | - | - | - | Side | 152.5 | ||
1,829.20 € | 1 | 8 Days | 10 | XY Axis + Rotary Stage | 100mm or More | 50.1~100 | 100 | 58.8 | XYθ Axis Stage | - | - | - | Side | 161 | ||
674.83 € | 1 | 8 Days | 10 | XY Axis + Rotary Stage | - | 5–30 | - | 8.8 | XYθ Axis Stage | 25 | 25 | - | Side | 68.2 | ||
858.72 € | 1 | 8 Days | 10 | XY Axis + Rotary Stage | - | 5–30 | - | 9.8 | XYθ Axis Stage | 40 | 40 | - | Side | 98.5 | ||
1,261.10 € | 1 | 8 Days | 10 | XYZ Axis + Rotary Stage | 50mm or Less | 5–30 | 38 | 6.8 | XYZθ Axis Stage | - | - | - | Center | 112.2 | ||
1,195.73 € | 1 | 9 Days | 10 | XYZ Axis + Rotary Stage | 50mm or Less | 5–30 | 38 | 6.8 | XYZθ Axis Stage | - | - | - | Side | 98.5 | ||
1,335.29 € | 1 | 9 Days | 10 | XYZ Axis + Rotary Stage | 60mm | 5–30 | 60 | 16.6 | XYZθ Axis Stage | - | - | - | Center | 133.5 | ||
1,335.29 € | 1 | 5 Days | 10 | XYZ Axis + Rotary Stage | 60mm | 5–30 | 60 | 16.6 | XYZθ Axis Stage | - | - | - | Side | 102.5 | ||
1,541.89 € | 1 | 8 Days | 10 | XYZ Axis + Rotary Stage | 85mm | 5–30 | 85 | 22.5 | XYZθ Axis Stage | - | - | - | Center | 206.5 | ||
1,541.89 € | 1 | 5 Days | 10 | XYZ Axis + Rotary Stage | 85mm | 5–30 | 85 | 22.5 | XYZθ Axis Stage | - | - | - | Side | 151 | ||
1,763.09 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 1~4.9 | - | 2.9 | XYZαβ Axis Stage | 40 | 40 | 25 | Side | 98.5 | ||
1,763.09 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 1~4.9 | - | 1.9 | XYZαβ Axis Stage | 40 | 40 | 40 | Side | 98.5 | ||
2,100.04 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 5–30 | - | 7.4 | XYZαβ Axis Stage | 60 | 60 | 35 | Side | 102.5 | ||
2,100.04 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 5–30 | - | 8.8 | XYZαβ Axis Stage | 60 | 60 | 60 | Side | 102.5 | ||
2,777.78 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 1~4.9 | - | 4.9 | XYZαβ Axis Stage | 40 | 40 | 40 | Side | 100.5 | ||
2,777.78 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 1~4.9 | - | 4.9 | XYZαβ Axis Stage | 40 | 40 | 60 | Side | 100.5 | ||
2,757.82 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 5–30 | - | 13.7 | XYZαβ Axis Stage | 60 | 60 | 50 | Side | 113.5 | ||
2,757.76 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 5–30 | - | 13.7 | XYZαβ Axis Stage | 60 | 60 | 100 | Side | 113.5 | ||
2,757.76 € | 1 | 9 Days | 10 | XYZ Axis + XY Axis Gonio Stages | - | 5–30 | - | 13.7 | XYZαβ Axis Stage | 60 | 60 | 75 | Side | 113.5 |
Loading...
Basic information
| Feeding Method | EN 1.4125 Equiv. | Table Material | Aluminum | Table Surface Treatment | Black Anodized Aluminum |
|---|---|---|---|---|---|
| Through Hole (Table Center Hole) | NA | Clamp | Standard | Reversed | Standard |
| Feed method (micrometer type) | Standard | Feed pitch(mm) | 0.5mm |
Configure
Basic Attributes
-
Type
- XY Axis + Rotary Stage
- XYZ Axis + Rotary Stage
- XYZ Axis + XY Axis Gonio Stages
-
Table Size (Dia.) (Range Selectable)(D(Ø))
-
Load Capacity (Range Selectable)(N)
- 1~4.9
- 5–30
- 30.1~50
- 50.1~100
-
Table Size (Dia.) D(Ø)
-
Allowable Load(N)
-
Multi-Axis Stage Combination
- XYθ Axis Stage
- XYZθ Axis Stage
- XYZαβ Axis Stage
-
Table Size (Length) L(mm)
-
Table Size (Width) W(mm)
-
Goniometer Stages Rotation Center Height(mm)
-
Feed Knob Position
- Center
- Side
-
External Dimension W(mm)
-
Type
- B210
- B220
- B230
- B240
- B250
- B270
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 8 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
