Configure

Main Body Material
- Brass (Electroless Nickel Plating)
- Zinc Alloy Die-Cast
OUT
- Female Thread
- Single-Action Coupling
Effective Sectional Area(mm²)
- 1.3
- 5
- 10
- 17
- 27
Effective Sectional Area【classification】(㎜2)
* ~10 represents over 5, and 10 or less.
Types of connection port
- R
Nominal Mounting Screw
- 1/2
- 1/4
- 1/8
- 3/8
- M5
Applicable Tube Diameter/Screw Diameter
- Rc1/2
- Rc1/4
- Rc1/8
- Rc3/8
- φ6
- φ8
- φ10
- φ12
Type
- FPV
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 6 working days
- Within 8 working days
- Within 12 working days

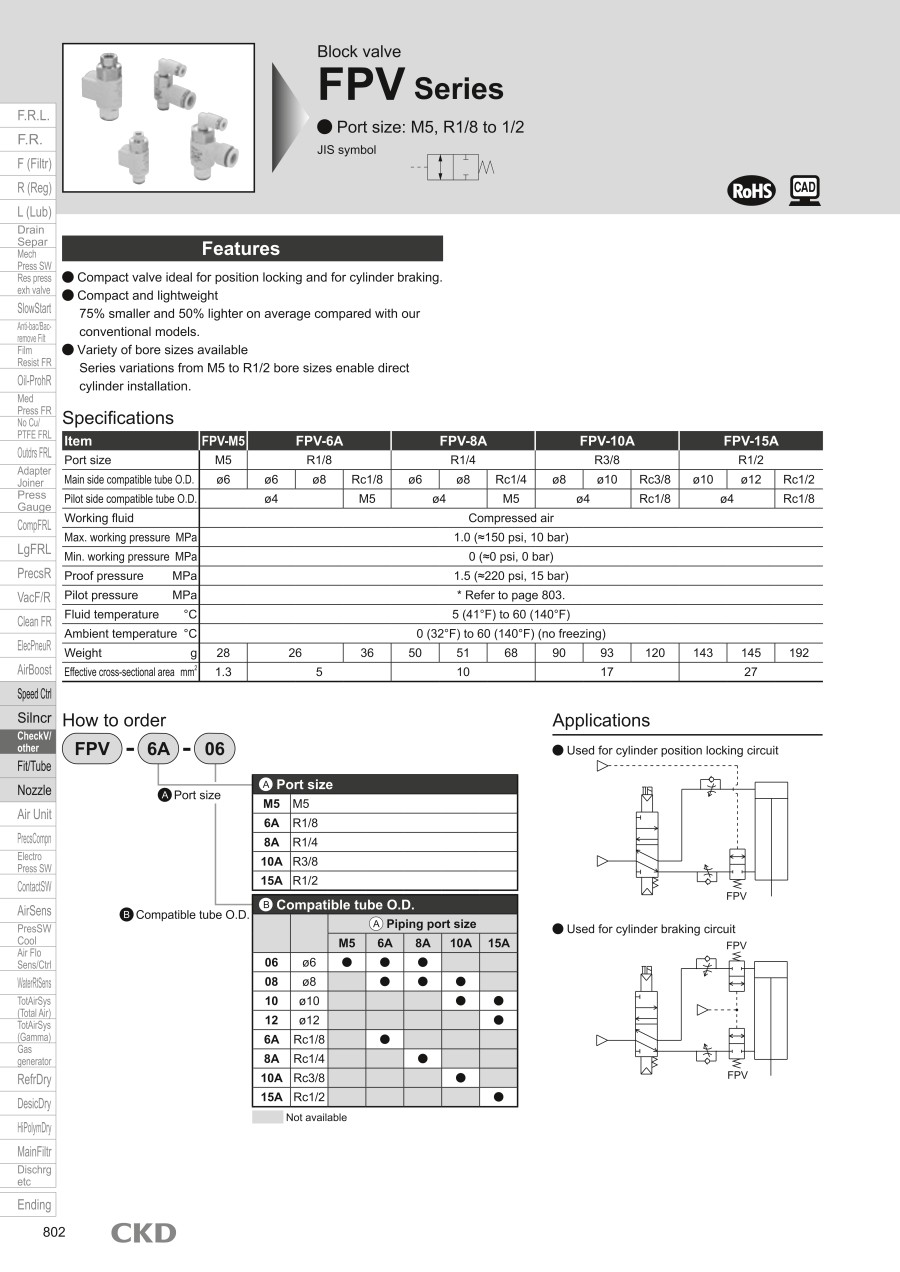

Block Valve, FPV Series

Part number:

Still undefined. 12 possible part numbers found.

Part number list

Number of items

Part number

Main Body Material

OUT

Effective Sectional Area

(mm²)

Effective Sectional Area【classification】

(㎜2)

Types of connection port

Nominal Mounting Screw

Applicable Tube Diameter/Screw Diameter

Minimum order quantity

Brass (Electroless Nickel Plating)	Single-Action Coupling	5	5 or Less	R	1/8	φ6	1 pieces
Brass (Electroless Nickel Plating)	Single-Action Coupling	5	5 or Less	R	1/8	φ8	1 pieces
Zinc Alloy Die-Cast	Female Thread	5	5 or Less	R	1/8	Rc1/8	1 pieces
Brass (Electroless Nickel Plating)	Single-Action Coupling	10	Up to 10	R	1/4	φ6	1 pieces
Brass (Electroless Nickel Plating)	Single-Action Coupling	10	Up to 10	R	1/4	φ8	1 pieces
Zinc Alloy Die-Cast	Female Thread	10	Up to 10	R	1/4	Rc1/4	1 pieces
Brass (Electroless Nickel Plating)	Single-Action Coupling	17	Up to 20	R	3/8	φ8	1 pieces
Brass (Electroless Nickel Plating)	Single-Action Coupling	17	Up to 20	R	3/8	φ10	1 pieces
Zinc Alloy Die-Cast	Female Thread	17	Up to 20	R	3/8	Rc3/8	1 pieces
Brass (Electroless Nickel Plating)	Single-Action Coupling	27	Up to 30	R	1/2	φ12	1 pieces
Zinc Alloy Die-Cast	Female Thread	27	Up to 30	R	1/2	Rc1/2	1 pieces
Brass (Electroless Nickel Plating)	Single-Action Coupling	1.3	5 or Less	-	M5	φ6	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

Compact valve suitable to prevent cylinder drop and interim stops.
